Манометр для воздушного компрессора Yong heng
US $8.00-$16.00
10HP холодильные осушители воздуха газовый компрессор R134
- Категория: Industrial Compressor Parts >>>
- Поставщик: Dongguan,City,Jiubei,Compressor,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 309.57 $* | 315.58 $* |
| Jul-18-2025 | 250.99 $* | 255.13 $* |
| Jun-18-2025 | 304.5 $* | 310.42 $* |
| May-18-2025 | 301.5 $* | 307.83 $* |
| Apr-18-2025 | 241.64 $* | 246.27 $* |
| Mar-18-2025 | 296.43 $* | 302.8 $* |
| Feb-18-2025 | 294.9 $* | 300.10 $* |
| Jan-18-2025 | 292.28 $* | 298.47 $* |
Характеристики

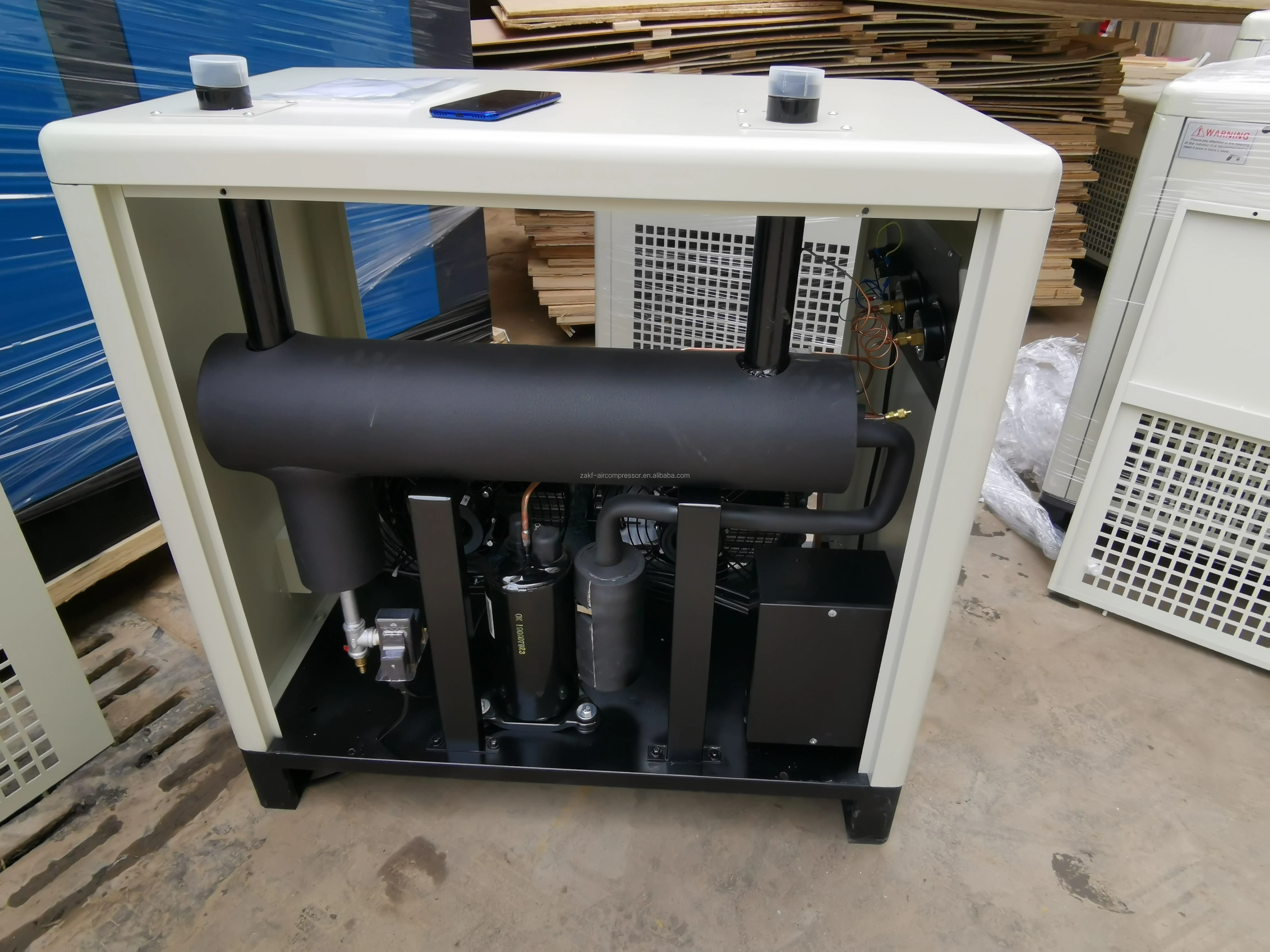

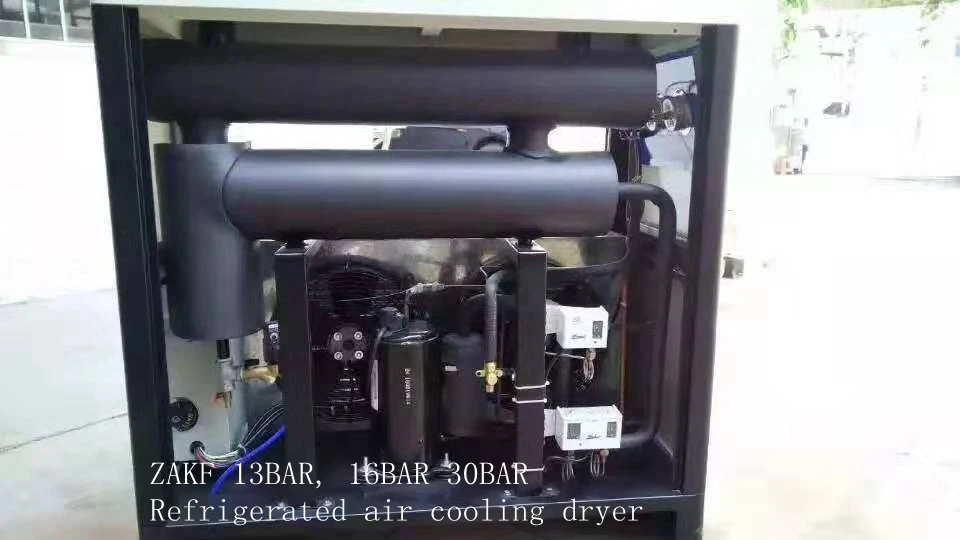

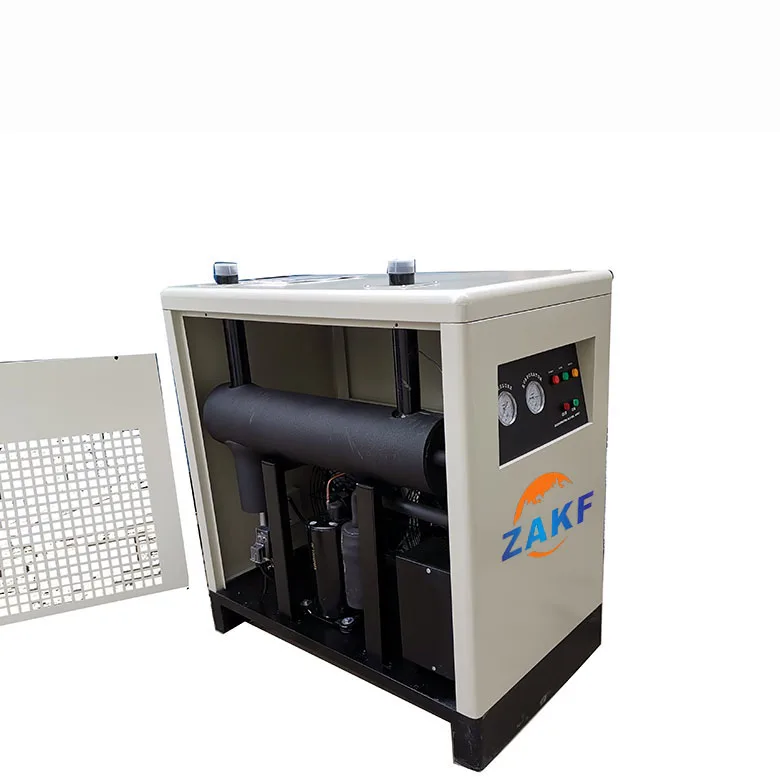

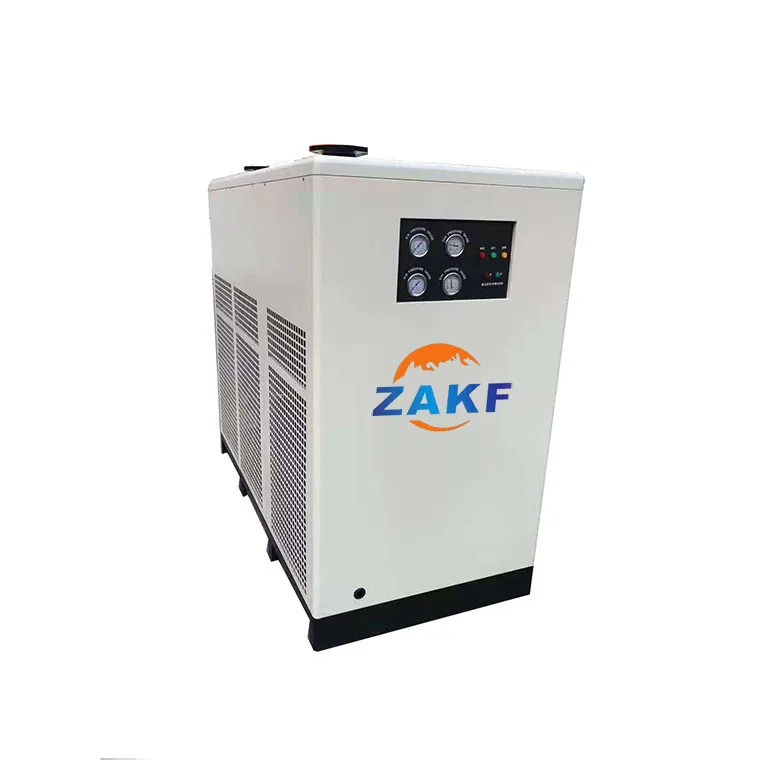

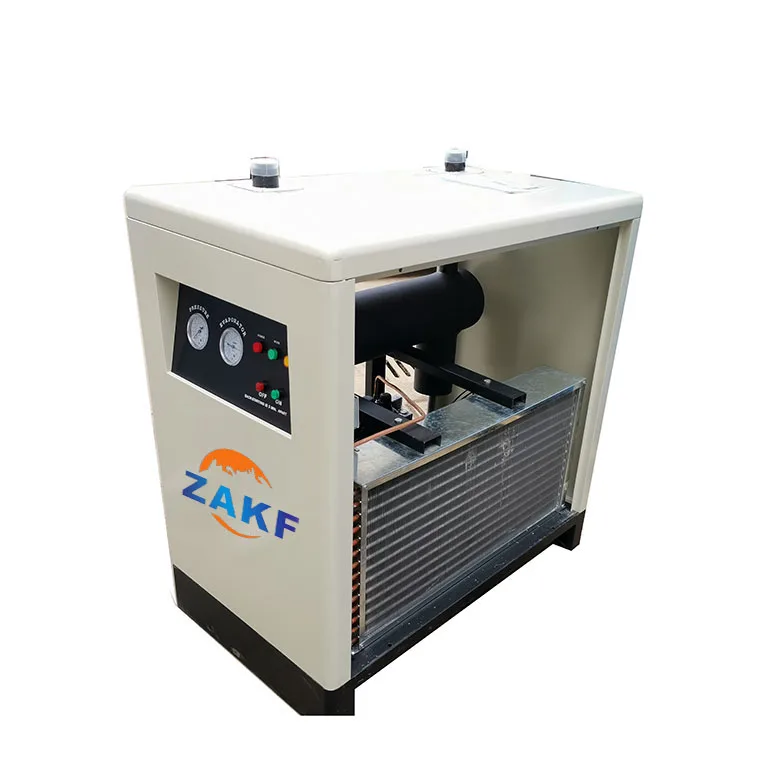

8bar 10bar 13m3/min industrial compressed refrigerated air dryer for screw air compressor
Product Description
Product Name | Water Cooling Air Dryer |
Model | AC-10 |
Capacity | 1.5m3/min |
Voltage | 220V/50Hz |
Power | 10bar |
Refrigeration Type | R410,R22,R134a,R407C |
Caliber of Tube | 1“PT |
Weight | 60KG |
Dimension | 700*450*730 |
After-sales Service Provided | Online support |
ZAKF refrigerator air dryer | ||||||||
Model | CAPACITY | Refrigerant | Voltage | Pressure | ||||
10HP | 1.5M3/MIN | R134a | 220V/50HZ | 8-10KG | ||||
15HP | 2.0M3/MIN | R134a | 220V/50HZ | 8-10KG | ||||
20HP | 2.5M3/MIN | R134a | 220V/50HZ | 8-10KG | ||||
25HP | 3.0M3/MIN | R134a | 220V/50HZ | 8-10KG | ||||
30HP | 3.8M3/MIN | R22 | 220V/50HZ | 8-10KG | ||||
50HP | 6.5M3/MIN | R22 | 220V/50HZ | 8-10KG | ||||
75HP | 10.5 M3/MIN | R22 | 220V/50HZ | 8-10KG | ||||
100HP | 13 M3/MIN | R22 | 220V/50HZ | 8-10KG | ||||
120HP | 18M3/MIN | R22 | 380V/50HZ | 8-10KG | ||||
150HP | 22 M3/MIN | R22 | 380V/50HZ | 8-10KG | ||||
180HP | 25 M3/MIN | R22 | 380V/50HZ | 8-10KG | ||||
200HP | 28 M3/MIN | R22 | 380V/50HZ | 8-10KG | ||||
250HP | 32 M3/MIN | R22 | 380V/50HZ | 8-10KG | ||||
300HP | 36 M3/MIN | R22 | 380V/50HZ | 8-10KG | ||||
400HP | 45 M3/MIN | R22 | 380V/50HZ | 8-10KG | ||||
500HP | 55 M3/MIN | R22 | 380V/50HZ | 8-10KG | ||||
Main Feature
⇒ Strictly in accordance with ISO9001, GB150 standard, ISO 7183 cold standard, QS, pressure vessel inspection specifications for
design, manufacturing, production and testing to ensure safe and reliable operation of products; ⇒ New fully enclosed
refrigeration compressor, super cooling, stable operation, low noise, save electricity, and have a long service life;
⇒ The heat exchanger and the condenser are made of high-quality materials, with high heat transfer coefficient, small volume and
compact structure;
⇒ The structure of the equipment is reasonable in design, easy to maintain, and the box shape is beautiful;
⇒ Better heat transfer efficiency, and ensure the stability of the dew point;
⇒ The specially designed heat exchanger perfectly utilizes the heat exchange between the outlet and the inlet. Avoid condensation
on the pipeline and achieve more energy-saving effects;
⇒ The high-efficiency gas-water separation device is designed with good drainage system, is not blocked, and can be cleaned
regularly with a filter screen to continuously and stably discharge the condensate water out of the machine;
⇒ The heat dissipation system automatically controls the fan power supply with an automatic pressure switch to achieve maximum
power saving effect;
⇒ Unique refrigeration system design, low temperature and no ice, good refrigerant filtration system, no ice blocking phenomenon;
completely remove compressed air moisture;
⇒ Low operating costs, low consumables, and the cost of consumables.
We have:1. The Refrigerated Compressed Air Dryer
2. The Adsorbed Compressed Air Dryer ( Heatless Purge, Externally Heated Purge )
3. Consumption Compression Heat Regeneration Type Dryer
4. Blast Regeneration Type Dryer
5. Low dew point Compress Air Dryer
⇒ Strictly in accordance with ISO9001, GB150 standard, ISO 7183 cold standard, QS, pressure vessel inspection specifications for
design, manufacturing, production and testing to ensure safe and reliable operation of products; ⇒ New fully enclosed
refrigeration compressor, super cooling, stable operation, low noise, save electricity, and have a long service life;
⇒ The heat exchanger and the condenser are made of high-quality materials, with high heat transfer coefficient, small volume and
compact structure;
⇒ The structure of the equipment is reasonable in design, easy to maintain, and the box shape is beautiful;
⇒ Better heat transfer efficiency, and ensure the stability of the dew point;
⇒ The specially designed heat exchanger perfectly utilizes the heat exchange between the outlet and the inlet. Avoid condensation
on the pipeline and achieve more energy-saving effects;
⇒ The high-efficiency gas-water separation device is designed with good drainage system, is not blocked, and can be cleaned
regularly with a filter screen to continuously and stably discharge the condensate water out of the machine;
⇒ The heat dissipation system automatically controls the fan power supply with an automatic pressure switch to achieve maximum
power saving effect;
⇒ Unique refrigeration system design, low temperature and no ice, good refrigerant filtration system, no ice blocking phenomenon;
completely remove compressed air moisture;
⇒ Low operating costs, low consumables, and the cost of consumables.
We have:1. The Refrigerated Compressed Air Dryer
2. The Adsorbed Compressed Air Dryer ( Heatless Purge, Externally Heated Purge )
3. Consumption Compression Heat Regeneration Type Dryer
4. Blast Regeneration Type Dryer
5. Low dew point Compress Air Dryer
Our Company
VR
Dear Sir,
It gives us great pleasure to introduce ZAKF oil injected rotary screw air Compressor. Our company Honkong Jiubei
Industry Limited is a large enterprises which is professional in air compressor and air compressor parts research, development and research. ZAKF is one of a famous compressor brand belong to Honkong Jiubei Industry Limited , ZAKF screw air compressor shipped to worldwide customer in Malaysia,Vietnam, Singapore, Indonesia, Thailand, India, Bangladesh,Sri Lanka, Mauritius, Australia, Saudi Arabia, Israel, Russia, Croatia, Brazil, Peru, USA, Mexico, Canada, Dominican Republic.... widely used in diverse industry.
ZAKF compressor design, manufacturing at a high starting point, advanced technology, superior level of systemization, its core competencies to guide the development trend of industry, stable and reliable. ZAKF import advanced technology from Europe, through constant practice and improvement, design a new generation of ZAKF air compressor.
Industry Limited is a large enterprises which is professional in air compressor and air compressor parts research, development and research. ZAKF is one of a famous compressor brand belong to Honkong Jiubei Industry Limited , ZAKF screw air compressor shipped to worldwide customer in Malaysia,Vietnam, Singapore, Indonesia, Thailand, India, Bangladesh,Sri Lanka, Mauritius, Australia, Saudi Arabia, Israel, Russia, Croatia, Brazil, Peru, USA, Mexico, Canada, Dominican Republic.... widely used in diverse industry.
ZAKF compressor design, manufacturing at a high starting point, advanced technology, superior level of systemization, its core competencies to guide the development trend of industry, stable and reliable. ZAKF import advanced technology from Europe, through constant practice and improvement, design a new generation of ZAKF air compressor.
Improved quality assurance manual, advanced production process, control management program files comprehensive, standardized, ensuring high quality brand products “ZAKF”, stable and durable. High quality, intimate service get the praise from users all over the world.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Supply of accessorise
* Information supply
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Machine maintenance
* Proposal of improvement
Customer Photos
Packing & shipping
Customer Evaluation
FAQ
Q:Are you a factory or trade company?
A:We are a factory,we provide screw Air compressors,Air receivers,UltraFilters,Dryers,Electronic condensate drains and Oil/Water separators.
Q:How to pay?
A:T/T and L/C,Western Union,Paypal.
Q:How about your monthly production?
A:8000sets/month.
Q: what’s the advantages of your company?
A:1. I have factory,the quality can be control.
2. the price is good
3. I have professional team
4. we can be your oem factory
5. Excellent after service.
6. we have inverter compressor, it can save energy.
Q:How to package&delivery?
A:we will use standard wooden case to package and shipped after finishing payment.
Q:How many services you will provide about air compressor?
A:we will provie perfect before-sales and after-sales for each machine.
