Коаксиальный кабель связи
- Категория: Communication Cables >>>
- Поставщик: Hangzhou,Diege,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.13 $* | 0.69 $* |
| Aug-16-2025 | 0.44 $* | 0.97 $* |
| Jul-16-2025 | 0.53 $* | 0.55 $* |
| Jun-16-2025 | 0.31 $* | 0.26 $* |
| May-16-2025 | 0.98 $* | 0.20 $* |
| Apr-16-2025 | 0.74 $* | 0.60 $* |
| Mar-16-2025 | 0.98 $* | 0.53 $* |
| Feb-16-2025 | 0.2 $* | 0.47 $* |
| Jan-16-2025 | 0.90 $* | 0.43 $* |
Характеристики
Products Description
High performance RG59 cable
High performance RG59 cable (also same to as RG6 cable, RG11 cable) for connecting a cable television (CATV), VCR, satellite receiver, cable box, digital router, cable modem, antenna, or other devices with RG59 F-type coaxial (RG59 F-pin coaxial) port
Dual/ Tri/ Quad shielded RG59
Dual/ Tri/ Quad shielded RG59 coaxial cable is the perfect choice for DirectTV and Dish Network systems at up to 3 GHz
RG11/U coaxial cable specifications | ||||
Material of Inner Conductor | Bare Copper, CCS | |||
Structure of Inner Conductor | 1/1.63 mm | |||
Material of Insulation | FPE | |||
Diameter of Insulation | 7.11 mm | |||
1st Shielding | Aluminum Foil | |||
Material of Braiding(2nd Shielding) | CCA, Bare Copper, Tinned Copper | |||
Structure of Braiding | 128* 0.12mm/ 128*0.15mm | |||
Material of Jacket | PVC/PE/LSZH | |||
Diameter of Jacket | 10.2 MM | |||
Working temp | -40℃---80℃ | |||
Impedance | 75Ω±3 | |||
Max Operating Voltage | 5000V | |||

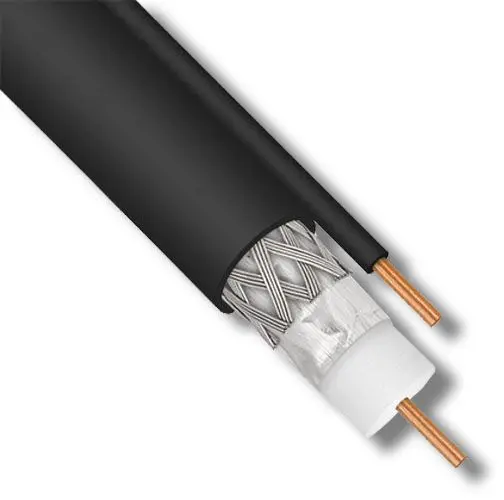

RG11 with steel messenger
Return Loss:
1-470MHZ >=18dB
470-1000MHZ >=20dB
Attenuation:
5MHZ 1.40dB/100m
1000MHZ 14.27dB/100m
Product packaging
more different packages be provide as your request!
Why Choose Us
Company Profile
Hangzhou Diege Cable Co., Ltd
We Hangzhou Diege Cable Co.,Ltd is a Pioneer manufacturer with more than 10 years' experience in the communication cable industry in China. We can professionally manufacture and supply coaxial cables, lan cables, fiber optic cables, alarm cables, and the cable assembly etc, Our current production capacity is about 500,000,000 meters per year. We have passed CE, ROHS, ISO9001 ,CPR,ANATEL certificate. Most of our products are exported to Europe, America, and South-east Asia, etc. What is more, our company always devotes to developing custom cables according to clients' needs. We look forward to working with you and getting mutual benefit in future.
