Конвейерная лента для суши Faith Factory
US $170.00
Пневматический вакуумный отгружаемый разгрузчик конвейер для обработки зерна всасывающий Тип Удельный гравитационный
- Категория: Conveyors >>>
- Поставщик: Contrust,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 357.16 $* | 375.96 $* |
| Aug-17-2025 | 354.17 $* | 372.46 $* |
| Jul-17-2025 | 297.94 $* | 312.58 $* |
| Jun-17-2025 | 348.2 $* | 365.81 $* |
| May-17-2025 | 303.27 $* | 318.49 $* |
| Apr-17-2025 | 342.89 $* | 359.48 $* |
| Mar-17-2025 | 339.88 $* | 356.87 $* |
| Feb-17-2025 | 336.68 $* | 353.61 $* |
| Jan-17-2025 | 333.75 $* | 350.6 $* |
Характеристики
Products Description

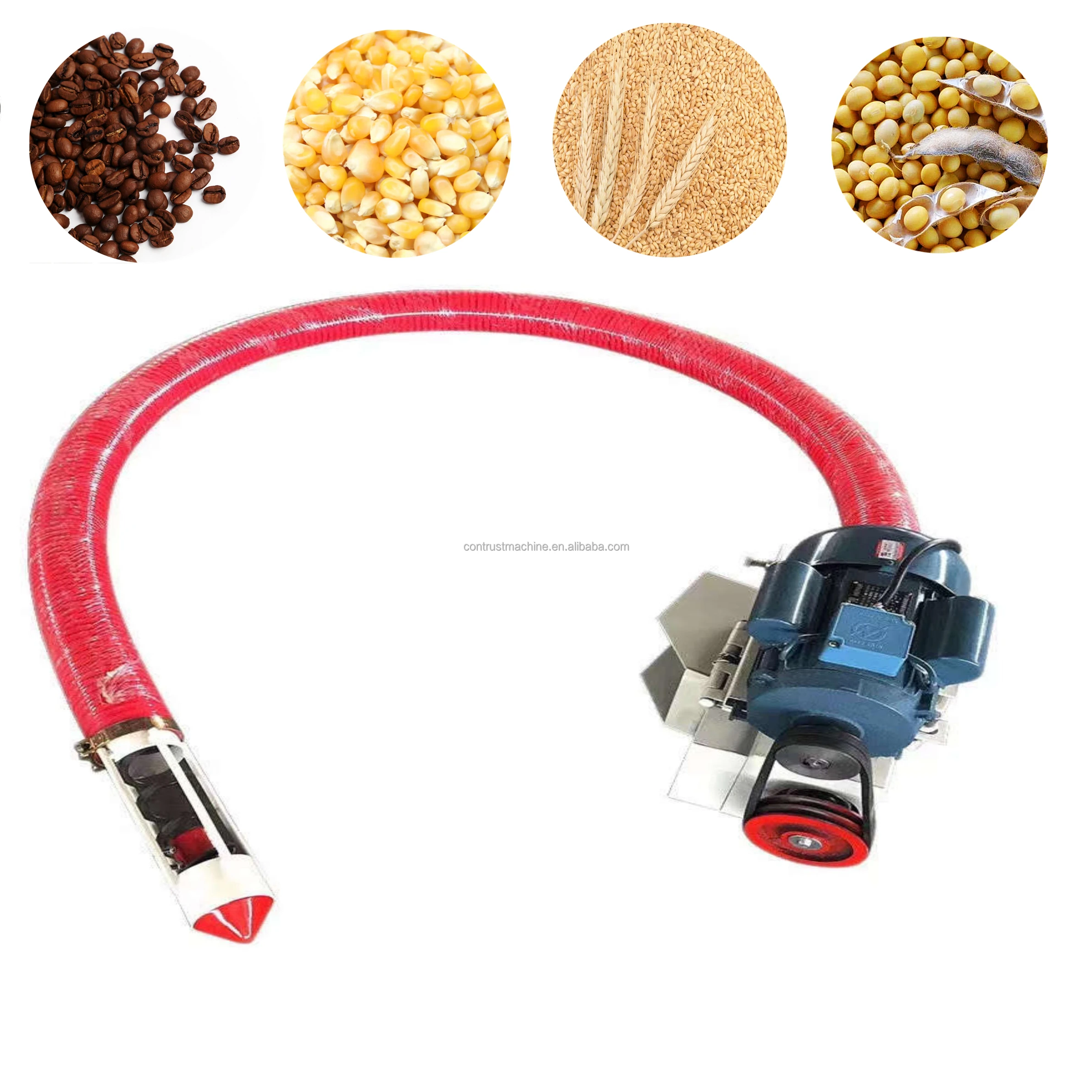

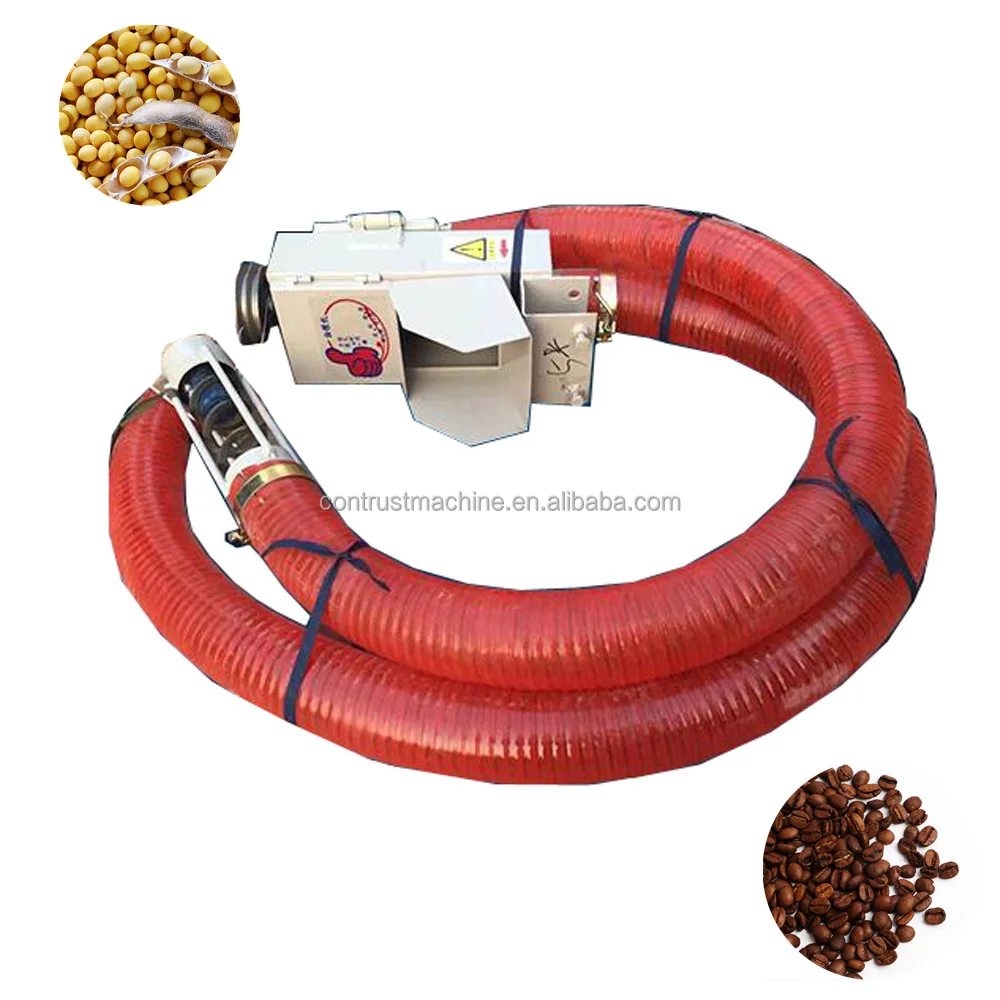

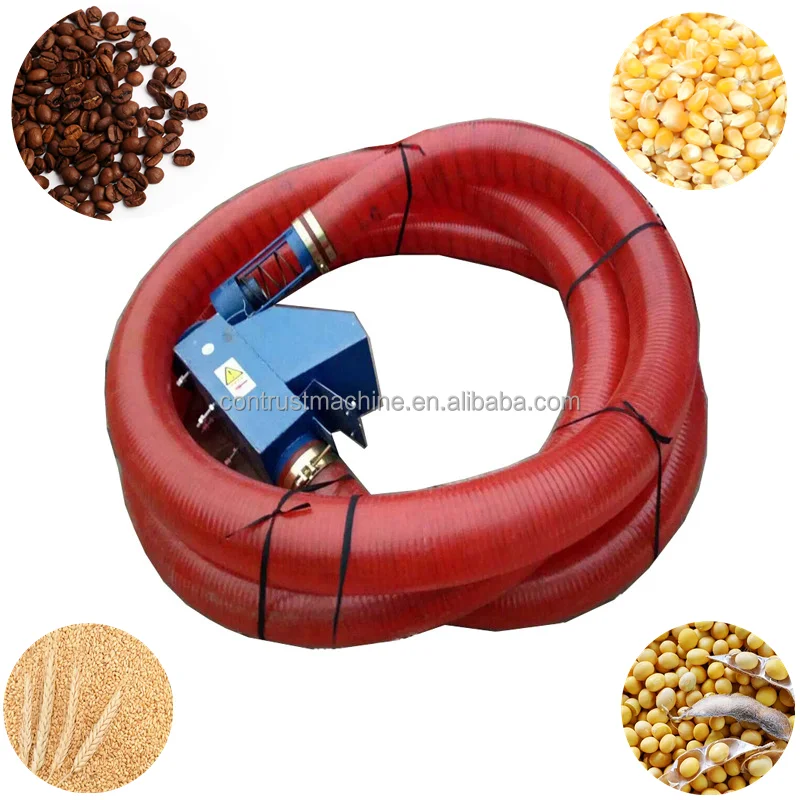

Flexible hose spiral lifting grain conveyor is a new design machine developed by our company in accordance with the national conditions. This product is specially designed for the transportation, loading and storage of bulk powder such as grain, fertilizer, chemical raw materials, stone, sand and so on. It has the advantages of small size, light weight, convenient movement, high efficiency, low damage rate, wide use, safety and reliability. It is suitable for farms, warehouses, farms, feed factories, food factories, chemical factories, mining and so on.
Details Images
High temperature bakin paint
Uniform color.
Not easy to rust.
Import spiral
Good toughness.
Good wear resistance.
The outer edge through special treatment, smooth and will not cause damage to the pipe wall.
Copper core motor
International copper core motor.
Voltage can be customized.
Thicken hose design
Thicken PVC tube.
30 degrees below zero doesn't harden.
All open material bucket
During the pumping process, in case something gets stuck at the top of the screw, the screw can be unscrewed to remove the stuck material.
Specification
Pipe Length(m) | Dia of the Pipe (inch-mm) | Efficiency (t/h) | Motor (kw) | Lifting height(m) | Weight (kg) |
4 | 3inch-75 mm | 3--5 | Single-phase 2.2kw | 3--5 | 40kg |
5 | 3inch-75 mm | 3--5 | Single-phase 2.2kw | 3--5 | 50kg |
6 | 3inch-75 mm | 3--5 | Single-phase 2.2kw | 3--5 | 55kg |
7 | 4 inch-100 mm | 6--8 | Single-phase 3kw | 3--5 | 61.5 kg |
8 | 4 inch-100 mm | 6--8 | Single-phase 3kw | 3--5 | 64 kg |
9 | 4 inch-100 mm | 6--8 | Single-phase 3kw | 3--5 | 66.5 kg |
10 | 5 inch-130 mm | 8--10 | Three-phase 3 kw | 3--5 | 92 kg |
11 | 5 inch-130 mm | 8--10 | Three-phase 3 kw | 3--5 | 96 kg |
12 | 5 inch-130 mm | 8--10 | Three-phase 3 kw | 3--5 | 101 kg |
13 | 6 inch- 160 mm | 10--20 | Three-phase 5.5 kw | 3--5 | 119 kg |
Advantages
* It has the feature of small volume, large power, convenient to carry.
* The power source can adopt the single phase which is applied for home use.
* The best saving ideal machine for truck loading.
* Running in a high automatization and intellectualization,no pollution.
* Customized length is supported(6 meters, 8 meters ,10 meters is available).
* The power source can adopt the single phase which is applied for home use.

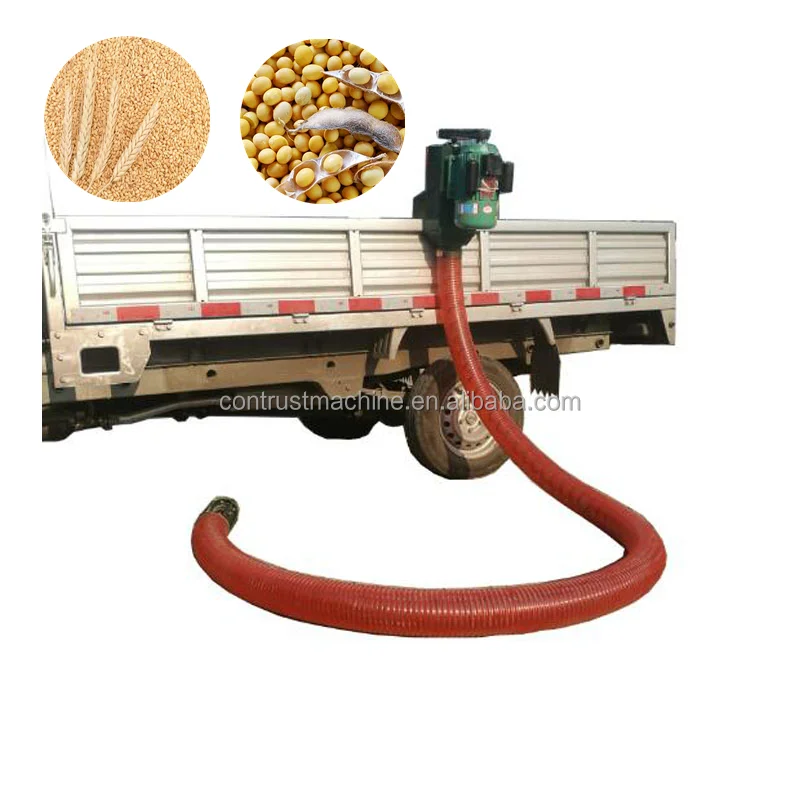

* The best saving ideal machine for truck loading.
* Running in a high automatization and intellectualization,no pollution.
* Customized length is supported(6 meters, 8 meters ,10 meters is available).
Application
Grain suction machine can be used to transfer different shapes of items and materials.
For example, grain, maize, soybean, sand, aggregates, gravel, cinder blocks.
Company Profile
Certifications
Packing details:
Standard export package.
Delivery time:
5-10 days 1 set after payment. The delivery time of bulk products depends on the quantity of machines.
Standard export package.
Delivery time:
5-10 days 1 set after payment. The delivery time of bulk products depends on the quantity of machines.
FAQ
● Can I customize the grain suction conveyor?
-- Yes. You can customize the length, diameter and motor power.
● What about the Minimum Quality Order?
-- The MOQ is 1 set. If you order large amount, you will get discount.
● What is the payment terms?
-- T/T, L/C, Western Union,credit card.
● Do you supply training and after-sale service?
-- Yes, we will supply installation and training on site or online. Also we have a professional service team that can solve problems as fast as possible.
● What about the warranty time of belt?
-- 12 months after shipment or 2000 working hours.
-- Yes. You can customize the length, diameter and motor power.
● What about the Minimum Quality Order?
-- The MOQ is 1 set. If you order large amount, you will get discount.
● What is the payment terms?
-- T/T, L/C, Western Union,credit card.
● Do you supply training and after-sale service?
-- Yes, we will supply installation and training on site or online. Also we have a professional service team that can solve problems as fast as possible.
● What about the warranty time of belt?
-- 12 months after shipment or 2000 working hours.
