Hualong; Машин Италия программного обеспечения 5 Axis CNC пила для резки камня каменная плитка резак машины мрамора
- Категория: Stone Machinery >>>
- Поставщик: Fujian,Province,Hualong,Machinery,Co.,Ltd.Fujian,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 50575.24 $* | 53104.39 $* |
| Aug-17-2025 | 50150.1 $* | 52658.98 $* |
| Jul-17-2025 | 42075.82 $* | 44179.61 $* |
| Jun-17-2025 | 49300.64 $* | 51765.62 $* |
| May-17-2025 | 42925.62 $* | 45071.50 $* |
| Apr-17-2025 | 48450.24 $* | 50873.43 $* |
| Mar-17-2025 | 48025.71 $* | 50426.16 $* |
| Feb-17-2025 | 47600.72 $* | 49980.66 $* |
| Jan-17-2025 | 47175.87 $* | 49534.24 $* |
Характеристики
CNC Stone Machine

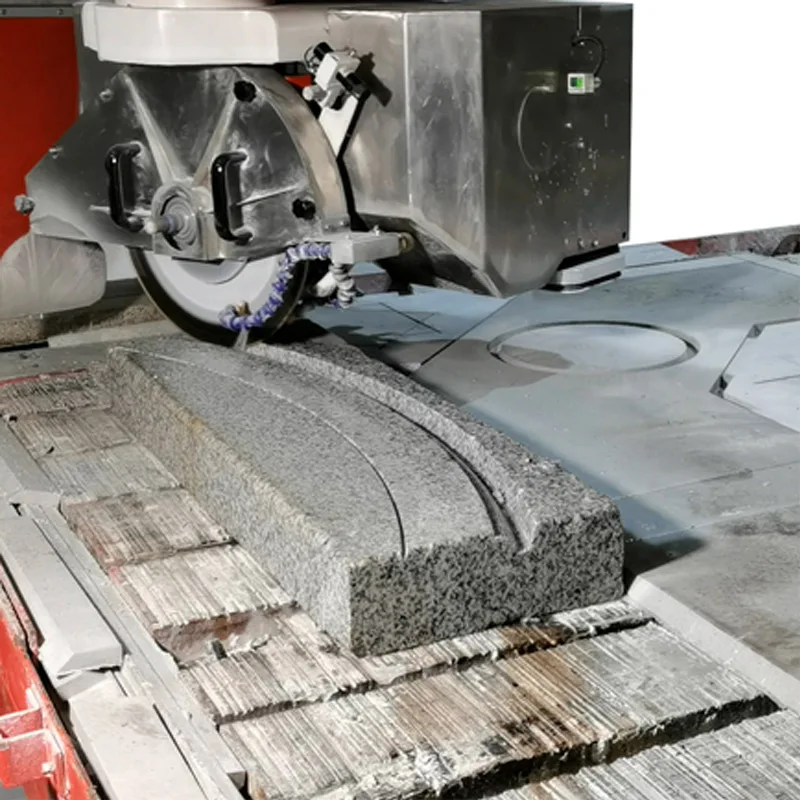

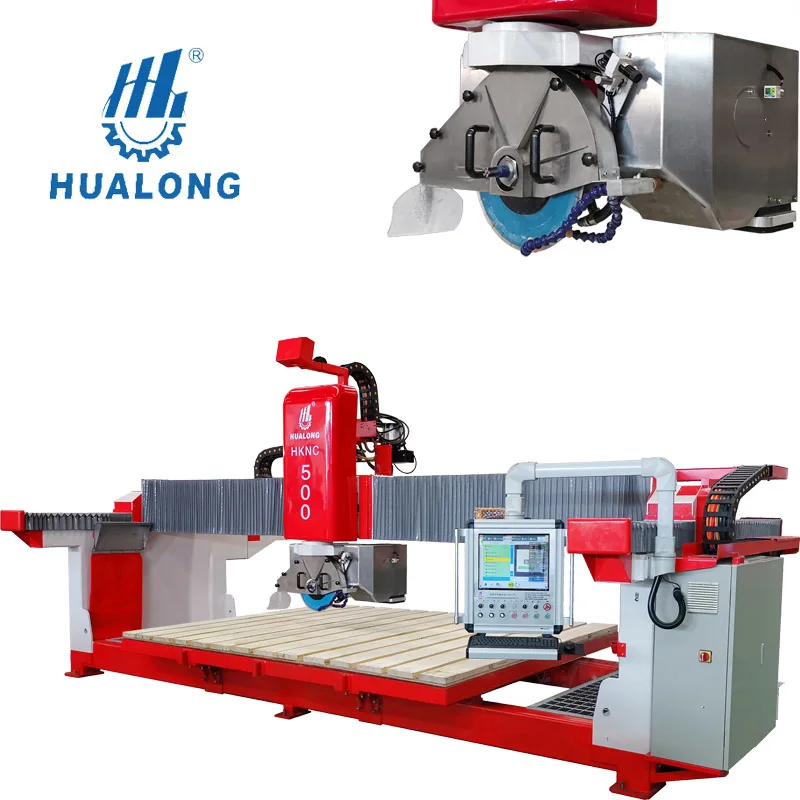

HKNC-500 with 4 axis interpolation and 1 axis electronic controlled, is a multifunctional CNC stone cutting and shaping machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.
Functions:

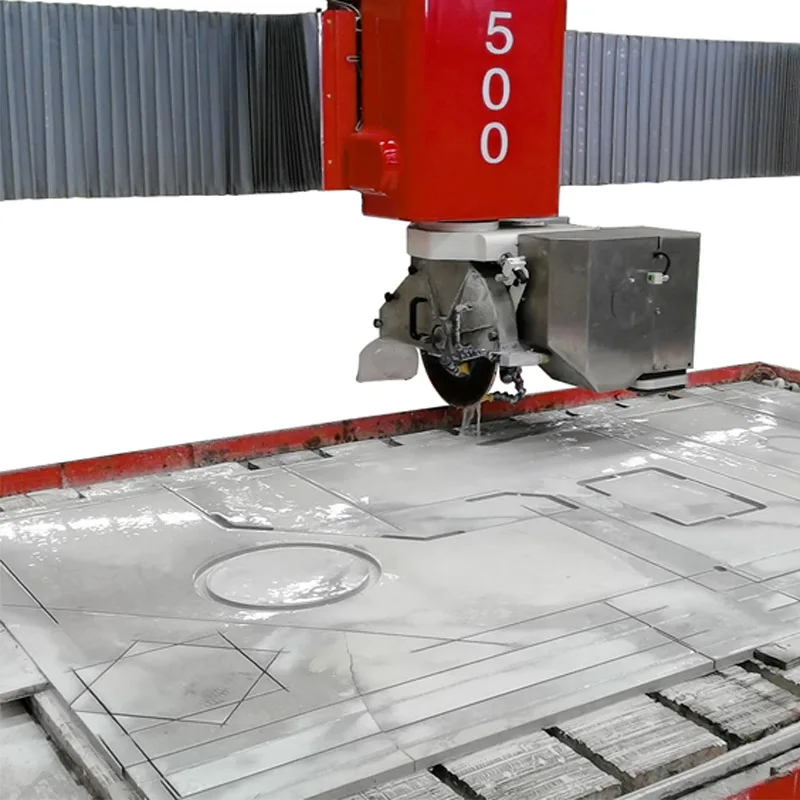

* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make all kind of cuts with ease. HKNC-500 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Functions:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make all kind of cuts with ease. HKNC-500 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Main Features
1) 4 axis lnterpolation and 1 axis electronic control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
4) Working platform can tilt 85 degrees, easy for slabs loading.
5) Easy for loading, unloading and installation due to monoblock structure with size suitable for container.
6) Manual cuts available for simple machining.
2) Easy to use interface with 19" color touch-screen.
3) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
4) Working platform can tilt 85 degrees, easy for slabs loading.
5) Easy for loading, unloading and installation due to monoblock structure with size suitable for container.
6) Manual cuts available for simple machining.
7) Nesting manual / automatic to optimize slab surface usage
8) Optional - Vacumm manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
8) Optional - Vacumm manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
TECHNICAL DATA FOR HKNC-500 | ||||||||
Diameter of saw blade | ø400-ø500 | mm | ||||||
Dimension of working platform | 3300x2000 | mm | ||||||
Max. cutting length | 3300 | mm | ||||||
Max. cutting thickness | 140 | mm | ||||||
Max. lifting stroke | 250 | mm | ||||||
Max. lifting weight by sunction cups | 200 | kg | ||||||
Power of main motor | 11 | kw | ||||||
Power of cutter frame reciproctating motor | 2 | kw | ||||||
Power of crossbeam shifting motor | 1.1 | kw | ||||||
Power of hydraulic station motor | 2.2 | kw | ||||||
Power of lifting motor | 0.85 | kw | ||||||
Gross power | 16 | kw | ||||||
Water consumption | 2 | m3/h | ||||||
Gross weight | 5400 | kg | ||||||
Dimensions (L x W x H) | 5700x3260x2765 | mm | ||||||
Application Fileds:
* 2D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades

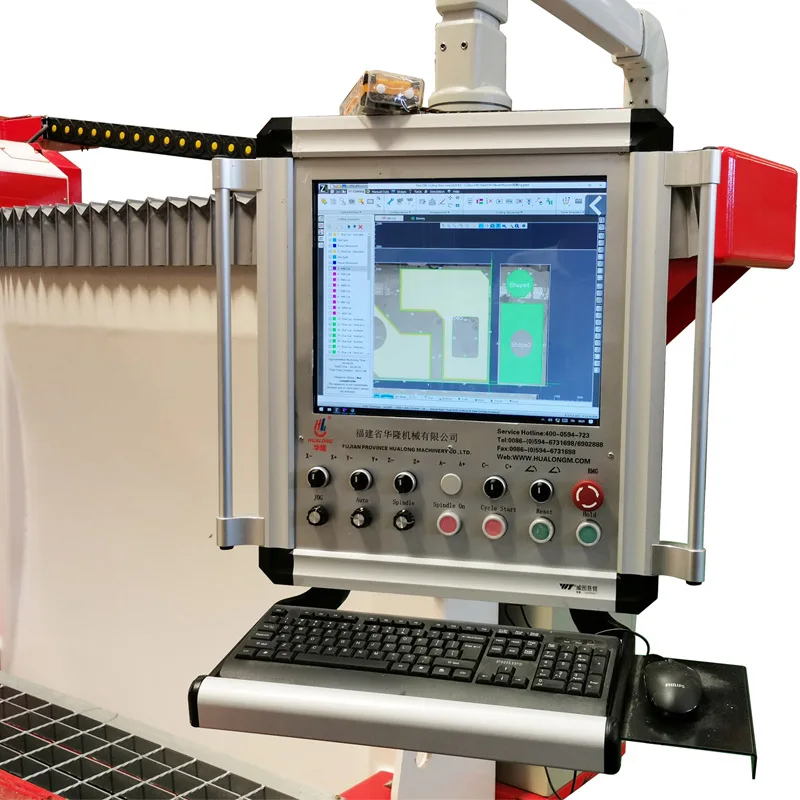

Control system -- CNC
Brand: Esa
Original: Italy
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
Digital Servomotor
Brand: ESA
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z and C axises
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z and C axises
Laser Reticule Apparatus
Origin: China
Aid for accurate alignment at the begining of processing.
Aid for accurate alignment at the begining of processing.

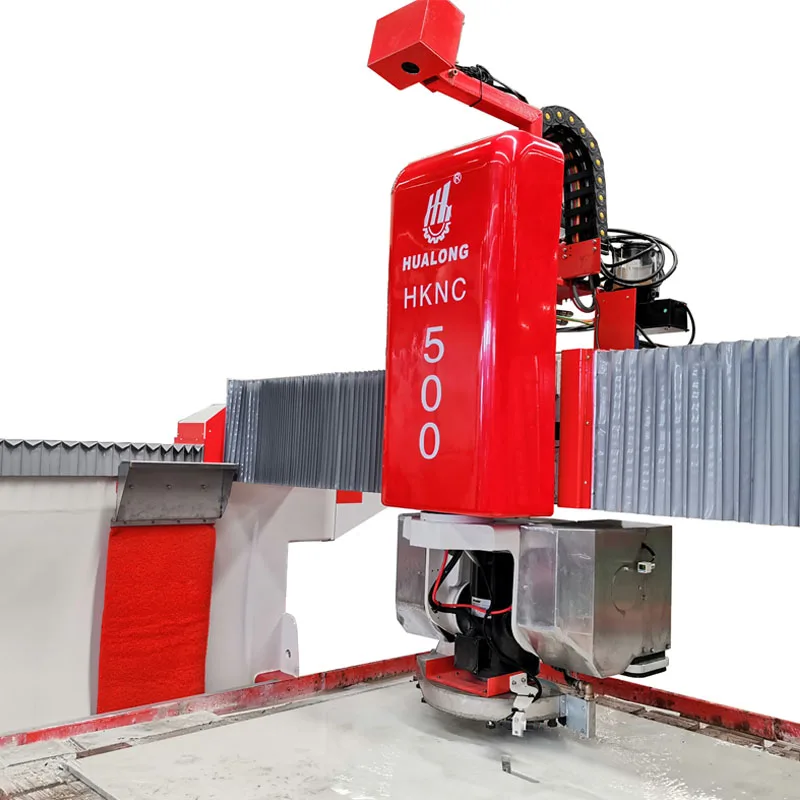

Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
Electric Cabinet
Branded electric companets such ESA, Schneider, Sanch are adopted to ensure stable performance.

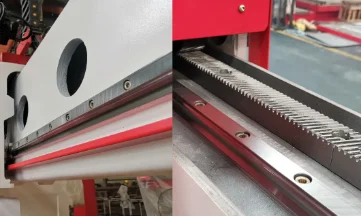

Linear Guide
Brand: Hiwin Original: Taiwan, ChinaFamous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
VR
Q: Are you manufacturer ?
A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
Q:What’s your MOQ and delivery?
A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Q: How is your after sales service?
A: Our sales are online for 24-hours. We can also supply overseas install service.
Q: If my machine is broken. Can you repair it for me?
A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
Q:What’s your MOQ and delivery?
A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Q: How is your after sales service?
A: Our sales are online for 24-hours. We can also supply overseas install service.
Q: If my machine is broken. Can you repair it for me?
A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
