Высококачественная коммутационная панель с затвором на 24 порта cat6/cat6a STP

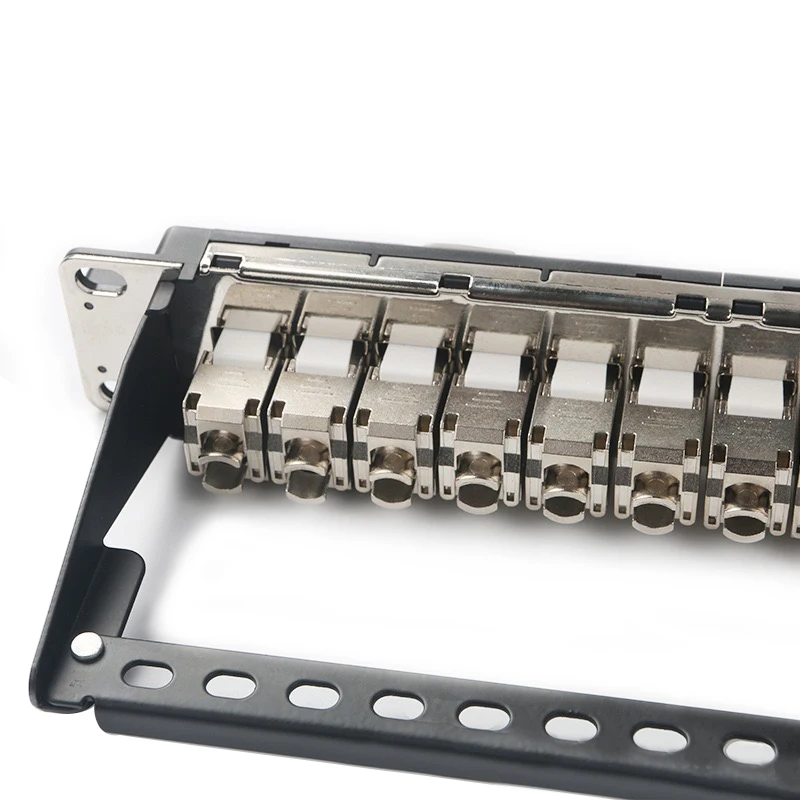

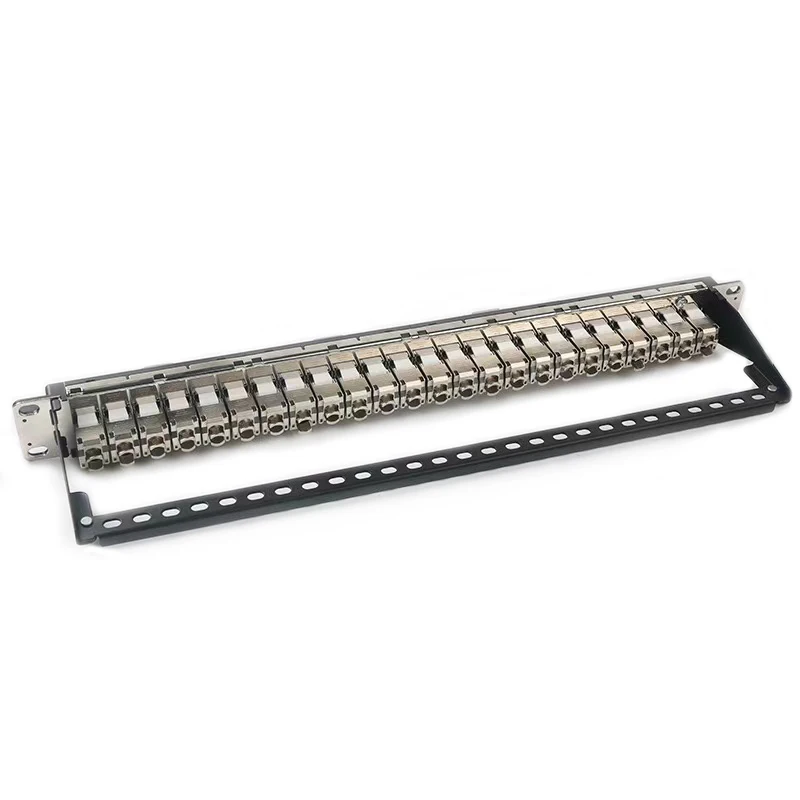

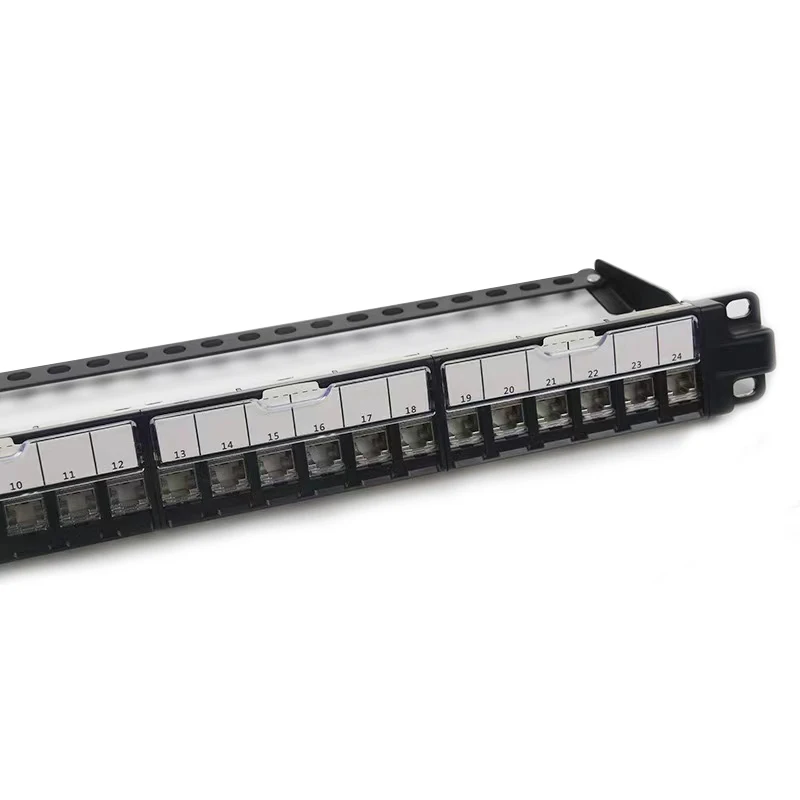

High quality 24 port cat6/cat6a STP keystone jack full load patch panel with shutter

1.Product Name:Cat6/Cat6a Patch Panel

2. Product Type: Cat6/Cat6a 24-port patch panel, shielded

3. Specifications: 19′′ installation size

4. Material: injection molded with high quality cold rolled steel, phosphor bronze and PC

5. Color: Black

6.Main technical parameters

*IDC: Phosphor bronze, silver plated (20~50uiLZh), suitable for cables of 22, 24 and 26AWG (0.64, 0.5 and 0.4mm), with a life of not less than 250 times.

*8-line pin: phosphor bronze, gold-plated (20~50uiLZh), plug and socket can be re-plugged no less than 750 times

* Flame retardant: injection molded with PPO+PC to meet international standards

* Contact resistance: no more than 2.5mΩ under normal atmospheric pressure (without body resistance)

*Insulation resistance: not less than 1000MΩ under normal atmospheric pressure conditions

*Electrical strength: DC 1000V (AC, 700V) No breakdown and arcing in 1 minute

*Standard: Designed and manufactured according to international standard ISO/IEC11801; TIA/EIA568

   For more products,pls contact me for the details!
