Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55

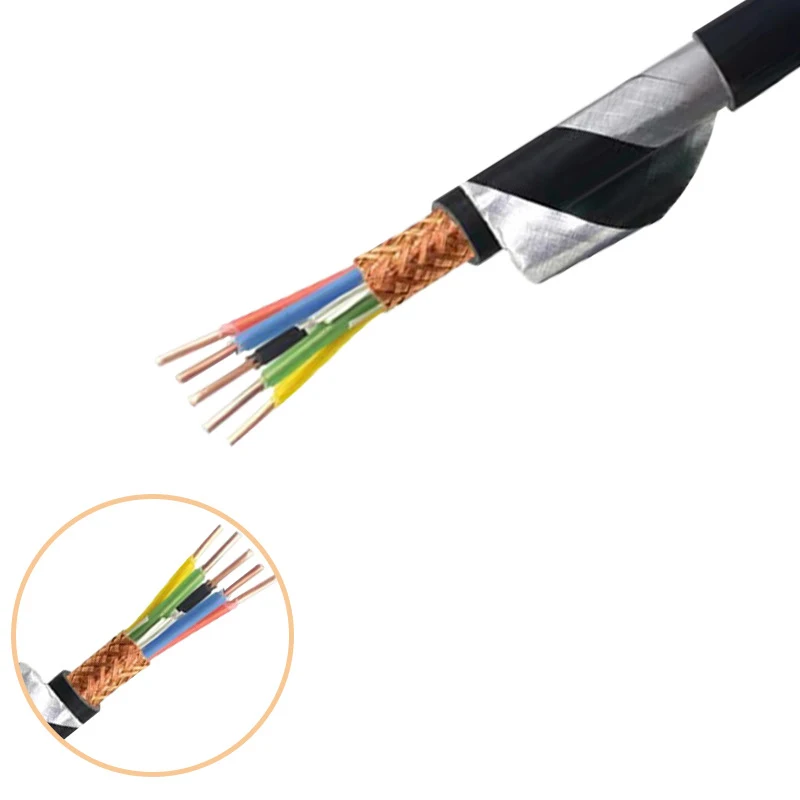

Высокогибкий кабель управления провод OFC оболочка и из ПВХ с алюминиевой лентой для
- Категория: Control Cables >>>
- Поставщик: Shananxi,Woquan,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.31 $* | 0.99 $* |
| Aug-17-2025 | 0.22 $* | 0.96 $* |
| Jul-17-2025 | 0.94 $* | 0.89 $* |
| Jun-17-2025 | 0.72 $* | 0.17 $* |
| May-17-2025 | 0.38 $* | 0.1 $* |
| Apr-17-2025 | 0.95 $* | 0.50 $* |
| Mar-17-2025 | 0.65 $* | 0.90 $* |
| Feb-17-2025 | 0.36 $* | 0.97 $* |
| Jan-17-2025 | 0.29 $* | 0.11 $* |
Характеристики
Products Description
Type | Details |
Company Name | |
Product Name | Copper conductor PVC insulated and sheath control cable |
Place of Origin | Shannxi,China |
Conductor Material | Oxygen-free copper |
Rated Voltage | 450/750V |
Usage | For signal transmission, control and measurement systems of electrical instruments and power distribution devices with AC rated voltage of 450/750V and below in metallurgy, electric power, petrochemical and other industrial and mining enterprises. It is used in monitoring circuits and protection wires and other occasions. |
Long-term allowable operating temperature | PEX/XPE/XLPE:90℃ PVC：70℃ |
Laying ambient temperature | Not lower than 0℃ |
Bending radius | Unarmoured cable - not less than 6 times the outer diameter of the cable Cables with armored or copper tape shielded construction- not less than 12 times the outer diameter of the cable Flexible cable with shielded structure - not less than 6 times the outer diameter of the cable |
Finished test voltage | 3000V/5min Insulation does not break down |
Standard | GB/T 9330-2020 |
Specification | 2*0.75-61*2.5mm2 |
Nom. Insulation Thickness | 0.6-0.8mm |
Nom. Sheath Thickness | 1.2-2.2mm |
Pitch Dia. of Cable | 6.4-42.5mm |
Cable Weight (Approx) | 59-3175kg/km |
Max.D.C. Resistance of Insulation 20℃ | 0.007-0.012Ω/km |
Max.D.C. Resistance of Conductor at 20℃ | 0.0065-24.5Ω/km |
Details Images
Recommend Products
Certifications
Packing&Shipping
Contact us
FAQ
Q1.What's your advantage?
A: -【Certification】ISO9001/ISO14001/OHSAS18001/CCC
-【Specification】Copper/aluminum core, rated voltage 300-15kv,PVC/XLPE jacket/sheath,color can be customized according to your requirements
-【Inventory status】 Most of them are in stock and can be customized
-【Price】Connect with the factory, the price has an advantage
-【Payment method】T/T is the main method, and the payment method can be negotiated according to the situation
-【Transportation】Can be transported according to your requirements, we also have our own transportation partners, logistics safety and timeliness are guaranteed
-【Inventory status】 Most of them are in stock and can be customized
-【Price】Connect with the factory, the price has an advantage
-【Payment method】T/T is the main method, and the payment method can be negotiated according to the situation
-【Transportation】Can be transported according to your requirements, we also have our own transportation partners, logistics safety and timeliness are guaranteed
Q2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
Q3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
Q4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
Q5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
Q6.What kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
