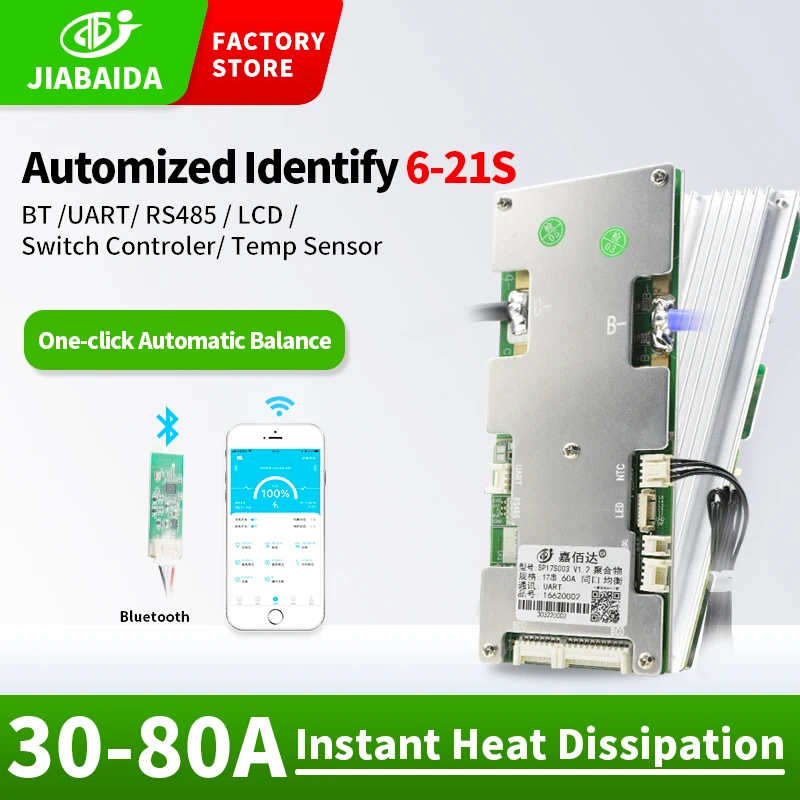

Литиевая батарея Jiabaida 10S 11S 12S 13S 15S 16S 17S Smart BMS 36 в 48 60 40 А 80 bt/UART/RS485 Balance 3 NTC
- Категория: PCB & PCBA >>>
- Поставщик: Dongguan,Jiabaida,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.64 $* | 0.63 $* |
| Aug-20-2025 | 0.0 $* | 0.0 $* |
| Jul-20-2025 | 0.78 $* | 0.61 $* |
| Jun-20-2025 | 0.52 $* | 0.48 $* |
| May-20-2025 | 0.68 $* | 0.9 $* |
| Apr-20-2025 | 0.29 $* | 0.25 $* |
| Mar-20-2025 | 0.80 $* | 0.69 $* |
| Feb-20-2025 | 0.94 $* | 0.91 $* |
| Jan-20-2025 | 0.36 $* | 0.88 $* |
Характеристики
JBD-SP17S003
JBD-SP17S003 is a Hardware protection board scheme specially designed for 10~17 strings of lithium battery packs. The protection parameters are fixed by the component parameters.
● 10-17 series battery cell series protection.

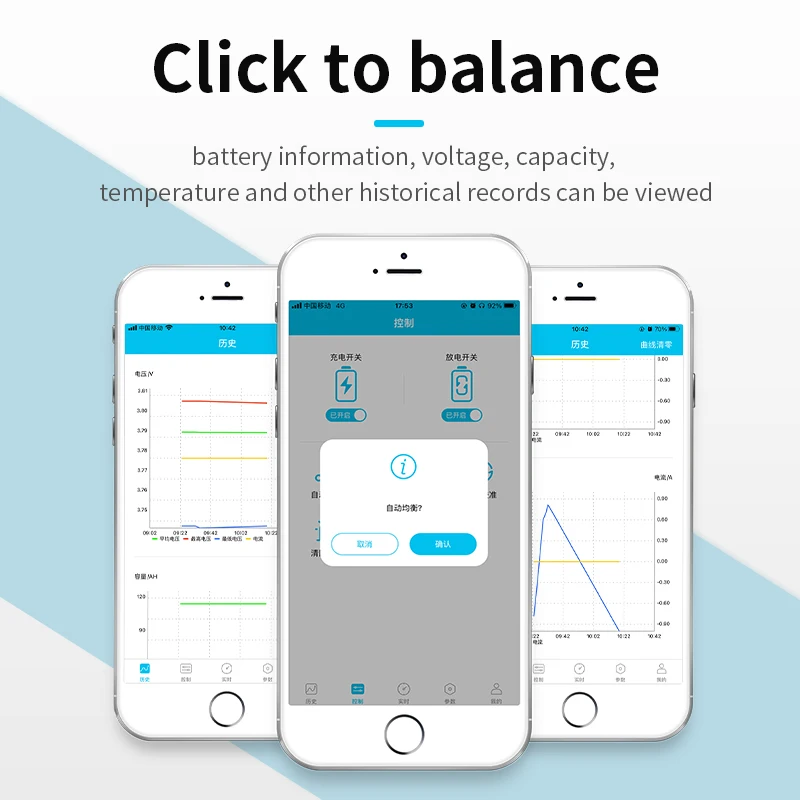

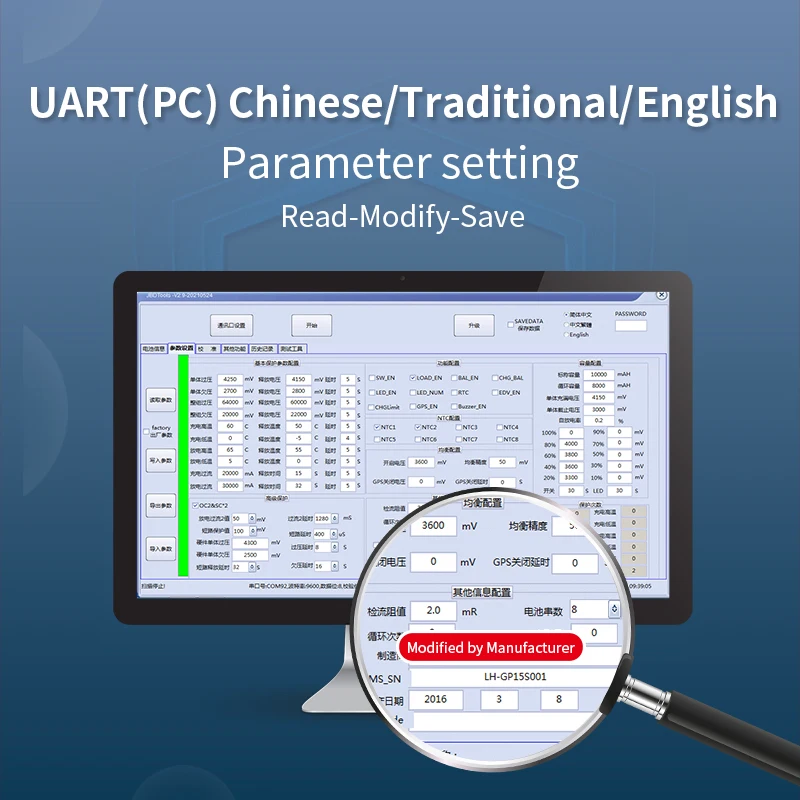

●The battery is intelligently balanced, and the balanced opening voltage and pressure difference can be flexibly adjusted by the host computer. Optional charge balance or static balance. Through time-sharing equalization, the maximum equalization current can reach 140mA.
● Integrate hardware protection functions such as overvoltage, undervoltage, overcurrent, and short circuit.
● Multiple working modes, when the protection board is in a static state, it can delay to enter dormancy to achieve the purpose of reducing power consumption.
●The default three-channel temperature detection probe, one channel detects the internal temperature of the protection board, and the two channels are placed in the place where the temperature needs to be detected according to customer needs.

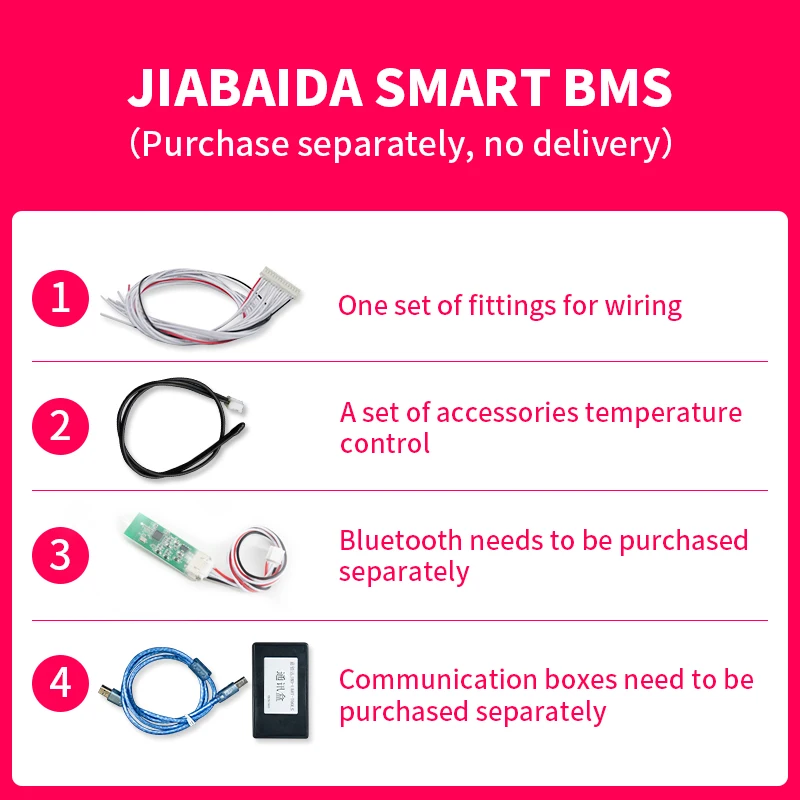

● Multiple external expansion interfaces can be used to add CAN communication, charging low-temperature heating, secondary protection (FUSE), charger ID identification resistance, LED power display and other functions through the expansion interface.
Product Description
Certifications
Factory manufacturing
FAQ
1. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
2.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
3.Whether my BMS damaged?
If you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with
voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
2.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
3.Whether my BMS damaged?
If you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with
voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
