Резервуар жидкого азота 30 м3 медицинский

Категория: Pressure Vessels >>>
Поставщик: Nanjing,Bang,Win,Imp,&,Exp,Co.,Ltd.

Цена:8 900,00 $ - 10 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	10591.0 $*	11121.42 $*
Aug-19-2025	10502.58 $*	11027.58 $*
Jul-19-2025	8811.81 $*	9252.96 $*
Jun-19-2025	10324.37 $*	10840.36 $*
May-19-2025	8989.73 $*	9438.3 $*
Apr-19-2025	10146.25 $*	10653.67 $*
Mar-19-2025	10057.43 $*	10560.80 $*
Feb-19-2025	9968.95 $*	10466.23 $*
Jan-19-2025	9879.16 $*	10373.11 $*

Характеристики

Place of Origin: Guang Dong
Brand Name: Hua Nan
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Pressure vessel
Dimension(L*W*H): 1850*1850*2869mm or others
Capacity: 3000 L
Weight: 2227kgs
Volume (m³): 3 M3
Inner Material: S30408
Outer Material: Q345R
Design Pressure(MPa): 3.5
Max Working Pressure(MPa): 3.4 MPa
Design Standard: GB/T 188442
Working Temperature(℃): -196 - 20 ℃
Warranty: 3 years, 3 Year
Key Selling Points: High vacuum heat insulation Effectiveness
Applicable Industries: Hotels, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Hospital &Medical
Showroom Location: Egypt, United States, Viet Nam, Indonesia
Product name: cryogenic gas storage micro tanks
Material: S30408/Q345R
Max. Working Pressure: 0.8bar/16 bar/25bar/34bar
Effective Volume: 1~ 5 m3
storage Medium: LNG/LN2/LO2/LAR/LCO2
Certification: GB/T18442, ISO9001:2015
Isolation: Muti-layer insulation
coating: spraying painting or stainless steel polish

Designing temperature: -196/+20 °C

After-sales Service Provided: Free spare parts, Field maintenance and repair service, Video technical support, Online support
After Warranty Service: Video technical support, Online support
Local Service Location: Egypt, United States, Viet Nam, Indonesia

Product Description

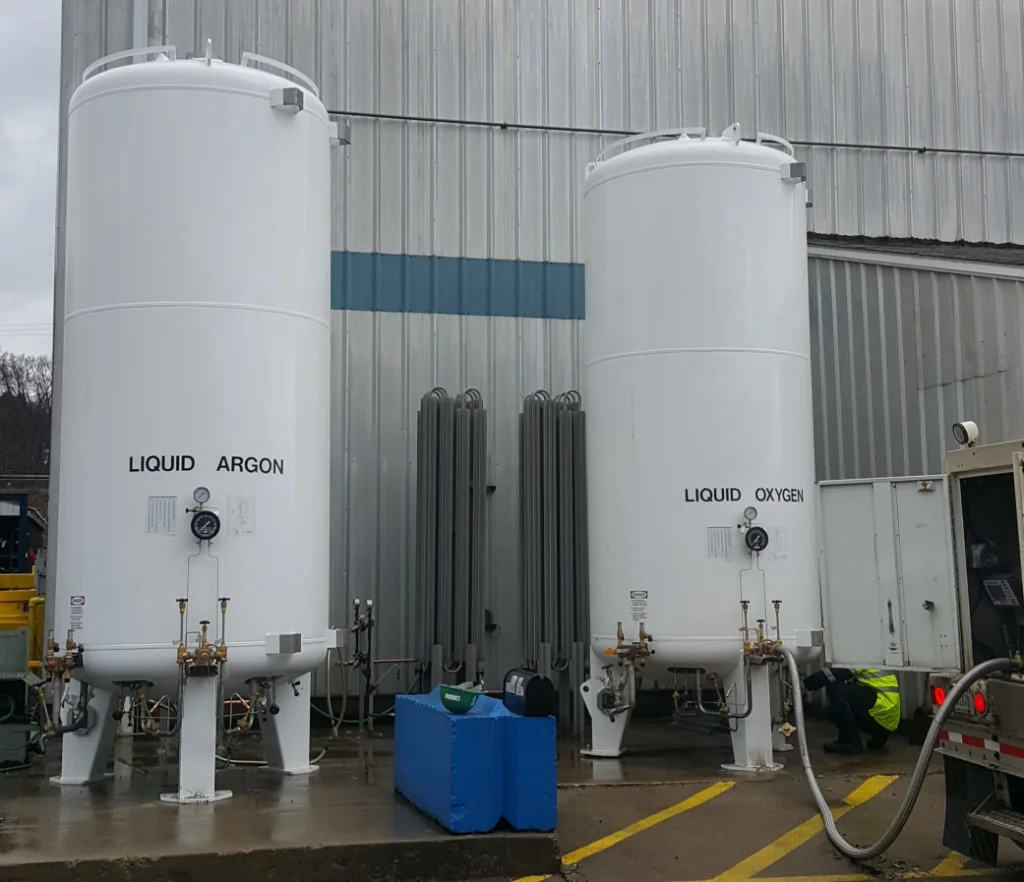

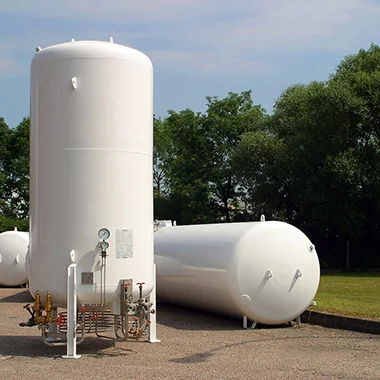

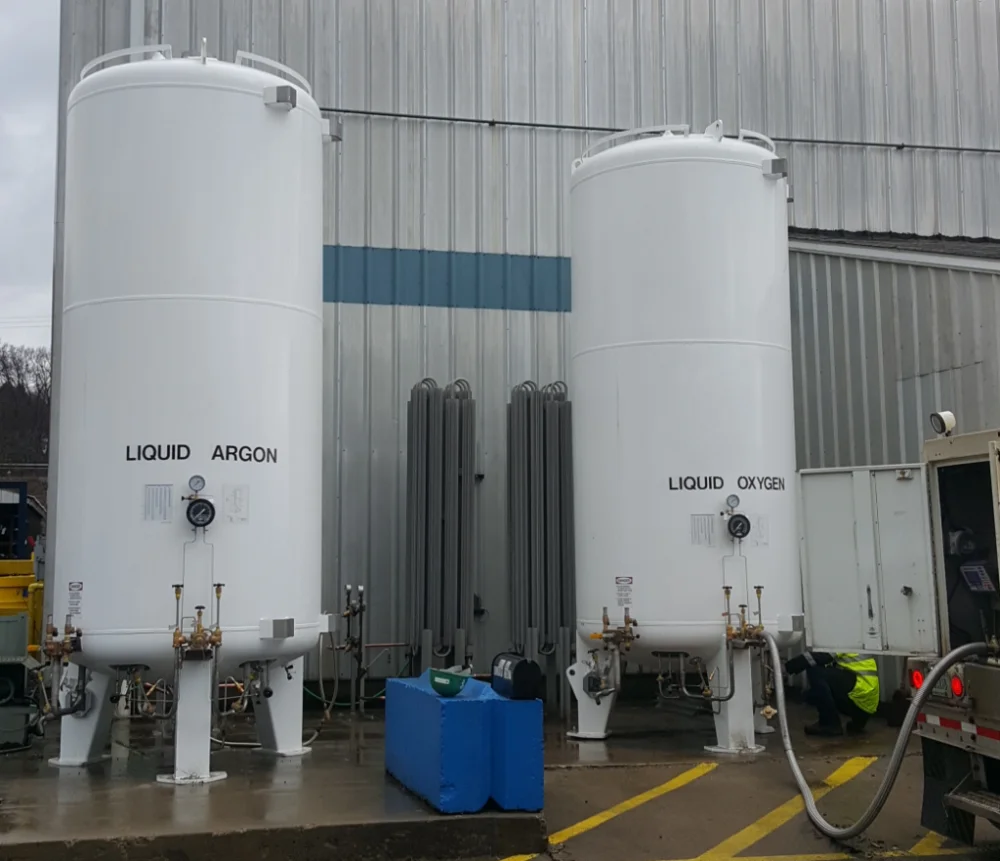

Micro tank is a pressure vessel which is used for filling and storing dangerous chemicals such as LO2, LAr, LN2, LCO2 and LNG. The maximum working pressures available are 0.8Mpa, 1.6Mpa, 2.4Mpa and 3.4Mpa; the nominal volumes available are 1M3, 2M3, 3M3and 5M3. The micro tank is suitable for transporting vaporized gases when it’s connected with a vaporizer. Micro tanks are pressure vessels with inner and outer container double layers structure. The inner container is made of stainless steel suspended in the outer container with supporting devices. The space between the inner container and the outer container is wrapped with heat insulated material and vacuum withdrawn.Relevant safety regulations must be complied with when installing, using or maintaining the micro tank.

Product Parameters
