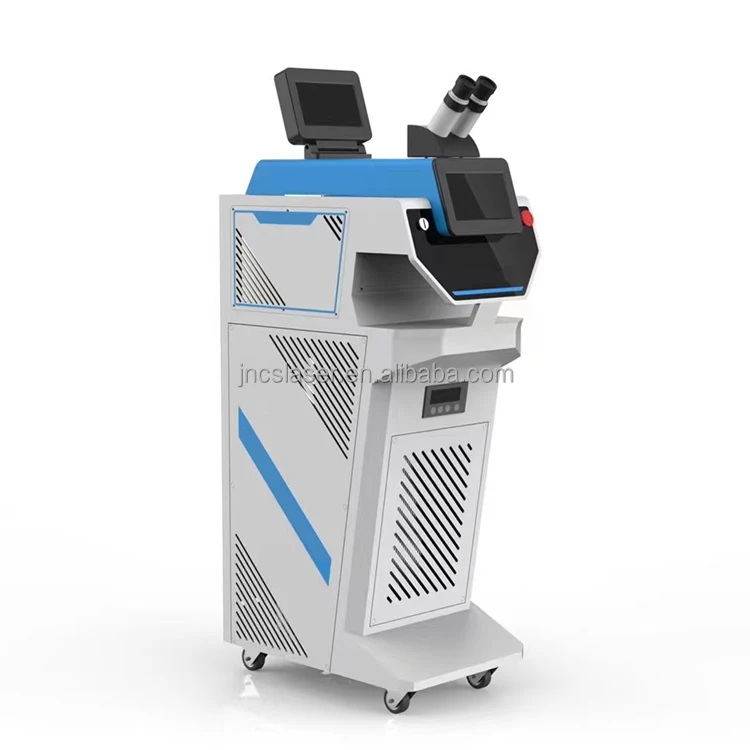

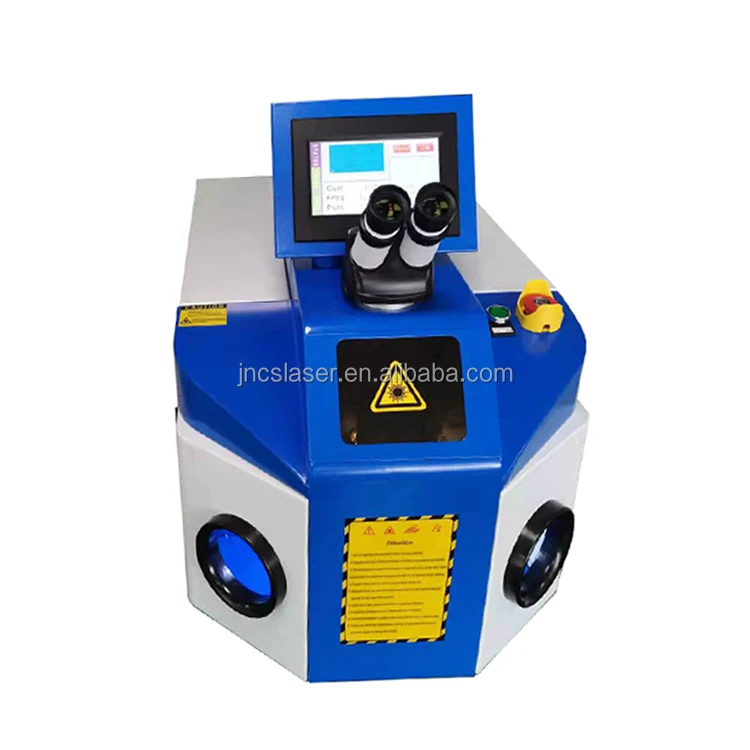

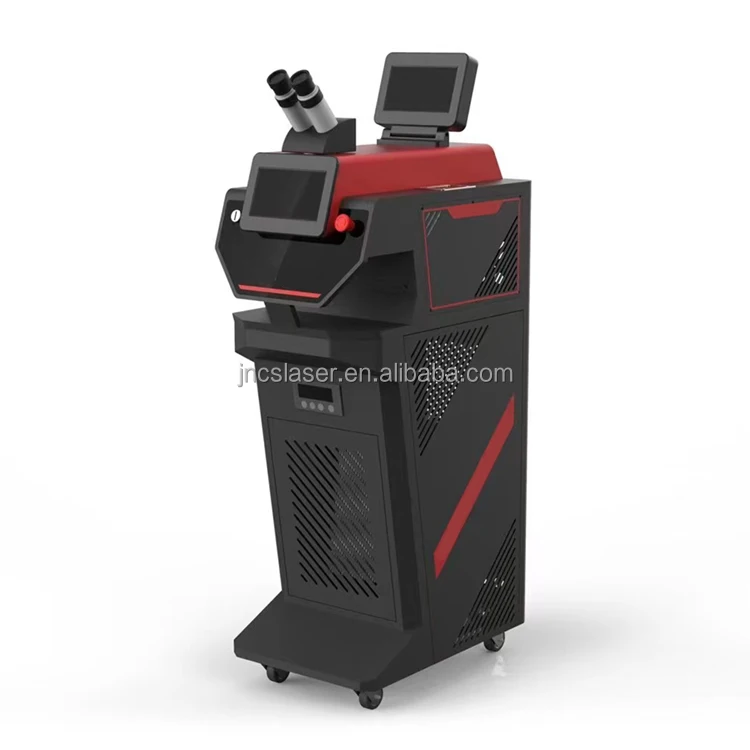

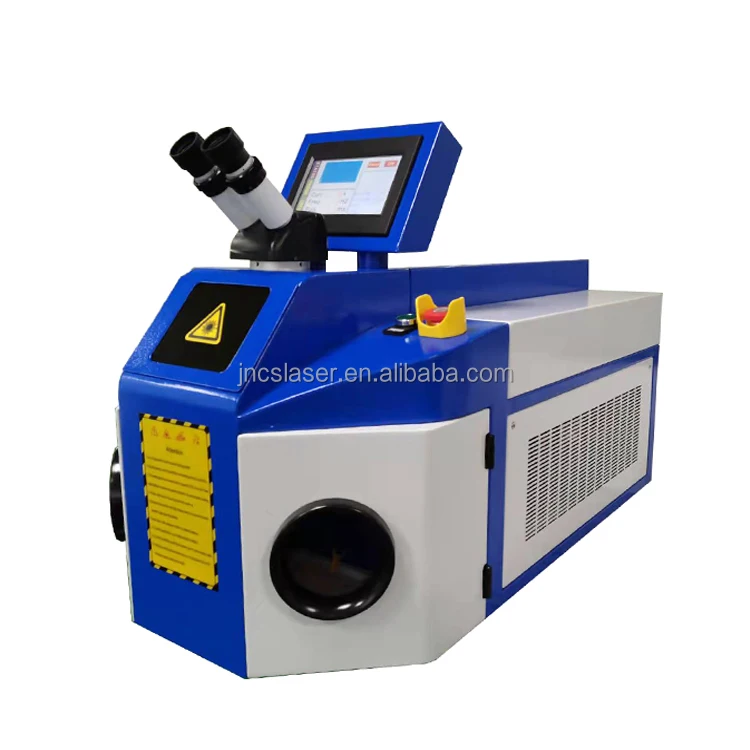

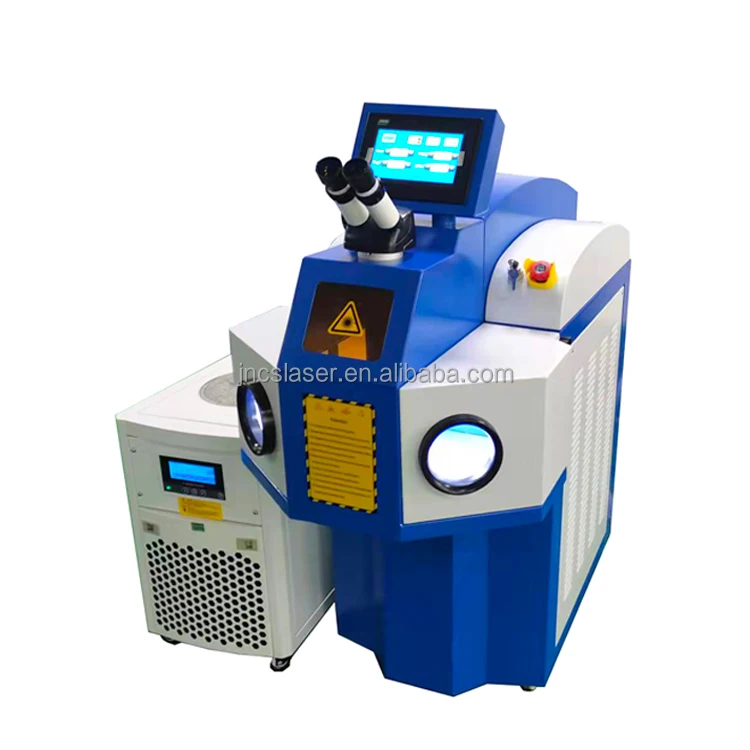

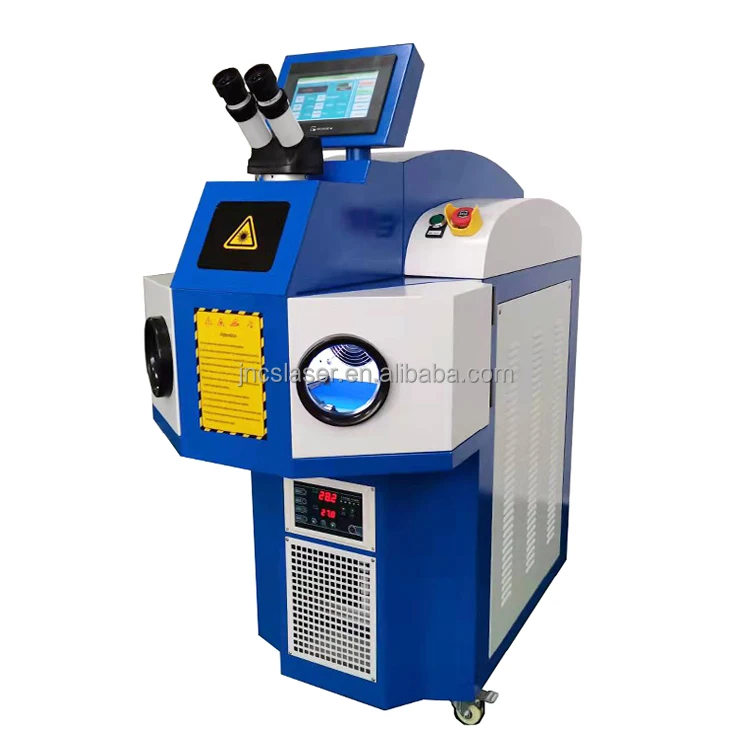

200 Вт YAG точечная сварочная машина для золотого серебра ремонт лазерный сварочный аппарат
- Категория: Laser Welders >>>
- Поставщик: Jinan,Consure,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2975.21 $* | 3124.53 $* |
| Aug-19-2025 | 2950.81 $* | 3098.6 $* |
| Jul-19-2025 | 2475.8 $* | 2599.40 $* |
| Jun-19-2025 | 2900.34 $* | 3045.28 $* |
| May-19-2025 | 2525.41 $* | 2651.85 $* |
| Apr-19-2025 | 2850.36 $* | 2993.42 $* |
| Mar-19-2025 | 2825.67 $* | 2966.53 $* |
| Feb-19-2025 | 2800.52 $* | 2940.7 $* |
| Jan-19-2025 | 2775.62 $* | 2914.9 $* |
Характеристики
Product Description
Features:
CS series laser spot welder is firstly designed for jewelry ornaments manufacturing, jewelry repairing, rings or bracelets resizing, gold and silver re-tipping, stone setting, eyewear welding or repairing, denture welding, small auto parts welding, etc. Generally, it is especially suitable for tiny target precision welding. It works on gold, platinum, titanium, silver, copper, nickel, aluminum, magnesium, stainless steel, etc.
Characteristics:
● Energy, pulse width, frequency and focus can be adjusted within a wide range to achieve different welding effects.
● Ceramic reflector used in the laser pump chamber is imported, which is corrosion resistant, high temperature resistant, high electrical/optical conversion.
● World-leading automatic light shielding system is employed to remove harmful lighting on eyes during operation.
● 24-hour continuous operation, with stable operating performance,
● Free of maintenance within 10000 hours.
● Personalized design in compliance with ergonomics principles.
● Ceramic reflector used in the laser pump chamber is imported, which is corrosion resistant, high temperature resistant, high electrical/optical conversion.
● World-leading automatic light shielding system is employed to remove harmful lighting on eyes during operation.
● 24-hour continuous operation, with stable operating performance,
● Free of maintenance within 10000 hours.
● Personalized design in compliance with ergonomics principles.
Application:
laser jewelry spot welder/gold laser welding machine is used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc,especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.
Specification
Max. Output Power | 300w |
Usage | gold silver laser welding |
Place of Origin | China |
Brand Name | CS |
Wavelength | 1064nm |
Focal Spot Diameter | 0.1-3mm |
Certification | ce, ISO |
Laser Source Brand | raycus |
Weight (KG) | 84KG |
Key Selling Points | high precision |
Applicable Industries | jewelry repair |
After Warranty Service | Video technical support, Online support |
Local Service Location | None |
Showroom Location | None |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | Hot Product |
Pulse frequency | 150Hz adjustable |
Pulse width | 1.5~20ms adjustable |
Single pulse Energy | 80 J |
Cover Gas Channel | 1 line quick connection |
Focused Beam Diameter | 0.13mm |
Expanding Ratio | 3 |
Power Supply | Single phase AC 220V10 |
Cooling | Water cooling |
