Надежный поставщик печатных плат Android PCBA разработка дизайна
- Категория: PCB & PCBA >>>
- Поставщик: Croll,Technology,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2.47 $* | 2.17 $* |
| Aug-18-2025 | 2.62 $* | 2.96 $* |
| Jul-18-2025 | 2.31 $* | 2.83 $* |
| Jun-18-2025 | 2.64 $* | 2.1 $* |
| May-18-2025 | 2.23 $* | 2.29 $* |
| Apr-18-2025 | 2.97 $* | 2.41 $* |
| Mar-18-2025 | 2.22 $* | 2.78 $* |
| Feb-18-2025 | 2.5 $* | 2.78 $* |
| Jan-18-2025 | 2.56 $* | 2.97 $* |
Характеристики
Main Products
Product Parameters

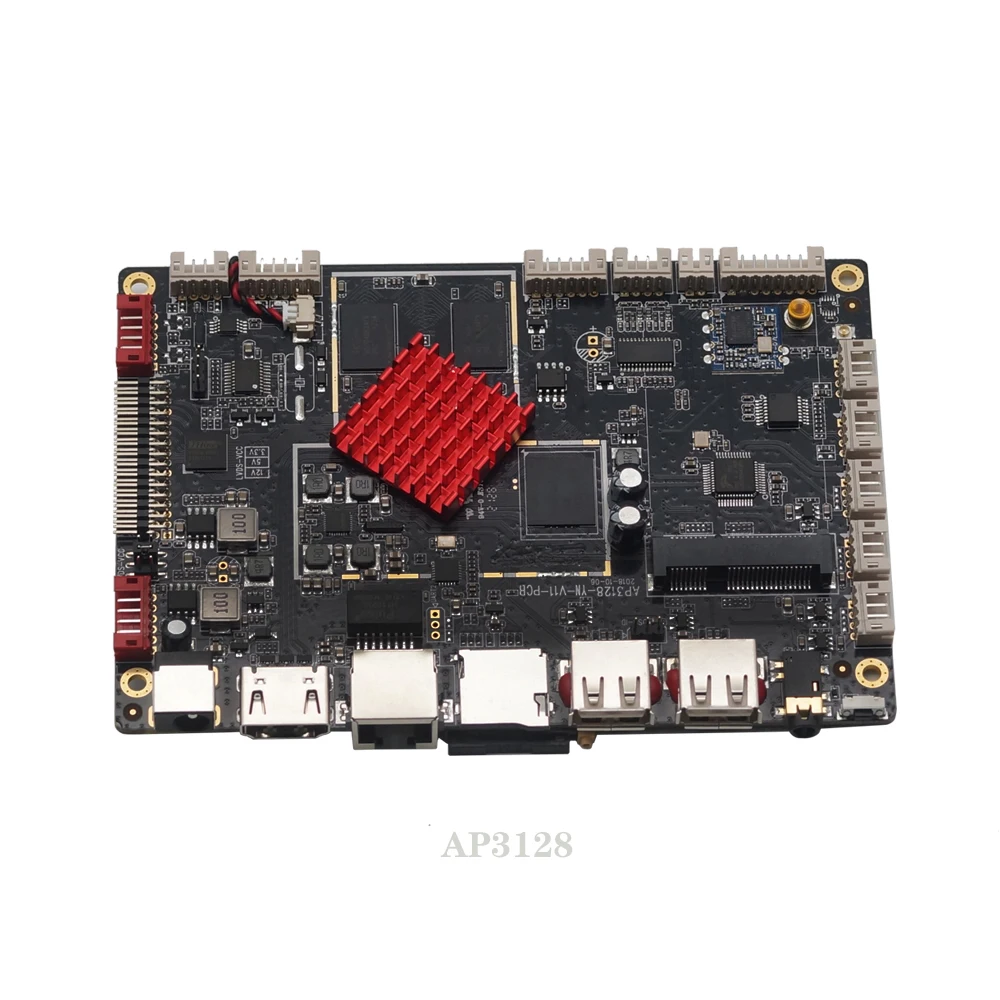

No: CRT_ AP3128-A PCBA_V001
Board Thicknes: 1.6mm
Copper Thickness: 35um
Surface Finish: ENIG（0.05-0.1um）
Single size: 130*90mm
Application Segment: Auto,Industrial,Medical,Comsumer

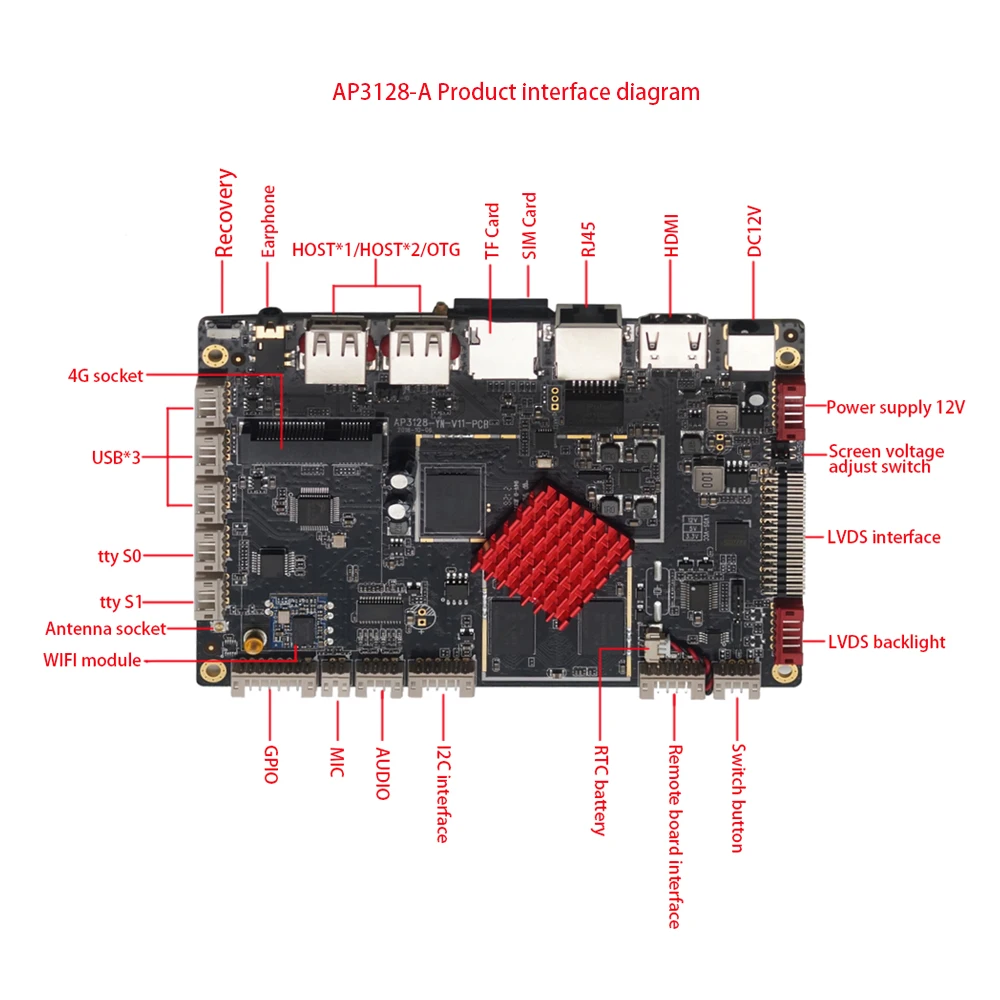

AP3128-A Basic Specification | ||
CPU | Rockchip RK3128，Quad-Core ARM Cortex A7 1.3 GHz | |
GPU | Quad-Core ARM Mali-T400 | |
RAM | DDR3 1G | |
Built-in storage capacity | EMMC 8GB/16G/32G Available（Sample is 8GB） | |
Display interface | LVDS Interface（double 10 bits），Maximum resolution1920×1080； | |
Onboard backlight | 3.3V/5V/12V Available | |
RJ45 Interface 100M，Ethernet supported | ||
Bluetooth+wifi module，Wi-Fi 802.11b/g/n protocol, 2.4G, | ||
Bluetooth 4.0 protocol | ||
3G/4G data function，WCDMA、EVDO、CDMA、GSM，2G/3G Supported 850/900/1800/1900MHz/2100MHz | ||
Image rotation | 0°，90°，180°，270° Manual rotation | |
Real time clock | Built-in real-time clock power supply battery, support timing switch | |
Watchdog | Software and hardward watchdog | |
Interface Device | USB Camera，800W pixel max | |
HDMI，1080P output | ||
5 pcs of USB HOST(3pcs of pin interface, 2pcs of external interface） | ||
2 pcs of RS232 serial ports（TTL/232 available），Support external serial device module (extended sensor or one-dimensional code，barcode scanner，printer，card reader module and more） | ||
SD/TF card expansion，64GB max | ||
D class oversized built-in speakers，10W*2 8Ω | ||
Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GP | |
Video | 1080P decoding of H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video formats, as well as 4K HD video encoded by H.265, HTML5 video playback, Flash10.1 playback | |
Picture | JPG, BMP, PNG and other image formats to browse and support rotation/slideshow/image enlargement | |
Touchscreen | Infrared, resistive, capacitive touch screen | |
Power Supply | Input：DC12V or DC12V 5V STB(power source) | |
Process Capability | We provide the following services | ||
PCB maximum size | 550x450mm | 1. HDI PCB samples, mass production/ PCBA samples, mass production 2. SMT chip processing 3. Plugin processing 4. After welding 5. PCBA semi-finished product production 6. Machine assembly | |
PCB minimum size | 30x30mm | ||
PCB minimum thickness | 0.2mm | ||
PCB shape | Unlimited | ||
Whether to support single-sided/double-sided | Yes | ||
Minimum component size | 201 | ||
Component height | 0.2-25mm | ||
Minimum gap | 0.5mm | ||
Minimum BGA | 0.2mm | ||
Maximum component size | 55mmx55mmx15mm | ||
SMT patch part type | SOP, SOT, QFN, QFP, BGA, Bonding | ||
Is it possible to mount the connector | Yes | ||
Whether it can be wave soldered | Yes | ||
Service: | OEM / DFM | ||
