Характеристики
Product Overview

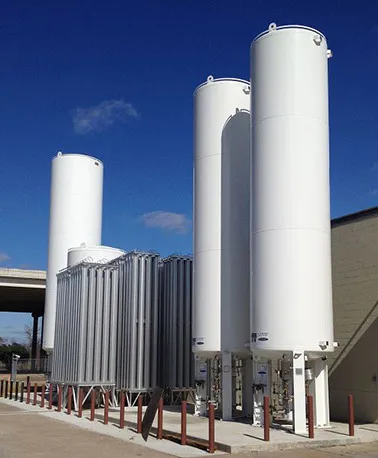

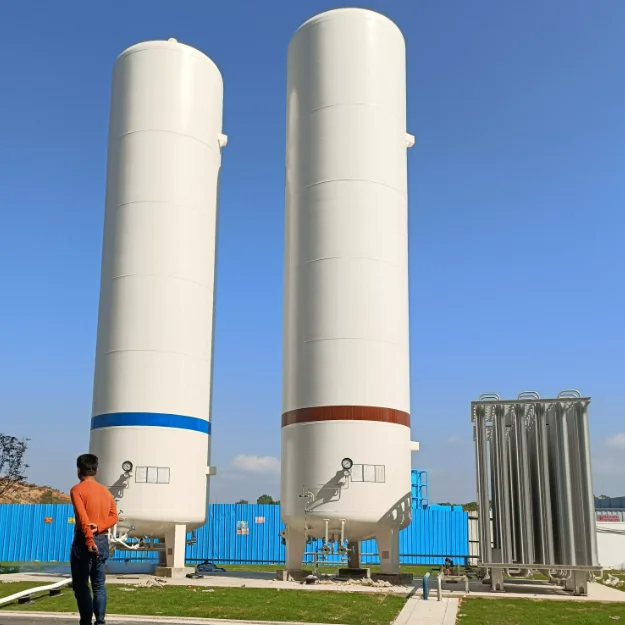

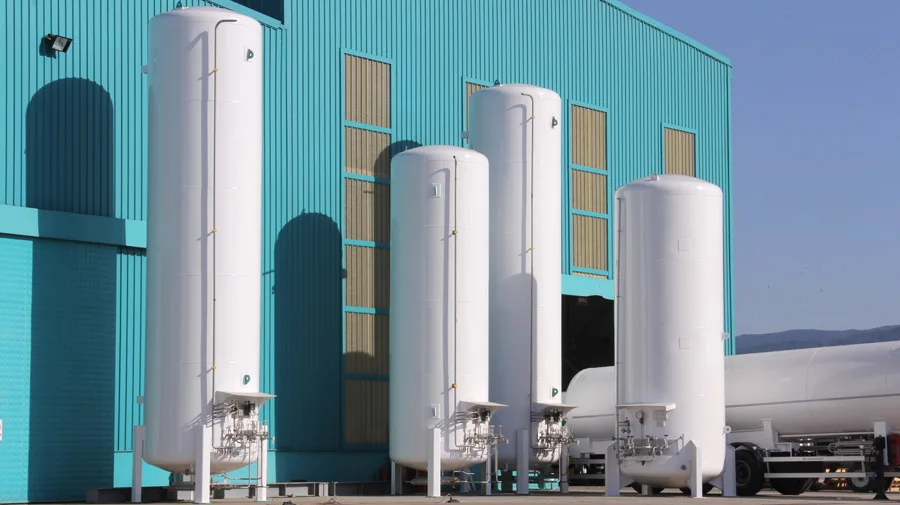

Cryogenic storage tanks
Cryogenic liquid storage tank is a commonly used advanced long-term storage equipment for cryogenic liquids. It has the
characteristics of large storage capacity, adjustable pressure, low evaporation rate, safety and reliability, etc. It is widely
used in the storage of industrial gases liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, ethylene and
liquefied natural gas. The storage tank adopts a double-layer cylindrical structure, which is filled with thermal insulation
materials and evacuated.
It is mainly composed of inner and outer pipes, thermal insulation structure, pipeline system and safety accessories.
characteristics of large storage capacity, adjustable pressure, low evaporation rate, safety and reliability, etc. It is widely
used in the storage of industrial gases liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, ethylene and
liquefied natural gas. The storage tank adopts a double-layer cylindrical structure, which is filled with thermal insulation
materials and evacuated.
It is mainly composed of inner and outer pipes, thermal insulation structure, pipeline system and safety accessories.
FEATURES AT A GLANCE
Volume: 3~300 m3 Pressure: 0.2~3.0Mpa, Insulation method: vacuum powder insulation Basic type: vertical or horizontal
Storage medium:
Liquid nitrogen, liquid oxygen, liquid argon, liquid carbon dioxide, ethylene, ethane liquified natural gas
Insulation: vacuum powder, vacuum fibre, high vacuum multilayer winding

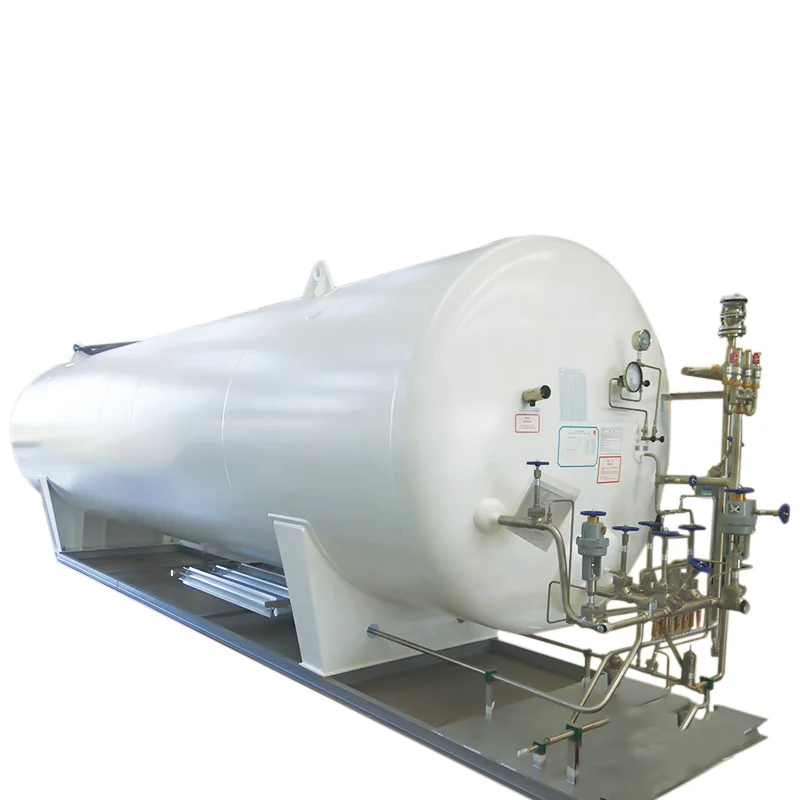

Structure: Double cylindrical outrigger/saddle structure
PRODUCT SPECIFICATIONS
Item | Volume m³ | Usable Volume m³ | Working/Design Pressure (Mpa) | Medium | Weight kg | Device Size (L*W*H) |
CFL-150/0.8 | 150 | 135 | 0.8/0.84 | LNG | 47225 | 3754*3787*20991 |
CWL-150/0.8 | 150 | 135 | 0.8/0.84 | LNG | 47940 | 4185*3924*18316 |
CFL-150/0.8 | 150 | 157.9 | 0.8/0.84 | LOX,LN2,LAr | 45951 | 4195*3886*20863 |
CFL-150/1.6 | 150 | 157.9 | 1.6/1.68 | LOX,LN2,LAr | 50565 | 4095*3780*21974 |
CFL-150/2.2 | 150 | 158.2 | 2.2/2.32 | LCO2 | 74946 | 3520*3580*24708 |
Number | Indicator name | Indicators |
1 | Stacking density | 40~60kg/m³ |
2 | Grain size | 0.1mm~0.2mm no less than 90% |
3 | Thermal conductivity | ＜0.026W/m·K·s(atmospheric pressure, temperature 310~77k) |
4 | Moisture content | ＜0.1% (mass ratio) |
5 | Unpuffed rate | ≤1% |
6 | PH | 6.5～7.5 |
Company Profile
Doer is a leading industrial gas and engineering company. The company serves a variety of end markets including chemicals & energy, food & beverage, electronics, healthcare, manufacturing, metals and mining. Nanyang Doer Gas Equipment Co., Ltd. is mainly engaged in the research, design,manufacture and after-sales service of various industrial gas equipment and cryogenic equipment.
The company has:
1. Cryogenic equipment division: large atmospheric cryogenic storage tank, powder vacuum cryogenic storage tank, large air-bath vaporizer, water-bath vaporizer, cryogenic loading pump and loading arm system for large cryogenic storage tank, metering skid Wait.
2. Gas equipment business unit: LNG refueling station, L-CNG refueling station, LNG vaporization station, LNG vaporizer, LNG vaporization pressure regulating metering and odorizing skid, LPG vaporizer.
3. Heat Exchanger Business Unit: high-pressure wound tube heat exchanger, fixed tube plate heat exchanger, U-tube heat exchanger, floating head heat exchanger. The concept of "building a reliable brand in the industry based on advanced Doer technology" has been adhered to by the company. Adhering to this concept, the company actively explores and develops new processes and technologies, and constantly introduces advanced technologies and scientific research achievements at home and abroad. In the past few years, the industrial gas equipment produced by the company has been widely used in coke oven gas LNG, iron and steel metallurgical industry, air separation industry, urban gas industry, due to its advanced technology, excellent quality, reasonable price and super-value after-sales service. Heat treatment industry, coal-fired oil-fired boiler transformation industry, as well as powder metallurgy, hot-dip galvanizing industry, petrochemical industry, chemical fiber, float glass, food preservation, medicine, electronics, automobile LNG refueling station, marine LNG transformation, gas terminal reserve adjustment Peak stations, laboratories of scientific research unit
SALES AND SERVICE NETWORK

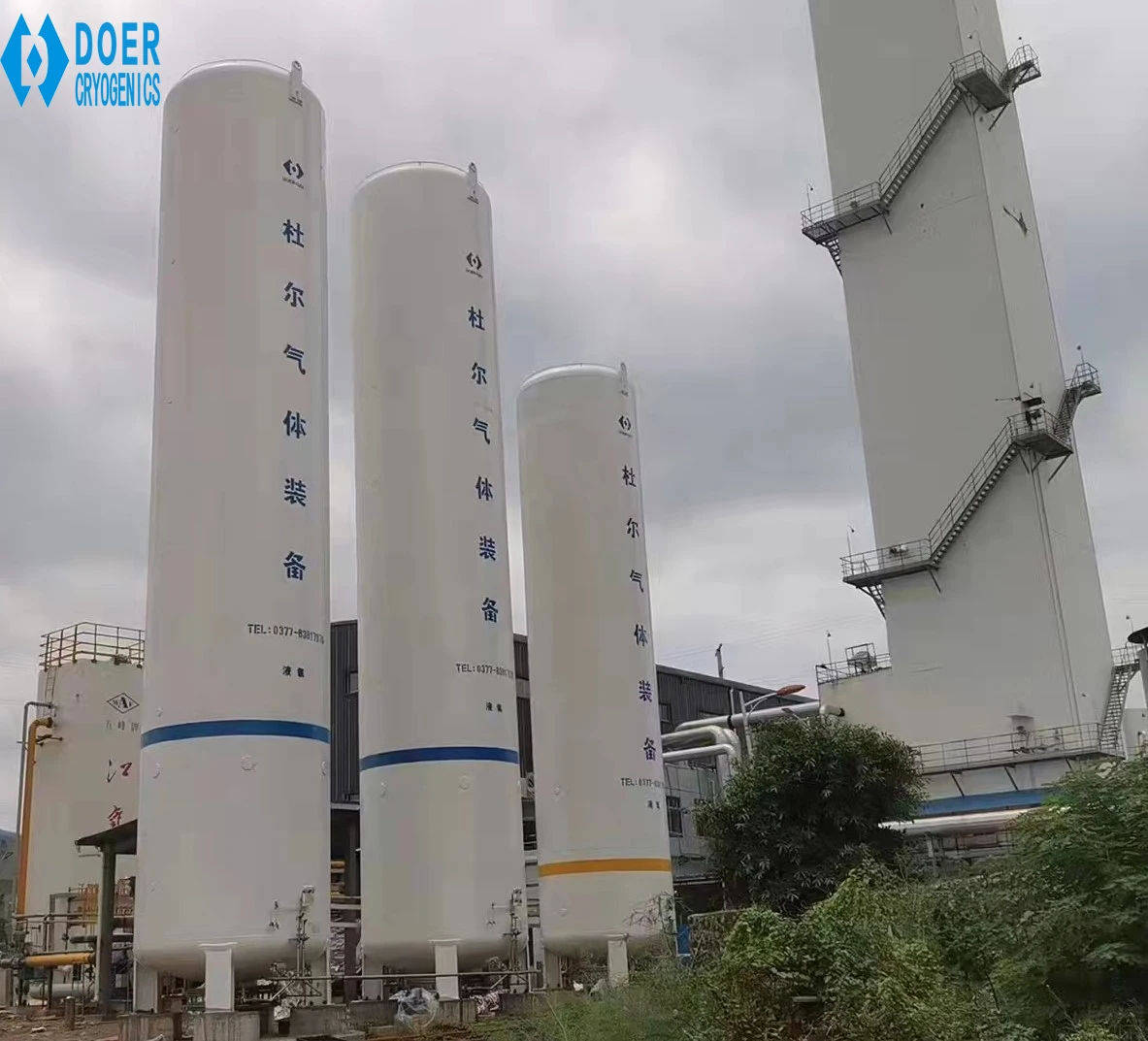

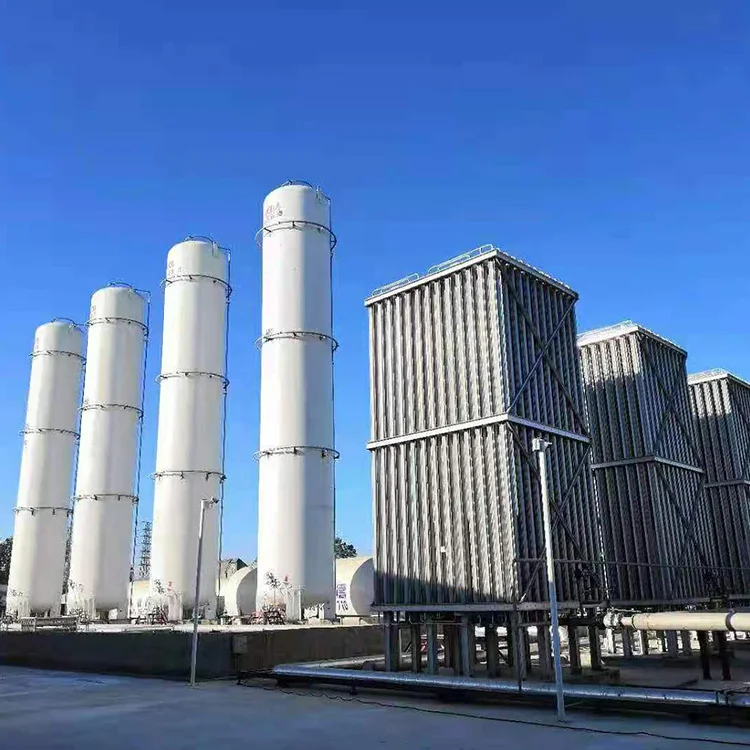

Successful Project
Large atmospheric cryogenic liquid storage tank is the most economical liquid storage method at present, it has the
characteristics of large storage capacity, low pressure, high safety and reliability, it is widely used for storage industrial
gas, such as liquid oxygen, liquid nitrogen and LNG, by advantage of lower cost, easier construction, the tank adopt flat
bottom,cylinder and double-wall powder insulation structure, mainly consist of inner layer, out shell, insulation structure,
pipeline system and safety device, etc.
characteristics of large storage capacity, low pressure, high safety and reliability, it is widely used for storage industrial
gas, such as liquid oxygen, liquid nitrogen and LNG, by advantage of lower cost, easier construction, the tank adopt flat
bottom,cylinder and double-wall powder insulation structure, mainly consist of inner layer, out shell, insulation structure,
pipeline system and safety device, etc.
