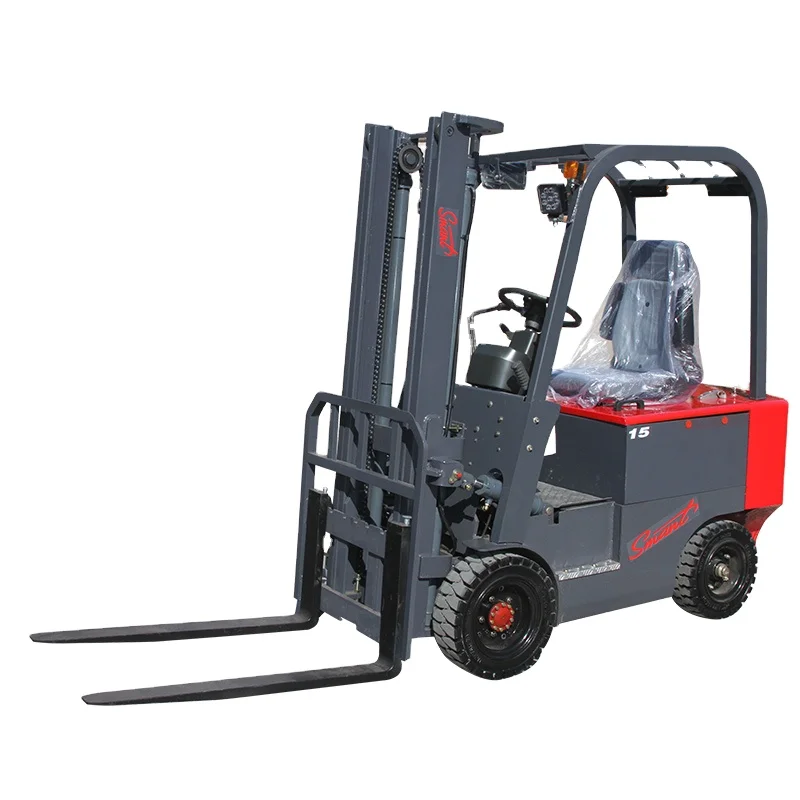

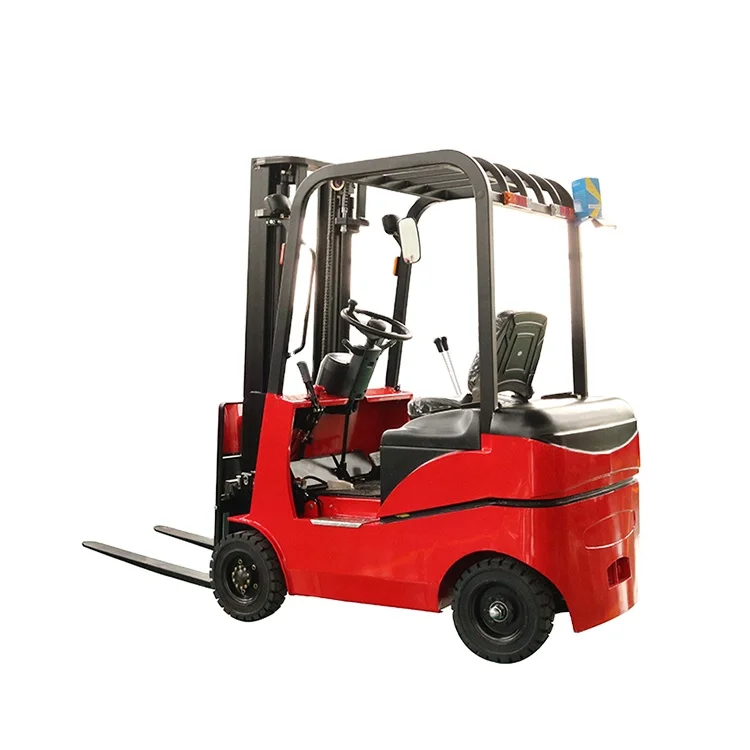

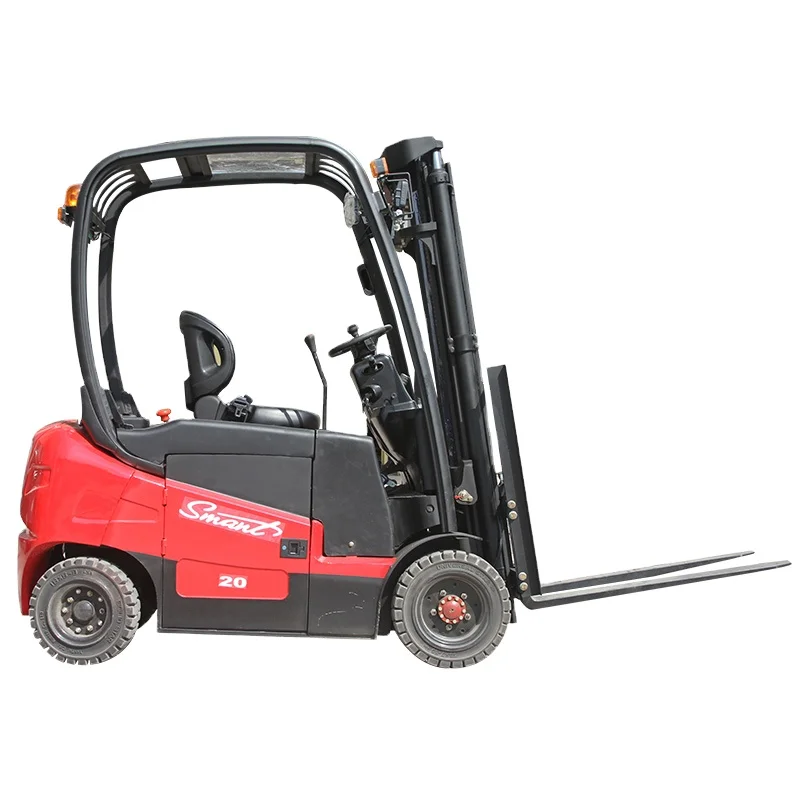

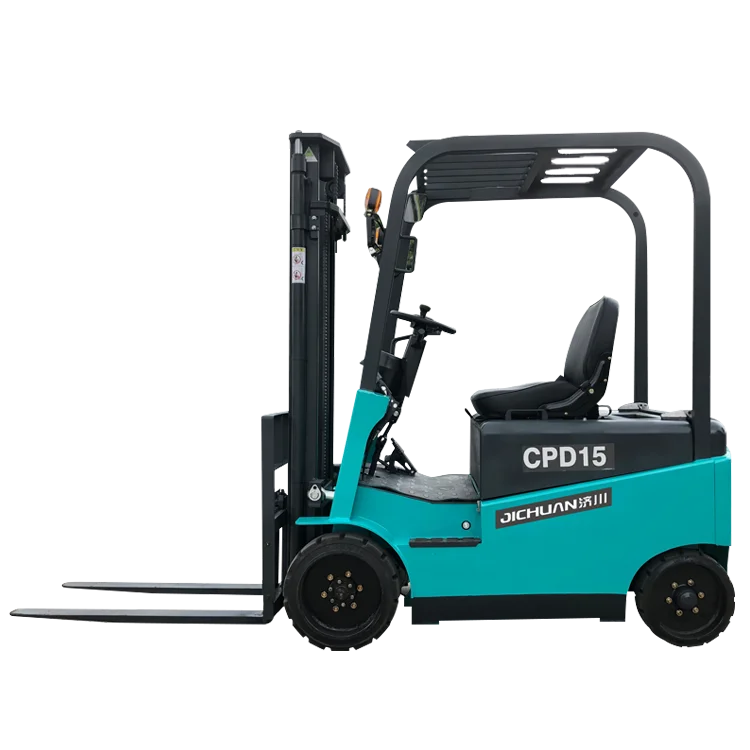

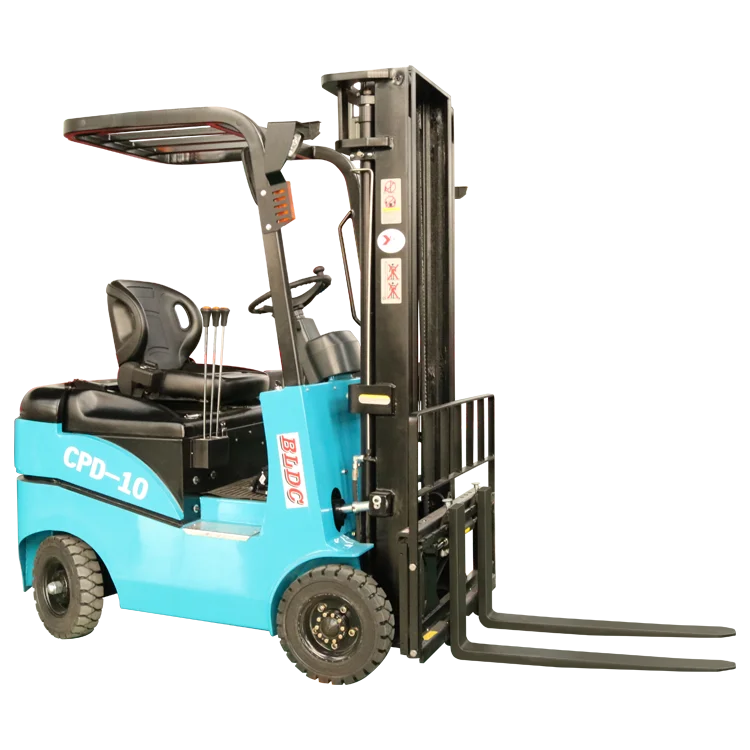

Chinese new multi-function Full Electric Forklift With four wheels

Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.



Model		CPD10	CPD15A	CPD20A	CPD25B	CPD30A	CPD50
Power type		Storage  battery	Storage  battery	Storage  battery	Storage  battery	Storage  battery	Storage  battery
Rated load	kg	1000	1500	2000	2500	3000	5000
Load center distance	mm	480	500	500	500	500	600
Lifting height	mm	3000	3000	3000	3000	3000	3000
Free lifting height	mm	150	150	150	150	150	150
Fork size	mm	920×100×30	1070×100×35	1070×100×40	1070×120×40	1070×120×45	1220×150×55
Door frame dip angle		43628	43628	43628	43628	43628	43628
Min.turning radius	mm	1300	2000	2300	2300	2500	2750
Minimum right channel width	mm	2000	2300	2500	2500	2800	4290
Min .height off the ground	mm	90	90	90	90	90	150
Height of retaining feame	mm	1950	2000	2170	2170	2170	2350
Distance from seat surface to top shieid	mm	970	1000	1005	1005	1005	1400
Maximum travel speed	km/h	43813	43813	43813	43809	43813	14/13
Max.lifting speed	mm/s	340/280	340/280	340/280	340/280	390/360	410/250
Maximum climbing ability	%	12	12	12	15	12	15
overall no fork	mm	1700	2080	2380	2380	2600	2950
overall width	mm	1000	1050	1150	1200	1250	1510
Maximum lifting height of forklift	mm	4000	4000	4000	4000	4000	4180
Gantry height	mm	2020	1990	2080	2080	2080	2180
Front tyre		18×6×121/8	18*6	6.50-10	23×9-10	23×9-15	8.25-5
Rear tyre		15×5×111/4	15*5	5.00-8	18×7-8	18×7-8	7.00-12
Wheelbase	mm	1020	1080	1380	1380	1680	1940
Wheel distance front / back	mm	740/800	890/920	900/960	900/960	1000/980	1250/1200
Self-weight without load, battery	kg	1410	2050	2610	2800	2980	5800
Storage Battey VOltage /Capacity	V/Ah	48	48	48	48	72	80
Motor walking	KW	4	5.5	5.5	10	10	17
Motor lift	KW	3	5.5	5.5	12	7.5	20
Controller		Curtis	TF	TF	FJ	TF	SZ
control method		AC+DC	AC+DC	DC	AC	DC	AC
battery		160AH	6V×8	6V×8	2V×24	6V×8	2V×40
			240AH	240AH	500AH	240AH	500AH
