Лазерный гравировальный станок CNC4240 с лазерной головкой 20 Вт 40 Гравер металлический
- Категория: Industry Laser Equipment >>>
- Поставщик: Guangzhou,Lingyue,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 108.96 $* | 110.47 $* |
| Jul-16-2025 | 88.29 $* | 90.89 $* |
| Jun-16-2025 | 106.2 $* | 108.85 $* |
| May-16-2025 | 105.49 $* | 107.20 $* |
| Apr-16-2025 | 84.34 $* | 86.0 $* |
| Mar-16-2025 | 104.64 $* | 106.41 $* |
| Feb-16-2025 | 103.4 $* | 105.44 $* |
| Jan-16-2025 | 102.50 $* | 104.86 $* |
Характеристики
Product Description

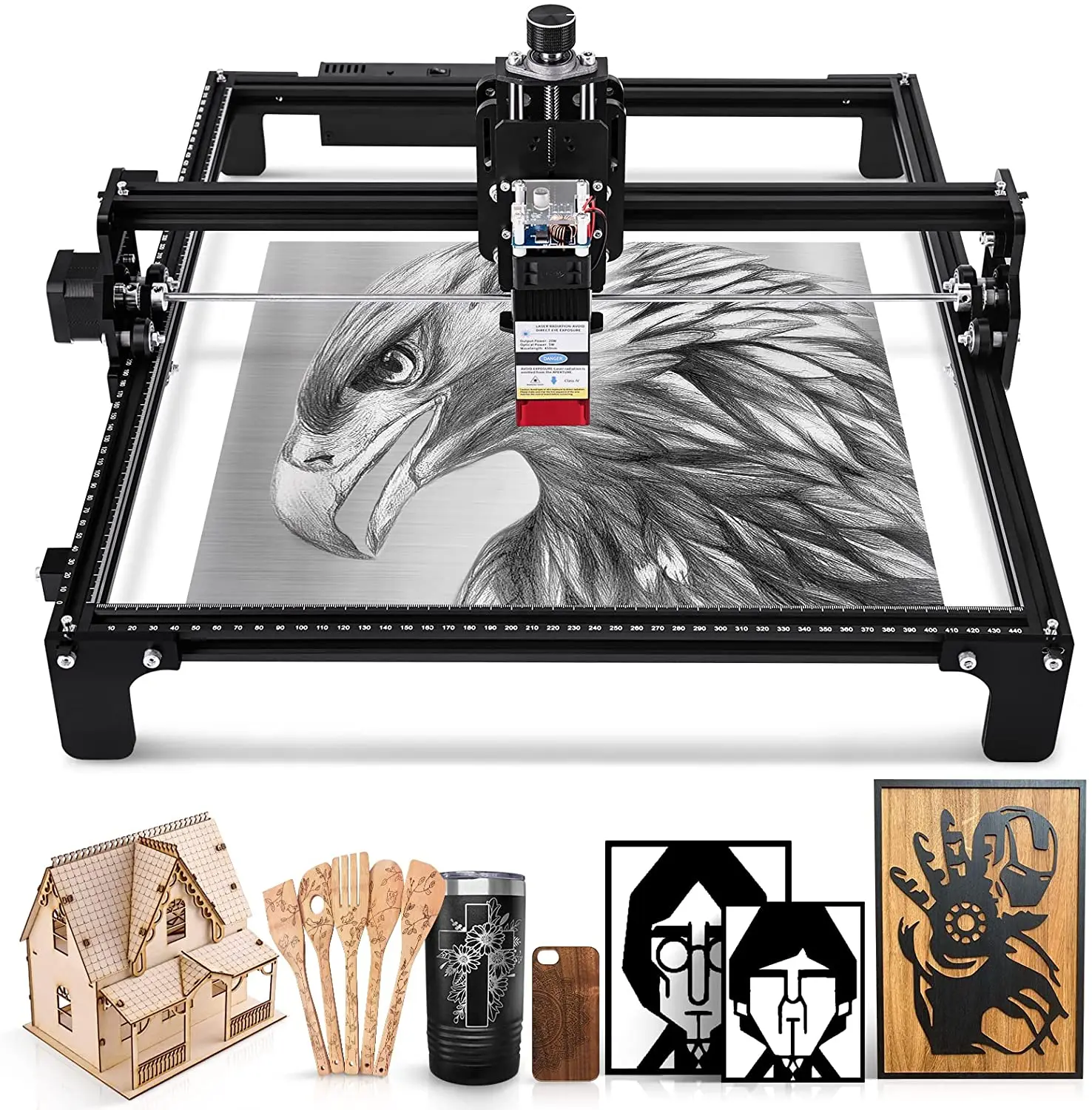

CNC 4240 laser engraving machine is ideal for amateur laser engraving usage with grayscale printing,low-light positioning and freedom positioning functions.
Product size | 600*540*285mm | ||||||
Working area | 420*400mm | ||||||
Power supply | 24V 2A | ||||||
Step motor | 42x48mm | ||||||
Limit switch | Yes | ||||||
Precision | 0.01mm | ||||||
System | Windows XP/7/9/10. Mac OS | ||||||
Control Software | Lightburn, Lasergrbl | ||||||
Application(material | White paper, wood, cardboard, plastic, leather, PCB board, Aluminum, non-reflective coated, non-painted metal, Stainless steel, ceramic, acrylic, ect. | ||||||
Details Images
Higher Base:
5.8cm extra higher base makes it easier to engrave tall objects
Scale on the Frame:
With a scale frame can more convenient measurement of carving the size of the object
With a scale frame can more convenient measurement of carving the size of the object

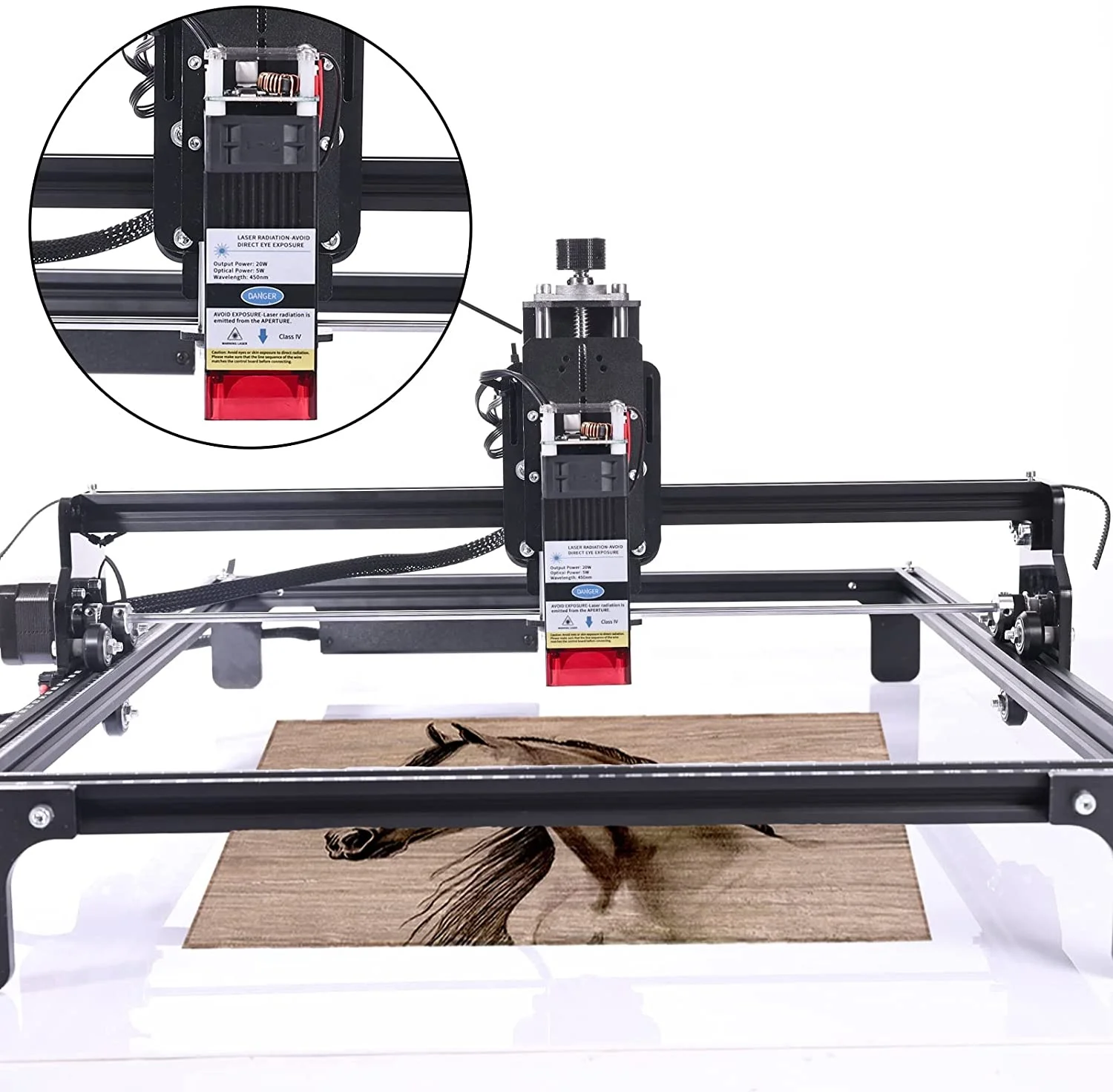

Z-axis Manual Adjustable:
You can adjust the height of Z-axis manually, it can raise or lower 4 mm height
You can adjust the height of Z-axis manually, it can raise or lower 4 mm height
Two Limit Switches:
The limit switches can ensure the machine does not exceed the stroke, and also be used to determine the zero point of the machine
The limit switches can ensure the machine does not exceed the stroke, and also be used to determine the zero point of the machine
Variety Material Application
You can send your design to us If you have any ideas on it, we can make a free sample for you reference.
About Operation
It is high performance, open-source software for controlling movement.Compatible with Lighrburn and Lasergrble.

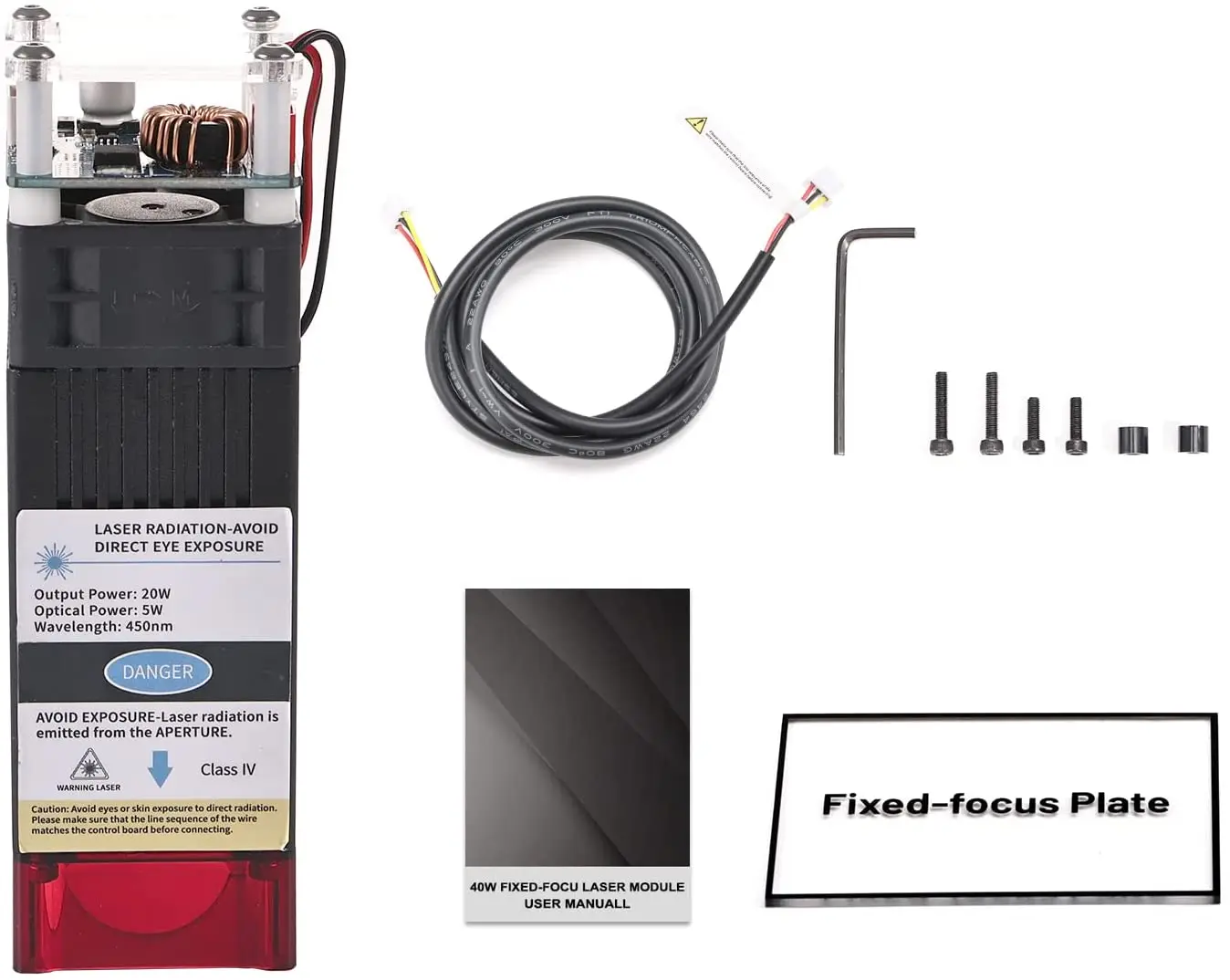

Available Laser Modules
Fixed focus 20W Laser | Fixed focus 40W Laser | |
Size of laser module | 40*40*130mm | 40*40*130mm |
Input Voltage&Current | 12V 3A | 12V 3A |
Laser Wavelength | 450±5nm | 450±5nm |
Output Power | 20W | 40W |
Optical Power | 5W | 10W |
Focus Spot Size | 0.08*0.08mm | 0.12*0.12mm |
Engraving Accuracy | 0.01mm | 0.01mm |
Cutting Depth | 3-5mm | 3-5mm |
Advanced Technology: Adopt the most advanced beam compression technology to reduce the beam to 0.08 * 0.08 mm, make engraver has better effect of engraving and cutting
1.Wide Software Compatibility: Compatibe with LightBurn and LaserGrbl, support Win 7 / Win 8/ Win 10, and Mac system
2.Cylindrical Objects Engraving: Can engraver cylindrical objectw with Y-axis Roller (Not included)
3.New Eye Protection Design: The engraver with protective cover perfectly protects your eyes when your working Engraving Wood and Metal, filter UV light for 97%. You and the people around can watch engraver without wearing goggles
1.Wide Software Compatibility: Compatibe with LightBurn and LaserGrbl, support Win 7 / Win 8/ Win 10, and Mac system
2.Cylindrical Objects Engraving: Can engraver cylindrical objectw with Y-axis Roller (Not included)
3.New Eye Protection Design: The engraver with protective cover perfectly protects your eyes when your working Engraving Wood and Metal, filter UV light for 97%. You and the people around can watch engraver without wearing goggles

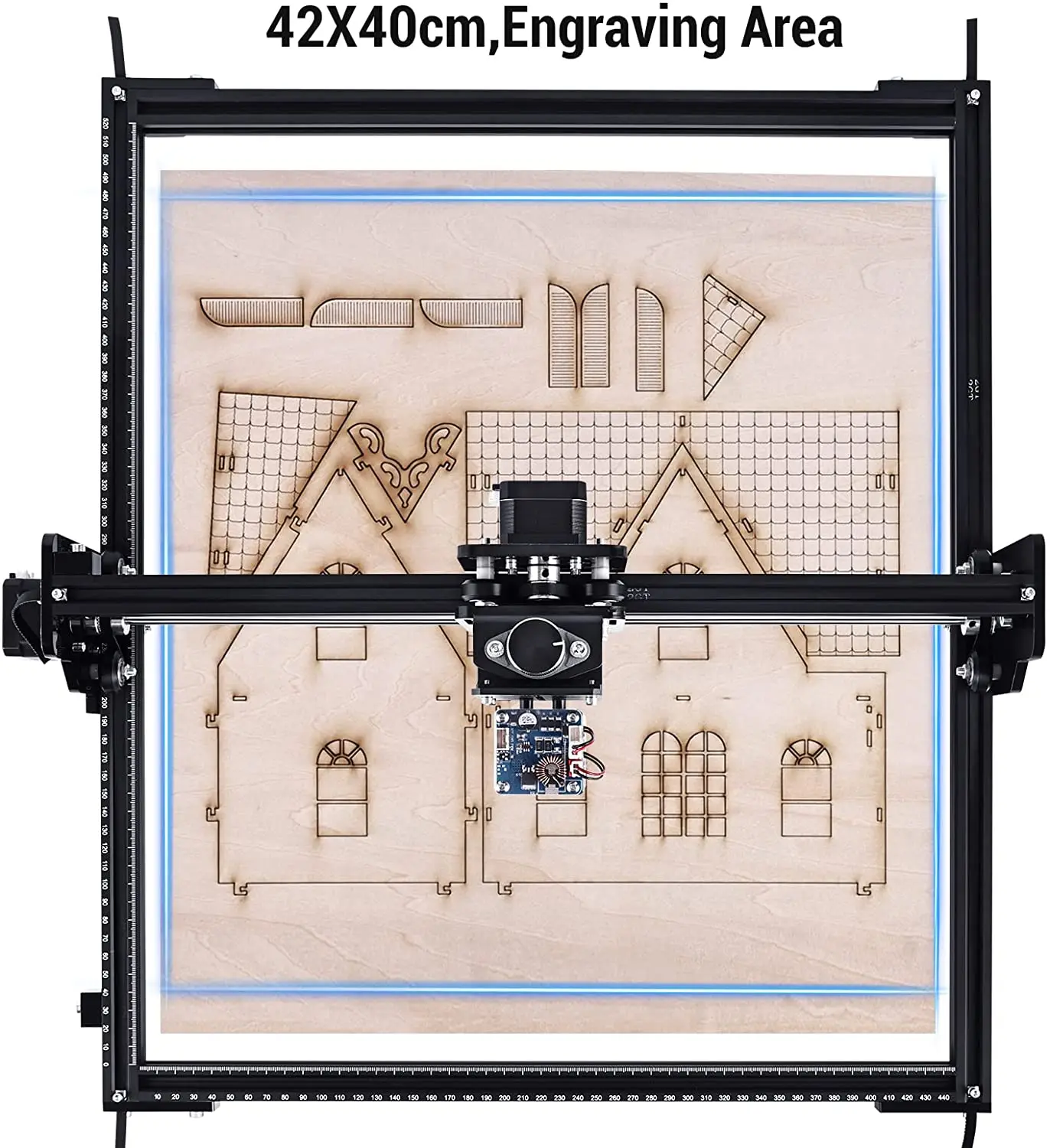

4.Precise Scale Lines Axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 420x400mm large area engraving interval can meet your various engraving needs
Packing&Shipping
Individual Carton packaging
Plastic bags with foam For Machine
Package size : 60*25*16cm
Total Weight : 6kg
1. We have rich experience in engraving machine industry.
2. We can do free samples for you according to your pattern design.
3.All products can be OEM and meet your requirements.
4. Customers can enjoy lone-term technical advises from our designers
5. We have strict quality control procedures and Professional after-sales guidance services .
6. We will assemble and test all products before delivery.
After you receive the goods, pls check it in time . If there is any questions, pls send pictures to us ASAP. We will check and confirm with our factory, and send the new accessories to you.
3.All products can be OEM and meet your requirements.
4. Customers can enjoy lone-term technical advises from our designers
5. We have strict quality control procedures and Professional after-sales guidance services .
6. We will assemble and test all products before delivery.
After you receive the goods, pls check it in time . If there is any questions, pls send pictures to us ASAP. We will check and confirm with our factory, and send the new accessories to you.
Company Introduction
Guangzhou Lingyue Technology Co.,LTD which is located in Guangzhou,China,is a leading manufacturer of CNC Engraving Machine.We have lots of regular customers from home and abroad since 2015. They keep working with us not only for our cost-effective products,but also for our service. We have our own R&D Department,strict Quality Control Department,Sales & Services Department.
No matter you are an enthusiastic hobbyist who is climbing the learning curve of CNC, or you want to start CNC business, our factory will be your best choice in the industry.
No matter you are an enthusiastic hobbyist who is climbing the learning curve of CNC, or you want to start CNC business, our factory will be your best choice in the industry.
