Радиоантенна на крышу автомобиля грузовика
US $12.00-$15.00

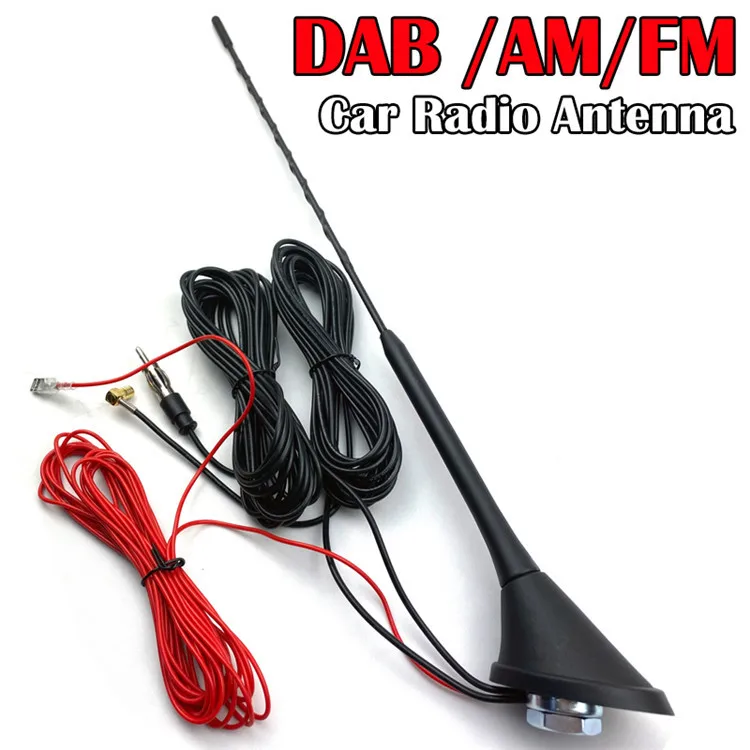

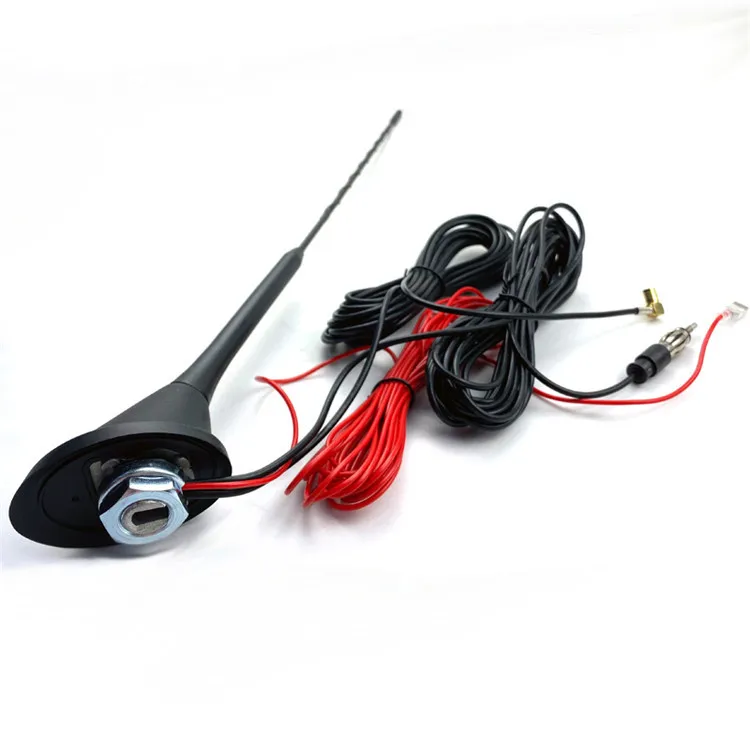

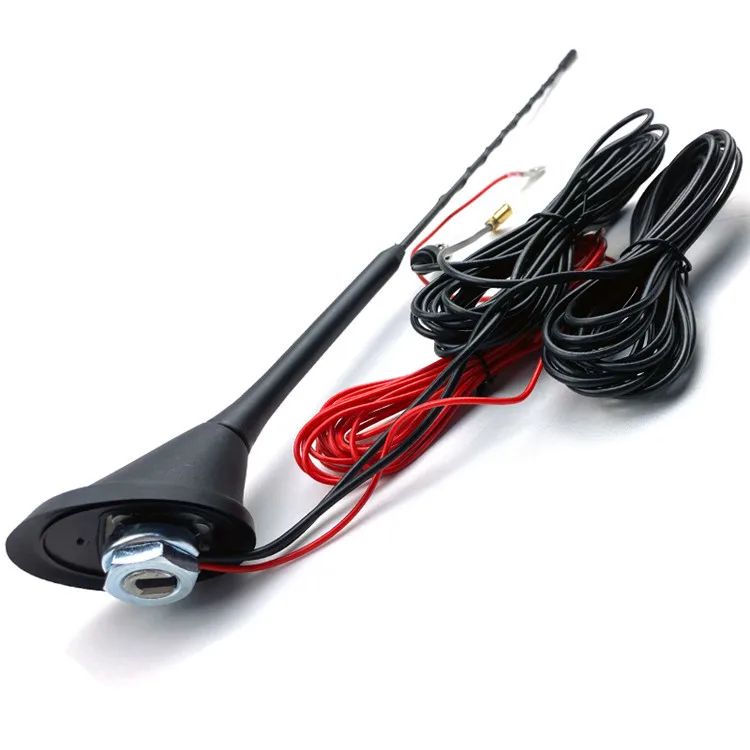

Универсальная цифровая DAB антенна с креплением на крышу усилителем для + AM/FM автомобильного радио
- Категория: Car Antenna >>>
- Поставщик: Leju(Guangzhou),Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 12.18 $* | 13.73 $* |
| Aug-18-2025 | 12.71 $* | 13.89 $* |
| Jul-18-2025 | 10.28 $* | 11.20 $* |
| Jun-18-2025 | 12.34 $* | 13.27 $* |
| May-18-2025 | 10.69 $* | 11.9 $* |
| Apr-18-2025 | 11.30 $* | 12.30 $* |
| Mar-18-2025 | 11.16 $* | 12.91 $* |
| Feb-18-2025 | 11.39 $* | 12.23 $* |
| Jan-18-2025 | 11.59 $* | 12.18 $* |
Характеристики
Description:
Highly competitive high performance roof mount DAB and AM/FM antenna.
Roof mounted Combined FM + DAB antenna. This allows the factory roof aerial to be replaced to work with both DAB and FM avoiding
the need for adding additional DAB aerials.
the amplifier built into the aerial increases the signal for both DAB and FM allowing reception even in areas that would usually
have a poor radio reception.
Features:
Bar Length: Approx. 23 cm
gain approx. 10 dB
Antenna Angle: Approximately 75 °

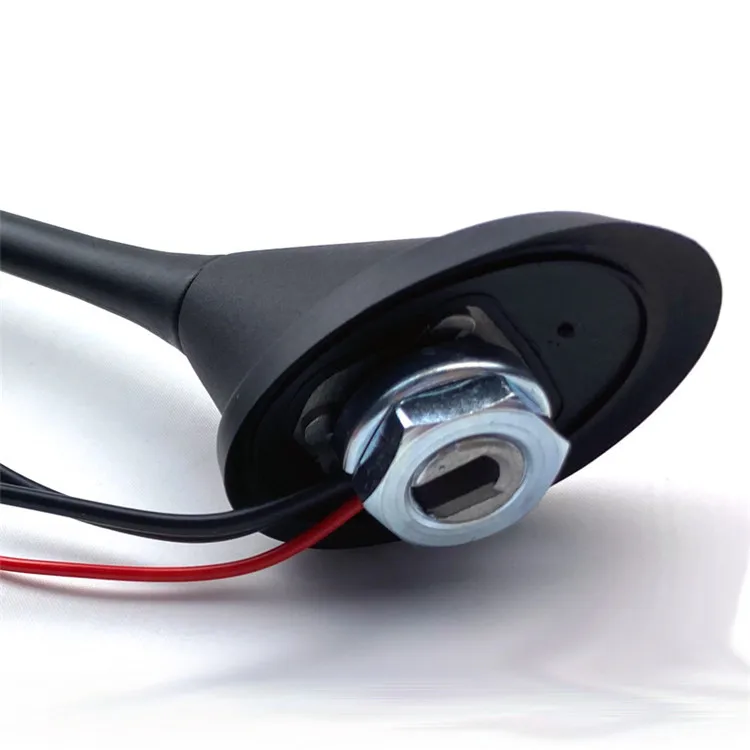

antenna base with sealing - Dimensions: 58 x 45x 270 mm
Handle Material: Rubber/fibreglass - Antenna rod
Mechanical Cable: RG174
Cable Length:5M

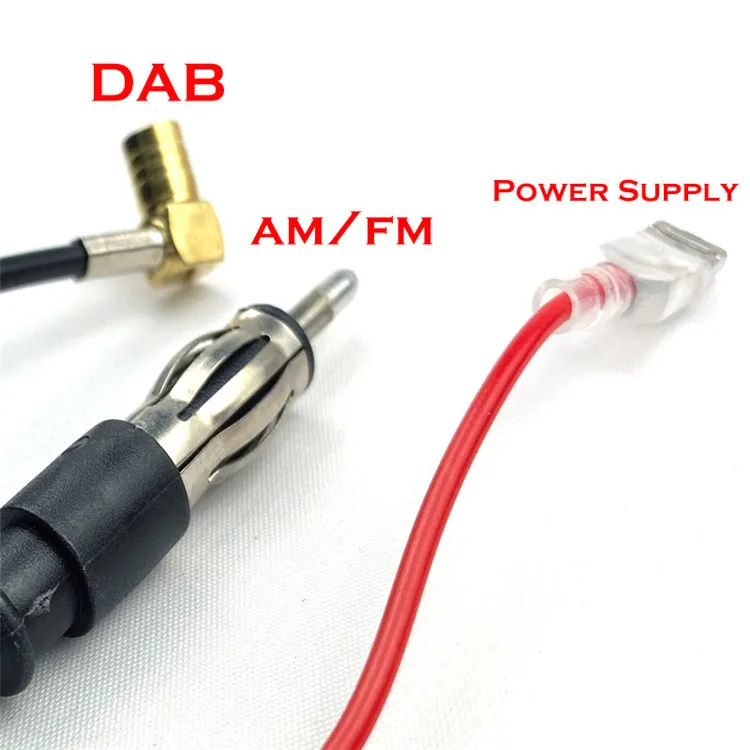

Connector: DAB Antenna:SMB AM/FM Antenna:DIN
Mounting Method:Screw
DAB Antenna&Amplifier
Frequency Range：174~237MHz/1452~1492MHz
Wave Band：DAB BⅢ/L-Band
Polarization：Linear
Impendance：50Ω
Gain：10±2dB
Supply Voltage：12V DC
Current Consumption：40mA
FM/AM Antenna&Amplifier
Frequency Range:520~1629KHz/76~108MHz
Wave Band:AM/FM
Connector:DIN
Polarization:Linear
Impendance:AM＜90 pF FM:75~150 Ω
Gain:AM:6dB FM:7dB
Supply Voltage:12V DC
Current Consumption:60mA
Environmental
Operating Temperature:-40℃~+85℃
Relative Humidity:Up to 95%
Ingress Protection:IP65~IP66 (exclude cable outlet)
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
ROHS Compliant
Highly competitive high performance roof mount DAB and AM/FM antenna.
Roof mounted Combined FM + DAB antenna. This allows the factory roof aerial to be replaced to work with both DAB and FM avoiding
the need for adding additional DAB aerials.
the amplifier built into the aerial increases the signal for both DAB and FM allowing reception even in areas that would usually
have a poor radio reception.
Features:
Bar Length: Approx. 23 cm
gain approx. 10 dB
Antenna Angle: Approximately 75 °
antenna base with sealing - Dimensions: 58 x 45x 270 mm
Handle Material: Rubber/fibreglass - Antenna rod
Mechanical Cable: RG174
Cable Length:5M
Connector: DAB Antenna:SMB AM/FM Antenna:DIN
Mounting Method:Screw
DAB Antenna&Amplifier
Frequency Range：174~237MHz/1452~1492MHz
Wave Band：DAB BⅢ/L-Band
Polarization：Linear
Impendance：50Ω
Gain：10±2dB
Supply Voltage：12V DC
Current Consumption：40mA
FM/AM Antenna&Amplifier
Frequency Range:520~1629KHz/76~108MHz
Wave Band:AM/FM
Connector:DIN
Polarization:Linear
Impendance:AM＜90 pF FM:75~150 Ω
Gain:AM:6dB FM:7dB
Supply Voltage:12V DC
Current Consumption:60mA
Environmental
Operating Temperature:-40℃~+85℃
Relative Humidity:Up to 95%
Ingress Protection:IP65~IP66 (exclude cable outlet)
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
ROHS Compliant
Product Description
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | gztmauto |
Model Number | GPS |
Car Make | All cars |
Frequence Range | 174~237MHz/1452~1492MHz |
Gain(dB) | 0 |
Cable Length | 0 |
Product name | DAB Antenna |
Color | Black |
Material | ABS |
Weight | 0.35kg |
MOQ | 10pcs |
Car Model | Universal Model |
Delivery Time | 7-15 Days |
Quality | High-Quality |
Package | pp bag |
Style | JDM |
Packing & Delivery
