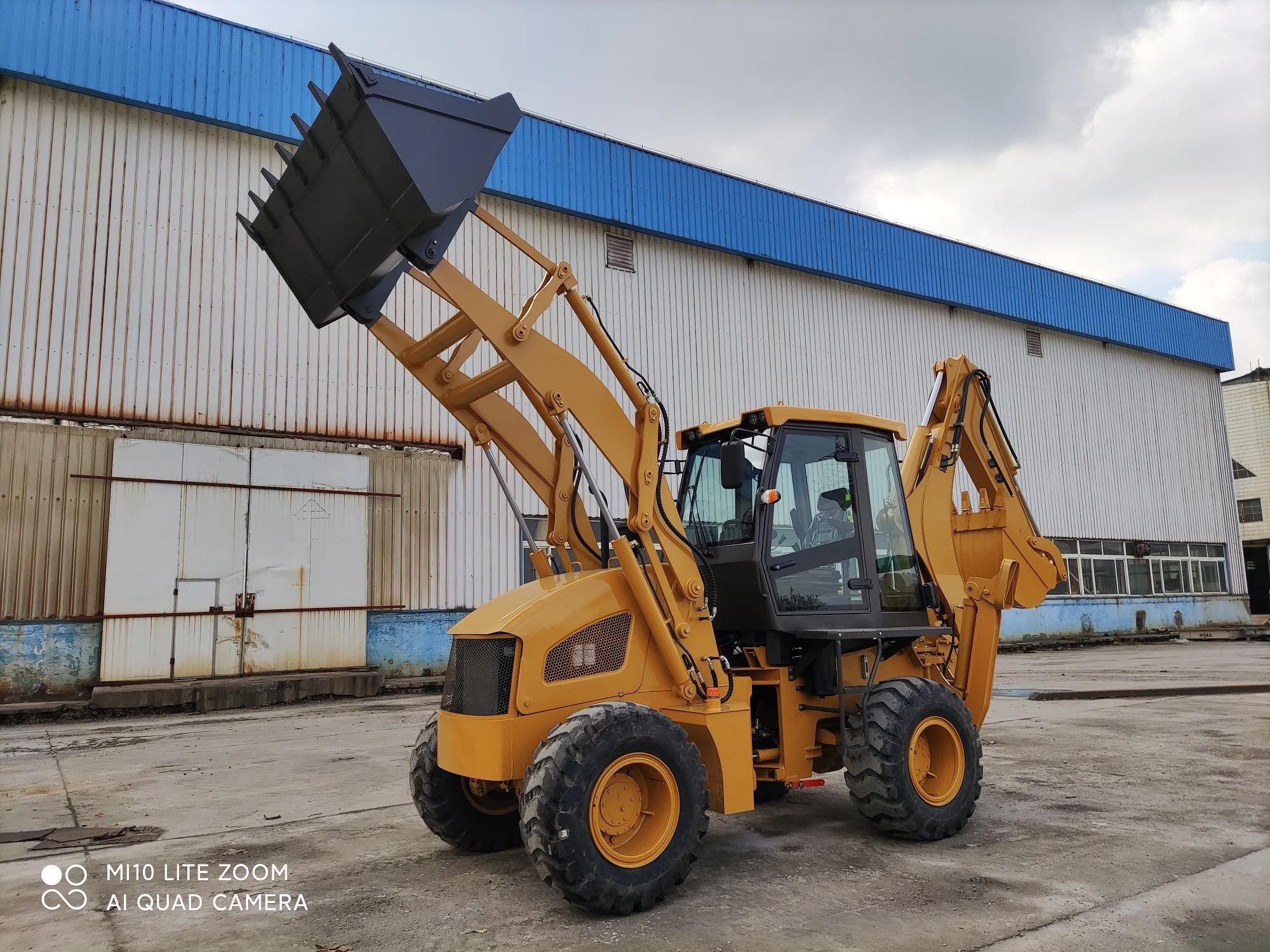

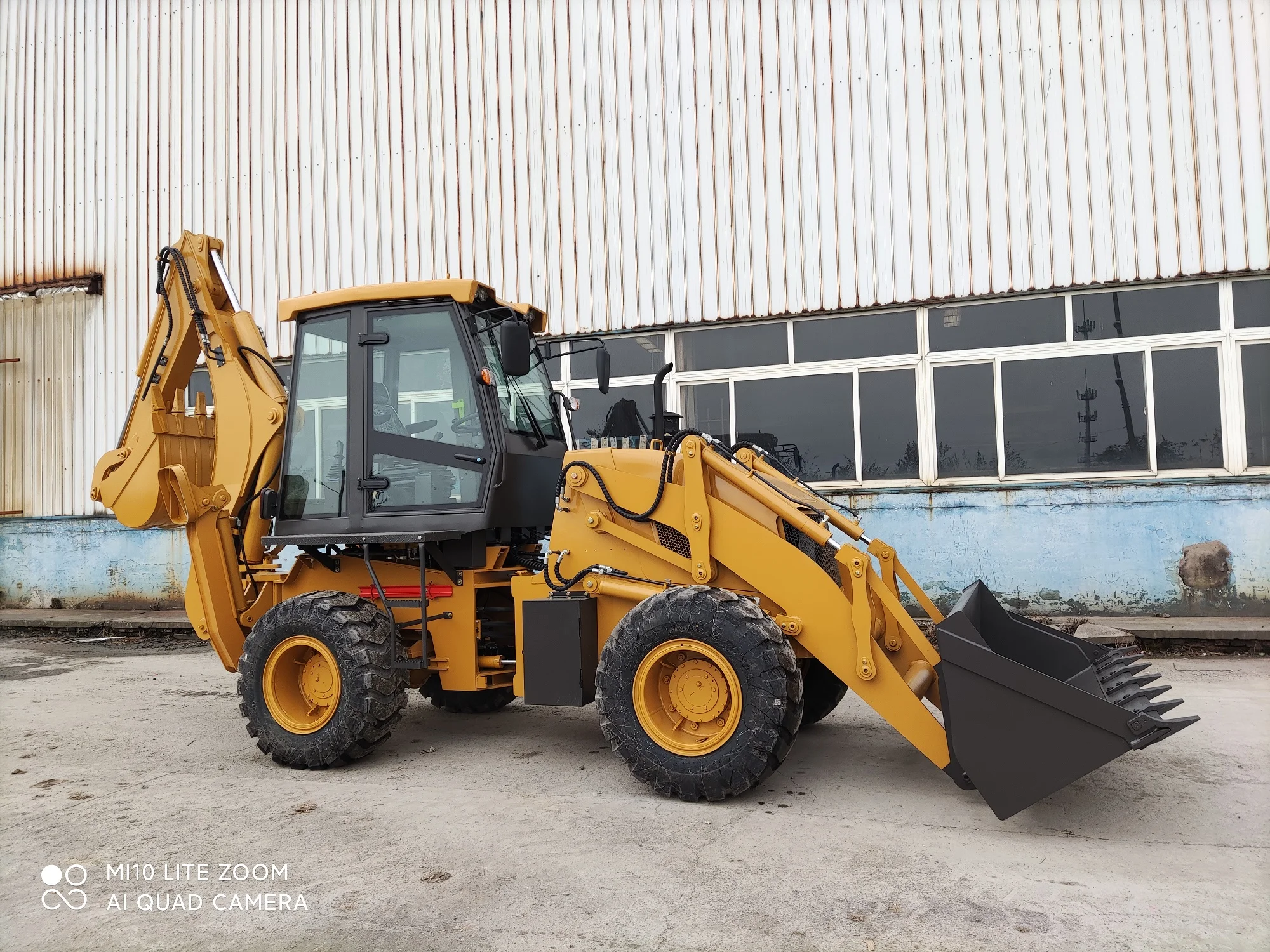

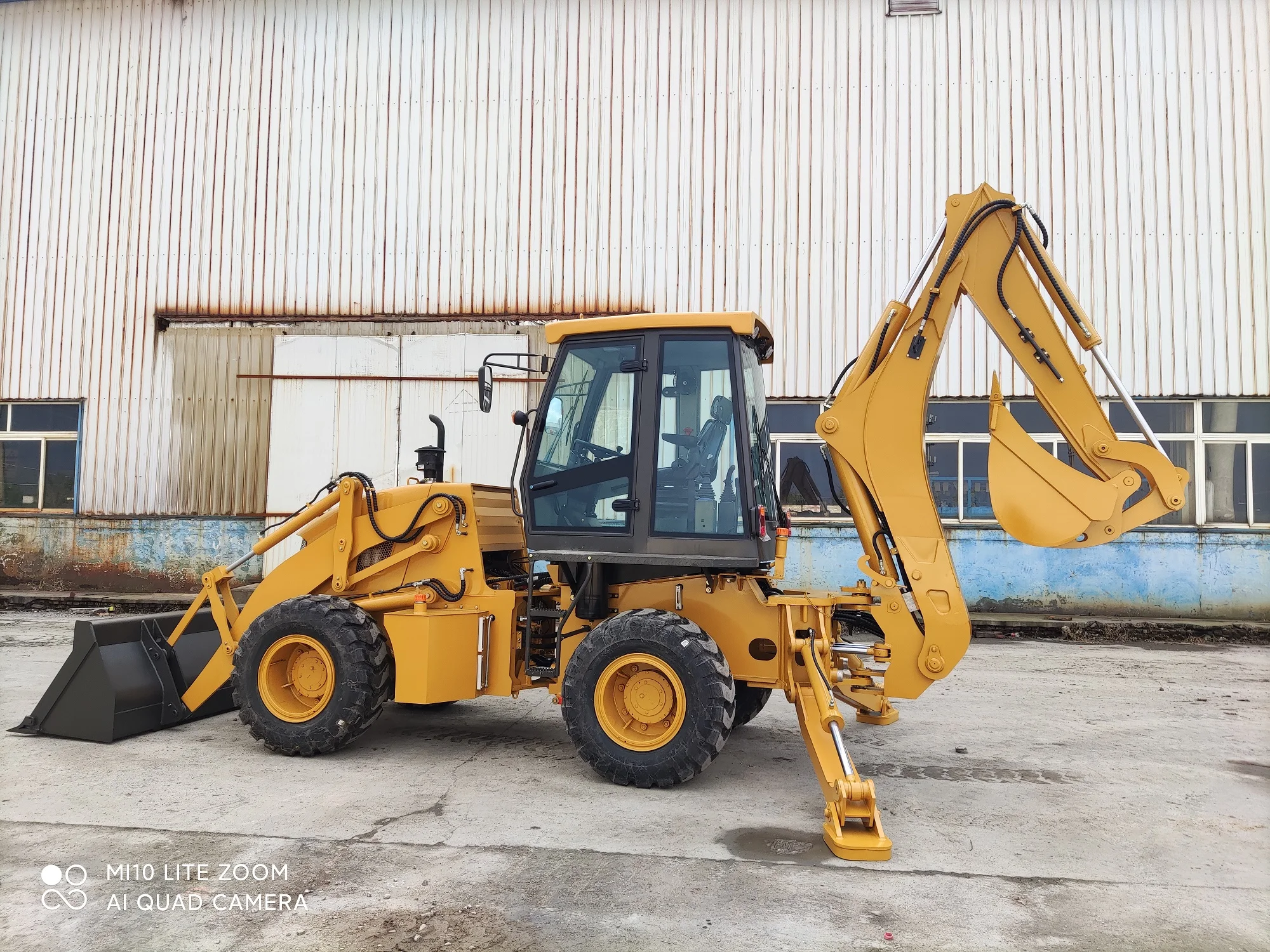

LC40-28(Luxurious) China Wheel Mini Skid Steer Loader Backhoe with Width Bucket Ready
- Категория: Loaders >>>
- Поставщик: Guangxi,Ligong,Machinery,Co.,Ltd.Guangxi,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 14280.95 $* | 14994.65 $* |
| Aug-18-2025 | 14160.21 $* | 14868.38 $* |
| Jul-18-2025 | 11880.43 $* | 12474.26 $* |
| Jun-18-2025 | 13920.85 $* | 14616.18 $* |
| May-18-2025 | 12120.43 $* | 12726.96 $* |
| Apr-18-2025 | 13680.74 $* | 14364.41 $* |
| Mar-18-2025 | 13560.87 $* | 14238.45 $* |
| Feb-18-2025 | 13440.24 $* | 14112.40 $* |
| Jan-18-2025 | 13320.91 $* | 13986.65 $* |
Характеристики
PRODUCT DETAIL DISPLAY
The Performance Parameter of Backhoe Loader LC40-28 | ||
整机操作重量 | 8000KG | |
Overall Operating Weight | ||
运输尺寸Transport Dimension | ||
长×宽×高mm L*W*H | 7600×2260×2890mm | |
轴距 Wheel base | 2250mm | |
最小离地间隙 | 300mm | |
Min. Ground Clearance | ||
装载斗容 Bucket Capacity | 1.3m3 | |
掘起力Breakout Force | 38KN | |
装载举升能力 | 2800KG | |
Loading Lifting Capacity | ||
铲斗卸载高度 | 2800mm | |
Bucket Dumping Height | ||
铲斗卸载距离 | 1062mm | |
Bucket Dumping Distance | ||
铲挖深度 Digging Depth | 52mm | |
反铲斗容 | 0.35m3(620mm) | |
Backhoe Capacity（Width） | ||
最大挖掘深度 | 4100mm | |
Max. Digging Depth | ||
可选挖深 | 5160mm | |
Optional Digging Depth | （挖臂带伸缩） | |
挖斗回转角 | 190o | |
Swing Angle of backhoe | ||
最大牵引力 | 39KN | |
Max. Pulling Force | ||
发动机Engine | ||
型号Model | YTO 4A2Z-G93Q-1 | |
型式Type | 单列、直喷、四冲程、水冷 | |
In Line，Direct injection，Four-Stroke，Water Cooling | ||
额定功率Rated Power | 85KW | |
转向系统Steering System | ||
转向角Steering Angle | ±36 o | |
最小转弯半径 | 6581mm | |
Min. turning radius | ||
系统压力 | 12Mpa | |
Pressure of the system | ||
驱动桥Axle | ||
品牌Brand | 肥城云宇桥FEICHENG YUNYU | |
主传动类型 | 双减速 | |
Main Transmission Type | Double Reduction | |
轮边减速型式Final Reducer | 一级轮边减速Single Stage Final Reducer | |
额定载重 | 4/18.5t | |
Rated Loader of Axle | ||
传动系统Transmission System | ||
变矩器Torque Converter | ||
型号Model | YJ280 | |
型式Type | 单级、单相三元件Single-stage Three Elements | |
冷却方式Cooling Method | 油冷压力循环Oil-cooling Pressure Circulation | |
变速箱Gearbox | ||
型式Type | 定轴式动力换档Fixed Shaft Power Transmission | |
档位数Gears | 前进2档，后退2档Two Gears Ahead, Two Gears Astern | |
最高车速Max.Speed | 30Km/h | |
轮胎Tyre | ||
规格Model | （F）14-17.5前轮 | |
（R）19.5L-24后轮 | ||
前轮气压 | 0.22 Mpa | |
Pressure of Front wheel | ||
后轮气压 | 0.22 Mpa | |
Pressure of Back Wheel | ||
制动系统Brake System | ||
行车制动Service Brake | 气顶油钳盘制动Air Over Oil Caliper Brake | |
外置式External Type | ||
自调节Self-regulation | ||
自平衡Self-balance | ||
驻车/紧急制动 | 操纵力实施制动Operation Power Implementing brake | |
Emergency Brake | 手操纵力解除制动Manual Operation Power Terminating Brake | |
液压系统Hydraulic System | ||
液压系统压力 | 22Mpa | |
Pressure of Hydraulic System | ||
挖斗挖掘力 | 46.5KN | |
Digging Power of Excavator Grab | ||
铲斗掘起力 | 31KN | |
Digging Power of Dipper | ||
铲斗提升时间 | 5.4S | |
Bucket Lifting Time | ||
铲斗下降时间 | 3.1S | |
Bucket Lowering Time | ||
铲斗卸料时间 | 2.0S | |
Bucket Discharge Time | ||
标配 | 前铲带铲斗，后挖带挖斗，豪华带内饰驾驶室，暖风，风扇，豪华可调式旋转座椅，可调式仪表盘，液压先导操作，一拖85KW发动机，14-17.5真空前轮胎，19.5L-24真空后轮胎，特制280变速箱，肥城云宇桥，A形或者H形支腿。 | |
Front shovel with bucket, rear digging belt bucket, deluxe with interior cab, warm air, fan, deluxe adjustable swivel seat, adjustable dashboard, hydraulic pilot operation, one-to-drag 85KW engine, 14-17.5 vacuum front tire, 19.5L-24 vacuum rear tire, special 280 gearbox, Feicheng Yunyu bridge, A-shaped or H-shaped outrigger. | ||
Product Advanteges
Recommend Products
ABOUT LGMC
LGMC(Guangxi Ligong Machinery Co., Ltd）
LGMC (Guangxi Ligong Machinery Co., Ltd), is a company that specialized in not only the construction machinery but also more than 2,000,000 machinery parts(including LIUGONG, SDLG, XCM, XGMA, SHANTUI, SEM, Komatsu, CAT, Doosan and so on), having all the engineering that can be used in the manufacturing industry, construction industry, general industry, and even agriculture. Those machines have been widely used everywhere with multiple functions. LGMC focus on heavy machinery invests in research and development of small machinery and wins the great popularity in aboard markets. Here you can find everything no matter what you want.
Having a great advantage of location, LGMC is located in Liuzhou, a city that has extensive rail connections with the rest of China, and is the home of LiuGong Company, the biggest industrial base of Guangxi Province. In line with the principle of “Honesty, High quality, Reliability, and Efficiency”, LGMC has won great recognition in the market in just a few years and has gained support from major domestic manufacturers and trade organizations as well. LGMC occupied the market relies on the good product quality, and good after-sales service and exported to South Asia, Southeast Asia, Africa, South America, Mid East, Eastern Europe, and other regions.
24 hours 7 days stand by with a professional selling team, solves all kinds of problems on time, and provides specialized commentary on your questions. Always ready to welcome you and help to have a great cooperation experience.
