Цифровой микрофон SMD 2663-2718-DB1H1 Кремниевый

Категория: Acoustic Components >>>
Поставщик: Dongguan,Xunster,Electronic,Technology,Co.,Ltd.

Цена:0,40 $ - 0,42 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.25 $*	0.10 $*
Aug-20-2025	0.66 $*	0.77 $*
Jul-20-2025	0.0 $*	0.85 $*
Jun-20-2025	0.90 $*	0.75 $*
May-20-2025	0.71 $*	0.36 $*
Apr-20-2025	0.31 $*	0.98 $*
Mar-20-2025	0.95 $*	0.91 $*
Feb-20-2025	0.28 $*	0.45 $*
Jan-20-2025	0.66 $*	0.49 $*

Характеристики

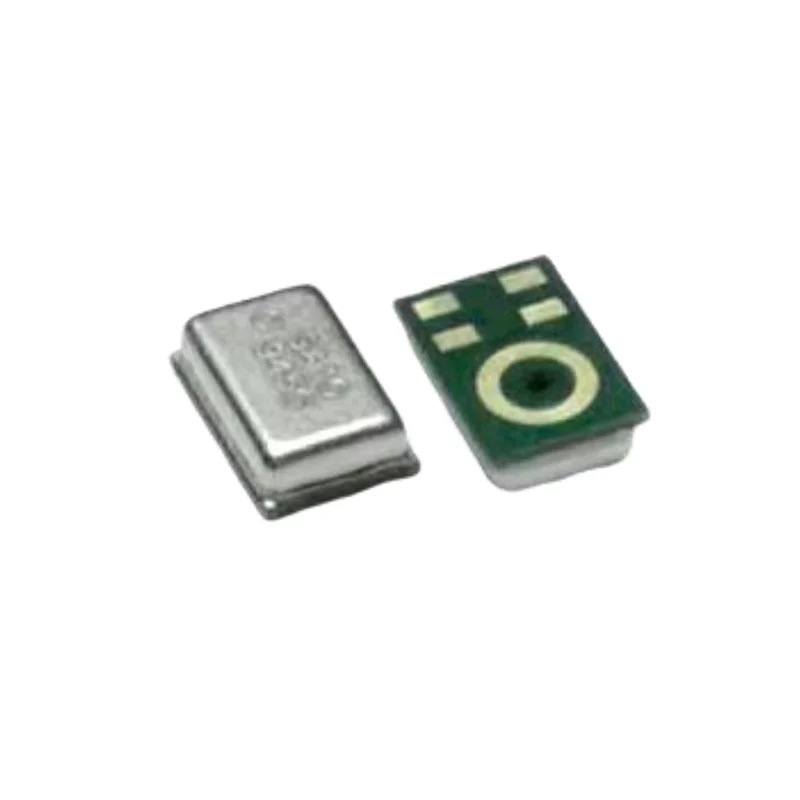

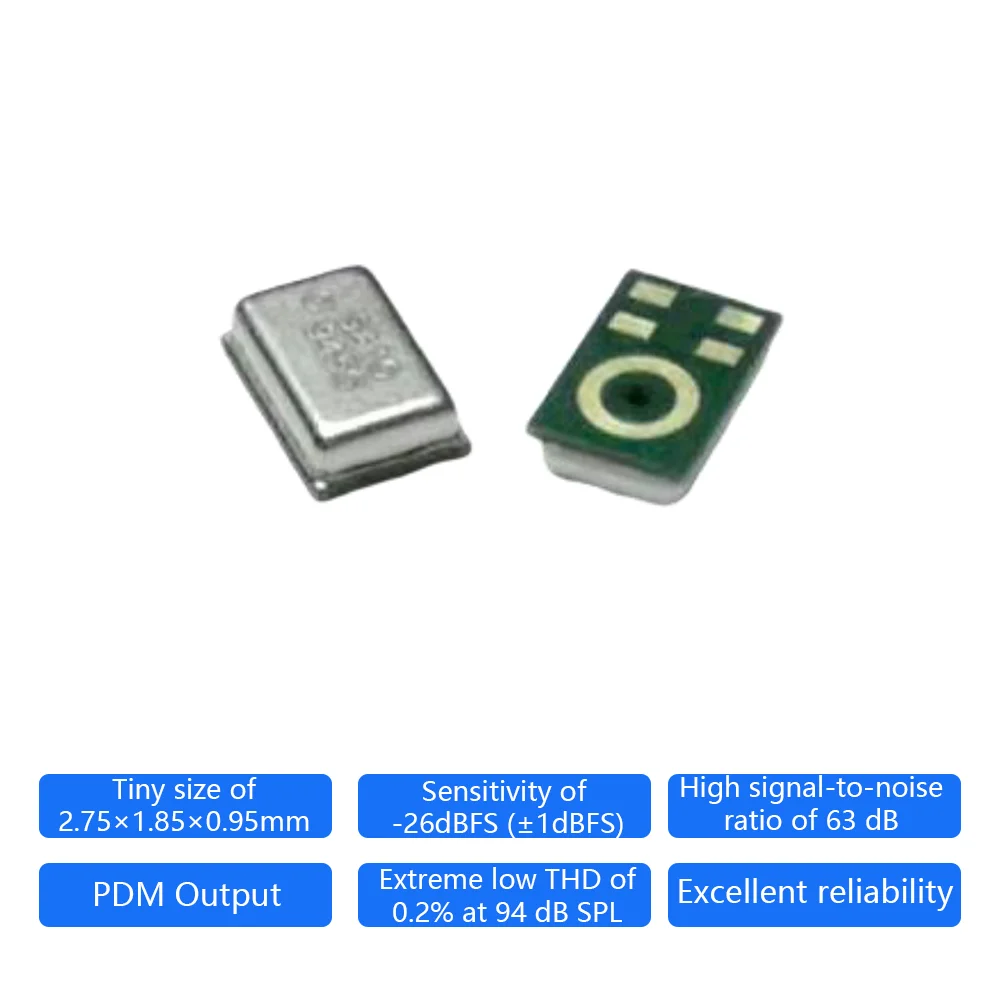

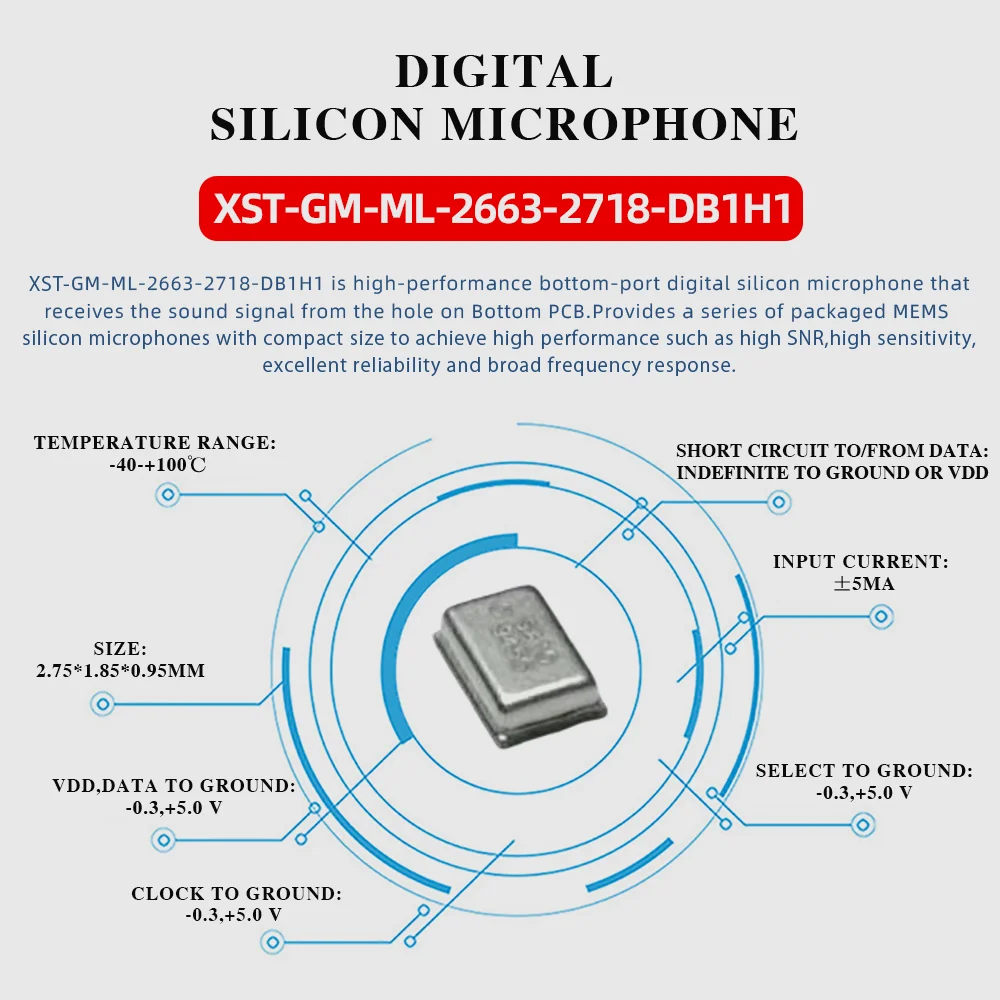

XST-GM-ML-2663-2718-DB1H1 is high-performance bottom-port digital silicon microphone that receives the sound signal from the hole on Bottom PCB.Provides a series of packaged MEMS silicon microphones with compact size to achieve high performance such as high SNR, high sensitivity, excellent reliability and broad frequency response.

Parameter	Symbol	Condition	Min.	Typ.	Max	Unit
Sensitivity	Sens	94dB SPL @1kHz	-27	-26	-25	dBFS
Signal to noise ratio	SNR	94dB SPL @1kHz		62		dB(A)
Current consumption	Idd	Vdd=1.8V, fCLOCK=768KHz		380		µA
Total harmonic distortion	THD	94dB SPL @1kHz		0.2		%
Acoustic Overload Point	AOP	10% THD @ 1kHz		120		dBSPL
Power supply rejection	PSR	100mVpp square wave @ 217 Hz, A-weighted		-80		dBFS(A)
