Монитор потребления электроэнергии в амперах 7 режимов ЖК-дисплей измеритель энергопотребления для экономии энергии обновленная

Description:

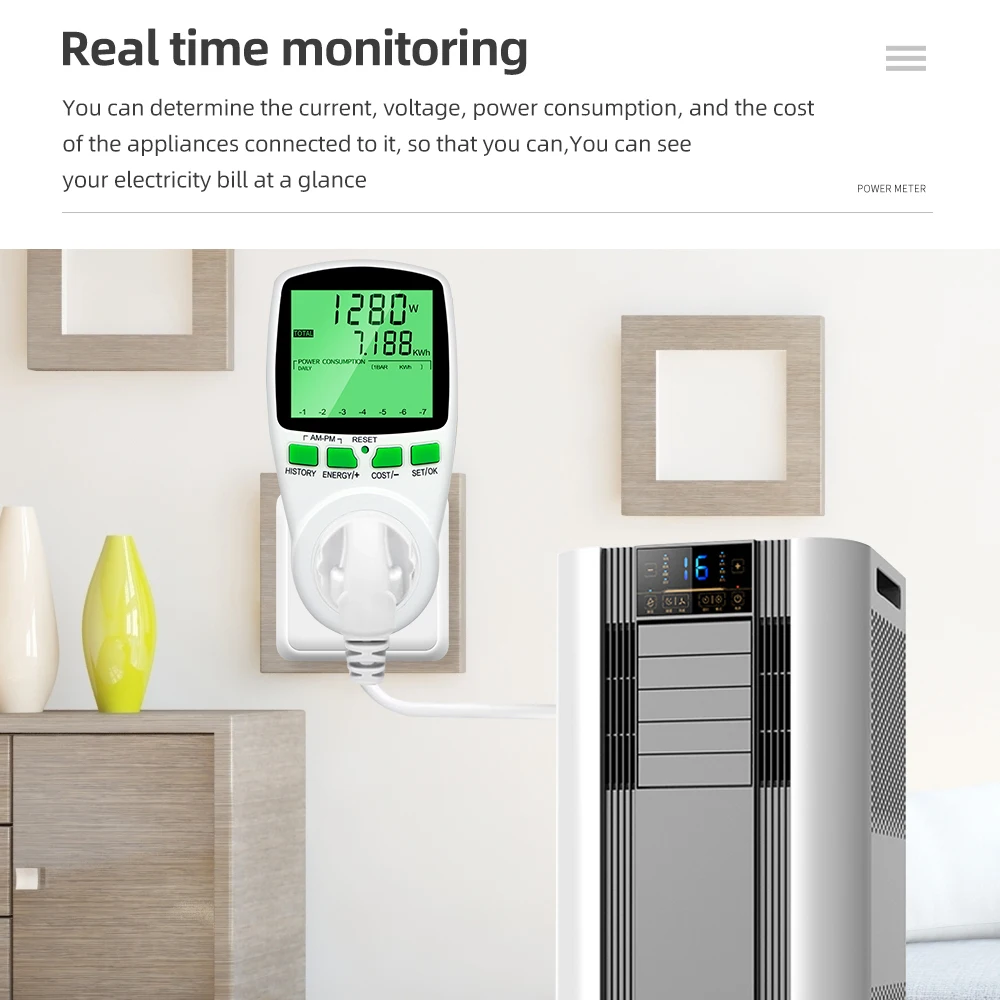

1. Plug the power meter into home socket,it will start working.Plug your electric appliance or equipment to the power monitor.Power meter measure power in watts and electric energy consimption in KW-hr.It shows cost and contriling appliance and help users to track their electric consumption and reduce the power bil and carbon emissions.

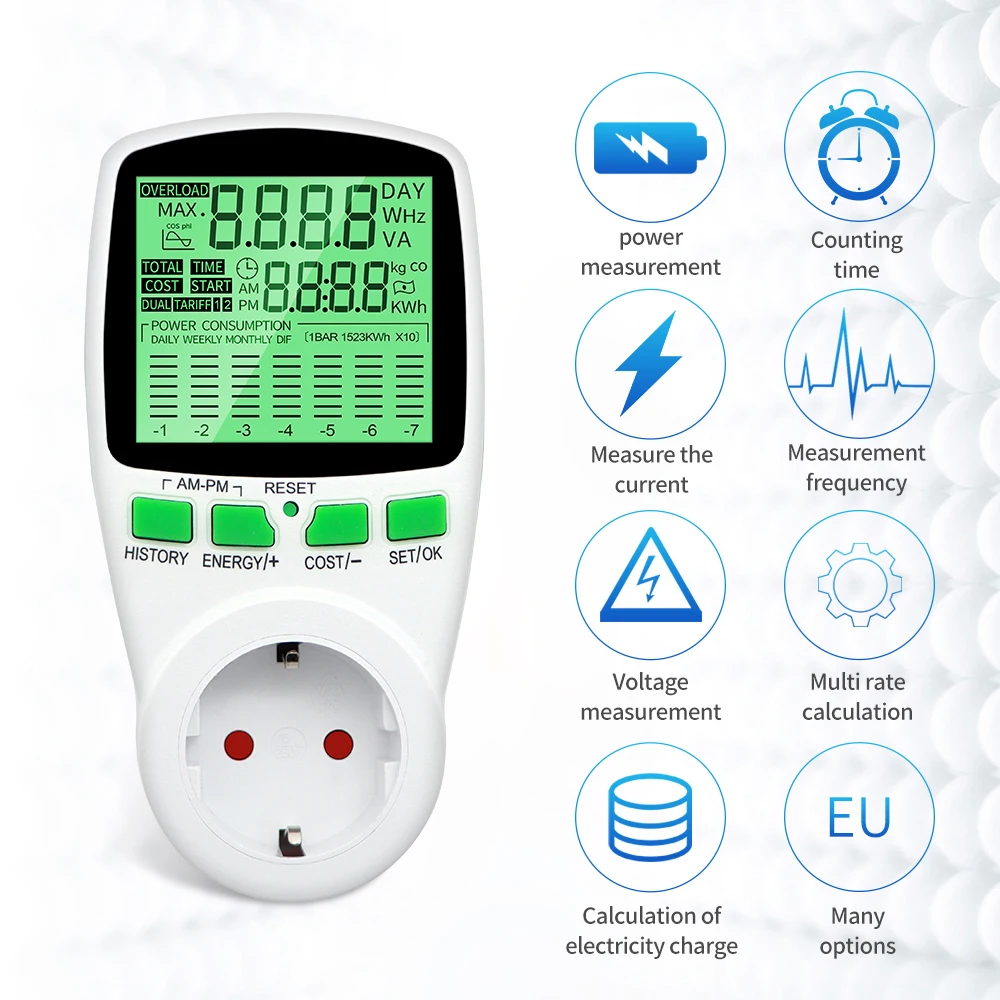

2. Power meter energy monitor is a monitoring and testing instrument which determines the power consumption of a connected appliance and the cost of the electricity consumed. With the help of this power meter, you can make certain how much your standby appliance cost, what the power factor is, whether the appliances are really charged and how long have your appliances been charged.

EU/Italy/French/Swiss plug:

• Power consumption of power meter monitor: 0.5W


• Working voltage: 230VAC


• Frequency display: 50HZ


• Working current: 16A max


• Wide voltage range: 200V-250V


• Set the wattage display (watts) to 0W~9999W; but the actual wattage display (watts) is 0~3680W (the Swiss power meter label shows 2500W, the actual is 3680W)


• Timing display range: 0 seconds to 9999 days


• Voltage display range: 0V~9999V


• Current display (Amps): 0,000A~16,000A


• Frequency display: 0Hz~9999Hz


• Price display range: 0.00COST /KWH¡ «99.99COST / KWH


• Total kWh and cost display: 0.000KWh-9999KWh,0.00 cost ---- 9999 cost


• 2-pin German plug

US plug:

1. Frequency display: 60HZ


2. Working current: 15A max


3. Wide voltage range: 110V-130V


4. Set the wattage display (watts) to 0W~1800W;


5. Timing display range: 0 seconds to 9999 days


6. Voltage display range: 0V~9999V


7. Current display (Amp): 0.000A~15.000A


8. Frequency display: 0Hz~9999Hz


9. Price display range: 0.00COST /KWH¡ «99.99COST / KWH


10. Total kWh and cost display: 0.000KWh-9999KWh,0.00 cost ---- 9999 cost


11. 3-pin plug


12. Working voltage: 120VAC

UK plug:

1. Working voltage: 230VAC


2. Frequency display: 60HZ


3. Working current: 15A max


4. Wide voltage range: 200V-250V


5. Set the wattage display (watts) to 0W~2900W;


6. Timing display range: 0 seconds to 9999 days


7. Voltage display range: 0V~9999V


8. Current display (Amp): 0.000A~13.000A


9. Frequency display: 0Hz~9999Hz


10. Price display range: 0.00COST /KWH¡ «99.99COST / KWH


11. Total kWh and cost display: 0.000KWh-9999KWh,0.00 cost ---- 9999 cost

AU plug:

1. Working voltage: 230VAC


2. Frequency display: 60HZ


3. Working current: 10A max


4. Wide voltage range: 200V-250V


5. Set the wattage display (watts) to 0W~2500W;


6. Timing display range: 0 seconds to 9999 days


7. Voltage display range: 0V~9999V


8. Current display (Amp): 0.000A~13.000A


9. Frequency display: 0Hz~9999Hz


10. Price display range: 0.00COST /KWH¡ «99.99COST / KWH


11. Total kWh and cost display: 0.000KWh-9999KWh,0.00 cost ---- 9999 cost

Technical specificationechnical:

•


  EU plug:230v-50Hz,Max. 16A 3680W





•


  UK plug:230v-50Hz,Max. 13A 2900W





•


  US plug:120v-60Hz,Max. 15A 1800W





•


  AU plug:240v-50Hz,Max. 10A 2400W





•


  FR plug:230v-50Hz,Max. 16A 3680W




Package List:

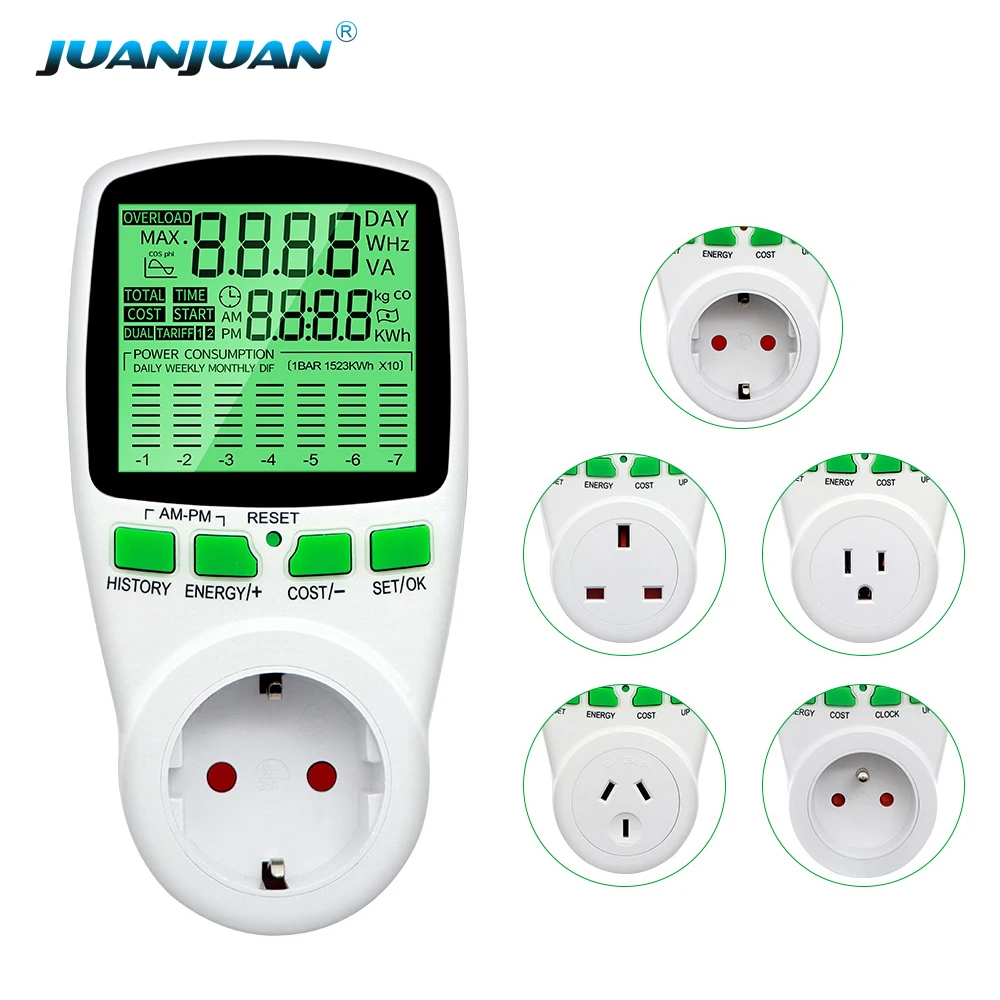

1 * Counter Output Power Meter (US ,UK French/EU/AU Plug Optional)

Q: How to order?
A: Inquiry >> Confirmation >> Payment >> Delivery.
