Матрас изготовленный на заказ Карманный заключенная намоточное устройство для ЧПУ машина LR-PS-UVS/ультрафиолевая лампа светодиодная
- Категория: Furniture Making Machines >>>
- Поставщик: Everen,Industry,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 49980.19 $* | 52479.11 $* |
| Aug-18-2025 | 49560.98 $* | 52038.55 $* |
| Jul-18-2025 | 41580.78 $* | 43659.73 $* |
| Jun-18-2025 | 48720.27 $* | 51156.86 $* |
| May-18-2025 | 42420.88 $* | 44541.28 $* |
| Apr-18-2025 | 47880.98 $* | 50274.42 $* |
| Mar-18-2025 | 47460.1 $* | 49833.17 $* |
| Feb-18-2025 | 47040.82 $* | 49392.69 $* |
| Jan-18-2025 | 46620.88 $* | 48951.16 $* |
Характеристики

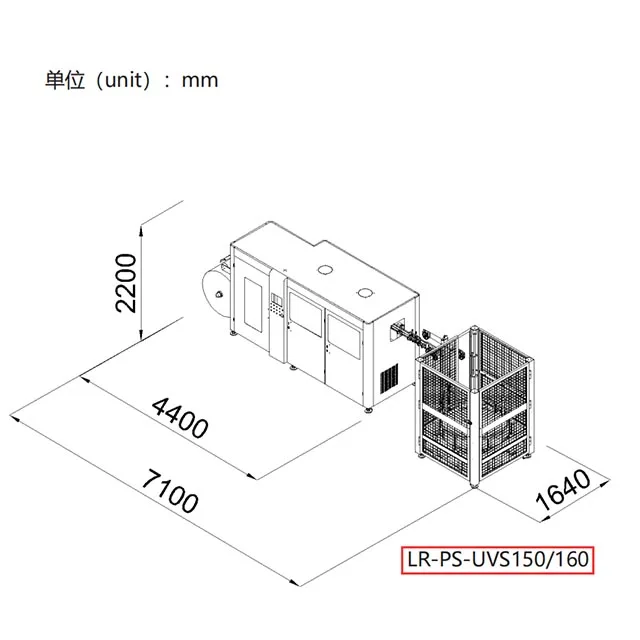

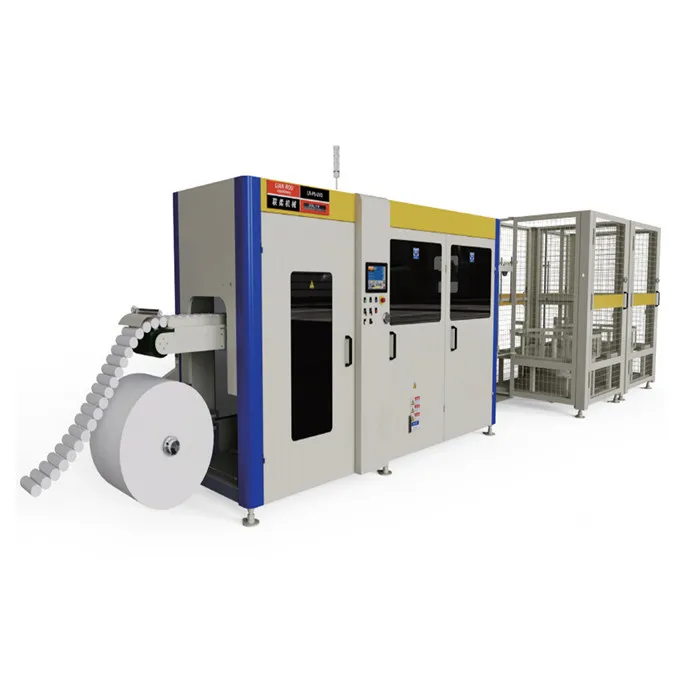

Automatic Mattress Pocket Encased Spring Coiling Machine LR-PS-UVS150/160 - Single coiling head
The mattress machine
Product Description
Machine Features
Model | LR-PS-UVS | |
Production capacity | 150/160 Springs/min. | |
Coiling head | One servo coiling head | |
Working principle | Servo control | |
Spring shape | Standard versions:barrel and cylindrical | |
Air consumption | Approx.0.28m3/min. | |
Air pressure | 0.6-0.7mpa | |
Power consumption in total | 38KW | |
Power requirements | Voltage | 3AC 380V |
Frequency | 50/60HZ | |
Input current | 55A | |
Cable section | 3*16mm2+2*10mm2 | |
Working temperature | +5℃+35℃ | |
Weight | Approx.3500Kg | |
Consumption Material Date
Non-woven fabric | Steel wire | ||
Fabric density | 65-90g/m2 | Wire diameter | 1.3-2.3mm |
Fabric width | 360-600mm | Inner dia.of wire roll | Min.320mm |
Inner dia.of fabric roll | Min.75mm | Outer dia.of wire roll | Max.1000mm |
Outer dia.of fabric roll | Max.1000mm | Acceptable weight of wire roll | Max.1000Kg |
Working Range(mm)
| Wire Diameter | Spring Waist Diameter | Pocket Spring Height |
Option1 | φ1.6-2.3mm | Φ48-75mm | 80-250mm |
Option2 | φ1.3-1.9mm | Φ42-65mm | 60-220mm |
Pocket Spring Machin
FAQ
Q1: What’s the warranty year of machines?
A1: 2 Years, except for the wearing parts.
Q2: What’s the delivery date?
About 60 days after received the deposit.
Q3: How to guarantee the machine quality?
A3: Our professional technicians will do repeated tests and adjustments to ensure that the quality of the machine is the best before shipment.
Q4: How to install and operate the machine after received the machine?
A4: We will provide pictures, videos and manual to guide you to install and operate online. We also provide the technician to door service if you need.
Q5: How to solve the problem during the use of machine?
A5: If any questions during the use, please send us the description of problem together with pictures or videos,our professional after-sales team will reply you immediately.
