Характеристики
Products Description
Lime Kiln is the ideal equipment to produce quicklime by the calcination of limestone (calcium carbonate). We could provide technological solutions and complete production equipment for 50-800TPD quicklime (active lime) production line.
With 60 Years development, we gained different approaches of lime production process, such as energy saving rotary lime kiln process, traditional long rotary lime kiln process, mixed burining vertical lime kiln process, low heat value gas vertical lime kiln process, high heat value vertical lime kiln process etc. Usually, it has two types: lime rotary kiln and lime vertical kiln.
The lime rotary kiln produced by Turui has the characteristics of the high utilization rate of raw materials, uniform quality, good quality, large capacity, high turnover rate, and easy operation.
Features
● Lime rotary kiln has advanced structure. Vertical preheater effectively magnifies the warm-up effect. The decomposition rate of preheated lime can reaches from 20% to 25%.
● Lime rotary kiln has a reliable combined scale-like seal. The scale-like seal in both ends guarantees its air leakage coefficient is less than 10 percent. It also uses composite refractory to reduce the loss of heat radiation.
● Lime rotary kiln has a vertical cooler. The filled cooler with dividable ventilation cools down the lime into 80℃ making it easier to be transported and stored. And it can preheat the secondary kiln air up to more than 700℃, which reduces the need for moving parts and special materials.
● Lime rotary kiln has a reliable combined scale-like seal. The scale-like seal in both ends guarantees its air leakage coefficient is less than 10 percent. It also uses composite refractory to reduce the loss of heat radiation.
● Lime rotary kiln has a vertical cooler. The filled cooler with dividable ventilation cools down the lime into 80℃ making it easier to be transported and stored. And it can preheat the secondary kiln air up to more than 700℃, which reduces the need for moving parts and special materials.
Product Advanges
High Automation Level
The lime rotary kiln is with advanced structure. Its pre-heater with low-pressure loss can improve preheating effect efficiently. After preheating, the resolution ratio of the lime-stones can reach 20~25% when they enter the kiln. Besides, the lime-stones, with fine fraction about 10~15mm, can be used directly.
Waste Heat be Reused Effectively
The two sides of the reliable rotary kiln are sealed by the combined scales, which can make the air leakage coefficient less than 10%. Composite refractory materials should be used in order to reduce the loss of radiant heat.
Low Energy Consumption
The filling vertical cooler, round or square, can be zoned-ventilation, which can make the temperature of lime-stones in the cooler at about 80°C. As a result, it is very convenient to transport and store. It can also pre-heater the secondary air up to the temperature above 700°C, then the waste heat can be recycled to reduce energy consumption.
The lime rotary kiln is with advanced structure. Its pre-heater with low-pressure loss can improve preheating effect efficiently. After preheating, the resolution ratio of the lime-stones can reach 20~25% when they enter the kiln. Besides, the lime-stones, with fine fraction about 10~15mm, can be used directly.
Waste Heat be Reused Effectively
The two sides of the reliable rotary kiln are sealed by the combined scales, which can make the air leakage coefficient less than 10%. Composite refractory materials should be used in order to reduce the loss of radiant heat.
Low Energy Consumption
The filling vertical cooler, round or square, can be zoned-ventilation, which can make the temperature of lime-stones in the cooler at about 80°C. As a result, it is very convenient to transport and store. It can also pre-heater the secondary air up to the temperature above 700°C, then the waste heat can be recycled to reduce energy consumption.
Working Flow
Material will be feed into kiln tail through chute in gas chamber. As kiln shell is inclined and it rotates slightly, material will move along round shell and will also move along shaft direction from kiln tail to kiln head. Material will be processed through pre-heat, decompose, calcined and will be feed into cooler. Fuel will be given through gas or coal burner at kiln head and will be combusted in kiln. Heat will be transferred to material by fire radiate, hot air flow, kiln brick transfer. The heat will heat and calcine material enough and make it final product.
Product Paramenters
Model | Capacity （t/h） | Speed (rpm) | Slope (%) | Support No. | Gearbox | Motor model | Power (kw) | Remark |
Ø1.6×32m | 2 | 0.58-2.85 | 4 | 3 set | ZQ75-50 | YCTZ50-4A | 18.5 | |
Ø1.6/1.9×36m | 2.5~3 | 0.53-1.59 | 4 | 3 set | ZQ110-7 | YCTZ50-4B | 22 | |
Ø1.9×39m | 3~3.5 | 0.53-1.59 | 4 | 3 set | ZQ125-7 | YCT315-4A | 37 | |
Ø2.2×38m | 5~6 | 0.214-1.64 | 3.5 | 3 set | Main ZS125-5-II | Main YCT315-4A | 37 | ★ |
Auxiliary ZQ40-40 | Auxiliary Y112M-4 | 4 | ||||||
Ø2.2×45m | 4~5 | 0.214-1.64 | 3.5 | 3 set | Main ZS125-5 | Main YCT315-4B | 45 | |
Auxiliary ZQ40-40 | Auxiliary Y112M-4 | 4 | ||||||
Ø2.5×40m | 6~7 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-5 | Main YCT355-4A | 55 | ★ |
Auxiliary ZS50-1 | Auxiliary Y160M-6 | 7.5 | ||||||
Ø2.5×50m | 5~6 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-5 | Main YCT355-4A | 55 | |
Auxiliary ZS50-1 | Auxiliary Y160M-6 | 7.5 | ||||||
Ø2.8×43m | 7~8 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-6 | Main YCT355-4B | 75 | ★ |
Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 | ||||||
Ø2.8×55m | 6~7 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-6 | Main YCT355-4B | 75 | |
Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 | ||||||
Ø3×50m | 9~10 | 0.5-1.5 | 3.5 | 4 set | Main ZS165-3 | Main ZSN-280-11B | 125 | ★ |
Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 | ||||||
Ø3×60m | 7~8 | 0.5-1.5 | 3.5 | 4 set | Main ZS165-3 | Main ZSN-280-11B | 125 | |
Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 | ||||||
Ø3.2×53m | 10~12 | 0.4-1.5 | 3.5 | 3 set | Main ZL130-16 | Main ZSN4-280-11B | 125 | ★ |
Auxiliary ZL50-10 | Auxiliary Y180L-4 | 22 | ||||||
Ø3.2×64m | 8~10 | 0.4-1.5 | 3.5 | 3 set | Main NZS995-28VBR | Main ZSN4-280-21B | 160 | |
Auxiliary ZL50-9-2 | Auxiliary Y180L-6 | 15 | ||||||
Ø3.5×70m | 12~14 | 0.4-1.5 | 3.5 | 3 set | Main ZSY500-40 | Main ZSN-315-072 | 250 | |
Auxiliary ZSY180-31.5 | Auxiliary Y180L-4 | 22 | ||||||
Ø3.6×55m | 14~16 | 0.4-1.5 | 3.5 | 3 set | Main ZSY500-40 | Main ZSYN-315-072 | 250 | ★ |
Auxiliary ZL65-16 | Auxiliary Y180L-4 | 22 | ||||||
Ø3.8×58m | 18~20 | 0.4-1.5 | 3.5 | 3 set | Main ZSY500-40 | Main ZSN315-072 | 250 | ★ |
Auxiliary ZL50-14 | Auxiliary Y180L-4 | 22 | ||||||
Ø4.0×60m | 104 | 0.4-1.5 | 3.5 | 3 set | Main ZSY630-35.5 | Main ZSN4-355-092 | 315 | ★ |
Project Cases

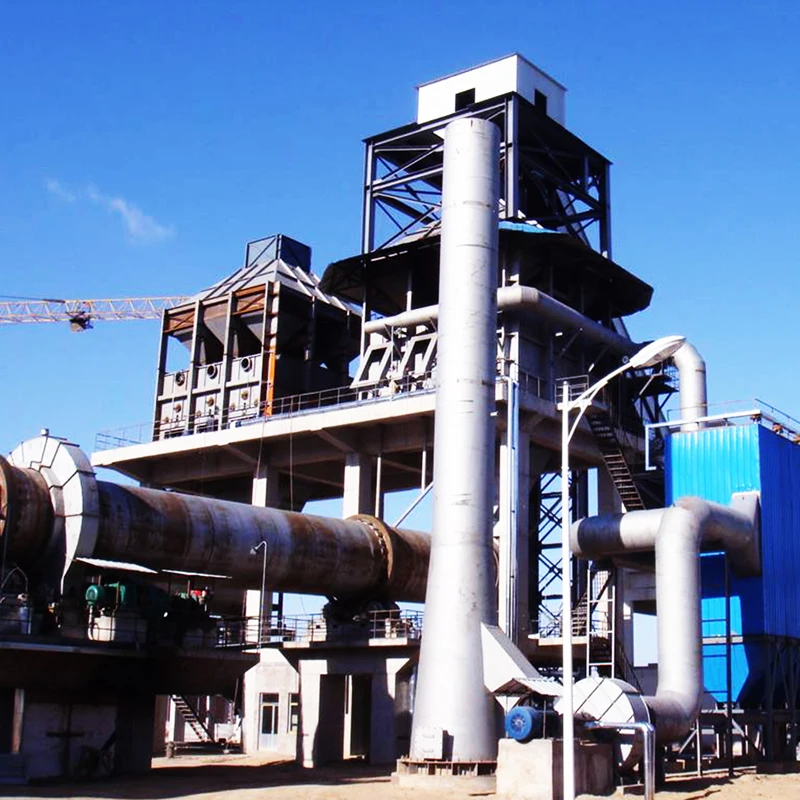

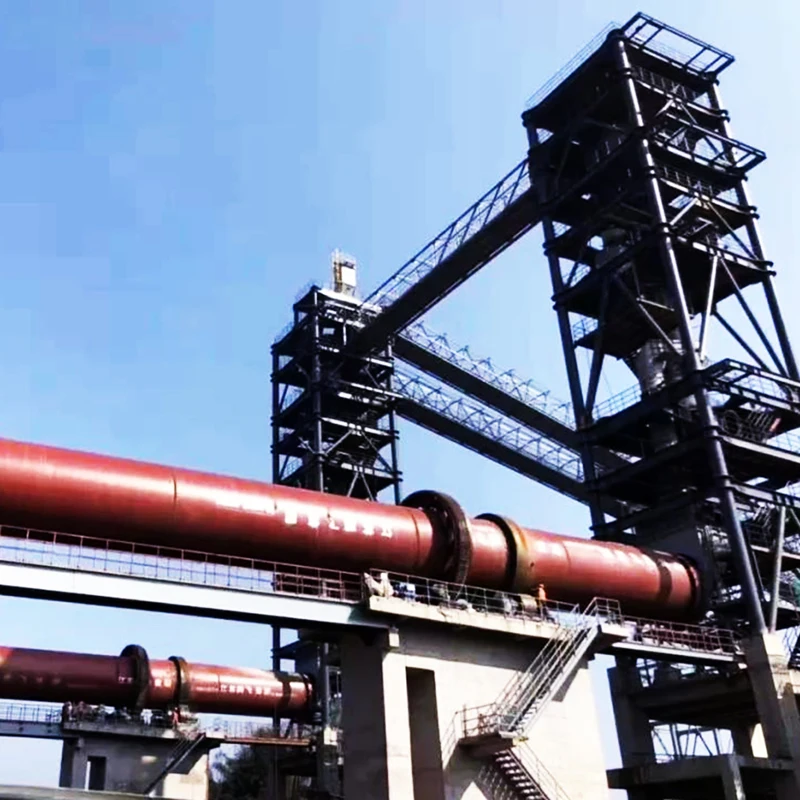

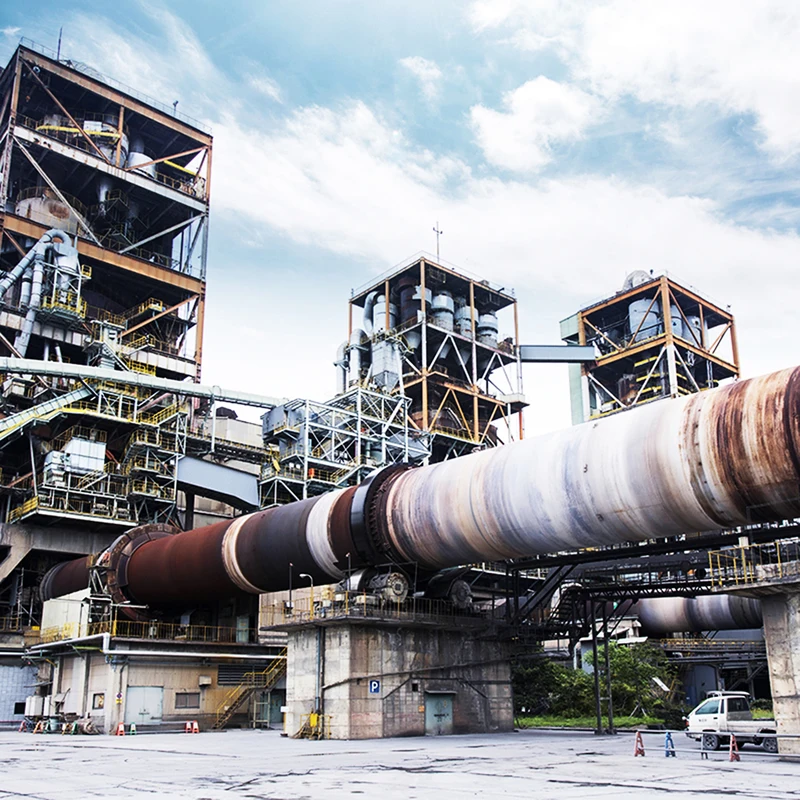

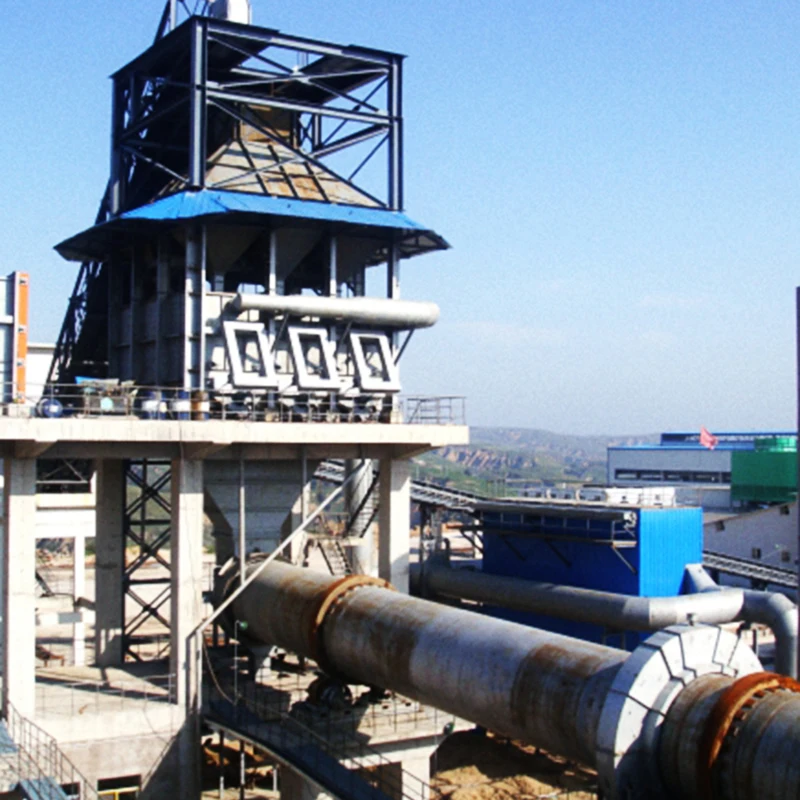

Active Lime Production Line
* Equipments: crusher, dryer, rotary kiln, vertical cooler, dust collector, hoist, conveyor, etc.
* Processing material: limestone particles with a particle size of 10-40mm
* Production capacity: 50-800 TPD
* Processing material: limestone particles with a particle size of 10-40mm
* Production capacity: 50-800 TPD
