SML Shaped CVD Diamond Lab Grown Diamond Wafer Plate Rough



CVD synthetic diamond is an acronym for chemical vapor deposition diamond, pure diamond polycrystalline structure, no cutting surface, no metal binder.The newer method, chemical vapor deposition (CVD), involves filling a vacuum chamber with carbon-containing gas that crystallizes on a synthetic diamond seed. This method uses lower temperatures and pressures than HPHT. Both methods are currently popular methods of diamond growth. The CVD diamond growth method requires a lower upfront equipment cost than HPHT but may require subsequent treatment to improve the color of the diamonds grown.



Diamond seed crystals are placed in a diamond growth chamber



The chamber is filled with carbon-containing gas.



The chamber is heated to about 900-1200°C.



A microwave beam causes carbon to precipitate out of a plasma cloud and deposit onto a seed crystal.



Diamonds are removed every few days to have the top surface polished to remove any non-diamond carbon before being put back in to grow. Each batch of diamonds may require several stop/start cycles, and the entire growth process can take three or four weeks.After the synthetic diamond crystals are removed, they are ready to be cut and polished into the final product.





1. CVD diamond blanks for dressing tool

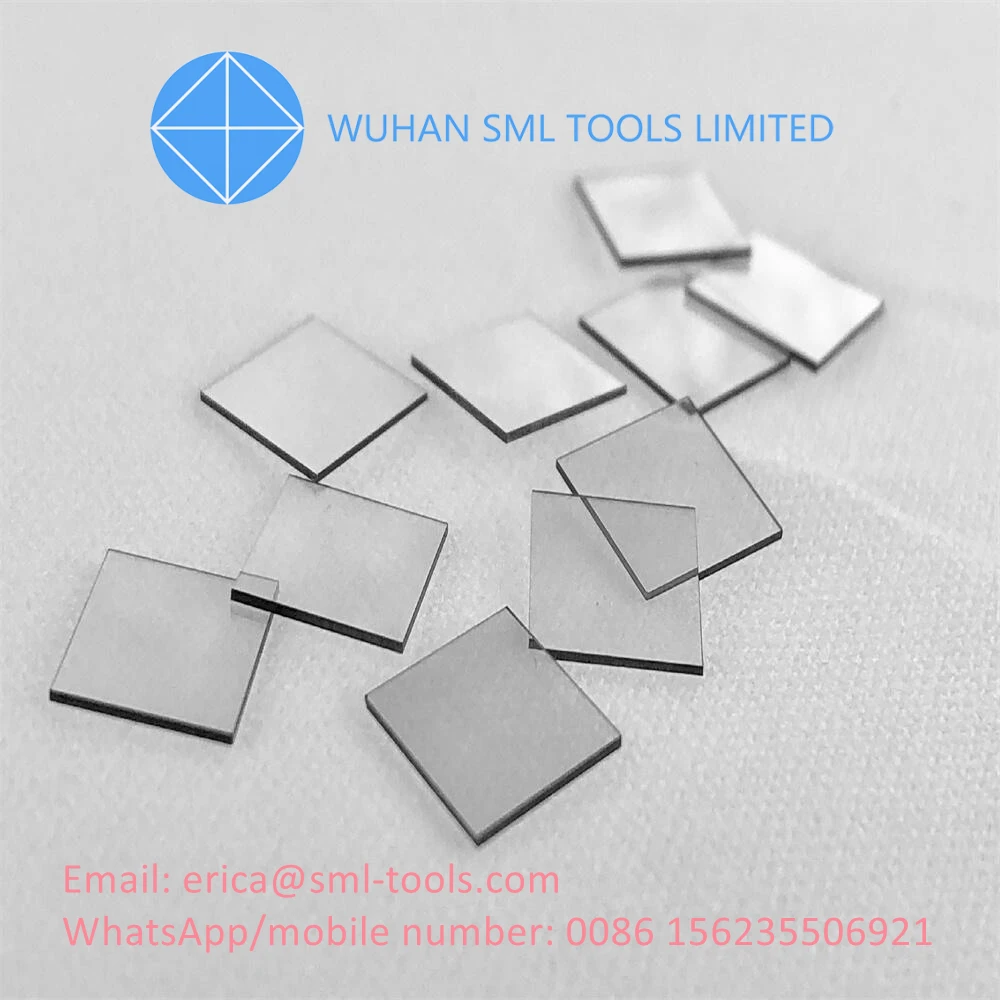

Chemical vapor deposition(CVD) for dressing tools is made by laser cutting CVD diamond thin-film. CVD diamond blanks are suitable for various dresser tools,

- Single - point cvd dresser

- Multi - point cvd dresser,

- CVD rotary dresser,

- CVD diamond dressing roller



CVD diamond blanks produced by the high quality semitransparent polycrystalline diamond, with no binder phase, have excellent thermal stability and high thermal conductivity.

 The product grade includes (standard grade and high quality grade)



Performance	Standard	High Quality
Vicker Hardness	8000 Kg/Mm^2	10000 Kg/Mm^2
Density	3.51g/Cm^3	3.51g/Cm^3
Young’s Modulus	1000 Gpa	1100 Gpa
Thermal Conductivity	1000w/M.K	1500w/M.K
Chemical Stability	Insoluble In All Of Acid And Alkali
Break Strength	350 Mpa	550 Mpa
Wear Ratio	200000	400000
Thermal Stability	800°C	800°C

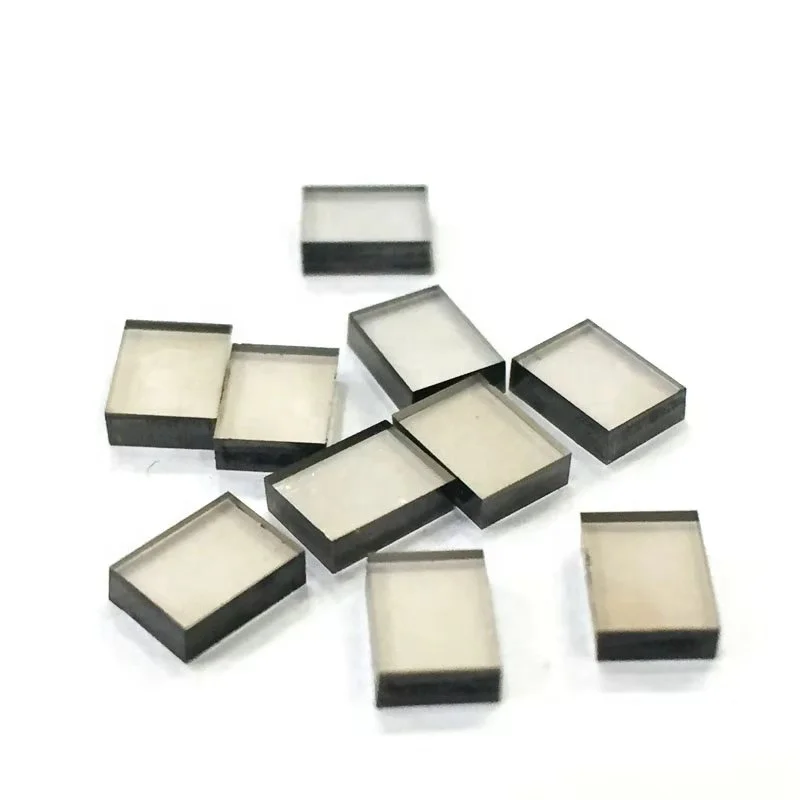

2. CVD Sheet CVD diamond seeds



Fancy Diamond Color	White
size	8x8x0.3mm /9x9x0.3mm
Diamond Cut:	Excellent
Material:	Synthetic CVD
Usage:	For CVD diamond growing
Diamond Clarity:	VVS
















1. Payment methods

T/T (Telegraphic Transfer), Western Union, MoneyGram or Credit Card…



2. Lead time

Based on order quantity, it ranges from 3 to 20 days to finish production.



3. Shipping

Express: DHL, TNT, UPS, FedEx and Special lines…

Carrier: by air or sea.

They all apply to a very economic cost.



4. Services:

We will respond to your inquires in one hour (holidays as well).

We provide free replacement once the failure is confirmed to be caused by our product quality.
