Характеристики



Products Description






Product Name
Copper conductor PVC insulated wire
Material
Copper+PVC
Colour
red/yellow/blue/green/yellow green
Adaptable Voltage (v)
U0/U is 450/750V, 300/500V and 300/300V
Specification
1.5㎟-400㎟
MOQ
100m
Global recruitment of brand agents ，OA Payment acceptable
If you need more Type, You can click"Contact Supplier" or "Send Inquiry"button to contact us.


1. Product use
A)The product is suitable for fixed wiring of power plant and electrical equipment with rated AC voltage up to and including 450/750V.
B)The permissible continuous operating temperature of cables: BV-105 is not more than 150C, others are not more than 70℃
2.Manufacture length:
A)Coil length of cable (wire) is 100m, filled reel length not less than 100m. Short length not less than 10m can be delivered.
B)Any length can be delivered against agreement. Length error not more than +0.5%
3.Product structure, size and reference data
60227 IEC 01（ BV） Rated Voltage:450/750V


Nominal
cross-sectional
area mm2
Construction of conductor No.of wire/dia mm
Insulation
thickness
mm
Outer
diameter mm
Max.d.c,
resistance at 20°CQ/km
Min.msulation
resistance at
70°CMQ-km
Current rating in air
at 25 °C A
Approx.cable weight kg/km
0.5
1/0.8
0.6
2.4
36
0.015
13
8.3
0.75
1/0.97
0.6
2.6
24.5
0.012
17
10.9
0.75
7/0.37
0.6
2.8
24.5
0.014
17
11.7
1
1/1.13
0.6
2.8
18.1
0.011
20
13.6
1
7/0.43
0.6
3
18.1
0.013
20
14.7
1.5
1/1.38
0.7
3.3
12.1
0.011
25
19.9
1.5
7/0.52
0.7
3.5
12.1
0.01
25
21
2.5
1/1.78
0.8
3.9
7.41
0.01
34
31.4
2.5
7/0.68
0.8
4.2
7.41
0.009
34
33.1
4
1/2.25
0.8
4.4
4.61
0.0085
44.5
46.3
4
7/0.85
0.8
4.8
4.61
0.0077
44.5
49
6
1/2.76
0.8
4.9
3.08
0.007
58
66
6
7/1.04
0.8
5.4
3.08
0.0065
58
69.4
10
7/1.35
1
6.2
1.83
0.0065
79.5
116
16
7/1.70
1
7.2
1.15
0.005
111
175
25
7/2.14
1.2
8.9
0.727
0.005
146
275
35
7/2.52
1.2
10
0.524
0.004
180
372
50
19/1.78
1.4
11.8
0.387
0.0045
225
496
70
19/2.14
1.4
13.5
0.268
0.0035
280
701
95
19/2.52
1.6
15.9
0.193
0.0035
344
969
120
37/2.03
1.6
17.4
0.153
0.0032
397.5
1202
150
37/2.25
1.8
19.5
0.124
0.0032
455
1478
185
37/2.52
2
21.7
0.0991
0.0032
519
1853
240
61/2,25
2.2
24.9
0.0754
0.0032
541
2417
300
61/2.52
2.4
27.6
0.0601
0.003
636
3024
400
61/2.85
2.6
31.2
0.047
0.0028
721
3825




Quality Inspection




Production Process




Company Profile




Certifications

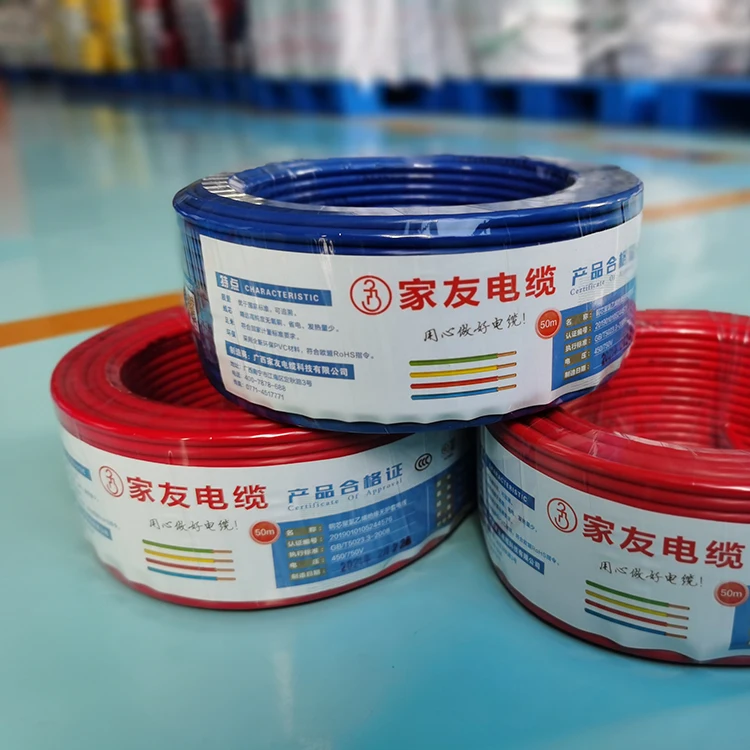

Product packaging




FAQ


1.What are your main products?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 35KV and below power
cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc

2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.

3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.

4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.

5. Are you a factory or trading company?
We’re a factory locates in Guangxi Zhuang Autonomous Region, which integrates R&D, manufacture and sales of various wires and cables.
