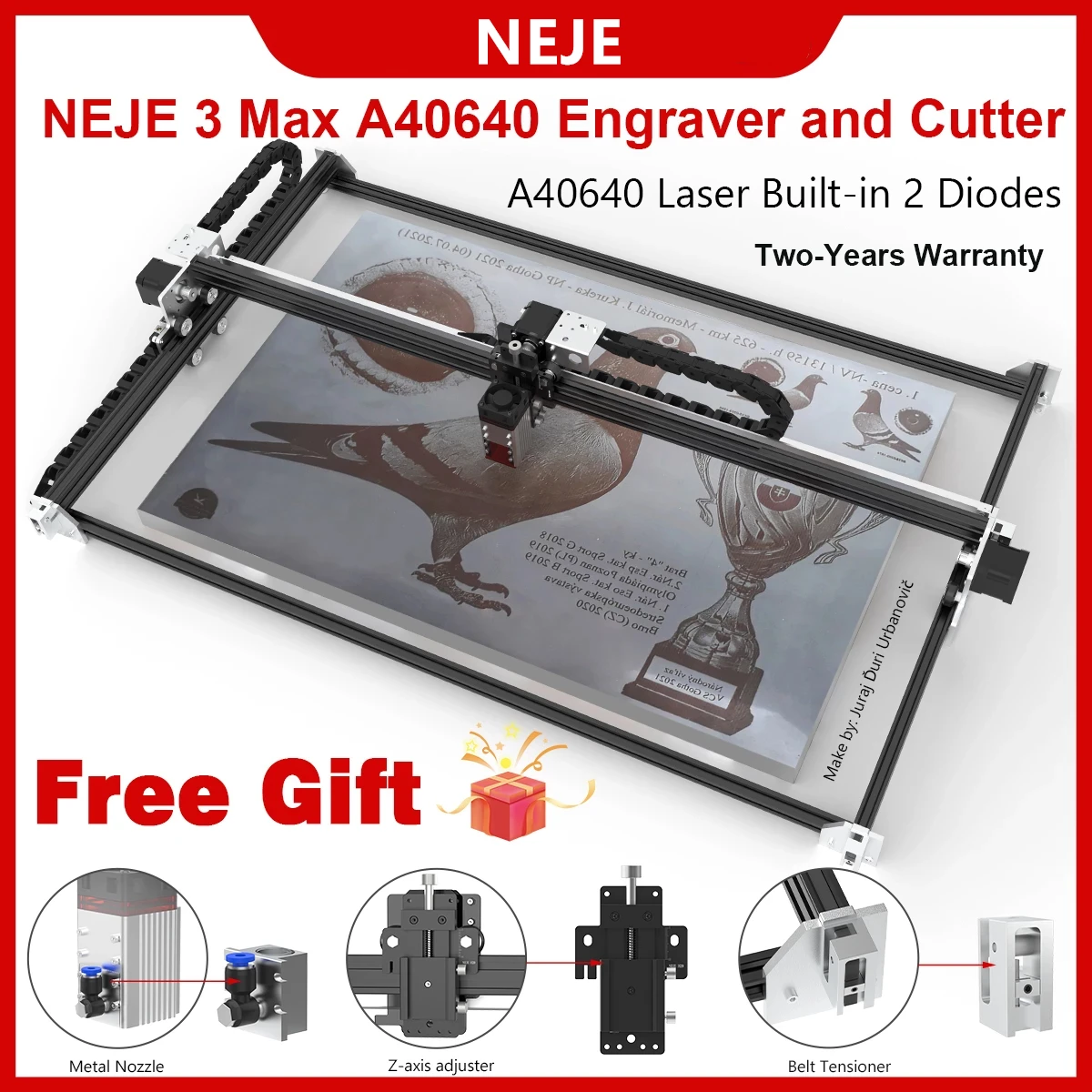

2022 Новый Neje 3 Max A40640 E40 80 Вт 810*460 мм Большой двойной диод Cnc лазерная гравировка режущий станок Diy
- Категория: Industry Laser Equipment >>>
- Поставщик: Shenzhen,Oudeli,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.89 $* | 0.70 $* |
| Aug-16-2025 | 0.18 $* | 0.54 $* |
| Jul-16-2025 | 0.24 $* | 0.6 $* |
| Jun-16-2025 | 0.45 $* | 0.2 $* |
| May-16-2025 | 0.21 $* | 0.85 $* |
| Apr-16-2025 | 0.82 $* | 0.34 $* |
| Mar-16-2025 | 0.39 $* | 0.91 $* |
| Feb-16-2025 | 0.50 $* | 0.56 $* |
| Jan-16-2025 | 0.2 $* | 0.77 $* |
Характеристики
WHY CHOOSE US:
1. 100% NEJE source factory, factory direct sales
2.NEJE professional technical team and high-quality after-sales team
3. Fast delivery from overseas warehouses: Poland/Germany/Russia/US/Spain/UK
4. Spot straight hair, dropshipping/ready to ship
5. Support OEM/ODM
2.NEJE professional technical team and high-quality after-sales team
3. Fast delivery from overseas warehouses: Poland/Germany/Russia/US/Spain/UK
4. Spot straight hair, dropshipping/ready to ship
5. Support OEM/ODM
【DESCRIPTION】

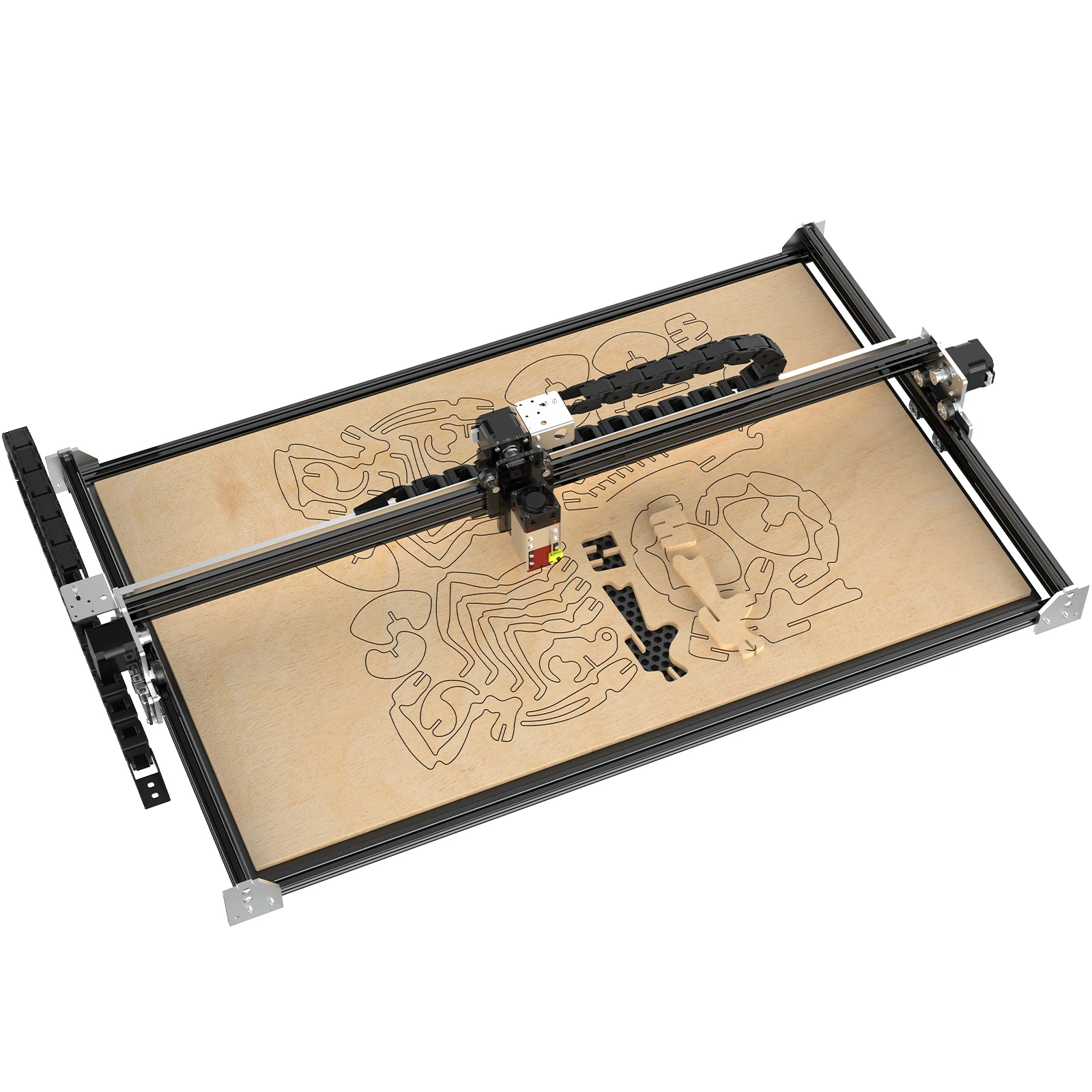

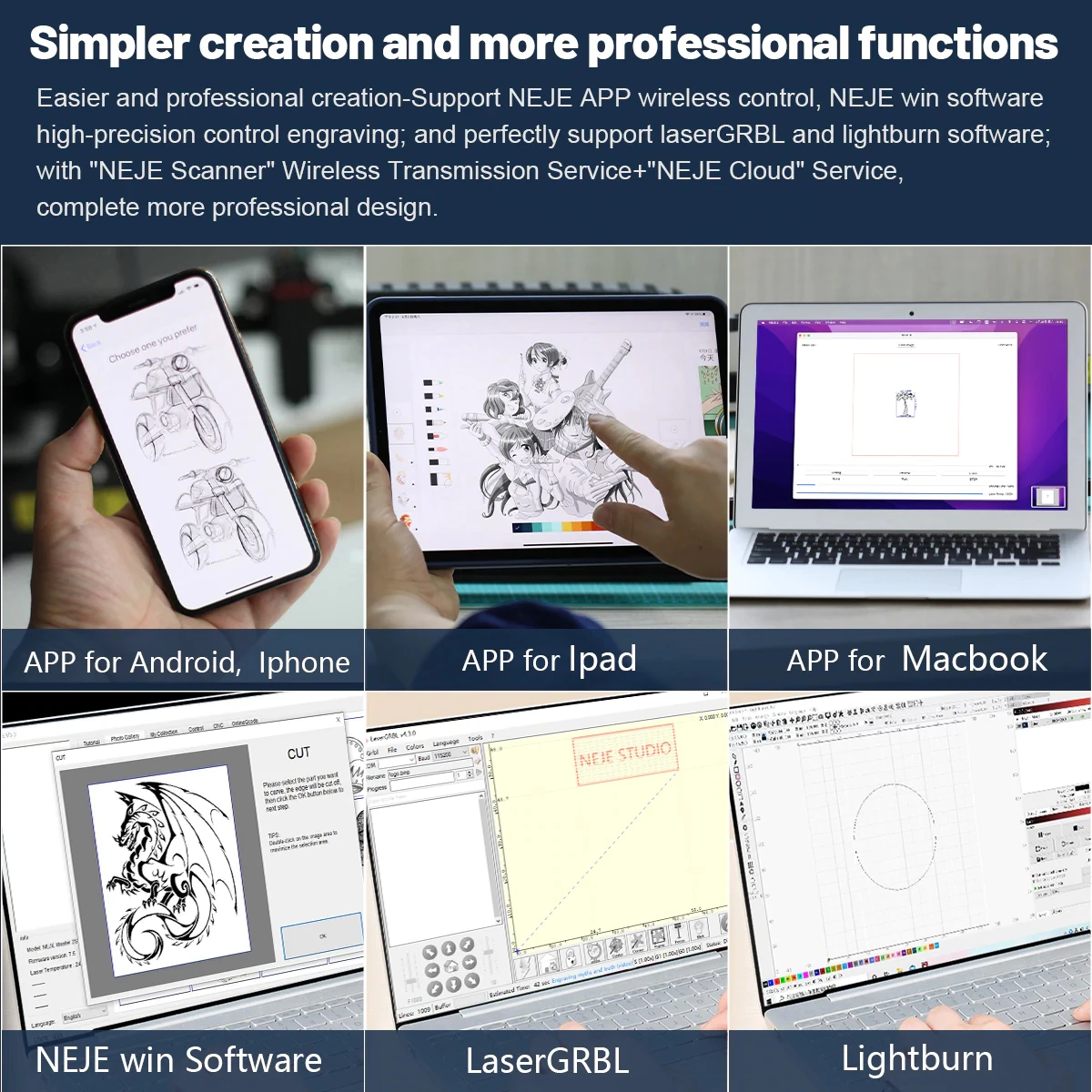

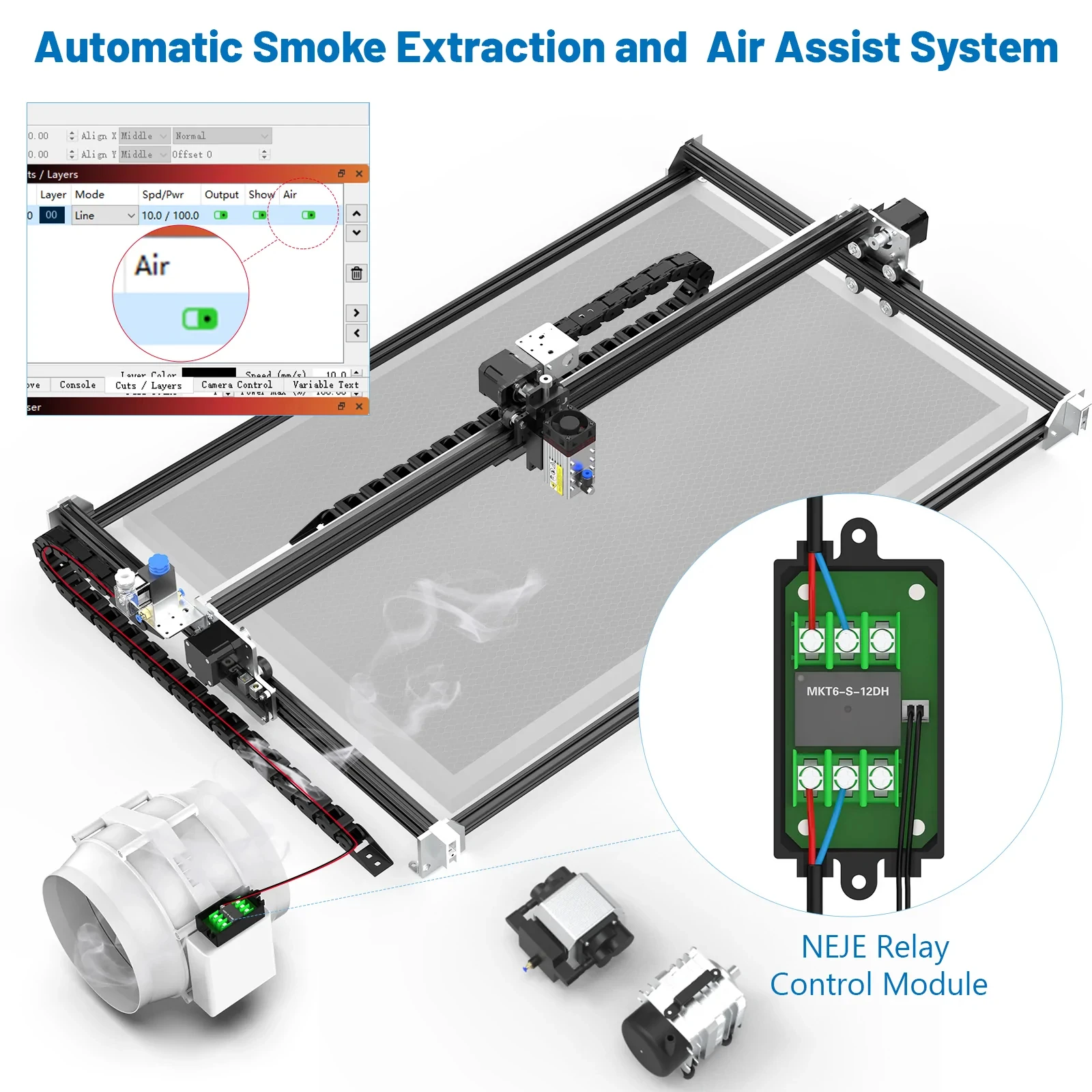

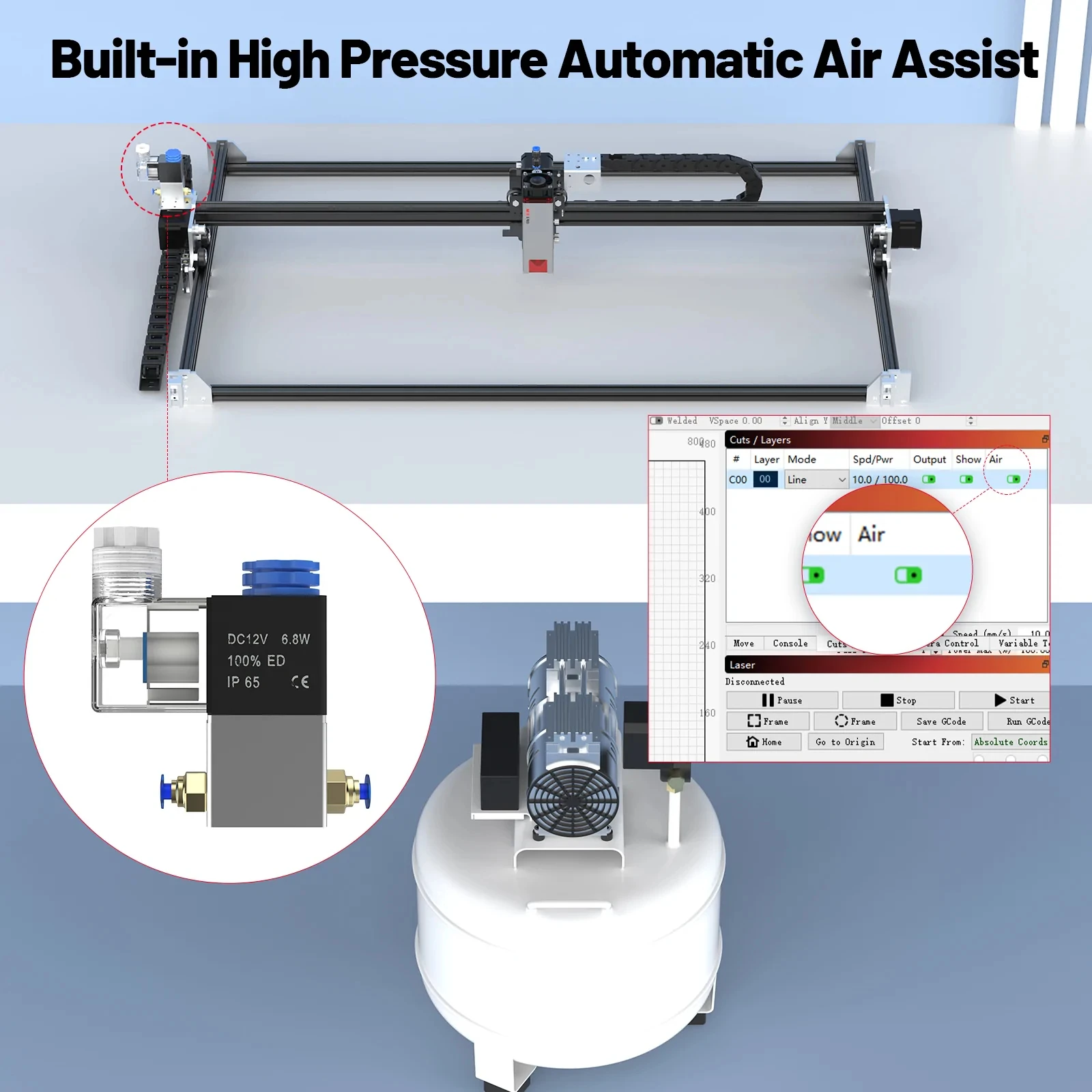

NEJE 3 Max is a professional laser engraving and cutting equipment. The 810x460mm area can meet most of the engraving and cutting needs. Through the extension rod provided by NEJE, a working area of 810x1030mm area can be obtained. NEJE 3 series all support APP control and control accuracy, Up to 0.01mm, you can get top engraving works through software such as APP and lightburn. With NEJE A40640 /E40 full-featured module, it is the most suitable for stainless steel engraving, stone engraving, wood relief art, large area canvas art, cutting sheet, acrylic, cloth Perfect choice. NEJE 3 Max is equipped with automatic air assist, automatic smoke exhaust control components, and extended functions of Door safety door, and is compatible with all NEJE series modules. The extended functions are perfectly suitable for Lightburn, laserGRBL, and NEJE software APP. Build a perfect laser engraving and cutting system, The NEJE 3 Max also comes with optional honeycomb panel, supports all rotating fixtures, improves cutting quality and various shapes of materials. NEJE 3 Max can always bring shocking works, and the powerful expansion capability is a must-have tool for professional diode laser crafting enthusiasts.
Frame size | 590x980x160mm |
Working area | 810 x 460mm, Extends to 810x1030mm |
Dot Pitch | 0.075mm, 338dpi |
Pixel | 6133 x 10800 px |
NEJE Cloud Gallery Service | yes |
OTA Upgrade | yes |
Lightburn and LaserGRBL | yes |
NEJE Android APP | yes |
NEJE iphone/iPad APP | yes |
Software Download | Https://neje.wiki |
Max Move Speed | X:1000mm/s(with A40640 module 204g), Y:750mm/s |
Frame Material | High precision All-aluminum alloy and PC material hybrid frame |

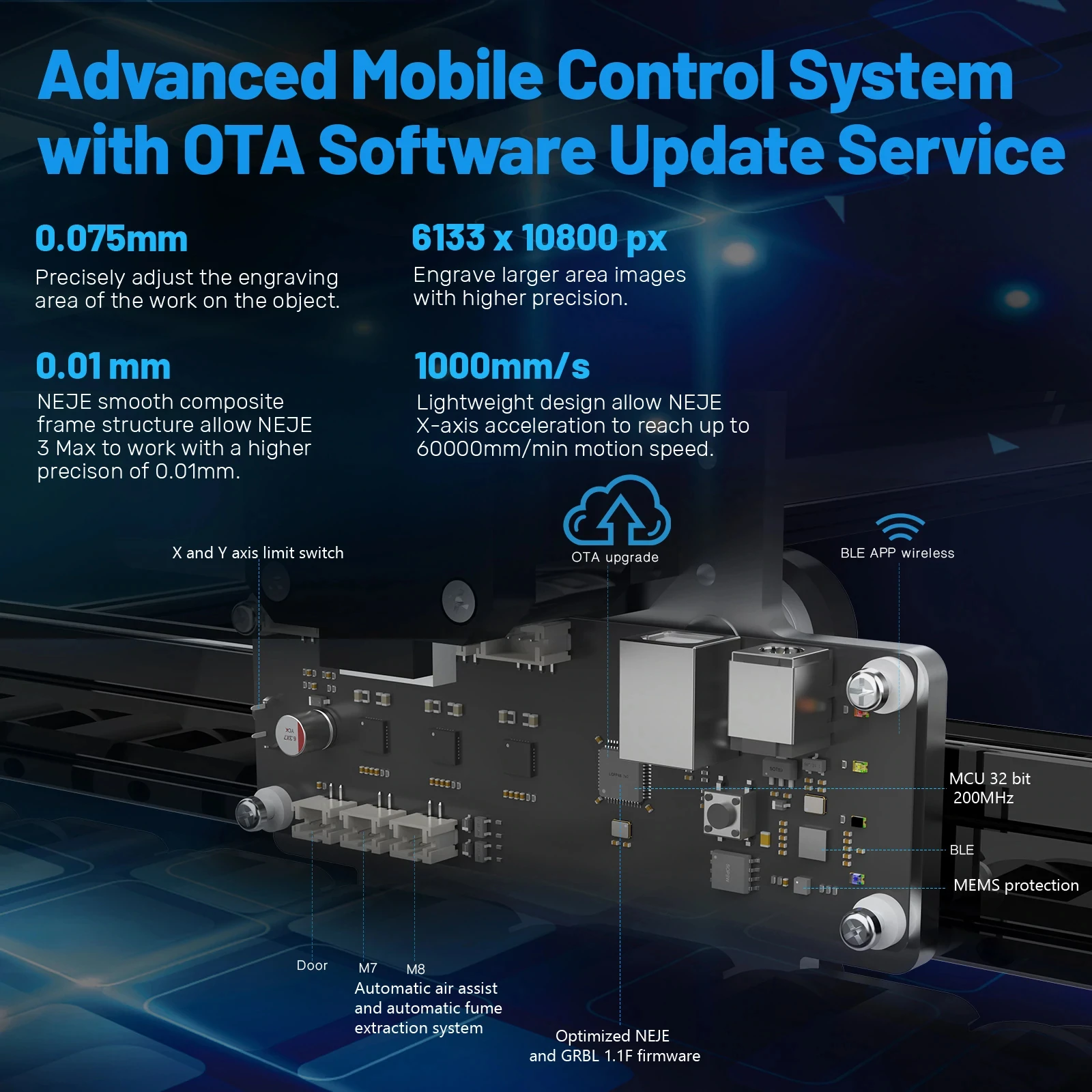

MCU | 32-bit 200Mhz MCU (Top 32-bit MCU) |
System | Win 7 / Win 8/ Win 10, Android, iOS, ipadOS, macOS, HarmonyOS. |
File format supports | SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc. |
input | DC 5.5 2.1, 12V 5A (Power Adapter) |
Module | NEJE A40640 |
Focus | 0.04x 0.06mm |
Focusmethod | adjustable(Recommend30-55mm) |
Opticalpower | Pulse12W+， CW11W+， Use 80%power(9W+) when cutting for along time. |
Replaceable lens design | Yes， Added window protection lens to extend service life(high temperature resistance of 1000 degrees Celsius) |
Stainless steel direct grayscale engraving | Yes |
3D hardwood engraving | Yes |
Maximum cutting thickness | 20mm |
Wavelength | 450nm |
Weight | 204g |
Module Size | 40x50x85mm |
Input | DC12V4A |
Interface | 4pinPH 2.0 |
Power contro | PWM Power Modulation |
Fan | double ball high life fan |
Surge protection | Yes |
Smart feedback | Yes |
Temperature feedback | Yes |
Temperaturecontrol | 45℃ |
Warranty | 2 years |
Model | NEJE E40 Laser module |
Radiator size | 40*48*130mm |
weight | 280g |
Focus method | Fixed focus |
Application | Thin metal/cardboard/plywood/acrylic/MDF board cutting，metal/stone/glass/seal /canvas engraving，wood etching，Leather/Fabric engraving and cutting etc. |
Max air pressure | 1.5mPa |
Speed of the fan | 10600RPM(Double ball bearing) |
Interface | PH 2.04Pin+(2Pin12v extra power-can be free) |
Drive design | Built-in |
Input | 12V4A |
Optical power | Pulse 11W+， CW10W+ |
Wavelength | 450nm |
Number of diodes | 2 |
Lightsource | 2xLD+NE JE lens compression technology |
Min focus spot size | 0.06x0.06mm |
Temperature feedback | YES |
Power adjustment method | PWM duty cycle(3.3V-24V， 0-20KHz) |
Continuously working(cw) | Unlimited |
Fan speed control | YES |
Light feedback | YES |
Warranty | 2 years(20000h) |
Max cutting&carving depth | 13mm |
Cutting speed(plywood 3mm， with air assist， c1earedge) | 420m/min 100%power from 1pass |
Stainless steel direct engraving | YES |
Support stainless steel grayscale | YES |
