Оптовая продажа промышленный сверхмощный Автоматический цифровой дисплей многофункциональный контрольный металлоискатель инструмент для пищевых
- Категория: Testing Instrument & Equipment >>>
- Поставщик: Junhong,Electronic,&,Technology,(Dongguan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3213.47 $* | 3374.3 $* |
| Aug-16-2025 | 3186.92 $* | 3345.77 $* |
| Jul-16-2025 | 2673.61 $* | 2807.98 $* |
| Jun-16-2025 | 3132.47 $* | 3289.19 $* |
| May-16-2025 | 2727.26 $* | 2863.74 $* |
| Apr-16-2025 | 3078.24 $* | 3232.57 $* |
| Mar-16-2025 | 3051.32 $* | 3204.57 $* |
| Feb-16-2025 | 3024.72 $* | 3175.20 $* |
| Jan-16-2025 | 2997.40 $* | 3147.25 $* |
Характеристики
Manufactures professional industry automatic program sensitivity belt food metal detector tracking machine
Products Description
Product Detail
Sensitivity program | auto-sett the product parameters |
Alarm Mode | buzzer light with belt stopped |
Certificates | CE, ISO9001 |
Power supply | 110V-220V, 50-60h |
Material | SUS304, 201SUS and PVC belt |
Rejection system | pusher, drop down, air je |
Belt length | standard is 1600mm, customize |
Above ground to Belt height | standard is 700mm + 100mm foot c |
Applicatio | foods factory, recycling indust |
Warrant | 1 Yea |
Product Keywords | metal detector for food production line,conveyor belt needle detector,belt metal dete |
Introduction:
In the food production industry, metal is one of the most commonly found contaminant materials in food. Metal can be introduced at all stages of processing of food, as it is most commonly used in the construction of machinery, handling equipment and ancillary utensils. A metal detector for the food industry can help ensure the safety and integrity of a wide range of unpackaged, packaged or bulk goods, by identifying metal contaminants during processing or packaging and helping to ensure that they do not enter food that we eat. As part of a HACCP program, metal detection systems can be utilised to provide compliance with food safety standards, retailers’ code of practice, legislation and industry guidance.
Types of Contaminants:
There are three main groups of metallic contaminants that a food metal detector can sense:
Ferrous
Non Ferrous
Stainless Steel detection depends on the magnetic or conductive properties of the contaminant
The ability for a conventional metal detector used in the food industry to detect metallic contaminants depends upon their
conductivity and magnetic permeability:
Ferrous metal contaminants are both magnetic and conductive and are easily detected.
Although they are not magnetic, Non-Ferrous contaminants are good conductors and can be detected relatively easily.
Stainless Steel foreign bodies are the most difficult to pick-up as they are usually non-magnetic and a poor electrical conductor.
The ability to detect stainless steel is also hindered when the product is wet or has a high salt content.
If there are other types of contaminants (glass, calcified bone, ceramics, stone) to be detected, then an X-ray inspection system
for food will offer enhanced detection capabilities.
Ferrous
Non Ferrous
Stainless Steel detection depends on the magnetic or conductive properties of the contaminant
The ability for a conventional metal detector used in the food industry to detect metallic contaminants depends upon their
conductivity and magnetic permeability:
Ferrous metal contaminants are both magnetic and conductive and are easily detected.
Although they are not magnetic, Non-Ferrous contaminants are good conductors and can be detected relatively easily.
Stainless Steel foreign bodies are the most difficult to pick-up as they are usually non-magnetic and a poor electrical conductor.
The ability to detect stainless steel is also hindered when the product is wet or has a high salt content.
If there are other types of contaminants (glass, calcified bone, ceramics, stone) to be detected, then an X-ray inspection system
for food will offer enhanced detection capabilities.
Features:
Phase tracking function, which can maintain the stable high-sensitivity detection ability.
Product tracking function, which can do adjustment and compensation according to the changes of the product effect automatically.
Auto-balanced calibration function, which can ensure the service life of the machine.
Above 99 products can be restored in product database.
IP65 dust and water proof.
The performance of the conveyor belt is complied with the food sanitation standard, it can be used for inspection of the unpacked food directly.
Can stably work for a long time, with a special design that is suitable for a harsh production environment of strong vibration and high interference, the equipment won’t miss alarm even when you tap the probe.
Specifications:
Materials: 304 grade stainless steel made tunnel detector, 201 grade stainless steel rame, PVC/ PU white belt.
Belt length (mm): 1600mm.

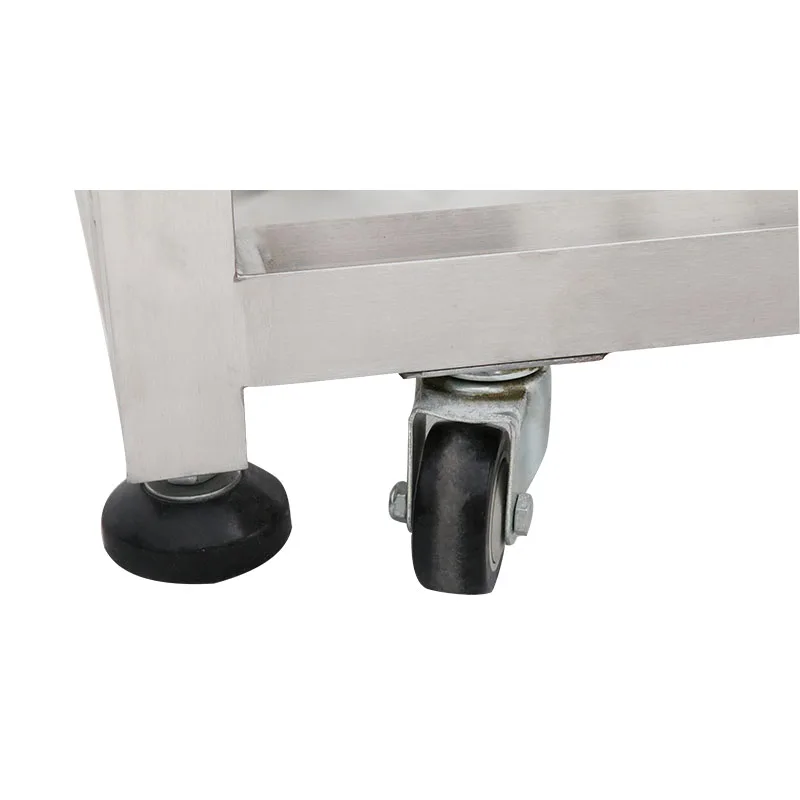

Conveyor height above ground to belt: 700mm + 50mm foot adjustable, including wheels moveable.
Alarm system: buzzer / warning lights.
Flow speed: 25 m/ min fixed or 10 to 40 m / min variable.
Flow direction: from left to right or opposite(viewing control panel).
Language for operation system: English and Chinese.
Electronic source: AC110V/220V, 50/60Hz, Power: 90/120/200W.
Belt length (mm): 1600mm.
Conveyor height above ground to belt: 700mm + 50mm foot adjustable, including wheels moveable.
Alarm system: buzzer / warning lights.
Flow speed: 25 m/ min fixed or 10 to 40 m / min variable.
Flow direction: from left to right or opposite(viewing control panel).
Language for operation system: English and Chinese.
Electronic source: AC110V/220V, 50/60Hz, Power: 90/120/200W.
Reject system:
ØStop on Detect Reject(Less than or equal to 50KG) - The conveyor system stops if metal is detected and an alarm sounds, enabling
the operator to remove the contaminated product.
ØPusher Reject(Less than or equal to 10KG) - Pneumatically powered pushers divert contaminated product out of the production flow/
belt, as shown below 1st picture.
ØFlap reject or Drop down Reject - This reject mechanism are typically used to remove contaminated and/or out of spec dry bulk
products. Product passes through a chute which in the open position allows good product to continue through. The end flap or lift
flap is triggered to divert contaminated or out of spec product out of the good product flow, as shown below 2nd and 3rd picture.
ØAir jet type: NG products are blown sideways off of the line by a powerful air jet. It is ideal for small, lightweight packaged
products at high speed as shown below 4th picture.
the operator to remove the contaminated product.
ØPusher Reject(Less than or equal to 10KG) - Pneumatically powered pushers divert contaminated product out of the production flow/
belt, as shown below 1st picture.
ØFlap reject or Drop down Reject - This reject mechanism are typically used to remove contaminated and/or out of spec dry bulk
products. Product passes through a chute which in the open position allows good product to continue through. The end flap or lift
flap is triggered to divert contaminated or out of spec product out of the good product flow, as shown below 2nd and 3rd picture.
ØAir jet type: NG products are blown sideways off of the line by a powerful air jet. It is ideal for small, lightweight packaged
products at high speed as shown below 4th picture.
Tunnel size & Sensitivity chart:
Aperture Width | 20 | 30 | 40 | 40 | 50 | 50 | 60 |
Aperture Height | 8 | 10 | 12 | 15 | 20 | 25 | 30 |
Ferrous | 0.6mm | Φ0.8mm | Φ0.8mm | Φ1.0mm | Φ1.0mm | Φ1.2mm | Φ1.8mm |
Non Ferrous | 0.8mm | Φ1.0mm | Φ1.2mm | Φ1.5mm | Φ2.0mm | Φ2.0mm | Φ2.5mm |
Stainless steel(304) | 1.5mm | Φ1.8mm | Φ2.0mm | Φ2.0mm | Φ 2.5mm | Φ2.5mm | Φ3.0mm |
Notice: the above data is empty-loaded machine sensitivity. The real sensitivity will be lower on condition of different products being tested.
Production
Packaging & Shipping
Company Information
Certifications
Our detectors are CE and ISO9001 certified.
FAQ
1. Are you manufacturer or trade Company?
We are a factory who founded in 2005 with trade team for international service.
2.When can I get the price?
We usually quote within 12 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
3.What terms of payment you usually use?
Master Card, Visa Card or T/T, 30% deposit and 70% before shipping.
4. what is your lead time for your goods?
For customized a metal detector machine normally 14 days after confirmed order.
5.Do you attend any Show?
We attend Canton fair, CPSE and other shows
We are a factory who founded in 2005 with trade team for international service.
2.When can I get the price?
We usually quote within 12 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
3.What terms of payment you usually use?
Master Card, Visa Card or T/T, 30% deposit and 70% before shipping.
4. what is your lead time for your goods?
For customized a metal detector machine normally 14 days after confirmed order.
5.Do you attend any Show?
We attend Canton fair, CPSE and other shows
