3296 Вт потенциометр точный регулируемый сопротивление многооборотный Обрезной 50R Триммер Потенциометр

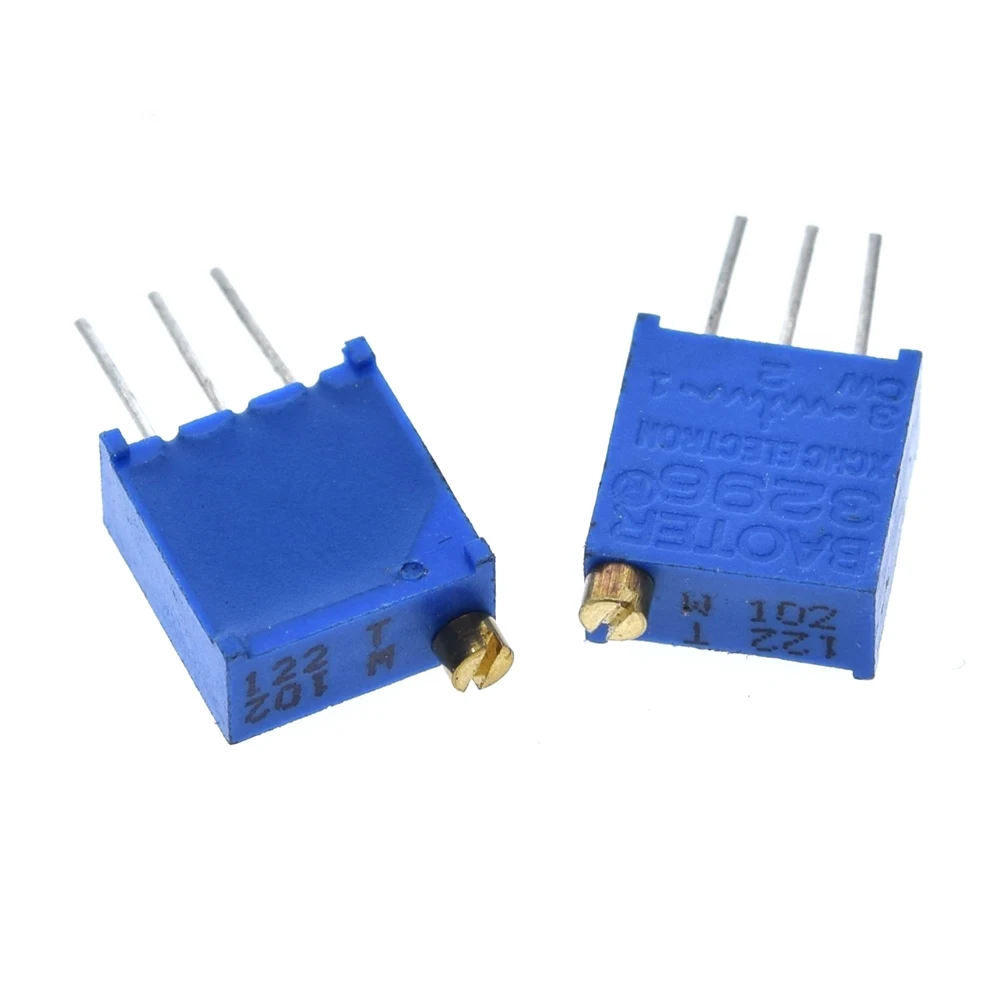

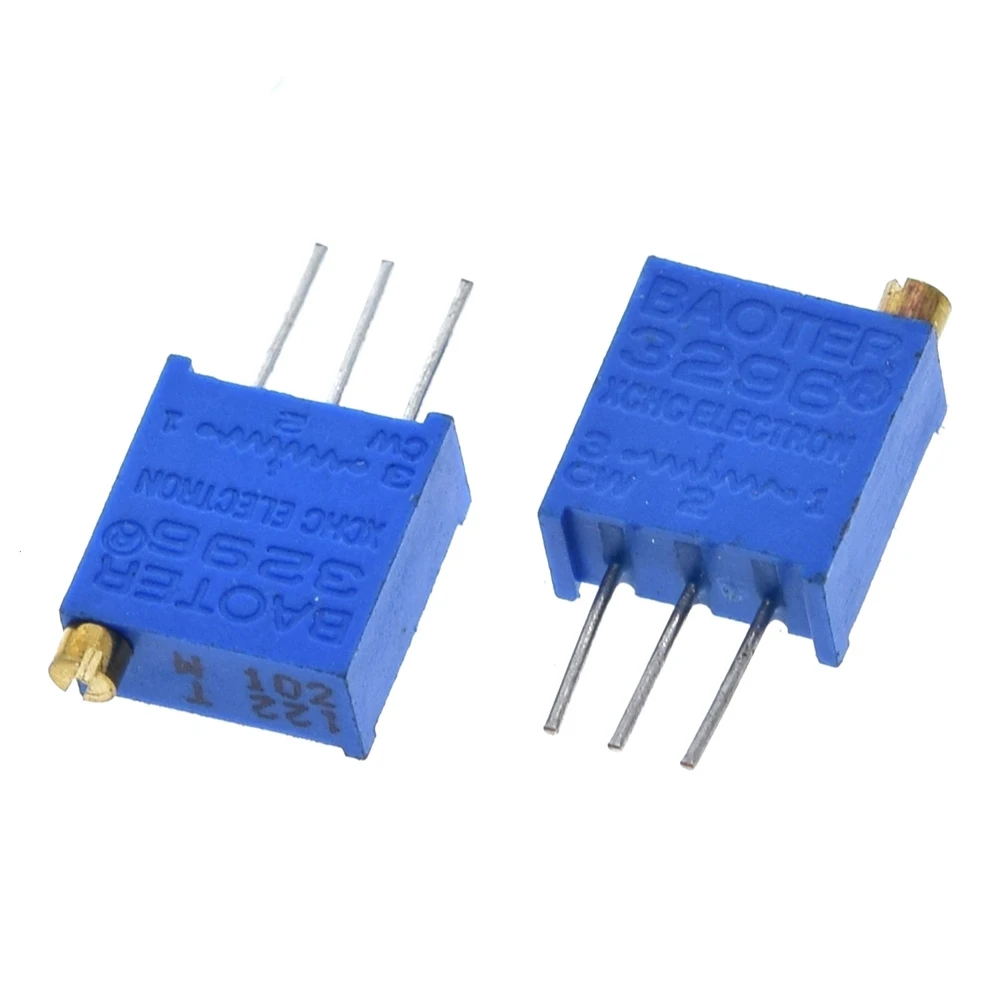

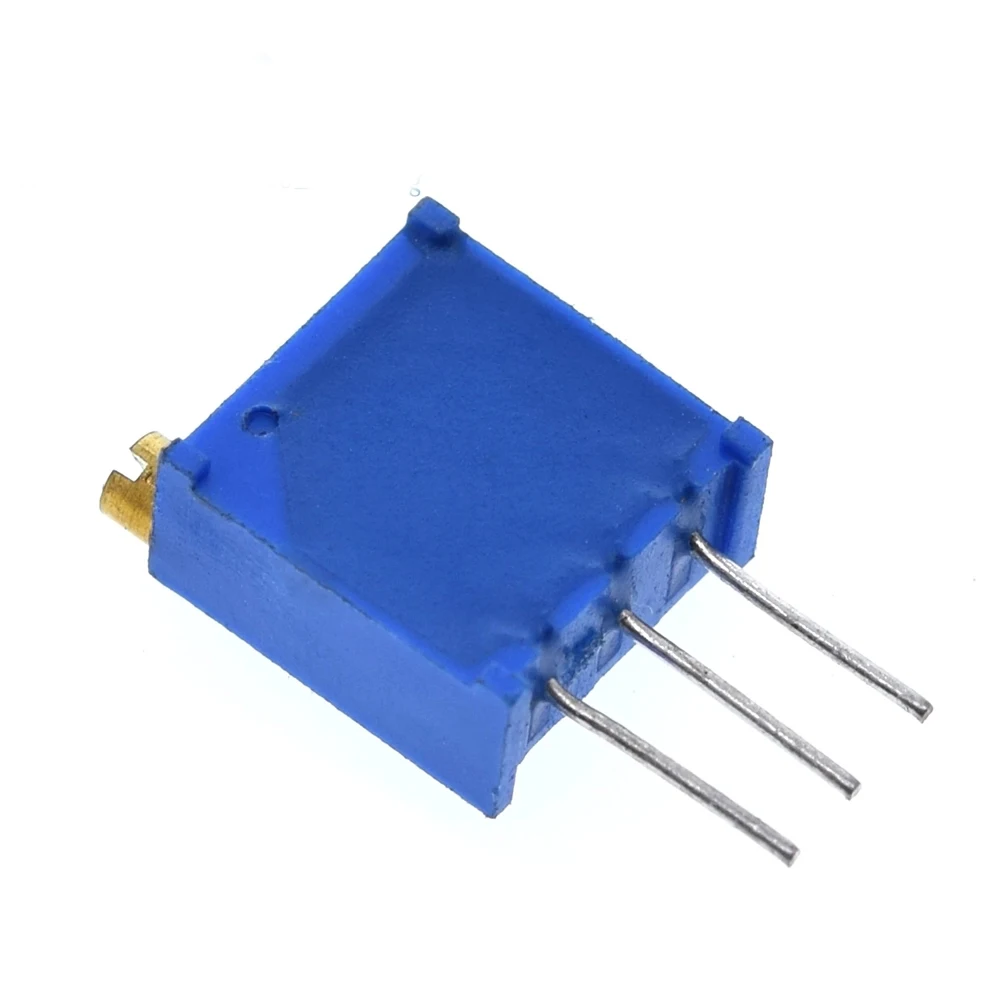

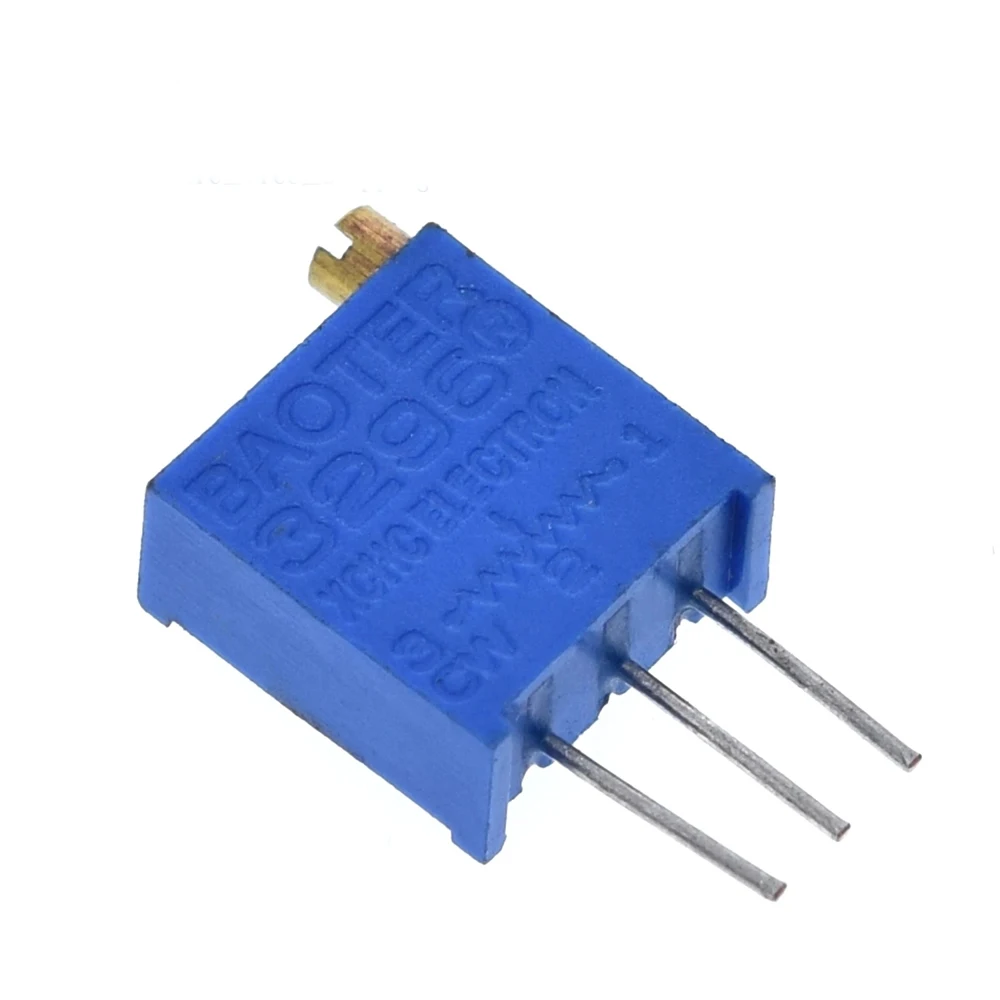

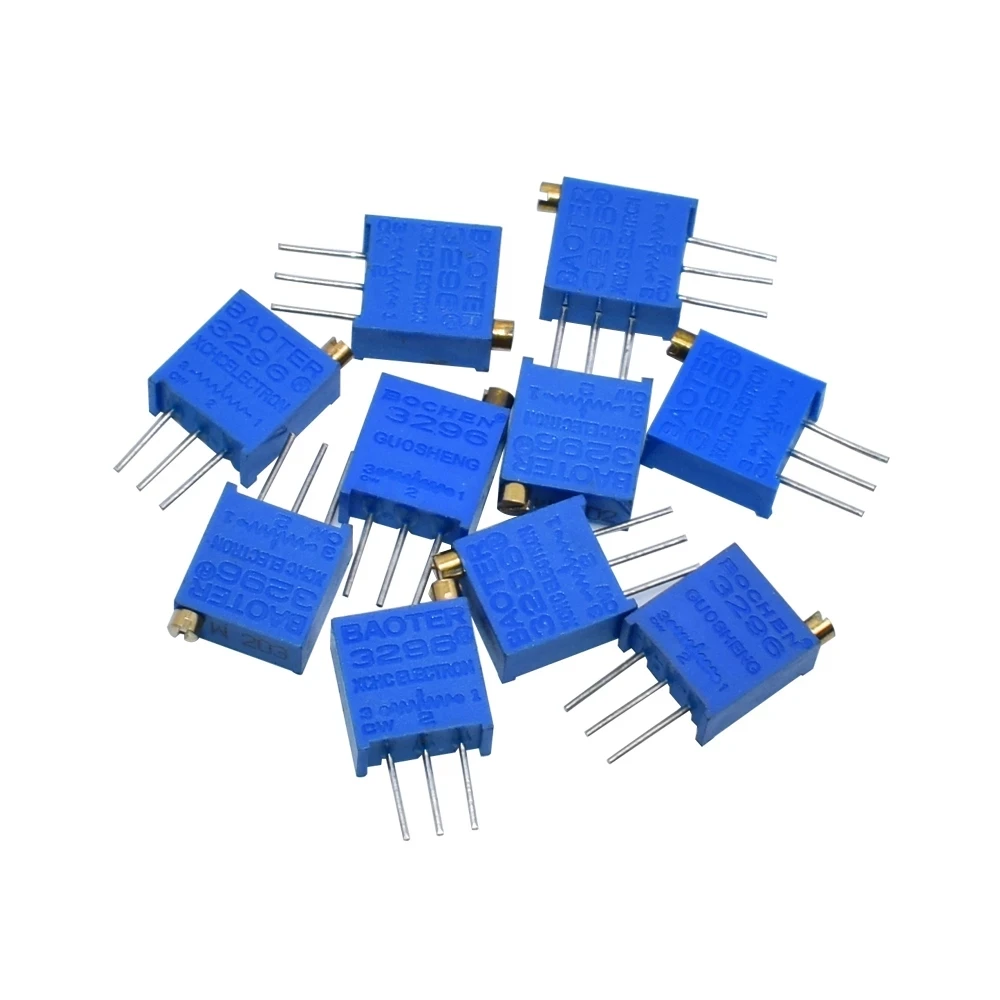

3296W Potentiometer Precision Adjustable Resistance Multi-turn trimming 50R Trimmer Potentiometer 3296W-50R (500)

Product Description:

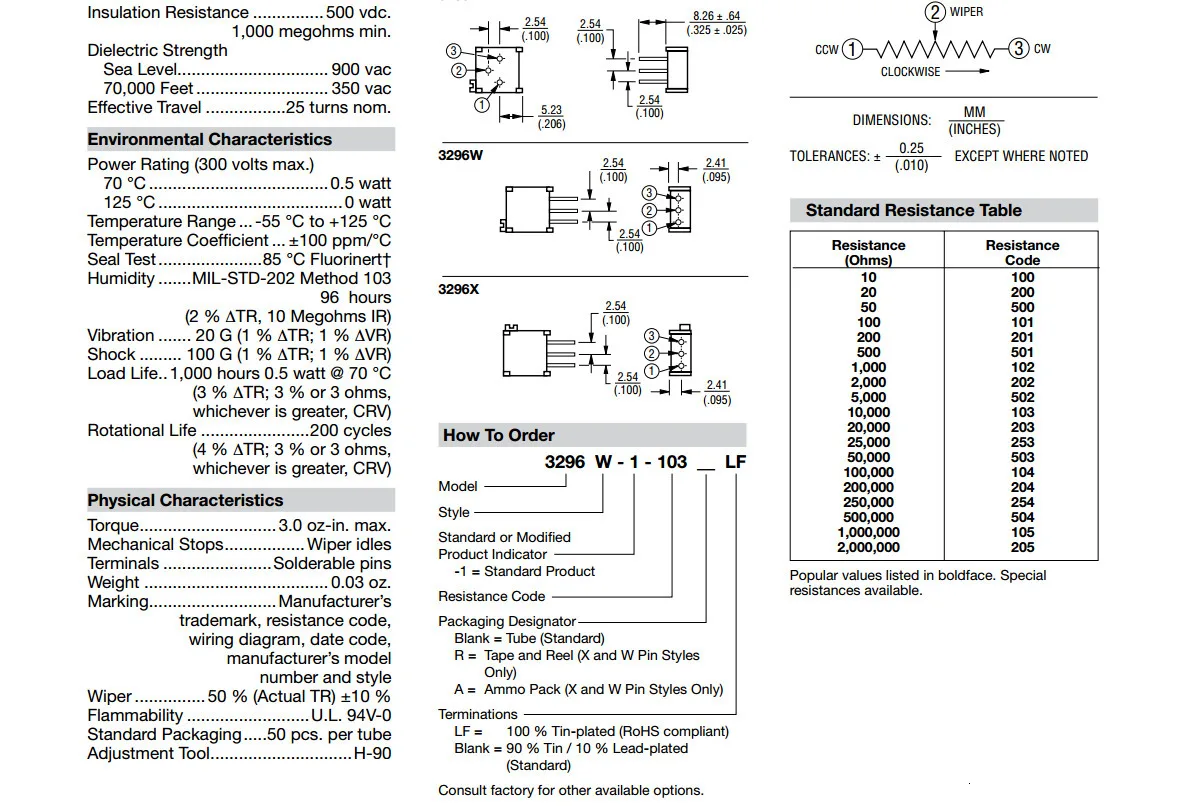

• Resistance range (Ohms): 10 ~ 2M Europe Ω;


• Resistance deviation: ± 10% ;


• Resistance change characteristics: B ;


• Termination resistance: ≤1% R or 2Ω ;


• Contact resistance change: ≤3% R or 3Ω ;


• Insulation resistance: R1≥1GΩ ;


• Withstand voltage: 101.3Kpa 600V, 8.5Kpa 250V ;


• Effective electric stroke: 25 ± 2turns ;

Environmental characteristics:

• Rated power (max working voltage 300V): + 70 ℃ 0.25W, + 125 ℃ ow ;


• Operating temperature range: -55 ℃ ~ + 125 ℃ ;


• Temperature coefficient: ± 200ppm / ℃ ;


• Temperature change: R≤ ± 2% R, (Uab / Uac) R≤ ± 2% ;


• Collision: 390m / s2, 4000 times, R≤ ± 2% R ;


• Vibration: 10 ~ 500Hz, 0.75mm or 98m / s, 6h R≤ ± 1% R, (Uab / Uac) ≤ ± 2% ;


• Climate sequence: R≤ ± 3% R, R1≥100MΩ 70 ℃ Electrical durability: 0.5W, 1000h R≤ ± 3% R ;


• Mechanical durability: 50cycles, R≤ ± 3% R ;
  Damp heat in steady state: R≤ ± 3% R, R1≥100MΩ ;

Physical characteristics:

• Total mechanical properties: 28 ± 2turns ;


• Starting torque: ≤36mN • m ;


• Stop torque: ≥36 mN • m ;

1pcs x 3296W-50R (500) Potentiometer
