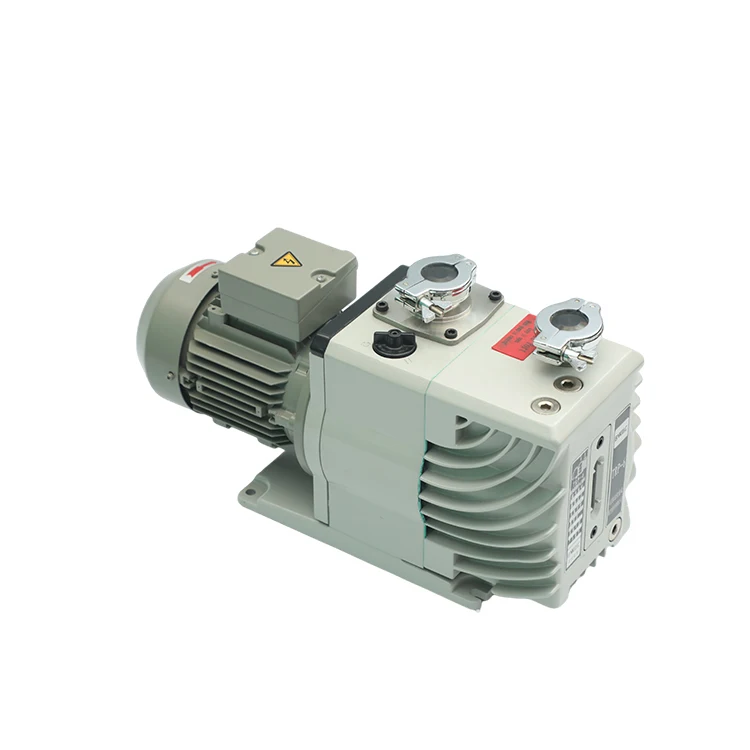

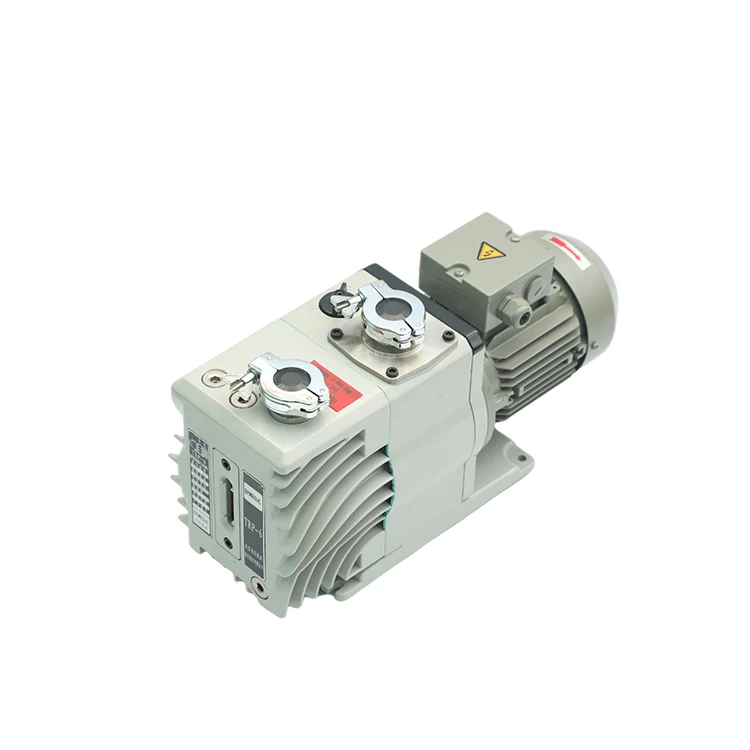

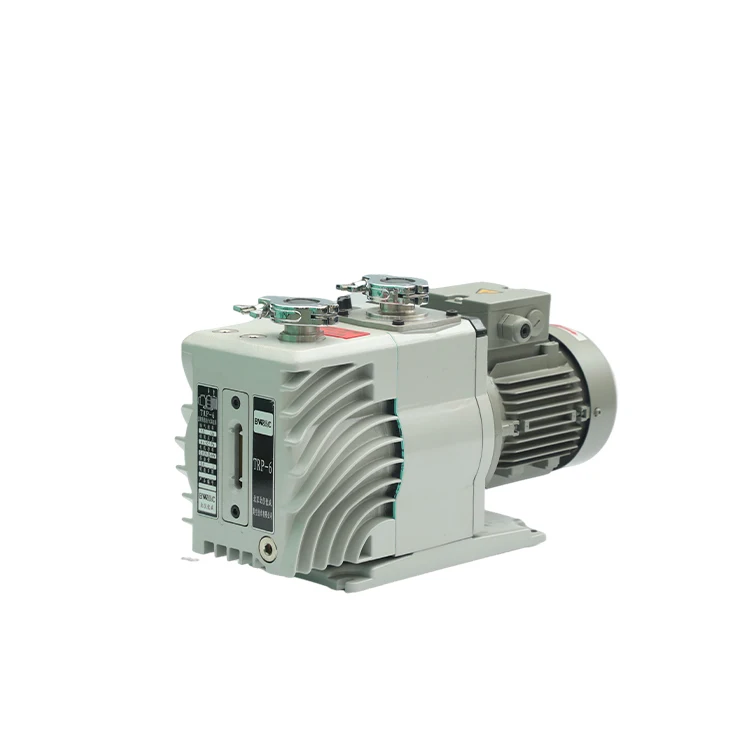

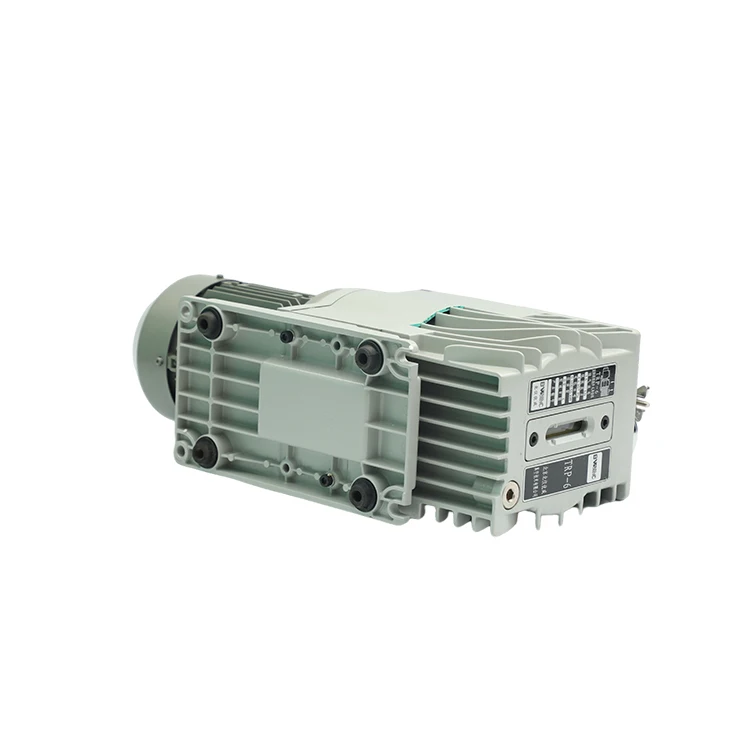

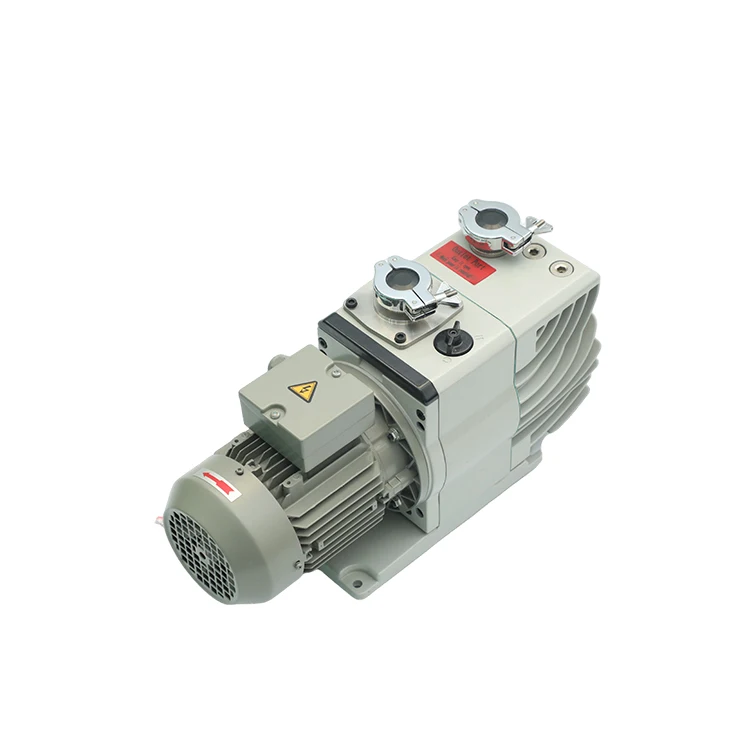

Высокое качество одноступенчатый пластинчато-роторный вакуумный насосный воздушный насос TRP-6
- Категория: Tools & Hardware >>>
- Поставщик: Beijing,Beiyi,Woosung,Vacuum,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 774.70 $* | 813.53 $* |
| Aug-19-2025 | 767.80 $* | 805.21 $* |
| Jul-19-2025 | 644.68 $* | 676.55 $* |
| Jun-19-2025 | 754.2 $* | 792.68 $* |
| May-19-2025 | 657.30 $* | 690.35 $* |
| Apr-19-2025 | 741.33 $* | 778.86 $* |
| Mar-19-2025 | 735.52 $* | 772.81 $* |
| Feb-19-2025 | 728.9 $* | 764.60 $* |
| Jan-19-2025 | 722.48 $* | 758.98 $* |
Характеристики
Two-stage rotary vane suction Liquid Ring Vacuum Pump Series Liquid Water Ring Vacuum Pump
Product Description
Product Paramenters
model | Unit | TRP-6 | TRP-12 | TRP-24 | TRP-36 | TRP-48 | TRP-60 | TRP-90 | |||||||
Displacement Speed | 50Hz | L/s | 1.5 | 3 | 6 | 9 | 14 | 18 | 25 | ||||||
50Hz | L/min | 90 | 180 | 360 | 540 | 840 | 1080 | 1500 | |||||||
60Hz | L/s | 1.8 | 3.6 | 7 | 10.8 | 16.7 | 21.7 | 30 | |||||||
60Hz | L/min | 110 | 210 | 420 | 640 | 1000 | 1300 | 1800 | |||||||
Oil Filling/ | L | 0.9 | 1.1 | 1.9 | 2.1 | 3.9 | 4.9 | 5.5 | |||||||
Inlet Port | DN | 25KF | 25KF | 25KF | 25/40KF | 40KF | |||||||||
Outlet Port | DN | 25KF | 40KF | ||||||||||||
Motor Power/kW | 0.37/0.55 | 0.37/0.55 | 0.75/0.75 | 0.75/1.1 | 1.5/- | 2.2/- | 2.2(3)/- | ||||||||
Rotational speed of Pump/ | 50Hz | rpm | 1450 | ||||||||||||
60Hz | 1750 | ||||||||||||||
Ultimate Pressure | Unit/pa | ||||||||||||||
Without gas ballast | Patial pressure | Pa | 4×10-2 | ||||||||||||
Total pressure | 4×10-1 | ||||||||||||||
With gas ballast | Patial pressure | 1.3 | |||||||||||||
Total pressure | 4 | ||||||||||||||
/Noise Level (Without gas ballast) | dB | 50 | 50 | 52 | 52 | 56 | 56 | 56 | |||||||
Weight (3-Ph) | kg | 23/27 | 25/29 | ～37 | ～39 | ～64 | ～83 | ～88 | |||||||
Details Images
Our Company
Certifications
Product packaging
FAQ
