Haiyu квадратные круглые цементные бетонные центробежные электрические машины для изготовления пресс-форм производители


Поделиться:


Цена:2 000,00 $ - 3 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 2380.25 $* 2499.49 $*
Aug-20-2025 2360.21 $* 2478.89 $*
Jul-20-2025 1980.14 $* 2079.63 $*
Jun-20-2025 2320.44 $* 2436.42 $*
May-20-2025 2020.22 $* 2121.69 $*
Apr-20-2025 2280.61 $* 2394.67 $*
Mar-20-2025 2260.11 $* 2373.99 $*
Feb-20-2025 2240.86 $* 2352.65 $*
Jan-20-2025 2220.7 $* 2331.31 $*

Характеристики





Square /Rectangle Concrete Pole machine
There are several kinds of square (rectangle) pole which is used widely in Central Africa /North Africa& West Africa .The production technology is different according the shape .

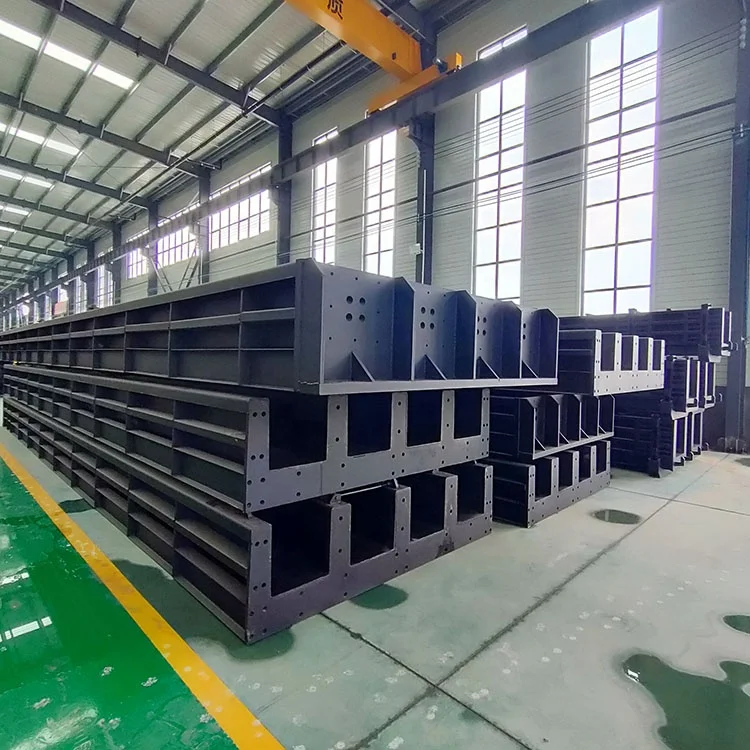

1.H-shaped reinforced concrete pole mould



Specification for H type concrete pole


Model
Top size (mm)
Bottom size (mm)
Model
Top size (mm)
Bottom size (mm)
9-300
150*200
230*320
14-M1250
210*320
380*600
9-500
150*200
230*320
14-M1500
210*320
380*600
9-1500
210*320
320*500
15-M800
190*280
340*620
11-300
150*200
250*340
15-M1000
190*280
340*620
11-M500
150*200
250*340
15-M1250
210*320
400*620
11-M800
190*280
300*530
15-M1500
210*320
400*620
11-M1000
190*280
300*530
9-200
140x120
370x235
11-M1250
210*320
350*540
9-400
190x140
370x235
11-M1500
210*320
350*540
9-650
190x140
370x235
12-M300
150*200
260*360
9-800
180x140
378x275
12-M500
150*200
260*360
12-400
190x140
440x280
12-M800
190*280
310*550
12-650
190x140
440x280
12-M1000
190*280
310*550
12-800
180x140
444x322
12-M1250
210*320
360*560
12-1000
246x185
530x365
12-M1500
210*320
360*560
12-1250
246x185
530x365
13-M300
150*200
270*370
12-1600
250x250
550x550
13-M500
150*200
270*370
12-2000
250x250
550x550
13-M800
190*280
320*580
13-400
190x140
460x280
13-M1000
190*280
320*580
13-650
190x140
460x280
13-M1250
210*320
370*580
14-M1250
210*320
380*600
13-M1500
210*320
370*580
14-M1500
210*320
380*600
14-M800
190*280
340*600
15-M800
190*280
340*620
14-M1000
190*280
340*600
15-M1000
190*280
340*620

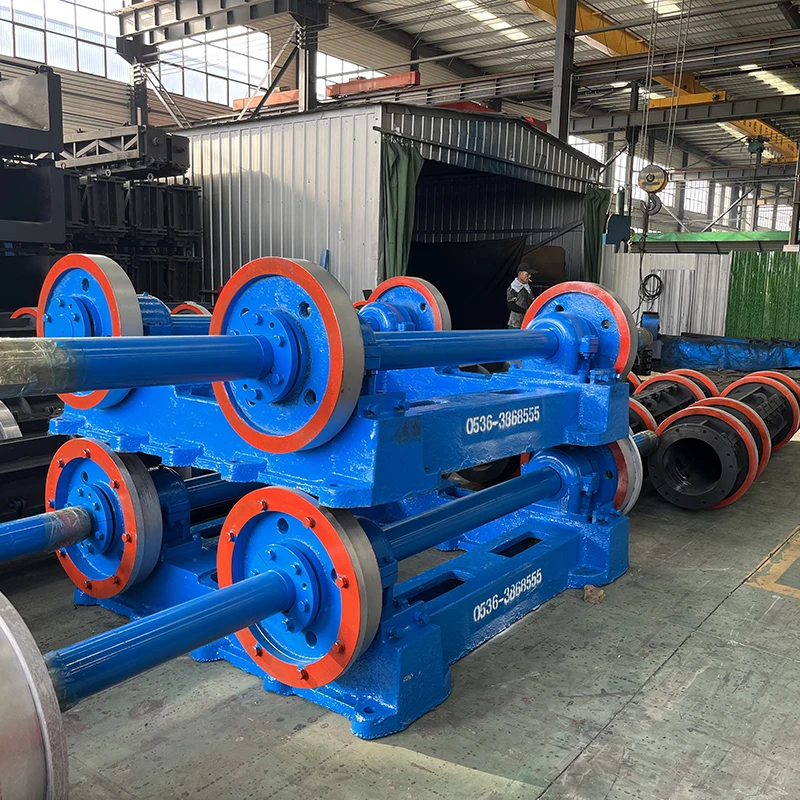

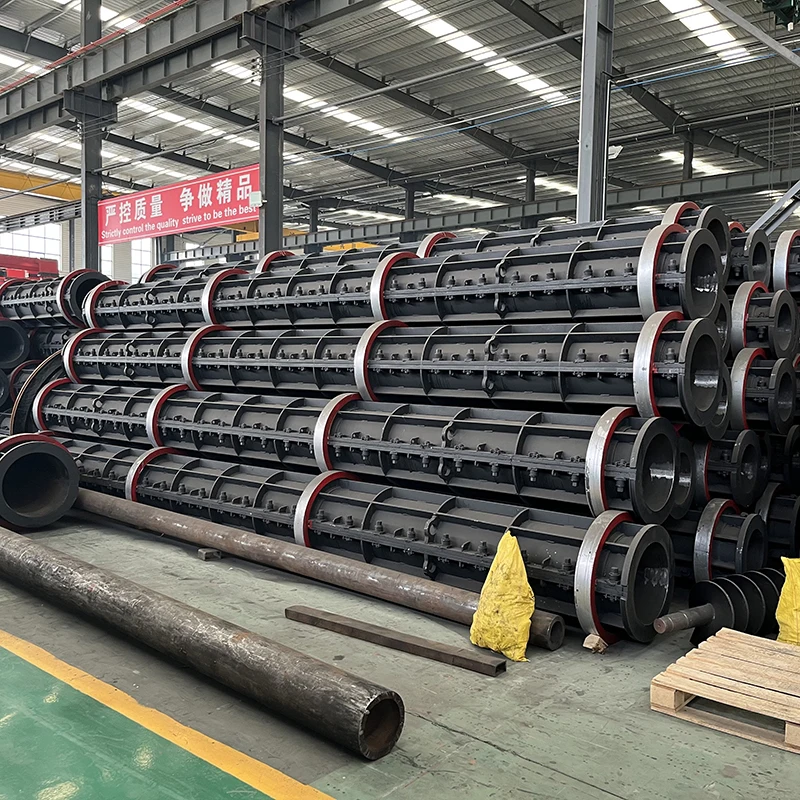

2.Centrifugal type square/rectangle concrete pole mould and Centrifugal Machine



Specification for square/rectangle concrete pole


Model
Top Size(mm)
Bottom Size(mm)
CC400-9m
170/170
350/350
CC400-11m
170/170
390/390
CC400-12m
170/170
410/410
CC630-9m
200/200
389/389
CC630-11m
200/200
431/431
CC630-12m
200/200
452/452
CC1000-11m
220/220
495/495
CC1000-12m
220/220
526/526
RC250-9m
125/160
192/317
RC250-11m
125/160
207/352
RC250-12m
125/160
215/370

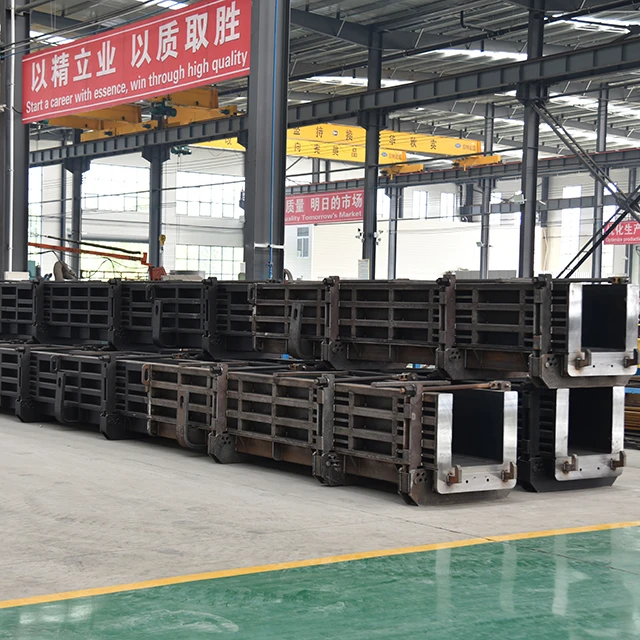

3. Vibrating type rectangle hollow concrete pole mould



4.Solid square concrete pole mold


Related supporting machine
The square pole equipment production line generally adopts the production process of centrifugal or vibration forming, and cooperates with the concrete mixing system, the steel bar processing system and the finished product inspection system to ensure the quality of the pole.


1.Concrete Mixing Station



2.Concrete Feeding Machine



3.Lifting cranes



4.Automatic steel wire winding machine & cutting machine




5.Boiler steam curing system



The boiler is used for steam curing of electric poles, which greatly shortens the forming time of electric poles.


production process




Case Display




Packaging And Shipping




Related Products




Customer Feedback




Company Profile










Transportation




FAQ


Q:Do you have set up an independent factory?
A:We have our own factory. Has the specialized cement machinery product equipment factory, also has the large-scale cement drain pipe production factory.

Q:What can you do for us?
A:1. Before sales can be targeted to give some constructive Suggestions.
2.Make a specific plan for your needs.
3. After sales reference specific products, different products have different services. Refer to the specific product description.

Q: Can you do the basic design for us?
A: Yes, we have a professional team with rich experience in basic design of cement pipe making equipment with CAD software. You just need to tell us your ideas and requirements, and we will provide you with the most perfect design.

Q:Can your engineers train our workers in our factories?
A:Yes, we have a very large engineering installation team that can train and instruct your workers to operate the installation equipment.

Q:If we provide the parameter requirements, can we make it to order?
A:We provide customized services as long as you provide the appropriate drawings and product requirements.

Q:How long is your lead time?
A:Our delivery time varies according to the quantity of the order, usually around 30 days.
