Высокоскоростная малогабаритная машина для литья под давлением с сервоприводом цены на пластиковые
- Категория: Injection Molding Machines >>>
- Поставщик: Suzhou,Pekoe,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 15470.22 $* | 16244.72 $* |
| Aug-20-2025 | 15340.38 $* | 16107.27 $* |
| Jul-20-2025 | 12870.31 $* | 13514.52 $* |
| Jun-20-2025 | 15080.15 $* | 15834.31 $* |
| May-20-2025 | 13130.70 $* | 13787.68 $* |
| Apr-20-2025 | 14820.98 $* | 15561.75 $* |
| Mar-20-2025 | 14690.58 $* | 15425.17 $* |
| Feb-20-2025 | 14560.44 $* | 15288.90 $* |
| Jan-20-2025 | 14430.22 $* | 15152.52 $* |
Характеристики
Products Description

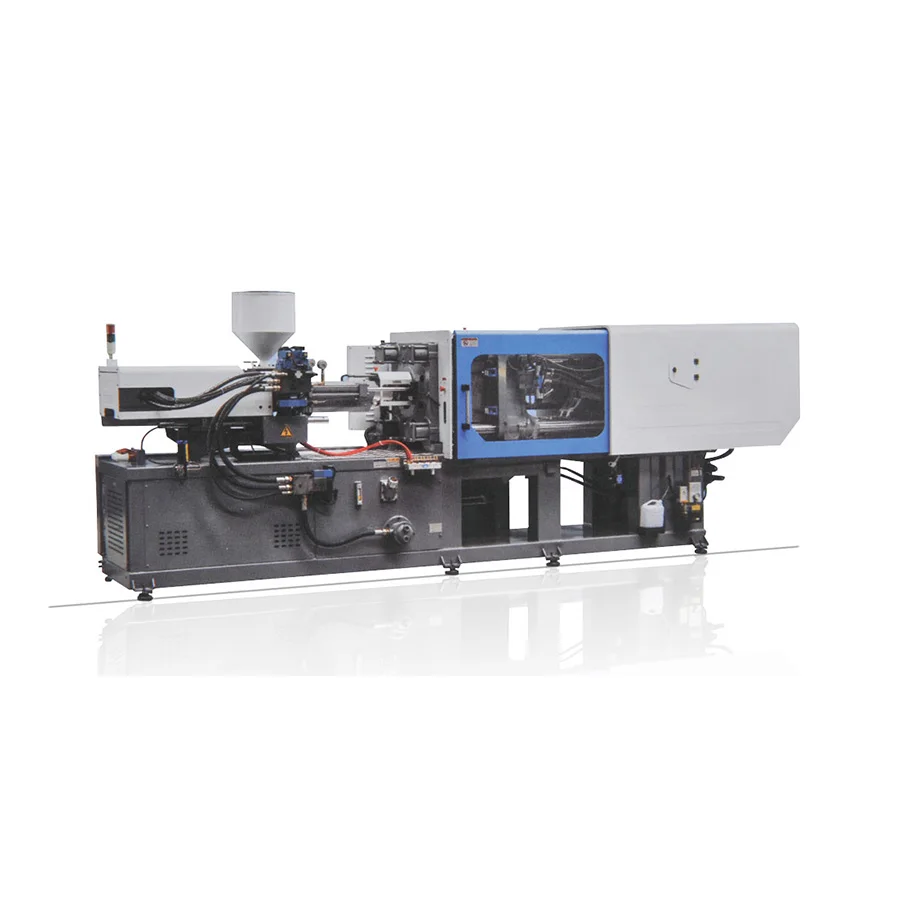

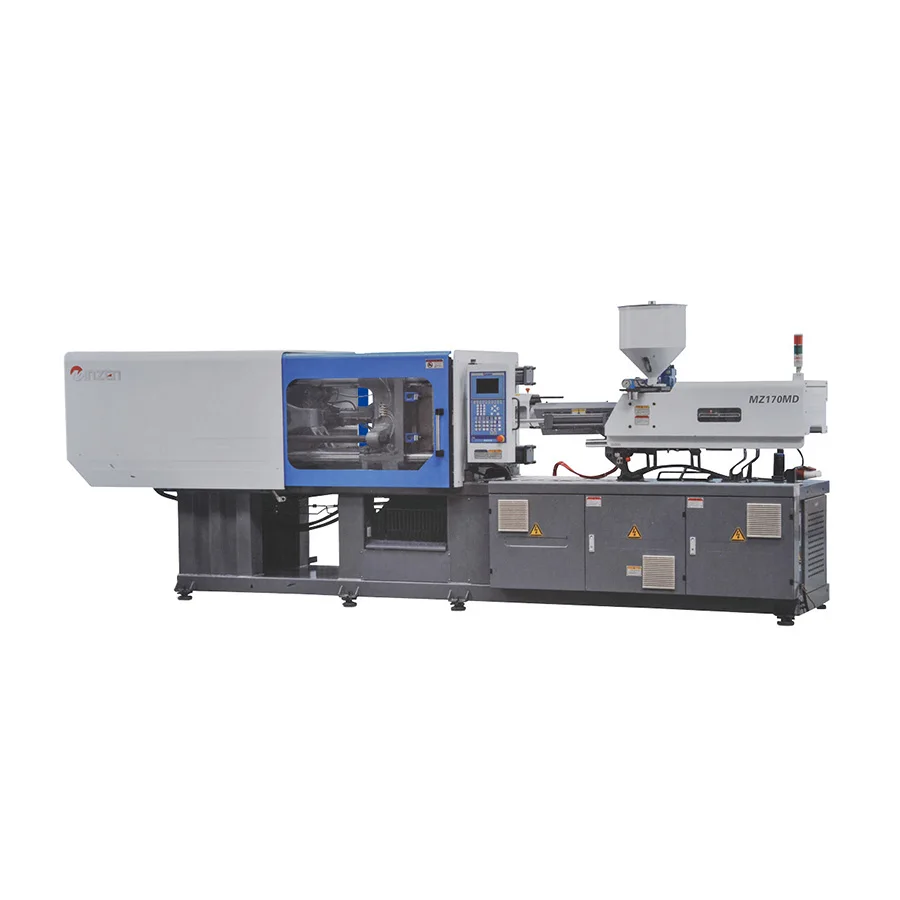

High Speed Servo Type Small Plastic Injection Molding Machine Prices for plastic bottle cap

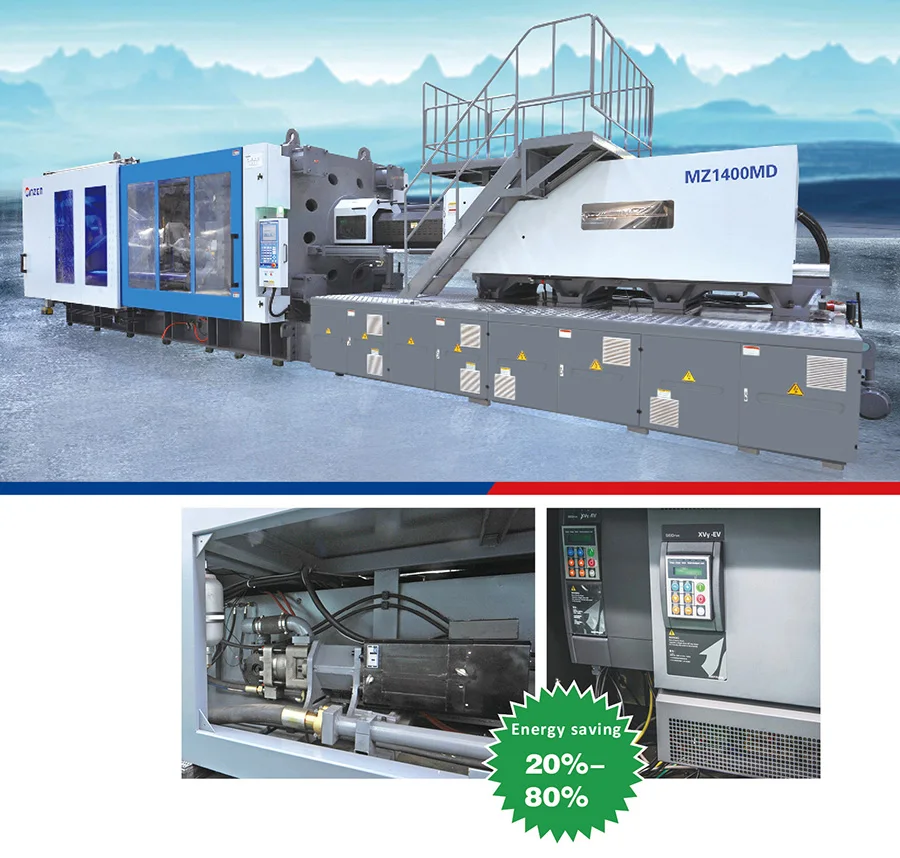

High energy saving
In an ideal working state,compared with conventional injection molding machines,their energy saving can reach 20%-80%. Better molding stability
Compared with conventional injection molding machines,repeatability is greatly improved due to servo motor close-loop control.
Quick response
Sensitive servo motor,the response time only 0.05 second. Quiet & low noise
The machine runs with low noise,and will be much quieter in a low speed.
Reliable holding pressure
Comparing with all electric injection molding machine,the time for pressure holding will be much longer and steady. Oil
temperature rise slowly.Servo motor proportionally deliver hydraulic oil base on our needs,it's can prevent unnecessary heat being generated,even in some cases does not require,cooling.

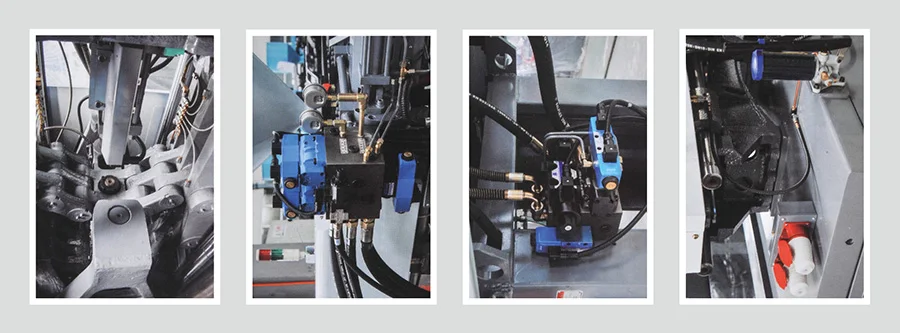

MZ-MD excellent characteristics inheritance
Outstanding machine stability,being safety and dependability,strong mechanical parts,complete functional human-oriented operation system and long service life.

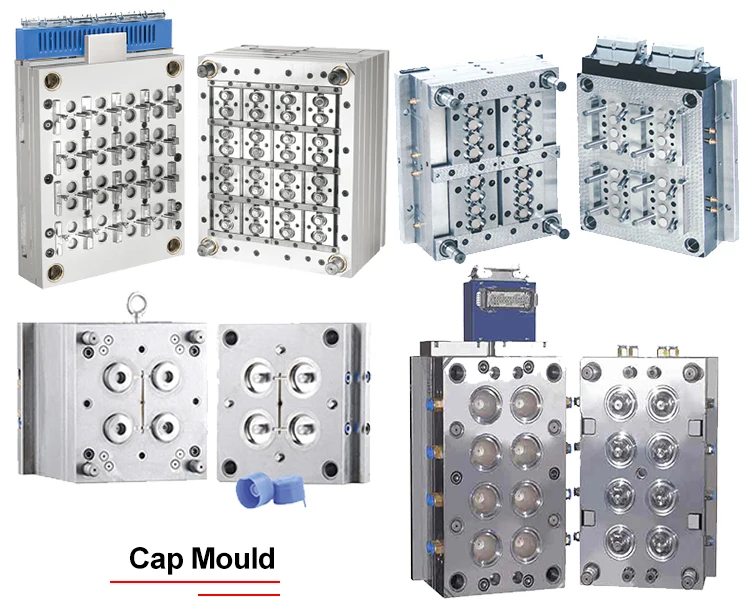

More Application
Product Specifications
INJECTION UNIT HJ-950A | ||||||||
SCREW DIAMETER | mm | 30 | 35 | 40 | ||||
SCREW L/D RATIO | L/D | 24.5 | 21 | 18.4 | ||||
Theoretical Shot Volume | cm^3 | 113 | 154 | 201 | ||||
SHOW WEIGHT(PS) | g | 103 | 140 | 183 | ||||
INJECTION PRESSURE | Mpa | 249 | 183 | 140 | ||||
THEORETICAL INJECTION RATE(PS) | g/s | 67.5 | 91.8 | 120 | ||||
PLASTICISING CAPACITY | g/s | 8.3 | 12.5 | 18 | ||||
SCREW TORQUE | N.m | 510 | ||||||
MAX.SCREW ROTATE SPEED | r/min | 260 | ||||||
INJECTION STROKE | mm | 160 | ||||||
CLAMPING UNIT | ||||||||
MAX.CLAMPING FORCE | KN | 950 | ||||||
MAX.OPENING STROKER | mm | 340 | ||||||
SPACE BETWEEN TIE BARS | mm | 360×360 | ||||||
MOULD HEIGHT | mm | 135~380 | ||||||
MAX.DAYLIGHT | mm | 720 | ||||||
EJECTOR FORCE | kn | 25.4 | ||||||
EJECTOR STROKE | mm | 85 | ||||||
EJECTOR QUANTITY | pc | 5 | ||||||
OTHER | ||||||||
PUMP MOTOR POWER | KW | 11 | ||||||
PUMP PRESSURE | Mpa | 16 | ||||||
HEATING POWER | KW | 7.3 | ||||||
HEATING ZONE | 4 | |||||||
SIZE | m | 4.25×1.2×1.8 | ||||||
NET WEIGHT | t | 3.2 | ||||||
OIL TANK CAPACITY | L | 260 | ||||||
INTERNATIONAL DESIGNATION | 950-280 | |||||||
