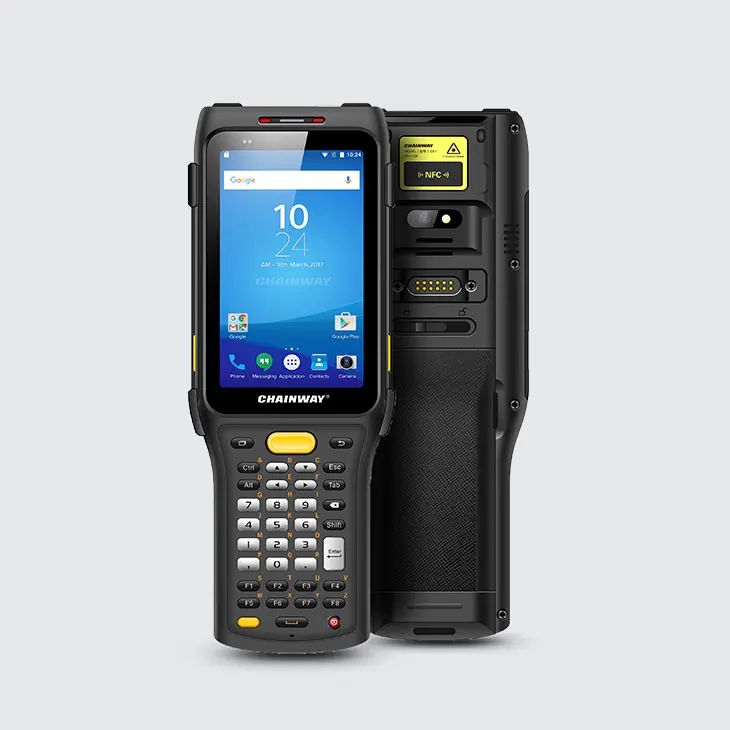

Сканер штрих-кода Chainway C61 2D QR-кода с WIFI 4G BT GPS NFC камерой Android 9 0

Physical Characteristics

Dimensions

202.0 x 72.5 x 32.0 mm / 7.95 x 2.85 x 1.26 in.

Weight

13.05 oz. / 370 g(SE4710);
14.25 oz. / 404 g(SE4850);
26 .05 oz. / 738 g(SE4850, UHF, pistol battery)
Device Weight for Argentina, Uruguay, Bolivia, Ecuador market: 342~404 g, including battery

Display

4-inch high definition display, TN α-Si 800*480

Battery

6700 mAh removable main battery, 5200 mAh optional pistol battery, support QC3.0 and RTC;Built in 100mAh backup battery, supporting battery hot swap, improving reliability and ensuring user data security
Standby: up to 680 hours (only main battery ; WiFi: up to 560h; 4G: up to 560h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 3.5 hours (charge device by standard adaptor and USB cable)

Touch Panel

Multi-touch panel, gloves and wet hands supported

Notification

Sound, LED indicator, vibrator

Interfaces

Android 9: USB Type-C, USB 3.0, OTG, extended thimble
Android 11: USB Type-C, USB 3.1, OTG, extended thimble

Card slot

1 slot for Mirco SIM card, 1 slot for TF card

Audio

2 microphones, 1 for noise cancellation; 2 speakers; receiver

Keypad

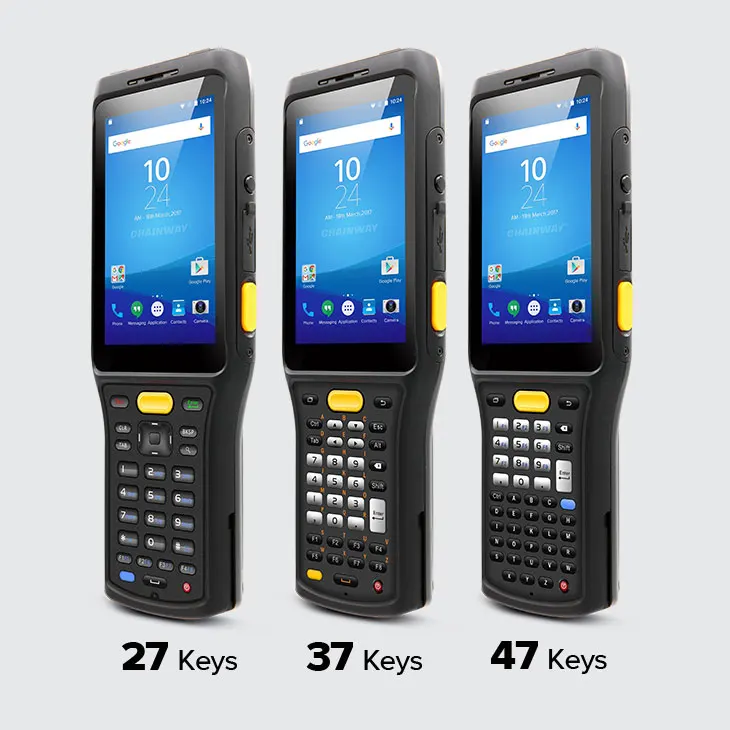

Main keyboard (Optional): 27 keys / 37 keys / 47 keys;

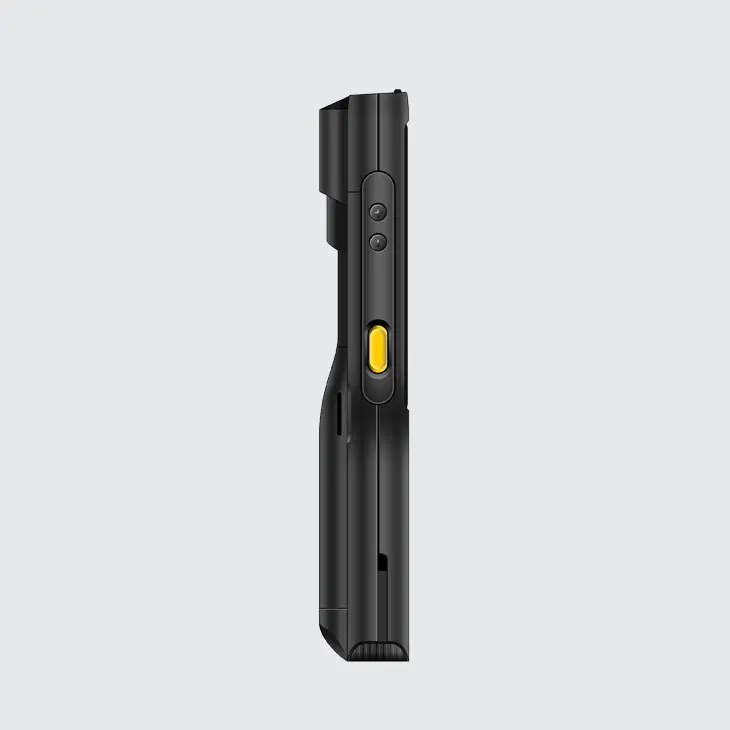

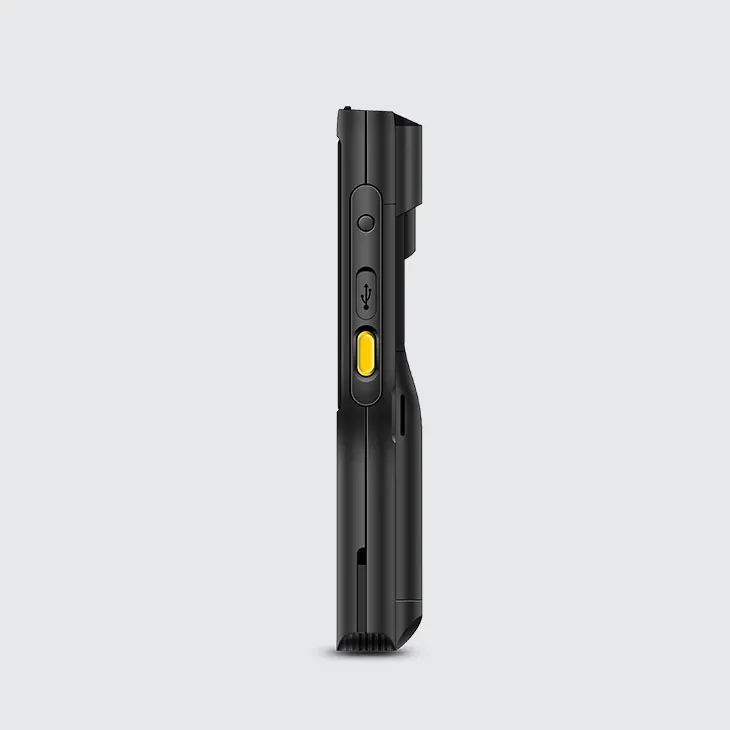

Side keys: 2 SCAN keys + 2 volume keys + 1 user-defined key

Sensors

Accelerometer sensor, light sensor, proximity sensor, gravity sensor

Communication

WLAN

Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations;
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, etc.

WWAN (Europe, Asia)

2G: 850/900/1800/1900MHz
3G: CDMA EVDO: BC0
       WCDMA: 850/900/1900/2100MHz
       TD-SCDMA: A/F(B34/B39)
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41

WWAN (America)

2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: Android 9: B2/B4/B5/B7/B12/B17/B38
      Android 11: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38

Blue  tooth

Android 9: Blue  tooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
Android 11: Blue  tooth 5.1

Vo-LTE

Support Vo-LTE HD video voice call

GNSS

GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

Developing Environment

Operating System

Android 9; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, SafeUEM supported;

Android 11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Android 9: Qualcomm Snapdragon™ 450 Octa-core, 1.8 GHz
Android 11: Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz

RAM+ROM

3 GB + 32 GB / 4 GB + 64 GB

Expansion

Supports up to 128 GB Micro SD card

User Environment

Operating Temp.

-4℉ to 122 ℉ / -20 ℃to 50 ℃

Storage Temp.

-40℉ to 158℉ / -40 ℃ to 70 ℃

Humidity

5% RH to 95% RH (non condensing)

Drop Specification

Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range

Tumble Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature

Sealing

IP65 per IEC sealing specifications

ESD

±15 KV air discharge, ±8 KV conductive discharge

Barcode Scanning

2D Imager Scanner

Zebra: SE4710/SE4750SR/SE4750MR/SE4750DP/SE4850; Honeywell: N6603/EX30

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Note

*This function is optional

UHF RFID

Engine

CM710-1 module based on Impinj E710
CM2000-1 module based on Impinj Indy R2000

Frequency

865-868 MHz / 920-925 MHz / 902-928 MHz

Protocol

EPC C1 GEN2 / ISO18000-6C

Antenna

Circular Polarized Antenna (4 dBi)

Power

1W (30 dBm, +5 dBm to +30 dBm adjustable)
2W Optional (33 dBm, for Latin America, etc.)

Fastest Read Rate

900+ tags/sec

Communication Mode

Pin Connector

R/W ranges

Up to 15 m (open outdoors, Impinj MR6 tag)

Note

*Ranges and rates depend on tags and environment

Note2

*This function is optional

Camera

Rear Camera

Rear 13 MP Autofocus with flash

NFC

Frequency

13.56 MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (S50, S70), CPU card, NFC tags, etc.

Range

2-4 cm

Optional accessories

Accessories

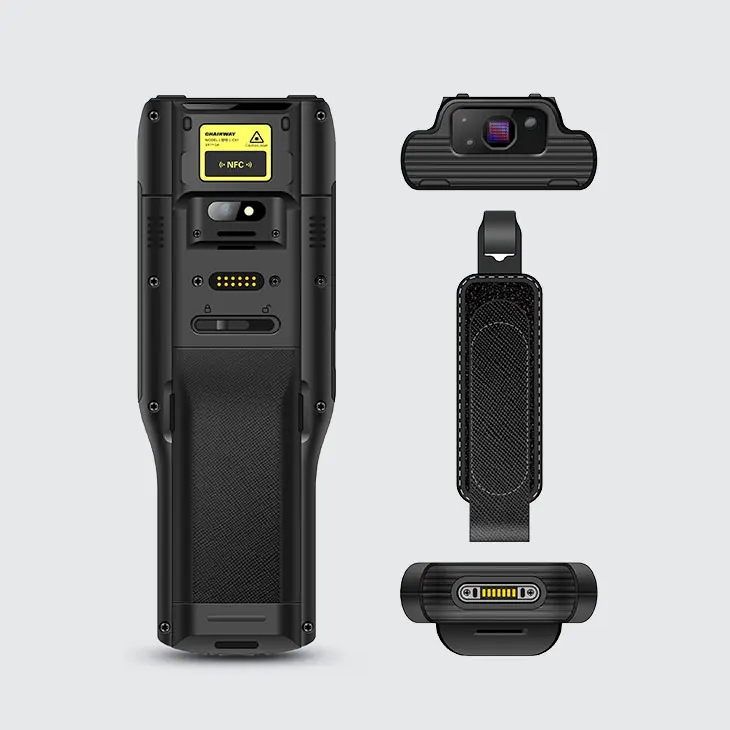

Separate handle with one button;

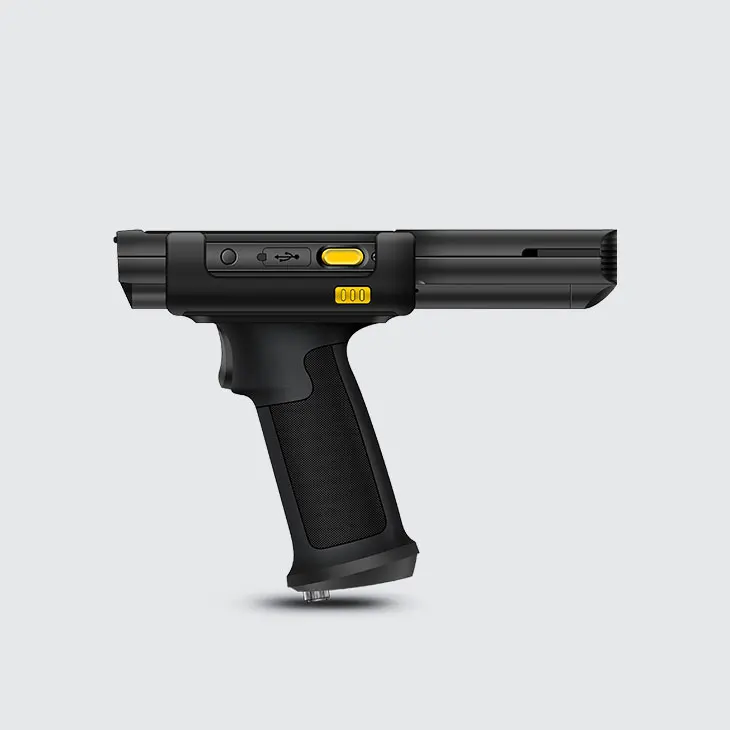

Handle + battery (handle battery 5200 mAh, one button) ;
UHF back clip + handle (5200 mAh, one button) ;
Wrist Strap; Charging Cradle

Note

*See details in Accessory Guide
