HYKH6008-2RZ C TAP4 + с двумя вариантами носки высокоскоростной шпиндель супер Прецизионных Подшипников для Серводвигатель 40x68x15 мм керамический шарик P4 а также
- Категория: Angular Contact Ball Bearings >>>
- Поставщик: Shanghai,Chenghui,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 100.47 $* | 102.70 $* |
| Jul-19-2025 | 81.26 $* | 83.31 $* |
| Jun-19-2025 | 99.19 $* | 101.19 $* |
| May-19-2025 | 98.61 $* | 100.40 $* |
| Apr-19-2025 | 78.77 $* | 80.47 $* |
| Mar-19-2025 | 96.12 $* | 98.2 $* |
| Feb-19-2025 | 96.20 $* | 98.53 $* |
| Jan-19-2025 | 95.48 $* | 97.13 $* |
Характеристики

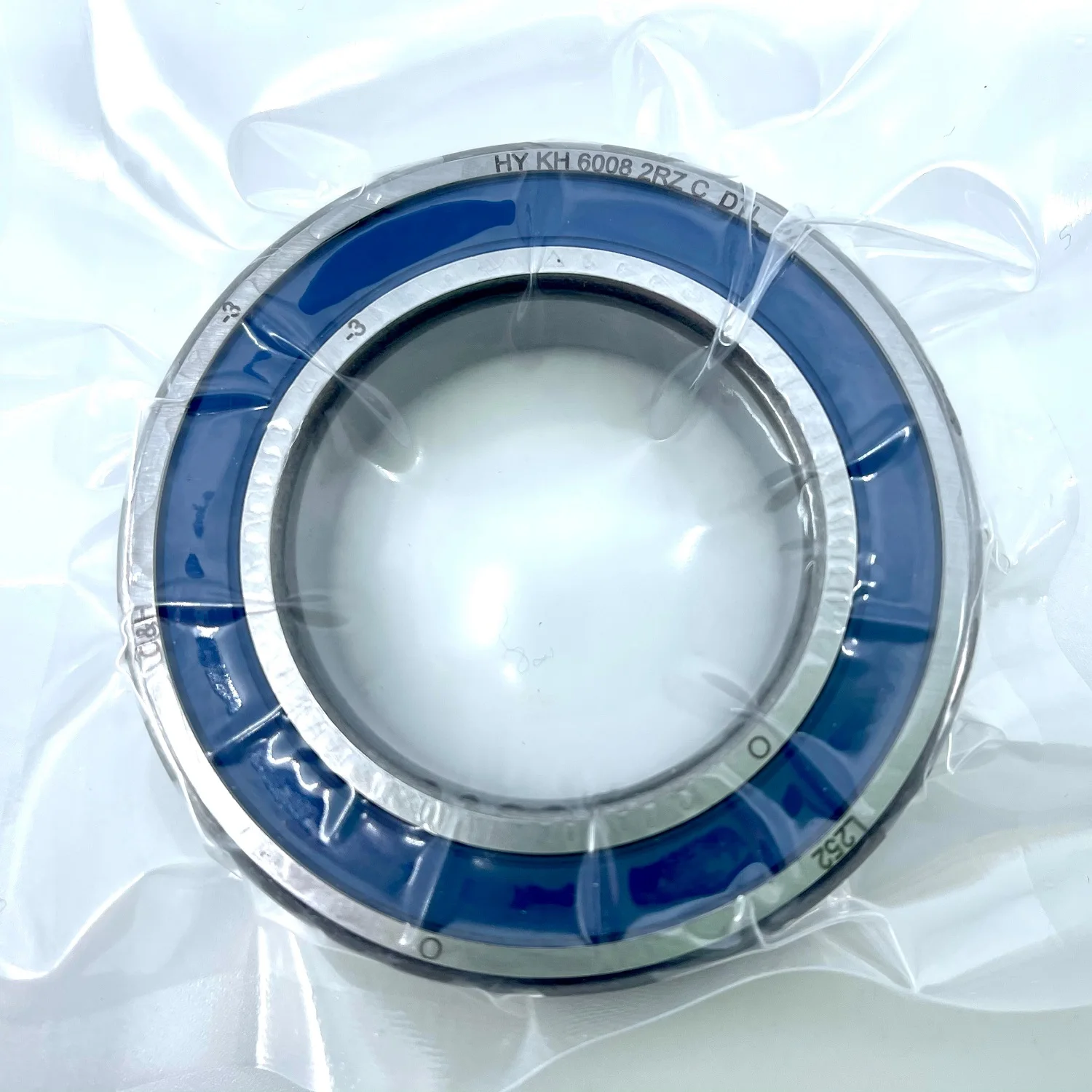

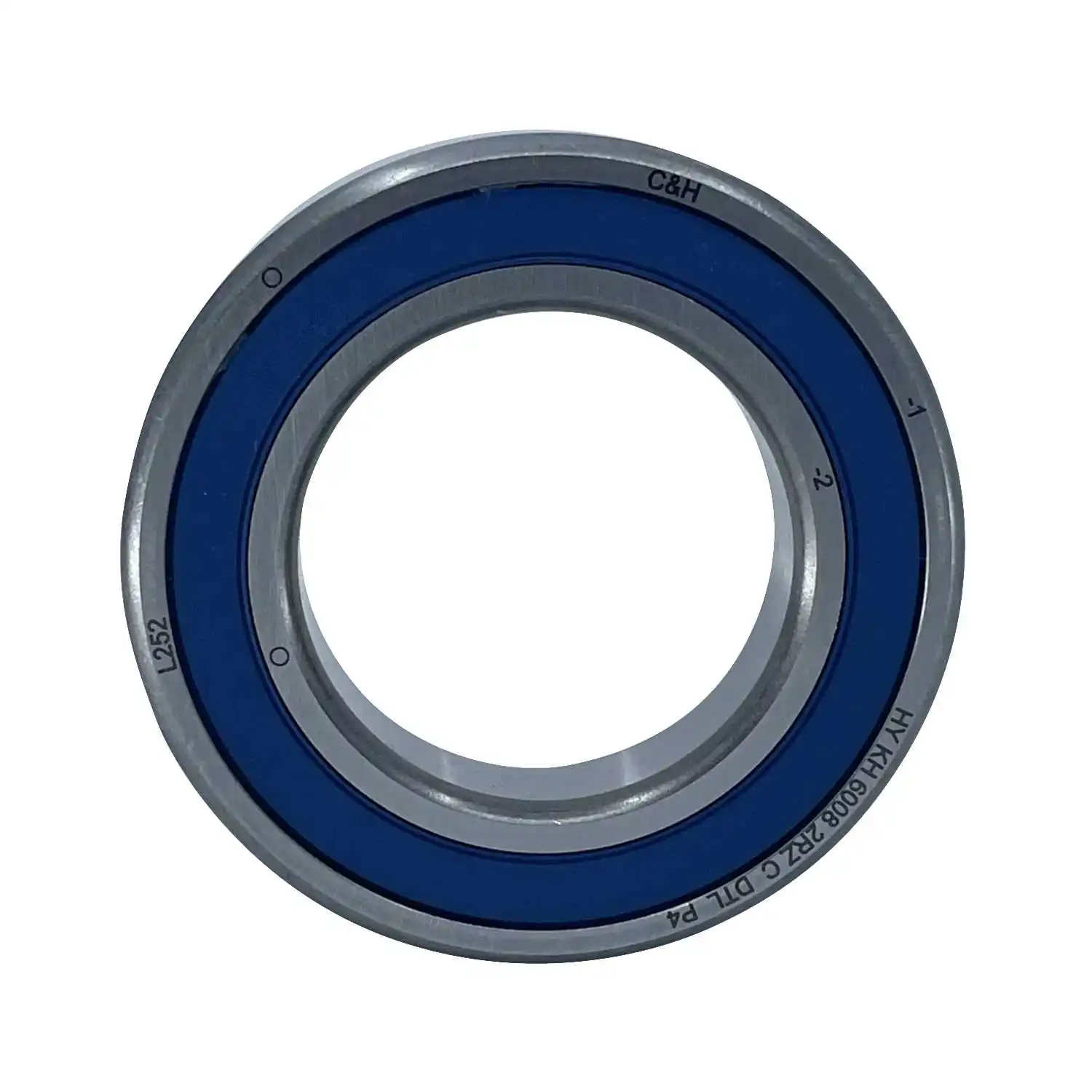

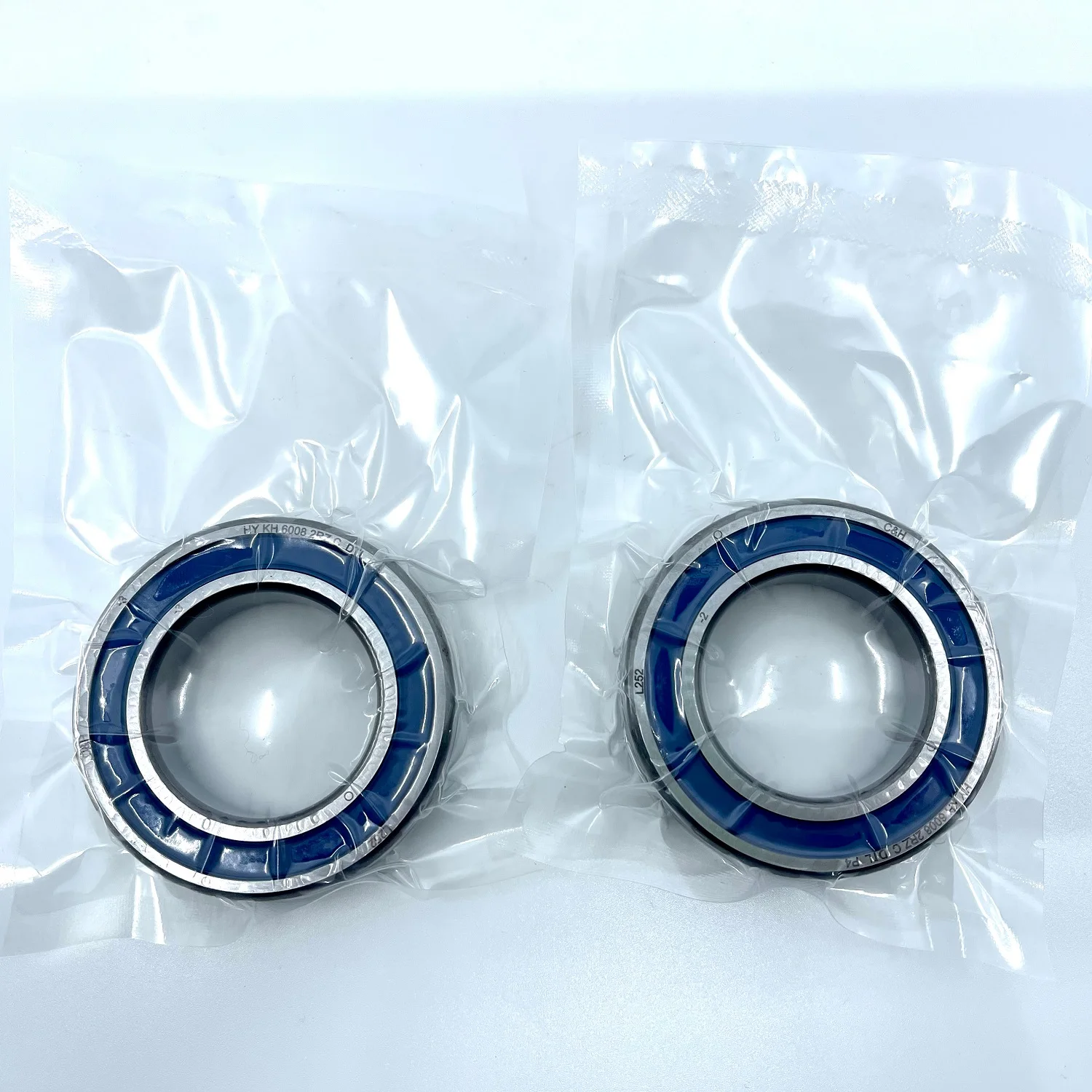

HYKH6008 2RZ C High Speed Super Precision Angular Contact Ball Bearings
The bearing is reliable replacement bearings for Fanuc Servo Motor used for Samsung or the Foxcoon for repairing.
 |
HYKH 6008 2RZ C TA P4+ DUL Servo Motor Spindle Bearings
| Item | C&H |
| Bearing Code | HYKH 6008 2RZ C TA P4+ DUL |
| Brand | C&H |
| Rings Material | GCr15 ultra clean bearing steel ( equivalent to 52100 and 100Cr6) |
| Cage Material | Nylon ( BASF ) |
| Balls Material | Ceramic balls (Si3N4, G5 grade) |
| Sealing Solutions | NBR seals ( Nitrile rubber imported from Japan ) |
| Grease | High performance grease |
| Bore Diameter | 40mm |
| Outside Diameter | 68 mm |
| Width | 15 mm |
| Weight | 0.204 kg |
| Max dynamic load | 10600 N |
| Max Static load | 7950 N |
| Permisslbe Axial load | 7500 N |
| Limiting Speed | 29000 1/min |
| Tolerance | P4+(ABEC-7) |
| MOQ | 100PCS |
| Delivery | 7-15 days |
| Unit Price | US$79.98 |
P4 Grade Servo Bearings for Fanuc Servo Motor
| Bearing Code | Bore diameter | Outside diameter | Width | Basic dynamic load ratings | Basic static load ratings | Liming speed
| Weight | Interchange NSK | Interchange GMN |
| B25-254-2RZ SN24 TP4 | 25 | 52 | 20,6 | 14 | 7.85 | 18200 | 0.205 | B25-254 VV | |
| B25-224-2RS SN24 TP4 | 25 | 62 | 16 | 7.93 | 11.86 | 16100 | 0.275 | B25-224 VV | |
| 40BNR10X | 40 | 68 | 15 | 10.6 | 7.95 | 29000 | 0.204 | 40BNR10X | |
| 45BNR10X | 12 | 45.72 | 15.88 | 11.7 | 9 | 27000 | 0.246 | 45BNR10X | |
| HY KH 6008 2RZ C | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 29000 | 0.204 | 40BNR10XV1V | HY KH6008 |
| HY KH 6009 2RZ C | 22 | 75.39 | 25.4 | 31.75 | 44.45 | 27000 | 0.246 | 45BNR10XV1V | HY KH6009 |
About C&H
C&H is a hgih quality bearings suppliers. We have skillful and training team. Most of them have over 20 years experience.The quality control covers pre-sales aduit, process control, final product re-inspect and after-sales services. The strict and complete process ability and quality control can guarantee to supply top-class product and service.The skillful engineer team can supply great support in technical and help customers to develop all kinds of new products.
Packing & Delivery
our products will be delivered by a papaer box with a complete and perfect angle as well as surface.
Exhibition Show
