Ремень привода для электрического скутера 3HL-17641-00 ремень YAMAHA LB50
- Категория: Motorcycle Parts & Accessories >>>
- Поставщик: Taizhou,Greco,Rubber,Belt,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2.96 $* | 2.85 $* |
| Aug-16-2025 | 2.75 $* | 2.80 $* |
| Jul-16-2025 | 2.87 $* | 2.46 $* |
| Jun-16-2025 | 2.85 $* | 2.19 $* |
| May-16-2025 | 2.67 $* | 2.90 $* |
| Apr-16-2025 | 2.13 $* | 2.74 $* |
| Mar-16-2025 | 2.79 $* | 2.12 $* |
| Feb-16-2025 | 2.27 $* | 2.37 $* |
| Jan-16-2025 | 2.54 $* | 2.70 $* |
Характеристики
\t\t\t\t\t\t\t\t\tProduct Discription \t\t\t\t\t\t\t

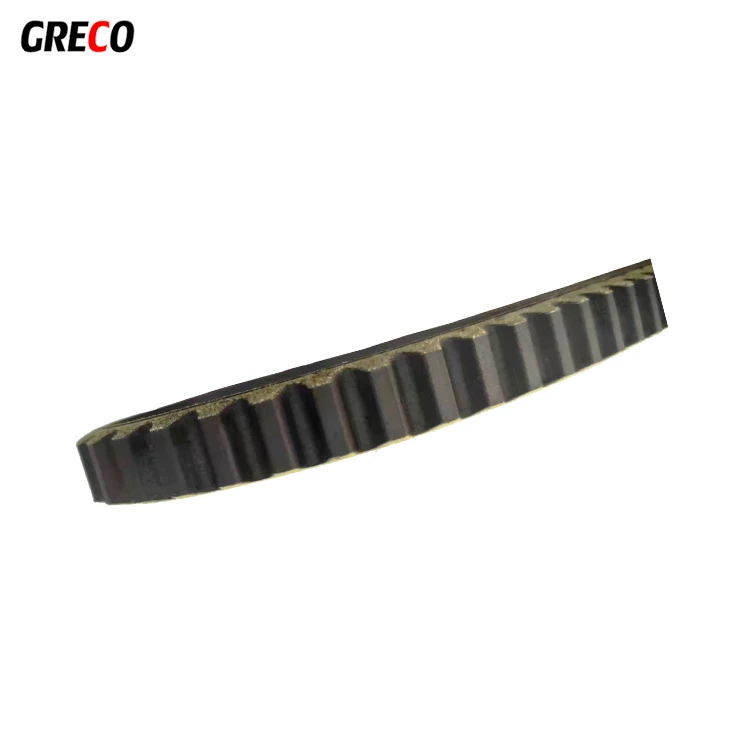

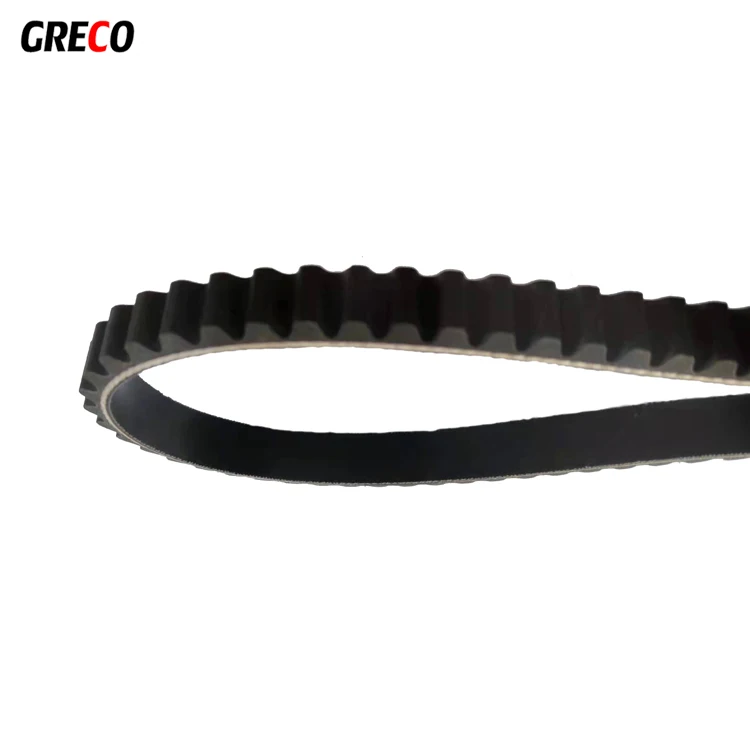

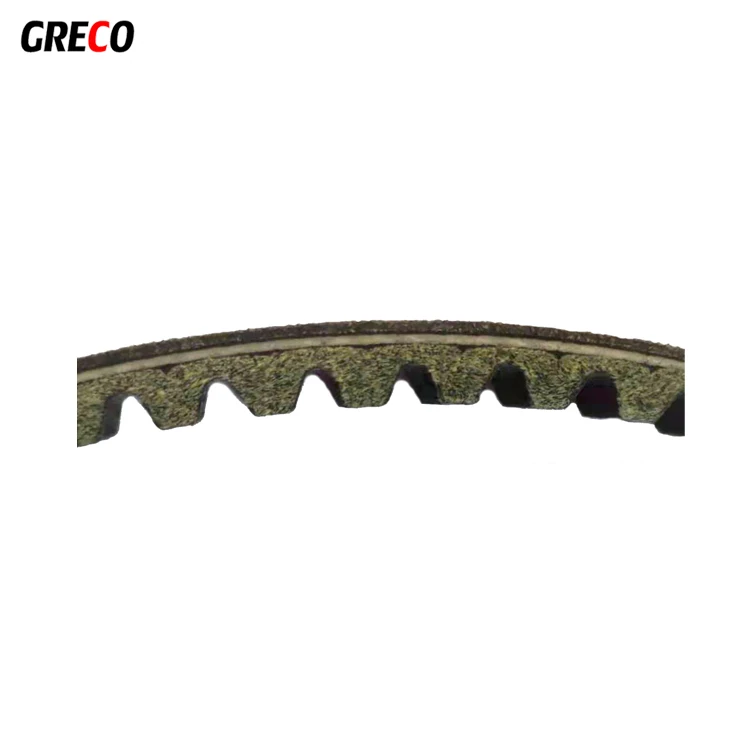

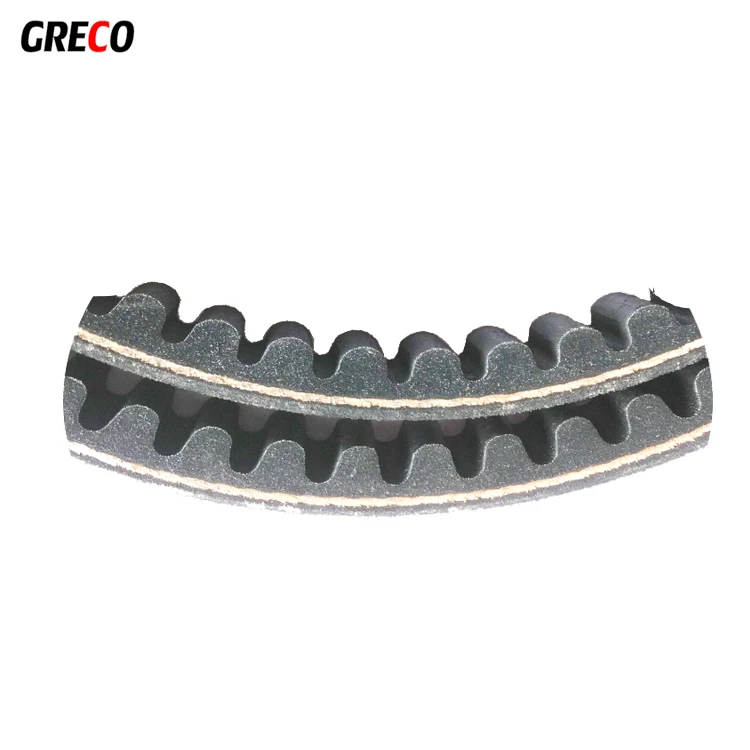

Name of products | Electric scooter drive belt | ||||
Type | Drive belt, v belt | ||||
Material | Rubber | ||||
Reinforce | Kevlar aramid fiber, fabric | ||||
Part number | 3HL-17641-00 | ||||
Key words | Electric scooter drive belt | ||||
Suit for | LB50 CHAPPY AUTOM | ||||
Advantage
1, High quality standard ATV/ CTV drive belt;
2, Quality with the requirements of standard ISO9001:2008;
3, Material: Rubber CR + Kevlar Aramid fiber;
4, Oil & heat resistant, anti-aging, anti-ozone,chap-proof;
5, Each one taking force symmetrically;
6, With tooth on both side to have a stable transmission;
7, OEM replacement belt;
8, ODM accepted.
Type | Top Width, mm | Thickness, mm | Angle |
VS 17 | 17 | 8.0 +/- 0.5 | 30 |
VS 18 | 18 | 8.5 +/- 0.5 | 30 |
VS19 | 19 | 9.0 +/- 0.5 | 30 |
VS 20 | 20 | 9.5 +/- 0.5 | 30 |
VS 22 | 22 | 10.0 +/- 0.5 | 30 |
CVT belts are measured in 3 dimensions. For example, here is what the numbers of a 669-18-30 belt actually mean,
Drive belt 669 18 30
Type Length Width Angle
* 669 = The Pitch Length of the belt in millimeters Lw
* 18 = The Width of the belt in millimeters H
* 30 = The Angle of the teeth on the interior of the belt θ
Here do not indicate the thickness of 669-18-30, because this is one common seen size, the thickness is 8 mm, thickness ( limit deviation +/- 0.5 mm ) and needn't marked on belts
Fit for

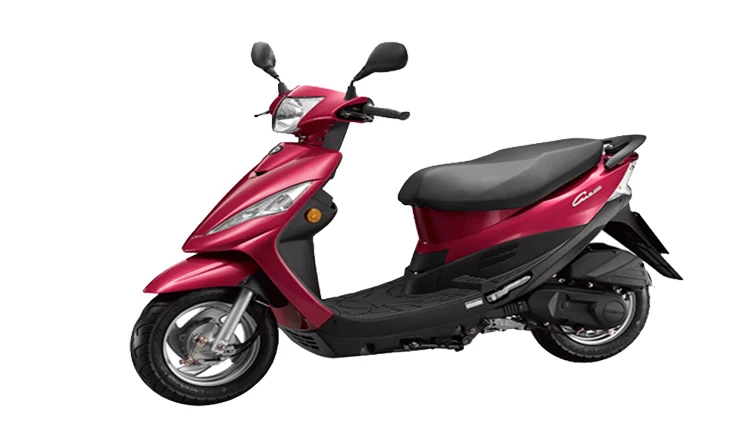

3KJ-17641-00 electric scooter drive belt
YAMAHA LB50 CHAPPY AUTOM
Product packaging
Packing
There're different packages for your reference
1, Nylon bags, each belt with a nylon bag, nylon bag specification different from belt to belt, and charged, Package MOQ: 1000 pcs
2, Paper sleeve, each belt with a individual paper sleeve. Your own designed individual paper sleeve will be charged, Package MOQ:
5000 pcs
3, Individual color box, each belt with a box. Your own designed color box will be charged, Package MOQ: 1000 pcs
Delivery
There're diiferent deliver ways for your reference:
1, By sea [ The most cheappest way for delivery ]
2, By railway + truck [ " one belt, one road " country, save time and money ]
3, By air [ Quick ]
4, By Express [ We have cooperated with many international express, and can deliver goods to most area in the world ]
There're different packages for your reference
1, Nylon bags, each belt with a nylon bag, nylon bag specification different from belt to belt, and charged, Package MOQ: 1000 pcs
2, Paper sleeve, each belt with a individual paper sleeve. Your own designed individual paper sleeve will be charged, Package MOQ:
5000 pcs
3, Individual color box, each belt with a box. Your own designed color box will be charged, Package MOQ: 1000 pcs
Delivery
There're diiferent deliver ways for your reference:
1, By sea [ The most cheappest way for delivery ]
2, By railway + truck [ " one belt, one road " country, save time and money ]
3, By air [ Quick ]
4, By Express [ We have cooperated with many international express, and can deliver goods to most area in the world ]
Maintenance
Many parts of the transmission system are Wearing Parts. When the mileage is about 5000 km, pls do checking, cleaning, maintenance, and replacement.
In the transmission system, one of the important parts is drive belt. It's responsible for the transmission of power. If the belt breaks, it cannot continue to ride.
Drive belt is a Wearing Parts, it will become thinner and thinner due to wear and ageing, it will also become easy to break. If it breaks during travel, it will also affect other transmission parts.
The service life of the belt is about 15,000 to 20,000 km. When the mileage is 12,000 to 15,000 km, it is necessary to pay attention to the degree of use and replace it if necessary.
【 Regular Maintenance 】
・Every 5,000 km or 6 months → Check
・Every 10,000 km or one year → Check & Replace
・Frequently high-speed driving → Maintenance increased frequency
・For those with more mileage → Maintenance increased frequency
【Parts Inspection】
・Crack / wear / disconnection / chipping → Replace
・The width of the V-belt differs from the new product by 1 mm → Replace
・Confirm that there is no grease on both sides of the belt pulley
・Use degreaser to remove unnecessary grease
In the transmission system, one of the important parts is drive belt. It's responsible for the transmission of power. If the belt breaks, it cannot continue to ride.
Drive belt is a Wearing Parts, it will become thinner and thinner due to wear and ageing, it will also become easy to break. If it breaks during travel, it will also affect other transmission parts.
The service life of the belt is about 15,000 to 20,000 km. When the mileage is 12,000 to 15,000 km, it is necessary to pay attention to the degree of use and replace it if necessary.
【 Regular Maintenance 】
・Every 5,000 km or 6 months → Check
・Every 10,000 km or one year → Check & Replace
・Frequently high-speed driving → Maintenance increased frequency
・For those with more mileage → Maintenance increased frequency
【Parts Inspection】
・Crack / wear / disconnection / chipping → Replace
・The width of the V-belt differs from the new product by 1 mm → Replace
・Confirm that there is no grease on both sides of the belt pulley
・Use degreaser to remove unnecessary grease
About Customized
CUSTOMIZED LOGO OR BRAND IS ACCEPTED, HOWEVER AUTHORIZATION MUST BE PROVIDED TO AVOID ILLEGAL COPY-RIGHT
Here we requires the following rules:
Here we requires the following rules:
Rules
1, Logo must be clear;2, Authorization letter must be provided;
3, Legal paper of logo must be provided if without authorization;
4, Words and color design;
5, A drawing will be better if you can provided;
6, MOQ: 1000 pcs of each item;
3, Legal paper of logo must be provided if without authorization;
4, Words and color design;
5, A drawing will be better if you can provided;
6, MOQ: 1000 pcs of each item;
MOQ: 5000 pcs
Here's the sample drawing for your reference
Company Profile
Taizhou Greco Rubber Belt Co.,Ltd is founded in 2007, has a high degree of automation production equipment, supported by matched
advanced testing facilities, as well as excellent technical talents, for the production of high-quality products to provide a
strong protection. Our company is strictly in accordance with ISO90001: 2000 international quality system standard to organize
production. Since the market has been well received by customers.
We are a professional drive belt manufacturer for cars and other machines, main products are: Automotive v belt, Classical wrapped
v belt, V-ribbed belt, Auto timing belt, Motorcycle v belt, Variable speed belt, ATV drive belt, Industrial timing belt,
Agricultural belt, Banded V belt ... We will be more energetic to meet new challenges, and constantly improve ourselves, welcome
new old customer presence, dedicated to serve you for a better future!
advanced testing facilities, as well as excellent technical talents, for the production of high-quality products to provide a
strong protection. Our company is strictly in accordance with ISO90001: 2000 international quality system standard to organize
production. Since the market has been well received by customers.
We are a professional drive belt manufacturer for cars and other machines, main products are: Automotive v belt, Classical wrapped
v belt, V-ribbed belt, Auto timing belt, Motorcycle v belt, Variable speed belt, ATV drive belt, Industrial timing belt,
Agricultural belt, Banded V belt ... We will be more energetic to meet new challenges, and constantly improve ourselves, welcome
new old customer presence, dedicated to serve you for a better future!
FAQ
Q: Are you a trading company or manufacturer ?
A: We are a manufacturer and have our owned two factories.
Q: What's your main products?
A: Our main products are drive belts for cars, trucks, scooter, ATV, industrial machine, such as:
(1). Automotive v belt, automotive fan belt / ribbed belt, auto timing belt
(2). Scooter drive belt, cvt drive belt
(3). ATV / UTV / Snowmobile drive belt
(4). Industrial timing belt
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.
or it is 15-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but the cost of freight is not included.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance.
Payment>=3000USD, 30% T/T in advance ,balance before shippment.
Q: Can you print our own logo or brand on my ordered belts?
A: Your own logo and brand is acceptable to be printed on your belts, but with the following advanced requirements:
(1) Your order is over 200 pcs ( for ATV drive belt only )
(2) Please send us an authorization to print your logo or brand on your belts;
(3) Please provide the design of your logo or brand
If you have other question, please feel free to contact us.
A: We are a manufacturer and have our owned two factories.
Q: What's your main products?
A: Our main products are drive belts for cars, trucks, scooter, ATV, industrial machine, such as:
(1). Automotive v belt, automotive fan belt / ribbed belt, auto timing belt
(2). Scooter drive belt, cvt drive belt
(3). ATV / UTV / Snowmobile drive belt
(4). Industrial timing belt
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.
or it is 15-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but the cost of freight is not included.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance.
Payment>=3000USD, 30% T/T in advance ,balance before shippment.
Q: Can you print our own logo or brand on my ordered belts?
A: Your own logo and brand is acceptable to be printed on your belts, but with the following advanced requirements:
(1) Your order is over 200 pcs ( for ATV drive belt only )
(2) Please send us an authorization to print your logo or brand on your belts;
(3) Please provide the design of your logo or brand
If you have other question, please feel free to contact us.
