Горячая Распродажа 10 1 дюймов HDMI-интерфейс IPS 1920x1200 оптический склеивание CTP ЖК-дисплей модуль для Raspberry
- Категория: Electronic Components, Accessories & Telecommunications >>>
- Поставщик: Dongguan,Huiqin,Zhiyuan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 146.5 $* | 149.21 $* |
| Jul-19-2025 | 118.94 $* | 120.1 $* |
| Jun-19-2025 | 144.86 $* | 147.2 $* |
| May-19-2025 | 143.69 $* | 146.2 $* |
| Apr-19-2025 | 114.68 $* | 116.16 $* |
| Mar-19-2025 | 140.4 $* | 143.71 $* |
| Feb-19-2025 | 139.21 $* | 142.22 $* |
| Jan-19-2025 | 138.56 $* | 141.79 $* |
Характеристики
Product Paramenters
Item of general information | Contents | Unit | ||
LCD Display Size (Diagonal) | 10.1 | inch | ||
Module Structure | LCD Display+CTP Touch +PCB | - | ||
LCD Display Type | TFT/TRANSMISSIVE | - | ||
LCD Display Mode | Normally Black | - | ||
Recommended Viewing Direction | ALL View | - | ||
Module size (W×H×T) | 255.00×172.60×7.14 | mm | ||
Active area (W×H) | 216.81×135.50 | mm | ||
Number of pixels (Resolution) | 1920RGB×1200 | pixel | ||
Pixel pitch (W×H) | 0.03764×0.011292 | mm | ||
Color Pixel Arrangement | RGB Stripe | - | ||
System Support | Win7/Win8/Win10(Plug and play) | - | ||
Android/Linux(need to be configured) | - | |||
LCD Display | HDMI interface | - | ||
CTP | USB interface | |||
Brightness | 300 | cd/㎡ | ||
Color Numbers | 16.7M | - | ||
Backlight Type | White LED | - | ||
Operating Temperature | -20 to +70 | ℃ | ||
NTSC Ratio | 72% | - | ||
Product Structure Diagram

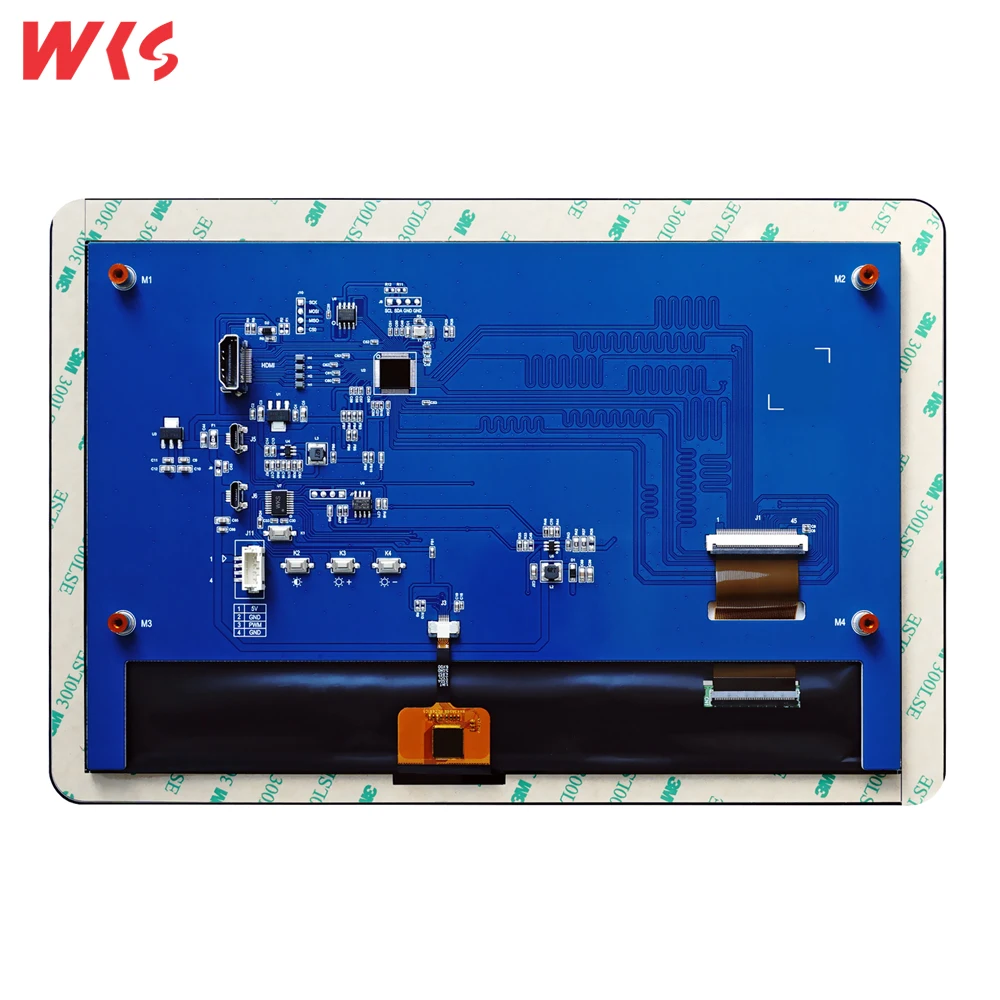

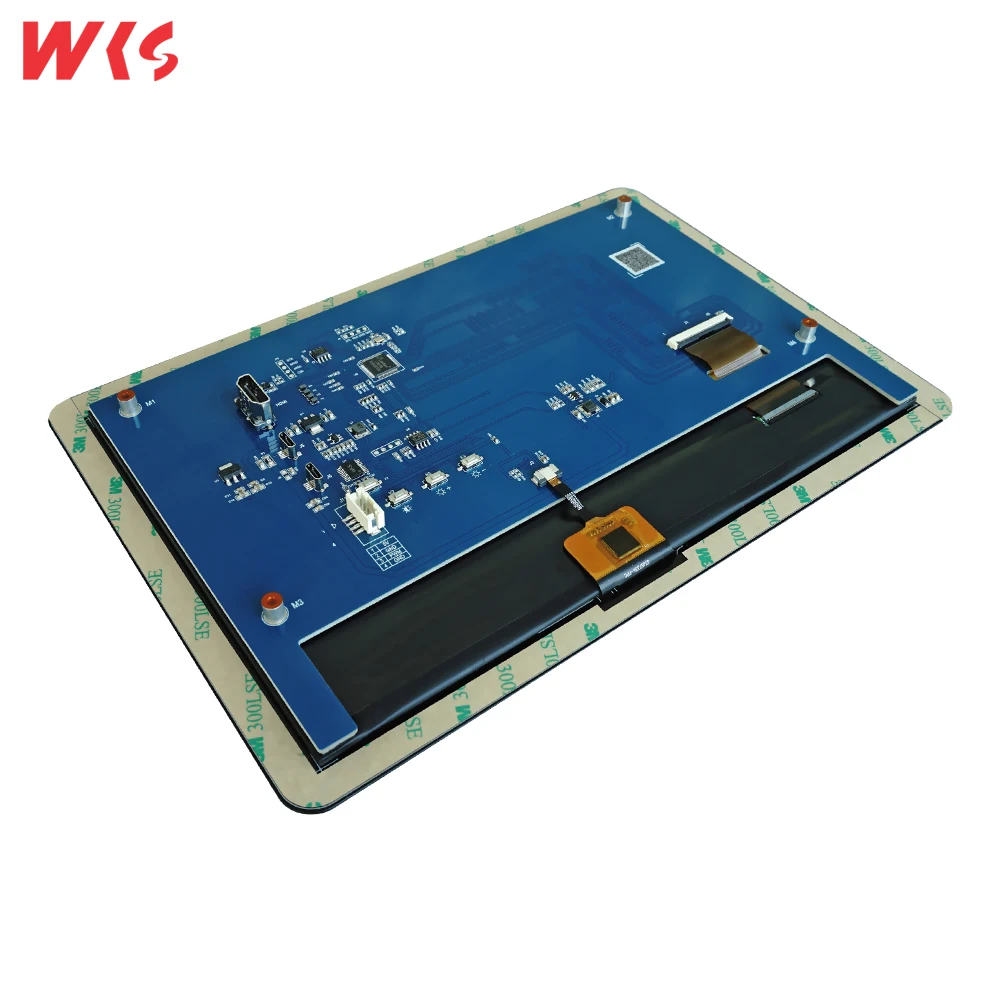

Product details
Note:
1.HDMI used for video display interface.2.USB-1 used for touch and power supply interface, touchless products also need to access this interface to power supply.
3.USB-2 power supply interface / POWER - power supply interface, can be used to choose one of the two, when the use of USB-2 power supply can be through the button K3, K4 to achieve 10 levels of product brightness adjustment; when the use of POWER interface power supply, can be adjusted through the software PWM signal to adjust the brightness of the product
System support
HDMI Interface Display Module Product List | ||||||
Size | Module Model | Resolution | Touch type | |||
4.3 Inch | 800(RGB)×480 | CTP | ||||
800(RGB)×480 | NO | |||||
800(RGB)×480 | CTP | |||||
800(RGB)×480 | CTP | |||||
800(RGB)×480 | NO | |||||
5 Inch | 1280(RGB)×720 | CTP | ||||
800(RGB)×480 | CTP | |||||
800(RGB)×480 | NO | |||||
800(RGB)×480 | CTP | |||||
800(RGB)×480 | NO | |||||
6.86 Inch | 480(RGB)×1280 | CTP | ||||
480(RGB)×1280 | CTP | |||||
480(RGB)×1280 | NO | |||||
7 Inch | 1024(RGB)×600 | CTP | ||||
1024(RGB)×600 | CTP | |||||
1024(RGB)×600 | NO | |||||
1024(RGB)×600 | NO | |||||
1024(RGB)×600 | CTP | |||||
1024(RGB)×600 | CTP | |||||
1024(RGB)×600 | NO | |||||
1024(RGB)×600 | CTP | |||||
1024(RGB)×600 | NO | |||||
1024(RGB)×600 | CTP | |||||
1024(RGB)×600 | NO | |||||
1024(RGB)×600 | CTP | |||||
1024(RGB)×600 | CTP | |||||
1024(RGB)×600 | CTP | |||||
1024(RGB)×600 | CTP | |||||
1024(RGB)×600 | NO | |||||
1024(RGB)×600 | NO | |||||
1024(RGB)×600 | CTP | |||||
1024(RGB)×600 | NO | |||||
8 Inch | 1024(RGB)×768 | CTP | ||||
1024(RGB)×768 | NO | |||||
10.1 Inch | 1024(RGB)×600 | CTP | ||||
1280(RGB)×800 | CTP | |||||
1280(RGB)×800 | CTP | |||||
1280(RGB)×800 | CTP | |||||
1280(RGB)×800 | CTP | |||||
1280(RGB)×800 | CTP | |||||
1280(RGB)×800 | NO | |||||
1920(RGB)×1200 | CTP | |||||
1920(RGB)×1200 | NO | |||||
15.6 Inch | 1920(RGB)×1080 | CTP | ||||
Customization
We can provide professional customized services .The customization cost is as follows, and the customization fee will be returned after mass production of 2000-10000 pcs according to the product type .
Custom fee | Touch Screen | 400 USD |
Backlight | 2000USD | |
FPC | 400 USD | |
PCB | 500 USD |
Company Profile
Business type | Manufacturer & Wholesaler | ||||||
Product | LCD Display,TFT Module,Resistive & Capacitive touch screen,Control board | ||||||
History | Over 10 years experience in display solutions & manufacture | ||||||
Annual sales | Over $100 millions | ||||||
Factory scale | 10000 square meters production workshop , 1.5 million pcs /month production capacity | ||||||
Production lines | 12 Production lines | ||||||
Employees | Over 300 skillful workers with many years experience | ||||||
R & D capabilities | 22 designers with more than 10 years experience | ||||||
Design patent | Over 30 design patent certificates | ||||||
Application area | MID, industry POS, household appliances, automobiles, industrial control, medical care, education, electric power, biometrics, 3D printing, new energy and etc | ||||||
Certificate | ISO 9001,RoHS,RECH, CE etc | ||||||
