Характеристики
Product Description

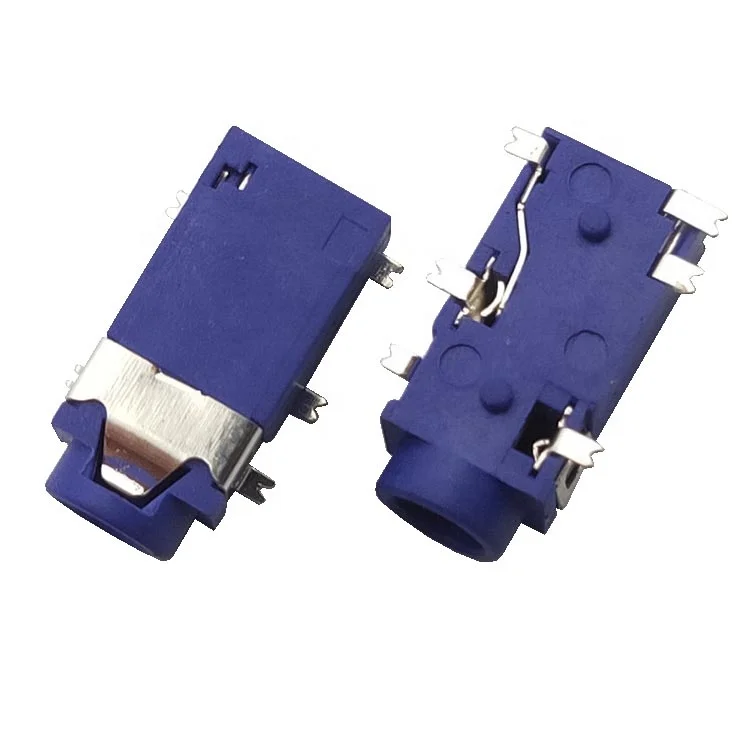

Model No. PJ342S, Earphone jack socket, is a stereo headphone jack socket with 6 pins. And Other manufacture also called it headphone jack socket or earphone jack socket. The terminals and contacts are made of brass to maintain excellent conductivity. Meanwhile, the operating life can reach more than 100,000 cycles.
PCB Mounting Dimension Drawing
Circuit Diagram
Specification
Product Name | PJ342S |
Rating | 0.5A 30VDC |
Max Voltage | 50V DC |
Max Current | 3 A |
Insulation Resistance | ≥1000MΩ |
Contact Resistance | ≤50mΩ |
Insertion Force | 0.3～3.0 Kgf |
Removal Force | 0.3～3.0 Kgf |
Lifetime | 10000 cycles |
