Product Description

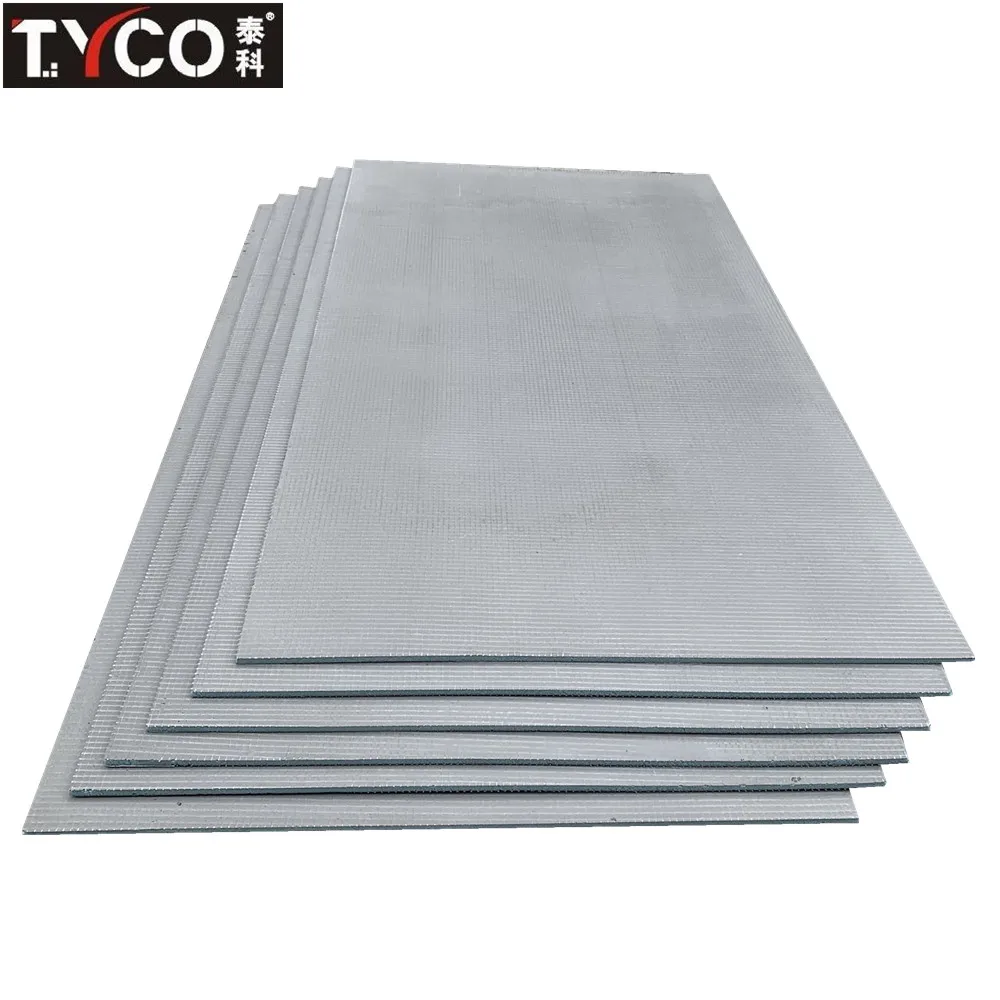

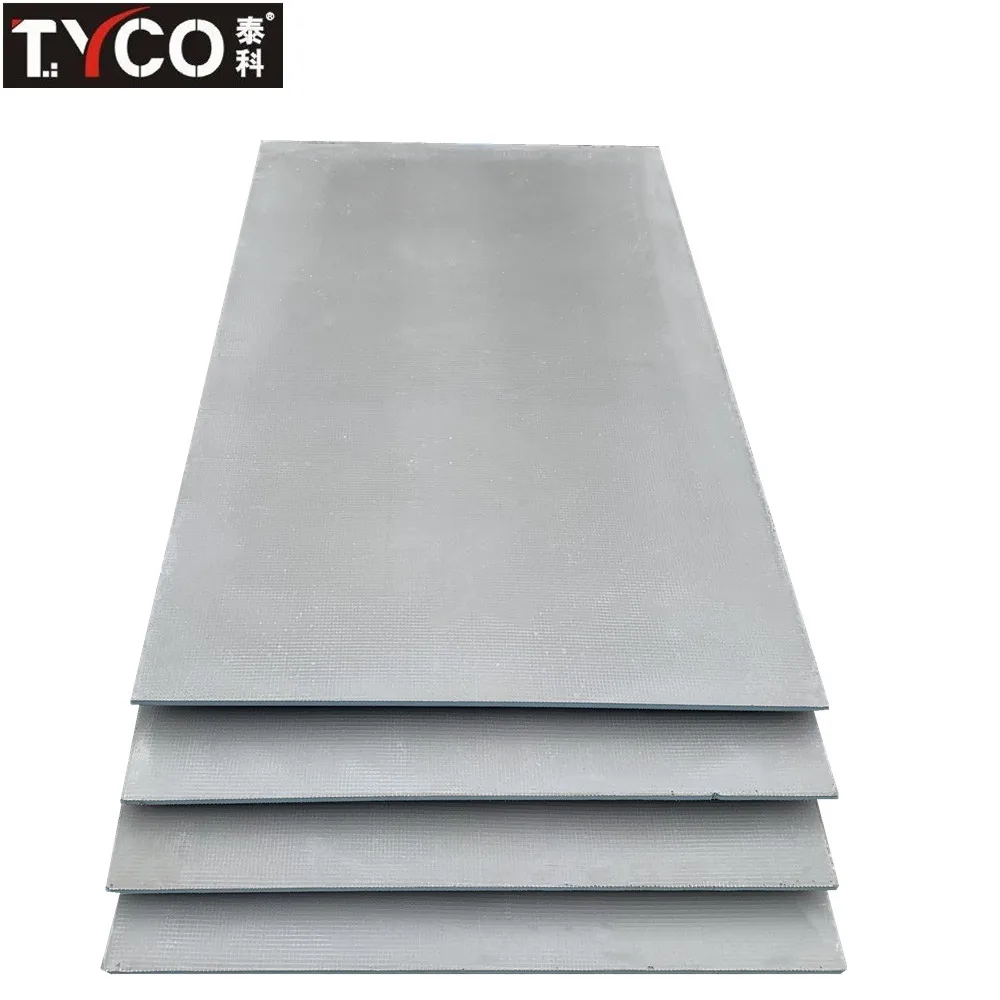

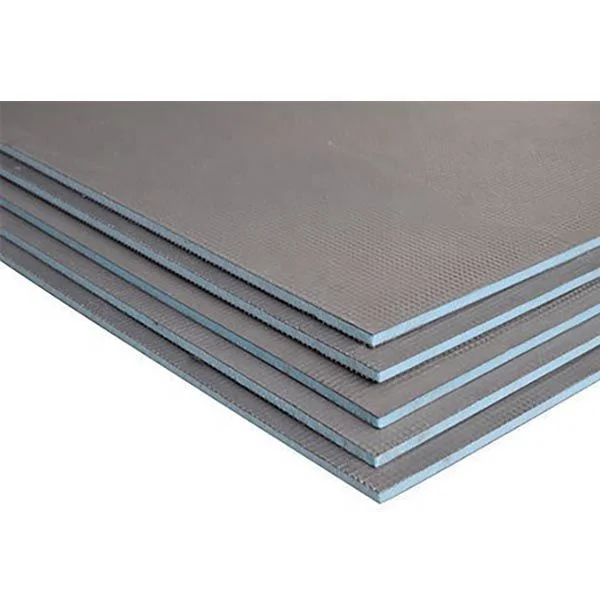

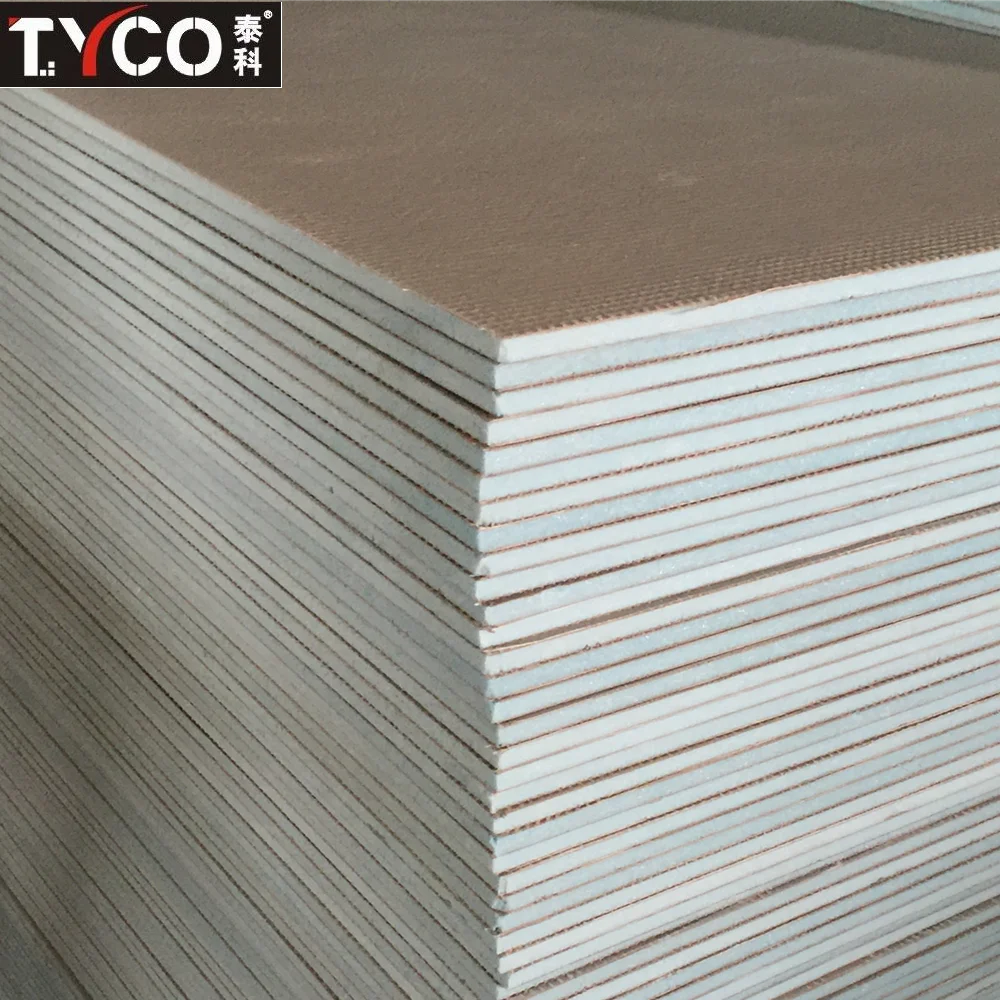

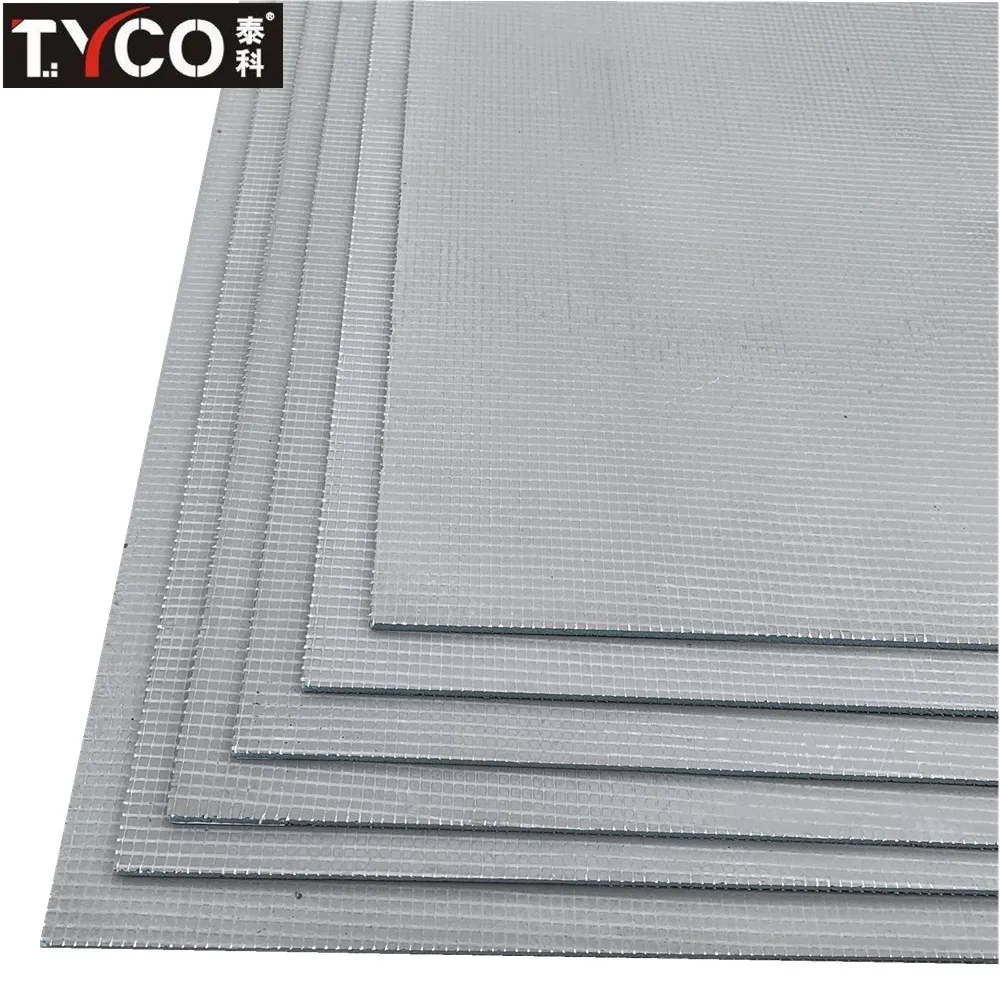

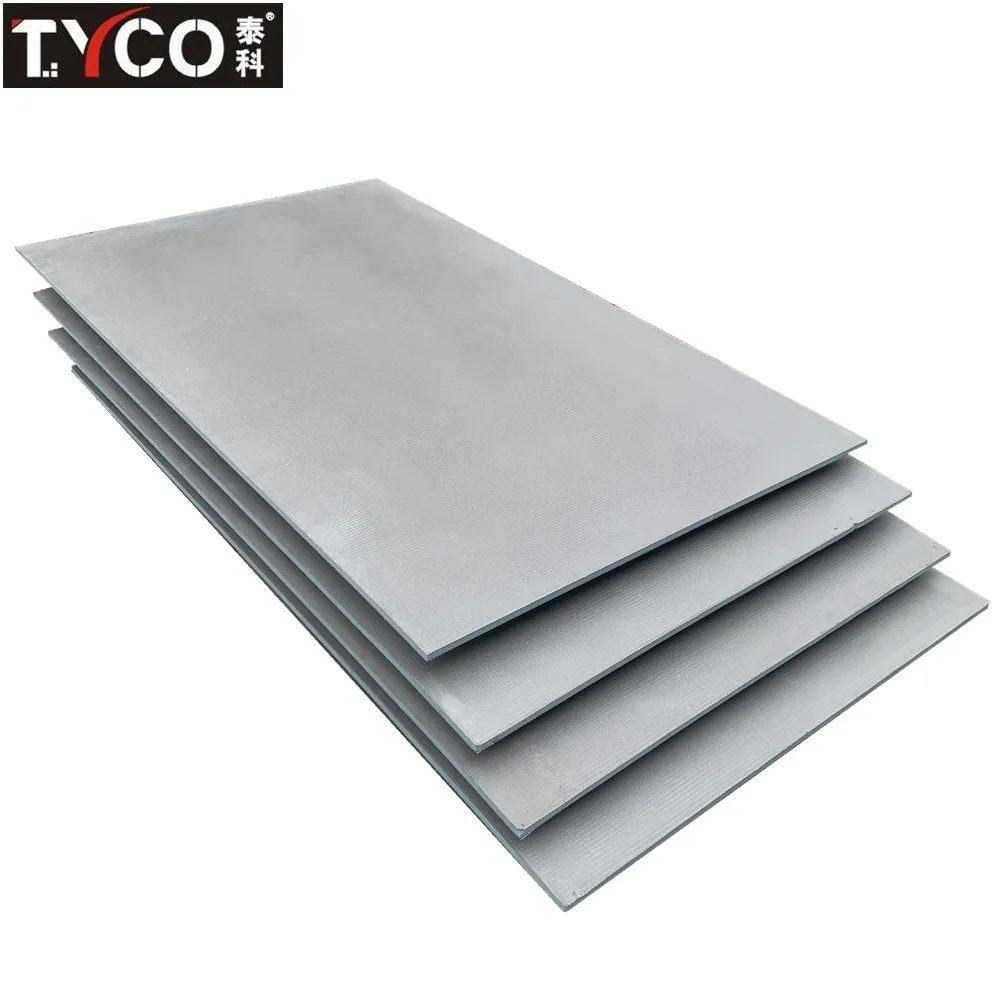

Electric underfloor heating XPS Insulation Board 10mm Tile Backer Board
XPS Tile Backer Board are water resistant insulated tile backer board made of extruded polystyrene, faced on both sides with a fiberglass mesh embedded into a thin cement polymer mortar. It widely used in the under floor heating system as a structural tile backer boards, it also can be used in the floor, wall and ceiling by acting as a very efficient moisture and thermal barrier, this greatly increases the efficiency and reduces heat loss.
Characteristics
· Waterproof and dimensionally stable
· Low weight
· Easy to cut(by knife or Saw)
· Excellent for wet rooms
· Excellent sound insulation(12mm board, 20 db)
· Environment friendly(free of CFC and HCFC)
· Easy to be tiled
Thickness | Width | Length |
4mm | 600mm | 1200/1250mm |
6mm | ||
8mm | ||
10mm | 600mm | 2440/2500/2600mm |
12mm | ||
20mm | 600/1200mm | |
30mm | ||
40mm | ||
50mm | ||
60mm | ||
80mm |
Technical Data
XPS foam board material of Electric underfloor heating XPS Insulation Board 10mm Tile Backer Board
XPS | ||
Density of core board | Kg/m3 | 38 |
Thermal conductivity, 90 days, 10°C | W/mK | 0.03~0.036 |
Compressive strength at 10% deflection or yield, (vertical) | kPa | ≥450Kpa |
Water absorption | Vol-% | <=1.00% |
Capillarity | nil | nil |
Coefficient of linear thermal expansion | mm/mK | 0.07 |
Temperature limits | °C | -50°C, +75°C |
Production Line
XPS Foam Board production line
Packing
Packing and Loading of Electric underfloor heating XPS Insulation Board 10mm Tile Backer Board, We pack the board with 10pcs one bag.
Application
Application of Electric underfloor heating XPS Insulation Board 10mm Tile Backer Board, TYCO's production has good performance in heating system,bathroom waterproof and wall insulation.
Waterproof cement board in wet room
Application in floor heating system
Installation
Electric underfloor heating XPS Insulation Board 10mm Tile Backer Board
