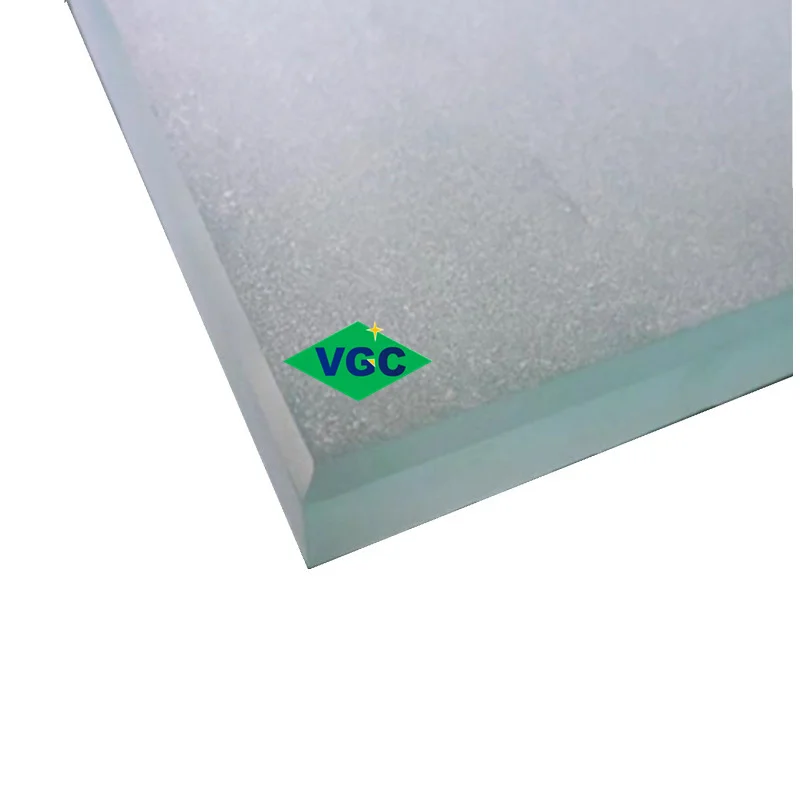

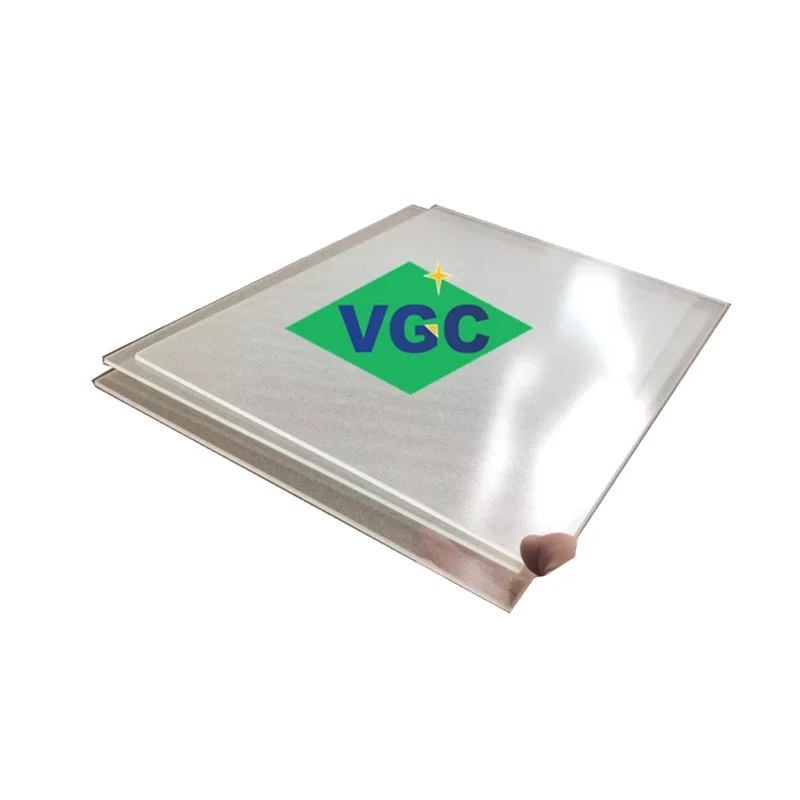

VGC GOOD PRICE SOLAR GLASS 3.2MM4MM PHOTOVOLTAIC GLASS

WITH AR COATING

2mm 3.2mm 4.0mm Texture Glass





 VGC 3.2MM 4MM TEMPERED SOLAR PANEL COVER GLASS is mainly made of Clear Float Glass, LOW IRON clear glass,Low-Iron Pattern Glass.



CLEAR FLOAT GLASS  is the substrate of solar back glass, it is further processed (edge grinding, hole drilling and tempering) . Compared with conventional back sheet (TPT), back glass has an excellent durability performance. By using advanced equipment, we can provide back glass with highest process precision and big capacity.



LOW IRON FLOAT GLASS  is an ultra-transparent subway glass with a light transmittance of over 91%. It has crystal clear and elegant characteristics. It is called the"crystal prince"of the glass family. The ultra-white glass has good machine ability and superiority. Physical, mechanical and optical properties.

Maximum wide: 3660mm/ Thickness: 2.0-19.0mm

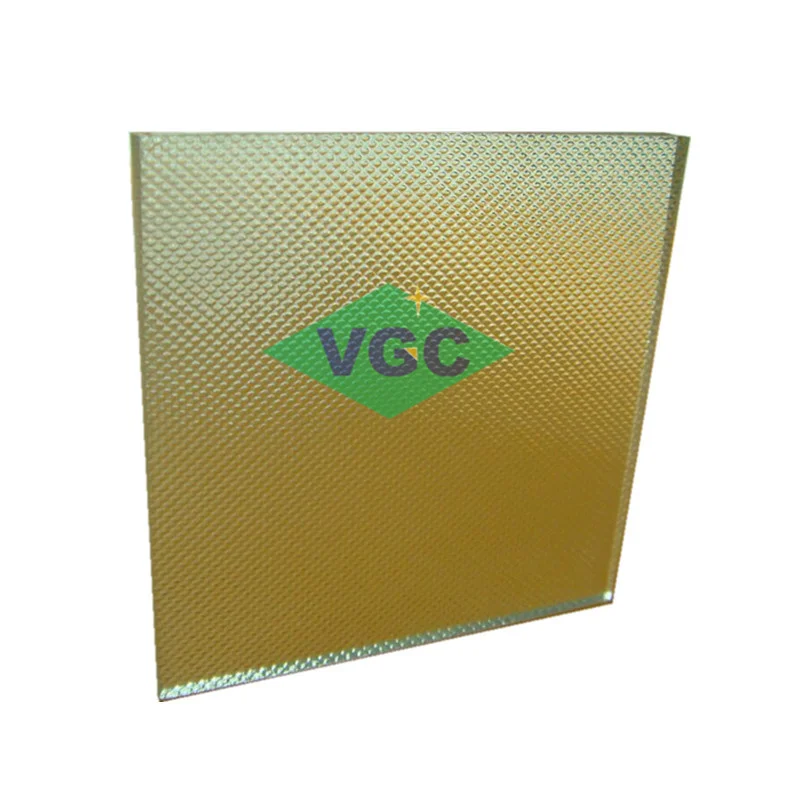

LOW IRON PATTERN GLASS  is formed with a diamond pattern on one face and a smooth pattern on another, and then is further treated by tempering process. It is mainly used for the cover of photovoitaic modules or flat solar water collectors and also used as greenhouse Glass.

Solar  low iron pattern glass has its unique recipe and special pattern, which ensures highest solar transmission by greatly reducing light reflection and absorbtion, and therefore increases photoelectric conversion efficiency or solar-thermal conversion efficiency.

Thickness 3.5mm and 4.0mm mainly    Size:2250*3500mm(annealed)/1219*1930mm(tempered)

.











SPECIFICATIONS-SOLAR PANEL COVER GLASS



ITEM	3.2MM 4MM SOLAR panel cover glass
TYPES	Customized Tempered Glass, Extra Clear Pattern Glass, AR Coated Glass
Thickness	3mm,3.2mm,3.5mm,4.0mm
Max. Size	1220*1930MM
Min. Size	100*100mm
Edges	Simple grinding edges, polished edges, customized edges
Application	Cover of photovoitaic modules or flat solar water collectors and also used as greenhouse Glass.











FEATURES- SOLAR PANEL COVER GLASS



1.Safety: When the glass is damaged by external force, the fragments will become small obtuse-angled particles similar to honeycombs,which are not easy to cause harm to the human body.

2.High strength: the impact strength of tempered glass is 3 to 5 times that of ordinary glass, and the anti bending strength is 3 to 5 times that of ordinary glass.

3.High Solar Energy Transmittanc 91.7%













Quality-Control of  SOLAR PANEL COVER GLASS



1. The staff of VIRTUE GLASS are well trained, paying high attention to each procedure

each piece of products with our increasing efforts.

2. Every process in production has quality control, Accurate size and meet the glass standards, glass particle size were promise. Using professional testing tools, which were certified by certification authority. The test data of each order is recorded.

3. Incoming Quality Control---In Process Quality Control Section----Process Quality Control------Final Quality Control--Out-going Quality Control

4.our products are well feedback by domestic and overseas markets.especially in Europe , America, south America and Middle east markets.





Application of SOLAR PANEL COVER GLASS
