Product Description

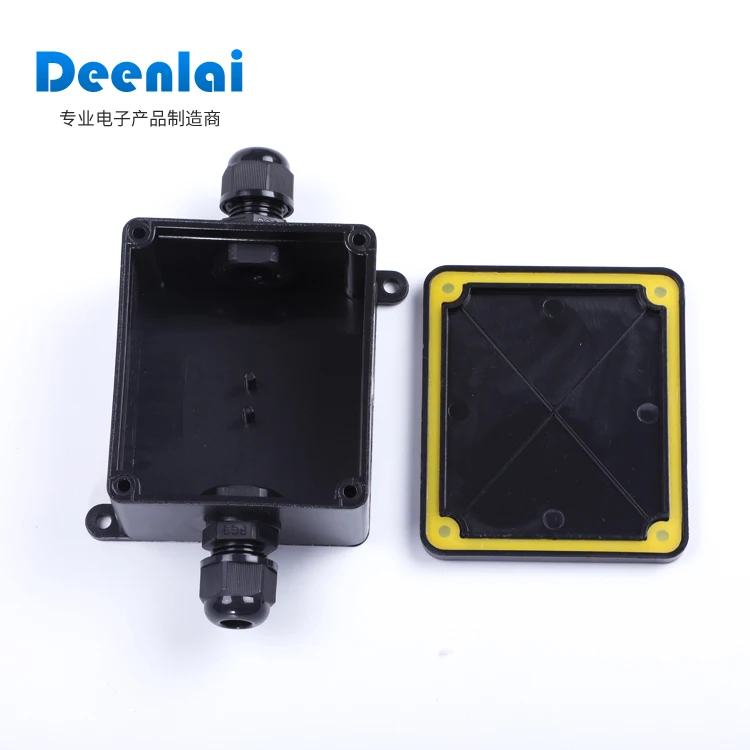

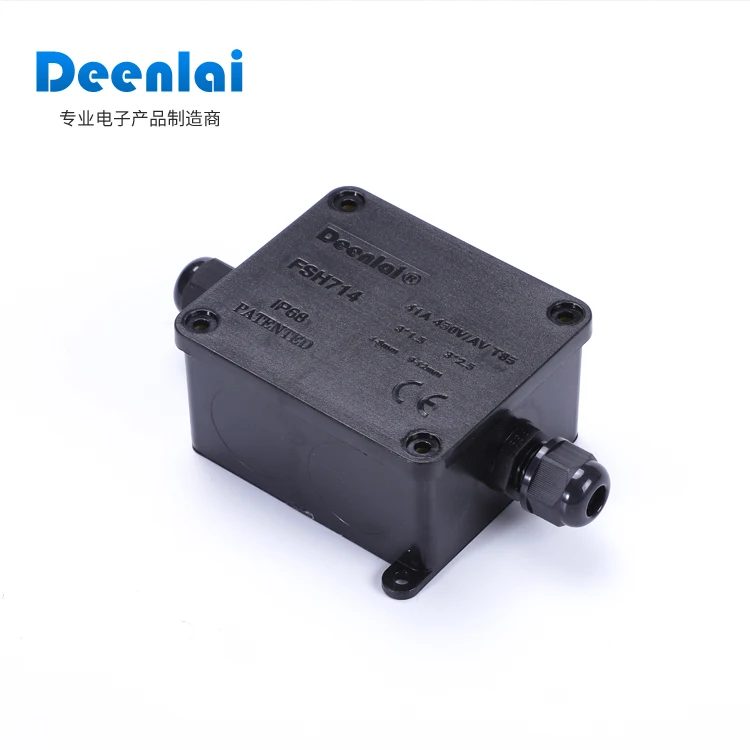

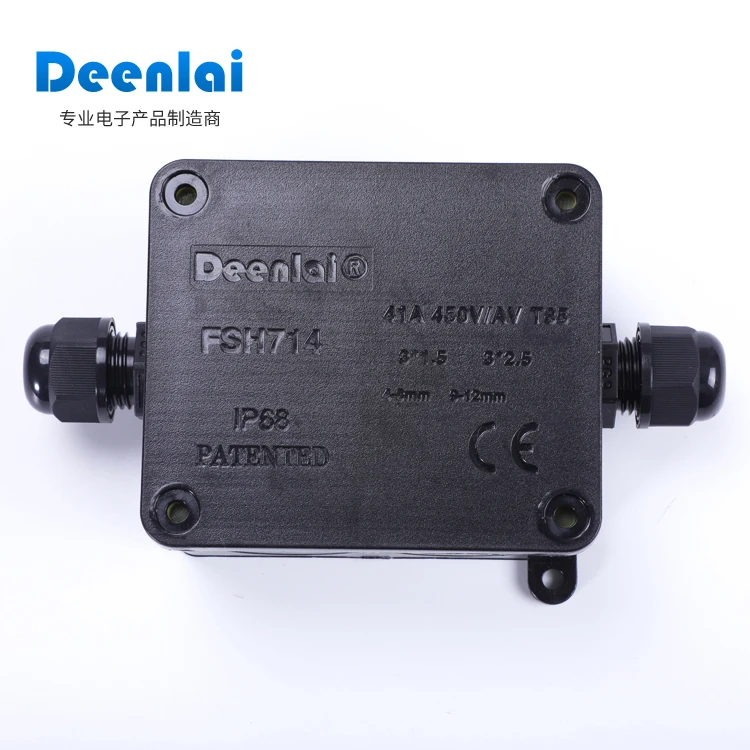

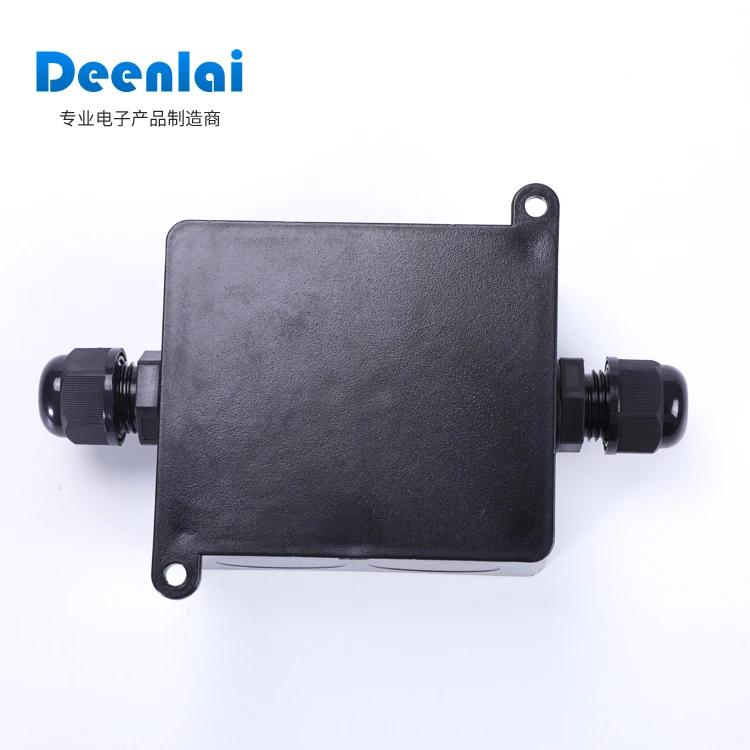

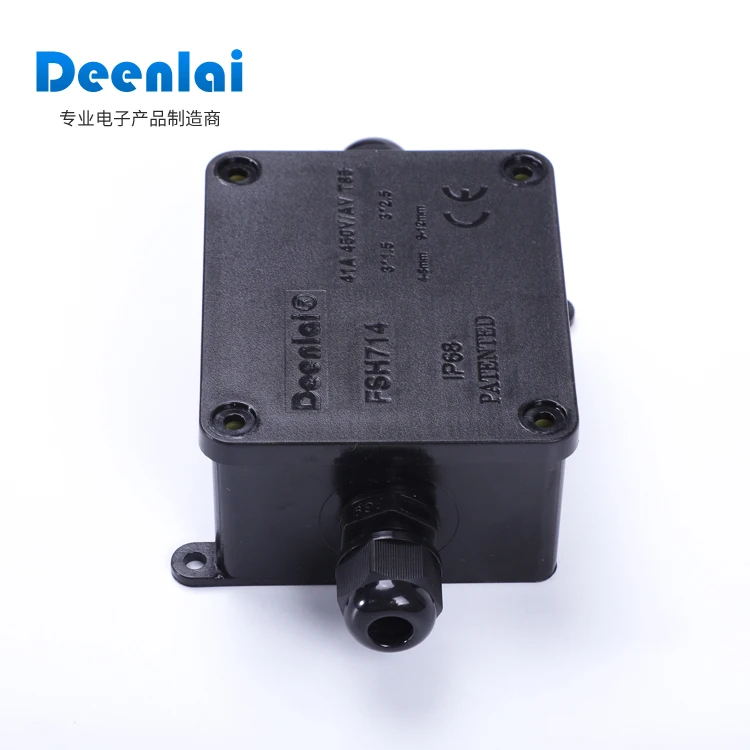

Deenlai IP68 Waterproof Electrical Box FSH714-2 Junction Box 2 Way Electrical Wire Connector 1 input and 2 output Terminal Box with Terminal Block
With two of cable glands, enclosure and top cover are in black
Intro:
This serial enclosure is widely used for liquid fluid, pressure, moisture etc, sensor industry, with watertight and explosion proof capability, material is PC, the color for these enclosure can be changed certainly, modification can be done according to your requirement.
This series IP68 waterproof box is applied in connection boxes, module cases, control boxes and other types of electronics.
1. Made of high quality plastic material: PA66.
2. Protection rank up to IP68.
3. Better anti-corrosion performance; protect instruments even under the adverse environment.
4.Color and material can be changed as your interesting.
5. Certain modification can be done according to your requirements; such as drilling, painting, punching, silk-screen printing, power coating and etc.
6. Your design is welcome, the fee for mold custom can be offset when future order reaches a certain amount.
Technical Data:
Brand Name: | DEENLAI |
Model Number: | FSH714-2 |
Cable Gland Option: | PG7: for 3 - 6.5 mm cable PG9: for 4 - 8 mm cable PG11: for 6 - 10 mm cable PG13.5: for 7-12 mm cable |
LOGO Print on Top Cover: | Yes |
Material: | PC |

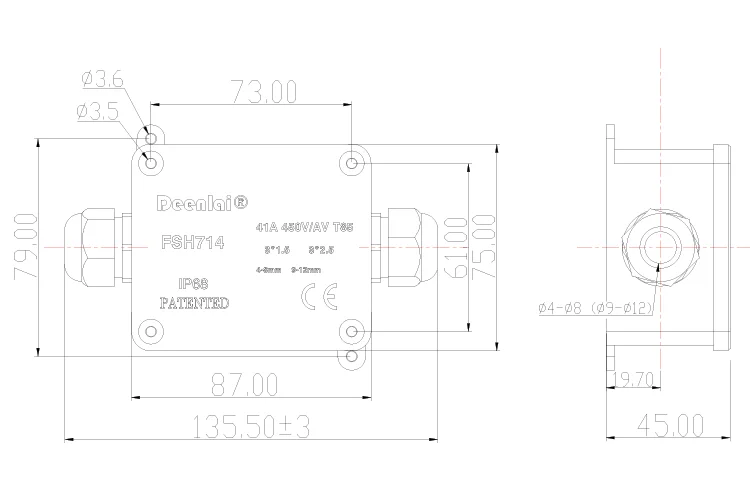

Inner Dimension: | 76×51×36 mm |
Voltage/Current Rating: | 450V 41A |
Color: | enclosure housing and glands are in black Color |
IP Rating: | IP68 |
This item can be installed with PG7/PG9 cable glands (2-6 pcs),
or M16/PG11 cable gland (2 - 6 pcs),
or PG13.5/M20 cable gland (2 - 6 pcs),
or PG16 cable gland (2 - 4 pcs),
and the each side could be installed with 1 pcs M25 cable glands.
