Характеристики
Product Description

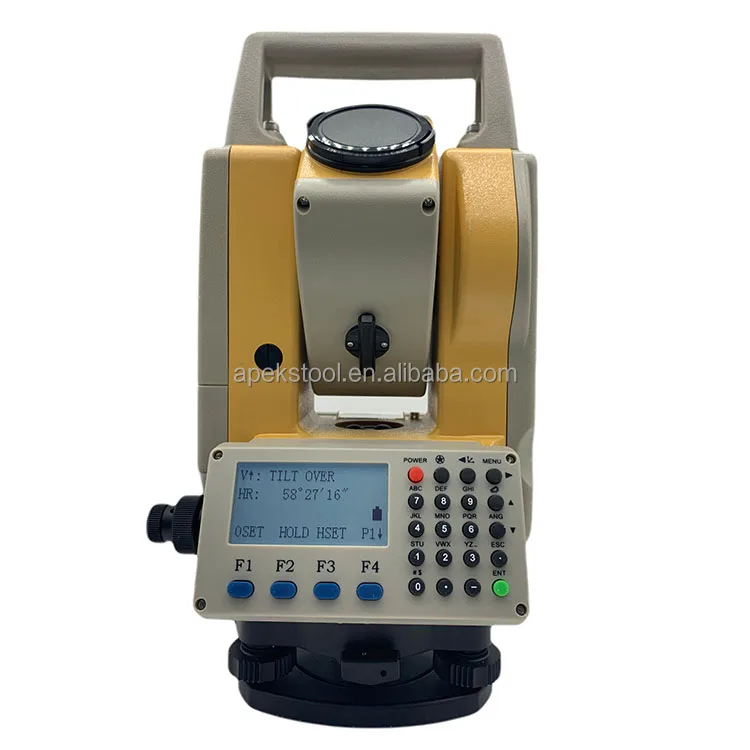

DTM624R Reflectorless 400m Single Prism 3000M Total Station Surveying Equipment
Single compensator
Absolute coding angle measuring
The ranging part adopts phase distance measuring system Microcomputer technology is used for measurement, calculation, display, storage and other functions
It can display the horizontal angles, vertical angle, slope distance, horizontal distance, altitude difference and other results
It can measure angles, slopes and so on
Laser ranging function, laser/Optical alignment
Single prism can measure 3000 meters, triple prism can measure 5000 meters, reflectorless can measure 400 meters Complete functions, easy to operate, small and convenient body
Water and dust resistant
Absolute coding angle measuring
The ranging part adopts phase distance measuring system Microcomputer technology is used for measurement, calculation, display, storage and other functions
It can display the horizontal angles, vertical angle, slope distance, horizontal distance, altitude difference and other results
It can measure angles, slopes and so on
Laser ranging function, laser/Optical alignment
Single prism can measure 3000 meters, triple prism can measure 5000 meters, reflectorless can measure 400 meters Complete functions, easy to operate, small and convenient body
Water and dust resistant
Specification
DTM624R Reflectorless 400m Single Prism 3000M Total Station Surveying Equipment | ||||
Distance Measurement Section | ||||
Range | Non-prism | 400m | ||
Prism | Single prism:2000m,Three prism:3200m | |||
Accuracy | Non-prism | ±(5mm+3ppm.D) | ||
Prism | ±(3mm+2ppm.D) | |||
Unit | m/foot | |||
Disply | Maximum | 99999999.999m | ||
Minimum | 0.1mm | |||
Measuring time | Precise model:2s,Track model:0.5s | |||
Number of time Set | 1-99 | |||
Meteorologic correction | Input the value and correct automatic | |||
Prism constant | Input the value and correct automatic | |||
Angle Measurement Section | ||||
Method | Absolute coding | |||
Grating diameter | 74mm | |||
Minimum reading | 1" | |||
Detection | Horizontal | Diametrical detection | ||
Vertical | Diametrical detection | |||
Accuracy | 2" | |||
Telescope Section | ||||
Imaging | Positive | |||
Tube Length | 164mm | |||
Effective aperture | 48mm | |||
Magnification | 30x | |||
Angle of version | ‘1.5° | |||
Distinguish ability | 3.5" | |||
Minimum focus distance | 1.5m | |||
Compensator | ||||
System | Single axis photoelectric tilt sensor | |||
Working range | ’±3′ | |||
Distinguish ability | 1" | |||
Display Section | ||||
Type | Double sides, LCD Display | |||
Data Transmission | ||||
Port | USB,RS-232C | |||
Capacity | 40,000data at least | |||
Others | ||||
Plummet | Optical or Laser plummet | |||
Power | DC7.4V,4000mAh | |||
Continuous working time | 8 h fordistance measurement, 20h for angle measurement | |||
Size | 180*175*335mm | |||
Weight | 6.5KG | |||
Working temperature | -20°C-50°C | |||

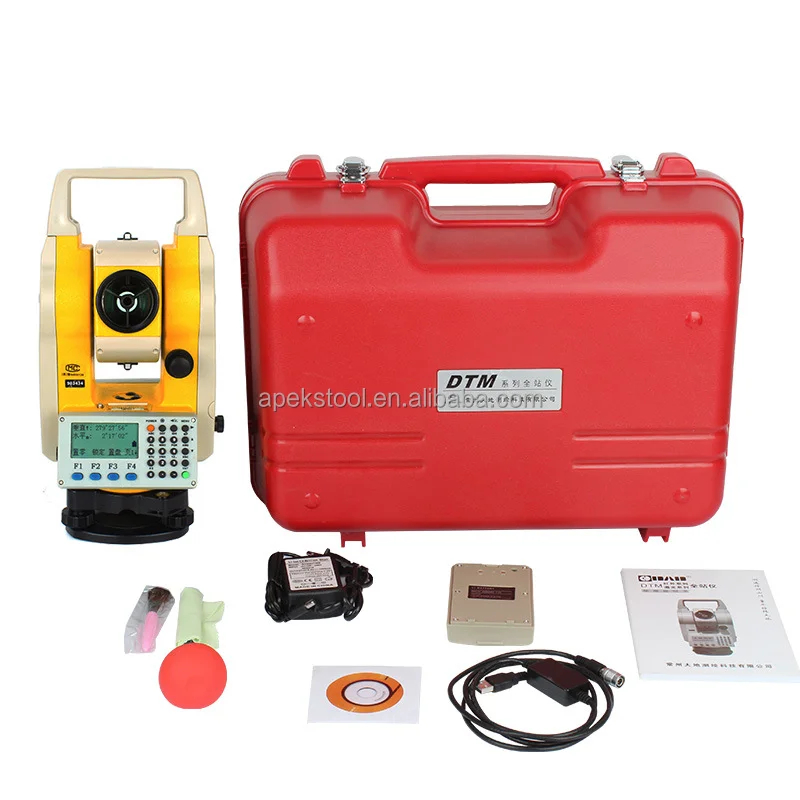

Packages
