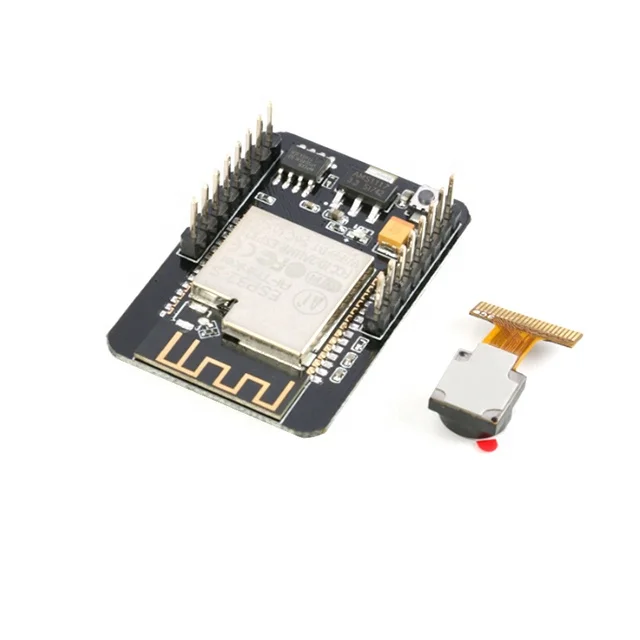

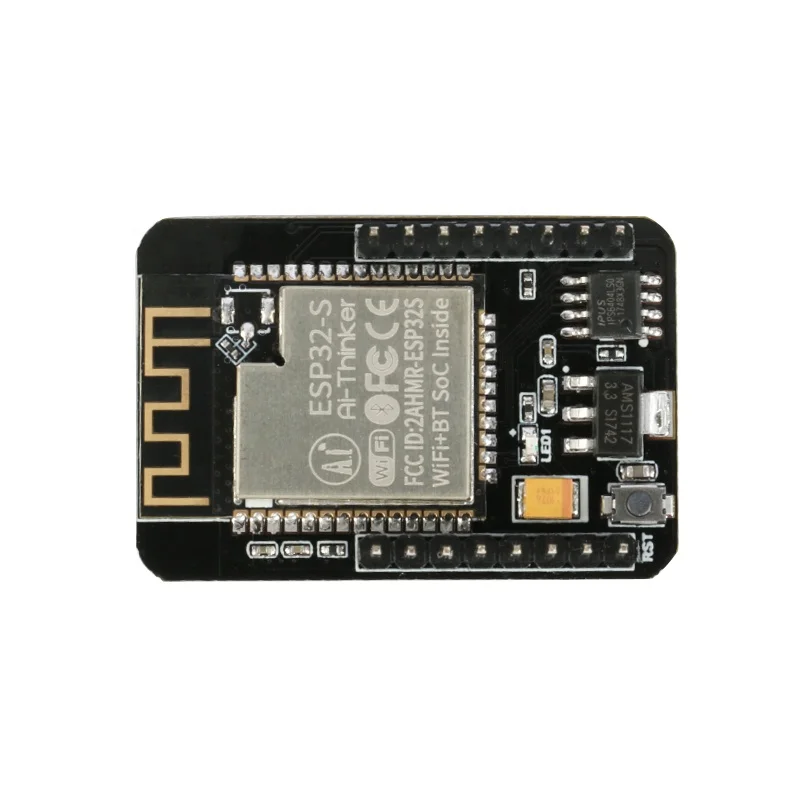

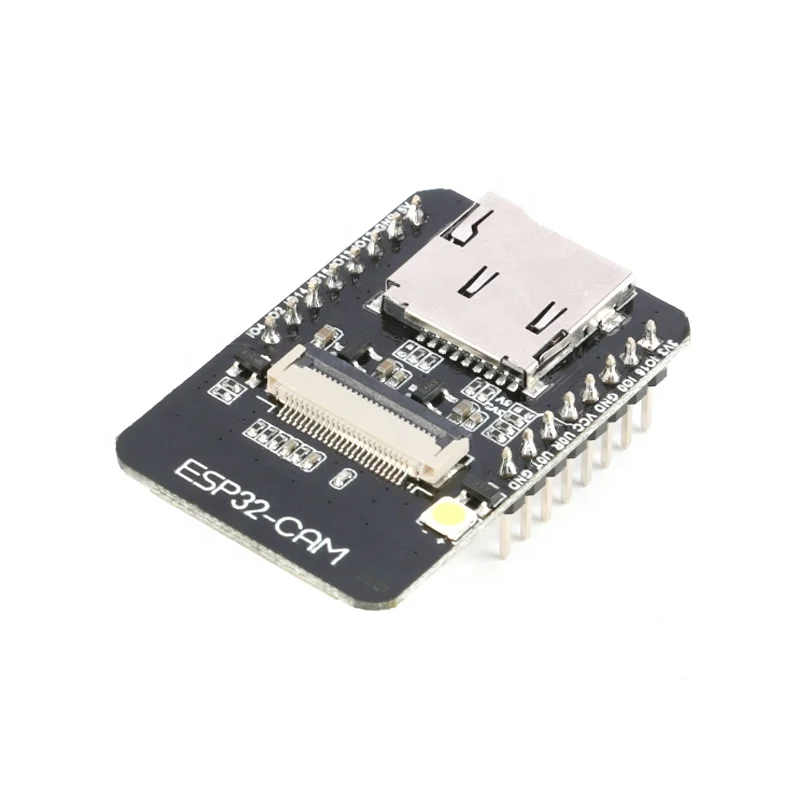

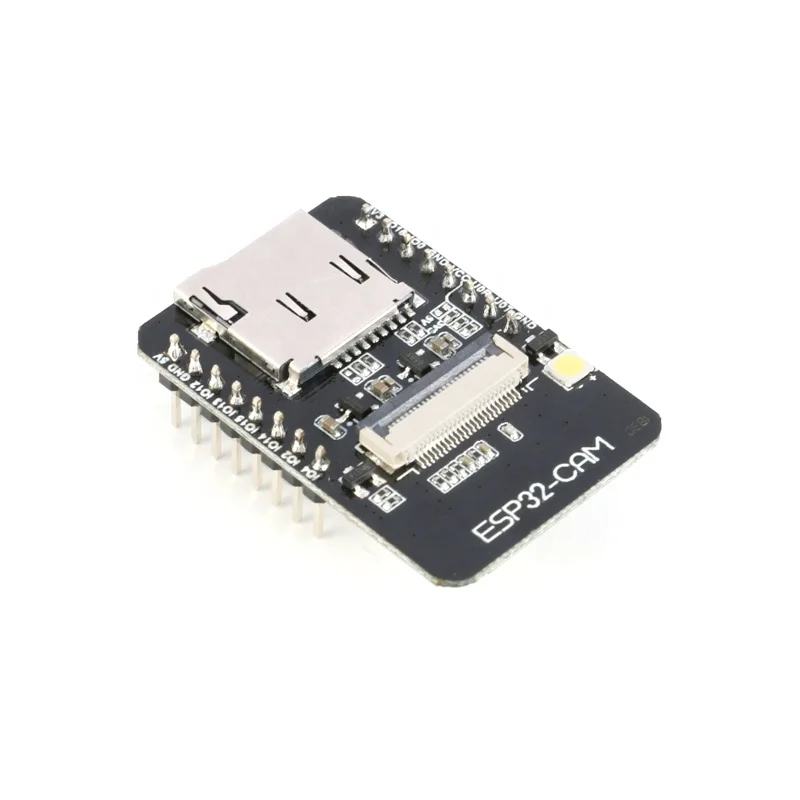

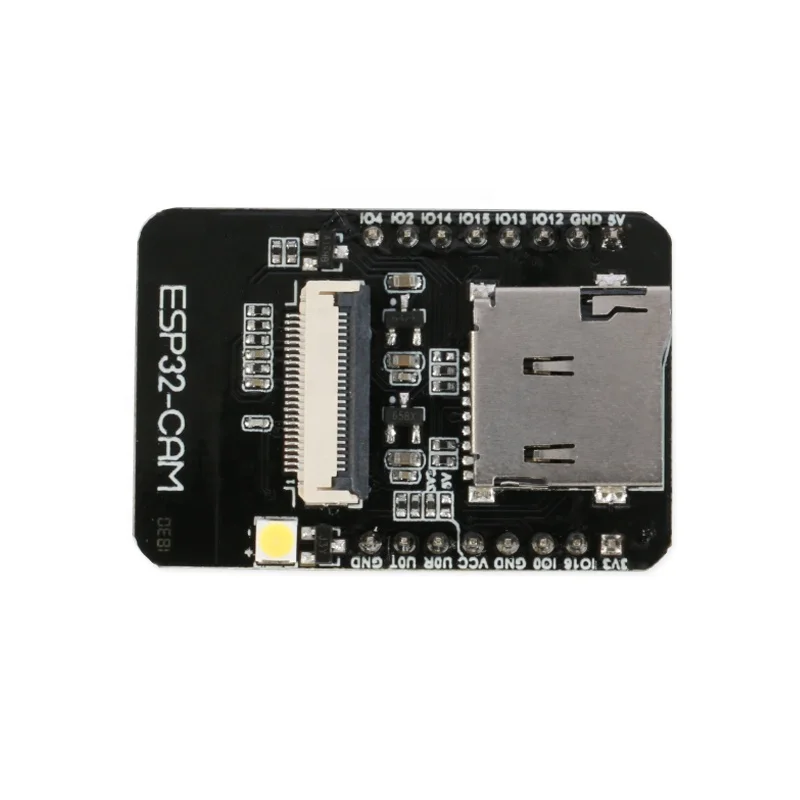

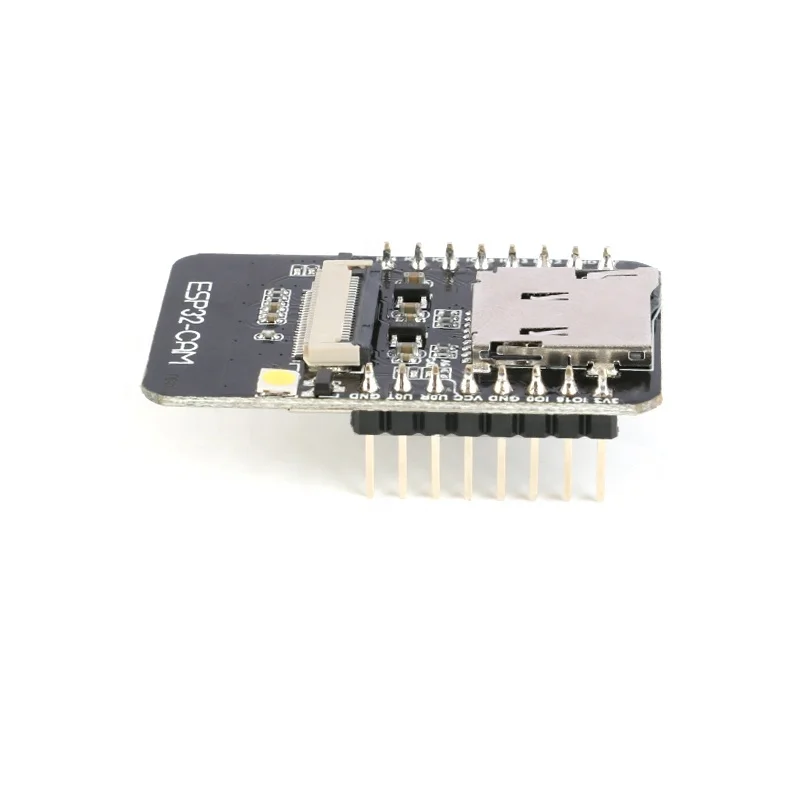

Горячая Распродажа! ESP32-CAM Wi-Fi Bluetooth макетная плата с 0V2640 ESP32 модуль камеры
- Категория: Integrated Circuits \uFF08old\uFF09 >>>
- Поставщик: Shenzhen,Gui,Yi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 6.3 $* | 6.44 $* |
| Jul-20-2025 | 5.17 $* | 5.59 $* |
| Jun-20-2025 | 6.6 $* | 6.7 $* |
| May-20-2025 | 6.99 $* | 6.61 $* |
| Apr-20-2025 | 5.46 $* | 5.74 $* |
| Mar-20-2025 | 6.68 $* | 6.56 $* |
| Feb-20-2025 | 6.95 $* | 6.74 $* |
| Jan-20-2025 | 6.64 $* | 6.4 $* |
Характеристики
Product Parameters
Product Features
Low-power dual-core 32-bit CPU for application processors
Main frequency up to 240MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
Support OV2640 and OV7670 cameras, built-in flash
Support image WiFi upload
Support TF card
Support multiple sleep modes
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click distribution network
Support secondary development
Module Model:ESP32-CAM
Package:DIP-16
Size:27*40.5*4.5 ( +0.2 ) mm .
SPI Flash:Default 32Mbit
RAM:Intemal 520KB+ External 4M PSRAM
BT:BT 4.2 BR/EDR and BLE standard
Wi-Fi:802.11 b/g/n/e/i
Support Interface:UART,SPI. I2C. PWM
Support TF Card:Maximum support 4G
I0 Port:9
Serial Port Rate: Default 115200 bps
Image Output Format:JPEG(Only 0V2640 support),BMP,GRAYSCALE
Spectrum Range:2412 ~2484MHz
Antenna Form:Onboard PCB antenna , gain 2dBi
Transmit power: 802.11b: 17+2 dBm (@1 1Mbps)
802.11g: 14+2 dBm (@54Mbps)
802.11n: 13+2 dBm (@MCS7)
Safety:WPAWPA2/WPA2-Enterprise/WPS
Power Supply Range:5V
Operating Temperature:-20 °C~85 °C
Storage Environment:-40 °C~ 90 °C, < 90%RH
Package:DIP-16
Size:27*40.5*4.5 ( +0.2 ) mm .
SPI Flash:Default 32Mbit
RAM:Intemal 520KB+ External 4M PSRAM
BT:BT 4.2 BR/EDR and BLE standard
Wi-Fi:802.11 b/g/n/e/i
Support Interface:UART,SPI. I2C. PWM
Support TF Card:Maximum support 4G
I0 Port:9
Serial Port Rate: Default 115200 bps
Image Output Format:JPEG(Only 0V2640 support),BMP,GRAYSCALE
Spectrum Range:2412 ~2484MHz
Antenna Form:Onboard PCB antenna , gain 2dBi
Transmit power: 802.11b: 17+2 dBm (@1 1Mbps)
802.11g: 14+2 dBm (@54Mbps)
802.11n: 13+2 dBm (@MCS7)
Safety:WPAWPA2/WPA2-Enterprise/WPS
Power Supply Range:5V
Operating Temperature:-20 °C~85 °C
Storage Environment:-40 °C~ 90 °C, < 90%RH
Pin Description
Product Size
Company Information
Shen Zhen Gui Yi Technology Co., Ltd is a distributor& wholesaler of electronic components and electronic modules. With a big
warehouse, we are able to provides different kinds of electronic components to our clients in a short time, and we welcome new and
old clients to contact us.
Packaging & Shipping
