Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55
Али OEM ODM ручная пресс-форма для низкого напряжения pvc медного провода управления провод электропитания 3 core 1 мм 5 2 4
- Категория: >>>
- Поставщик: Henan,Ali-Cable,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.78 $* | 0.53 $* |
| Aug-18-2025 | 0.36 $* | 0.47 $* |
| Jul-18-2025 | 0.47 $* | 0.48 $* |
| Jun-18-2025 | 0.83 $* | 0.21 $* |
| May-18-2025 | 0.41 $* | 0.4 $* |
| Apr-18-2025 | 0.77 $* | 0.93 $* |
| Mar-18-2025 | 0.53 $* | 0.79 $* |
| Feb-18-2025 | 0.22 $* | 0.67 $* |
| Jan-18-2025 | 0.95 $* | 0.27 $* |
Характеристики
We are the top one in the circle of overhead conductor, abc cable and concentric cable

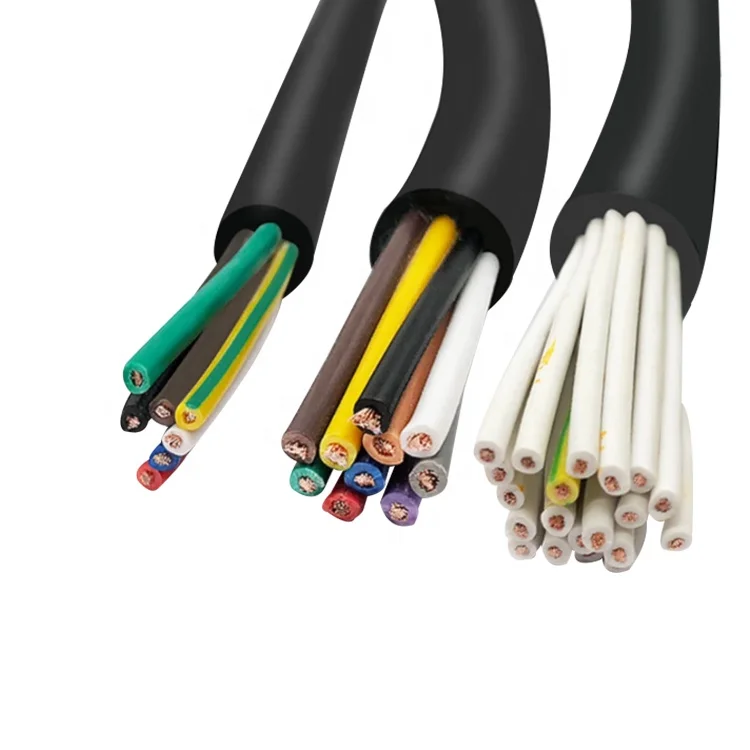

Low voltage pvc number coded copper wire braiding control wire and cable
Control cable is suitable for the wiring of electric controlling equipment and instrument, monitoring and controlling return circuit ,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to450/750 AC.
Construction:
1.Conductor : Copper ,Class 1 or Class 2,solid or stranded Circular conductors
2.Insulation: Polyvinyl chloride PVC
3.Filler: Non-hygroscopic material
4.Binder tape: Non-hygroscopic material
5.Over sheath: Polyvinyl chloride PVC
1.Conductor : Copper ,Class 1 or Class 2,solid or stranded Circular conductors
2.Insulation: Polyvinyl chloride PVC
3.Filler: Non-hygroscopic material
4.Binder tape: Non-hygroscopic material
5.Over sheath: Polyvinyl chloride PVC
Product Description
mm2 | Conductor typr | Insulation mm | Copper tape screen mm | Steel tape Layer*thickneess | Jacket mm | Overall Dia mm | 70℃ MΩ·km | ||
lowest | highest | ||||||||
30*1.0 30*1.5 30*2.5 | 1 1 1 | 0.6 0.7 0.8 | 0.05 0.05 0.05 | 2*0.2 2*0.2 2*0.2 | 1.7 1.7 1.7 | 20.2 23.2 26.7 | 24.7 27.7 31.7 | 0.011 0.011 0.010 | |
37*1.0 37*1.5 37*2.5 | 1 1 1 | 0.6 0.7 0.8 | 0.05 0.05 0.05 | 2*0.2 2*0.2 2*0.5 | 1.7 1.7 2.0 | 21.7 24.7 30.2 | 26.2 29.7 35.2 | 0.011 0.011 0.010 | |
44*1.0 44*1.5 44*2.5 | 1 1 1 | 0.6 0.7 0.8 | 0.05 0.05 0.05 | 2*0.2 2*0.2 2*0.5 | 1.7 2.0 2.2 | 23.7 27.7 33.7 | 28.7 33.2 39.2 | 0.011 0.011 0.010 | |
48*1.0 48*1.5 48*2.5 | 1 1 1 | 0.6 0.7 0.8 | 0.05 0.05 0.05 | 2*0.2 2*0.5 2*0.5 | 1.7 2.0 2.2 | 24.2 29.2 34.2 | 29.2 34.2 39.7 | 0.011 0.011 0.010 | |
52*1.0 52*1.5 52*2.5 | 1 1 1 | 0.6 0.7 0.8 | 0.05 0.05 0.05 | 2*0.2 2*0.5 2*0.5 | 1.7 2.0 2.2 | 24.7 30.2 35.2 | 29.7 35.2 40.7 | 0.011 0.011 0.010 | |
61*1.0 61*1.5 61*2.5 | 1 1 1 | 0.6 0.7 0.8 | 0.05 0.05 0.05 | 2*0.2 2*0.5 2*0.5 | 1.7 2.0 2.2 | 26.2 31.7 37.2 | 31.2 36.7 42.7 | 0.011 0.011 0.010 | |
Recommended Products
Company Profile
Certifications
Our factory
Packing shipping
FAQ
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Henan Province, which integrates R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
A: We’re a factory locates in Henan Province, which integrates R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
