Предварительно сформированный кабельный зажим Adss
US $1.00-$10.00
Низковольтные водонепроницаемые изоляционные разъемы для пирсинга серии KN2 проводной зажим
- Категория: Power Accessories >>>
- Поставщик: Wenzhou,Yika,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.42 $* | 0.28 $* |
| Aug-19-2025 | 0.37 $* | 0.62 $* |
| Jul-19-2025 | 0.1 $* | 0.27 $* |
| Jun-19-2025 | 0.65 $* | 0.1 $* |
| May-19-2025 | 0.35 $* | 0.63 $* |
| Apr-19-2025 | 0.13 $* | 0.17 $* |
| Mar-19-2025 | 0.32 $* | 0.87 $* |
| Feb-19-2025 | 0.17 $* | 0.13 $* |
| Jan-19-2025 | 0.6 $* | 0.36 $* |
Характеристики

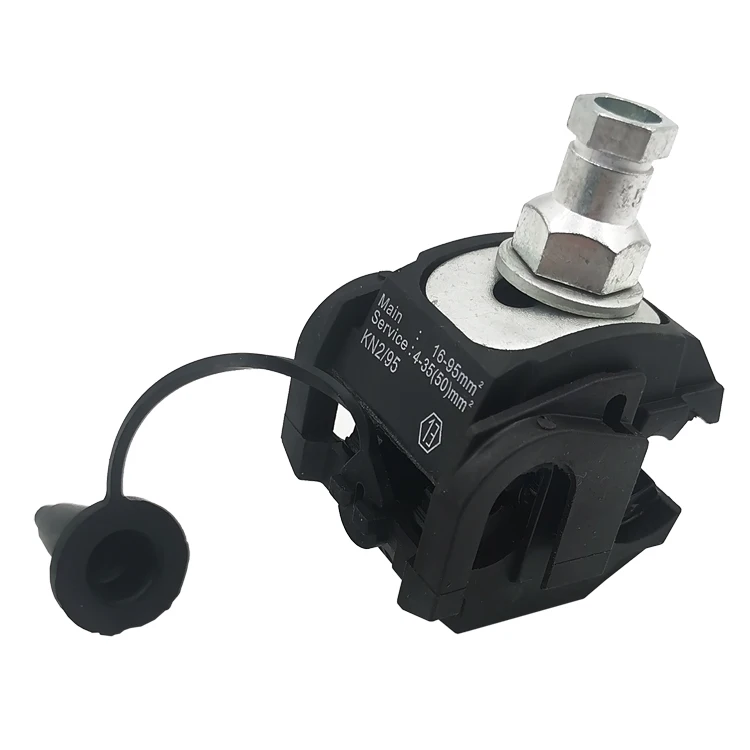

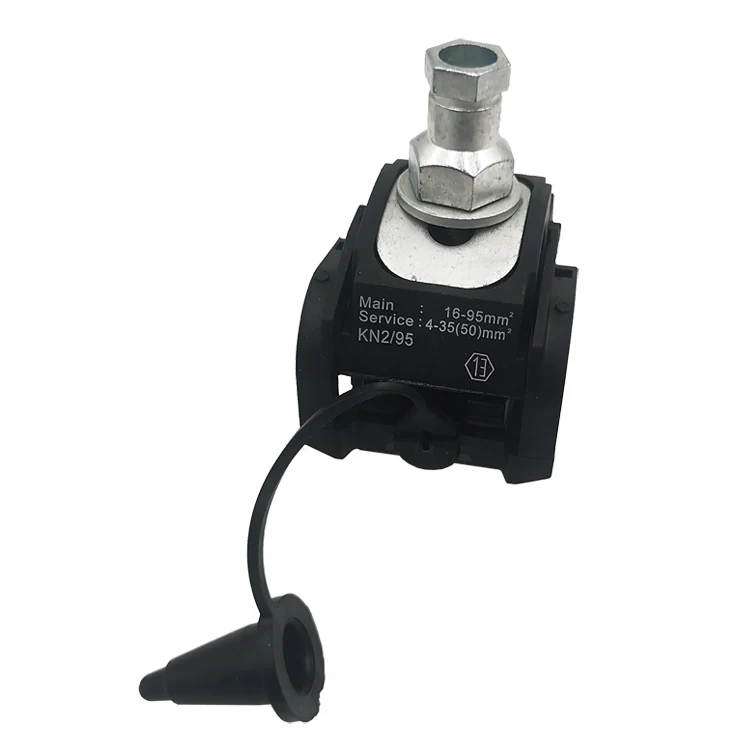

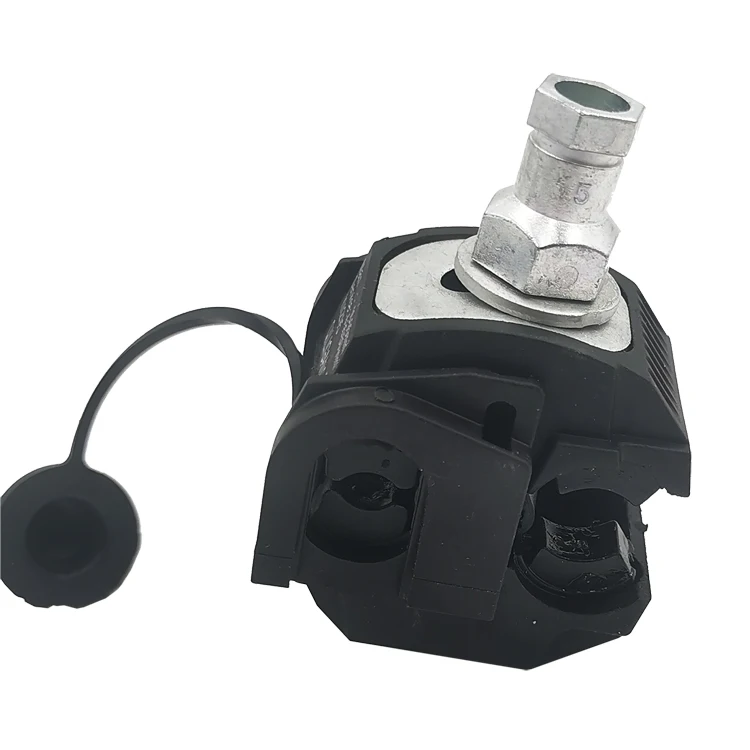

KN2 Series Low Voltage Waterproof Insulation Piercing Connectors Wire IPC Clamp Piercing Connector
Detailed Images
Product Description
1) Insulating Piercing connector, simple installation, no need strip the cable coat.
2) Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead.
3) Self-seam frame, wetproof, waterproof, and anti-corrosion, extend the using life of insulated lead and connector.
4) Adopted special connection tablet, apply to joint of Cu (Al) and Cu(Al) or Cu and Al.
5) Small electric connecting resistance, connecting resistance less than 1.1 times of the resistance of branch conductor with the same length.
6) Special insulated case body, resistance to illumination and environmental aging, the insulation strength can up to 12KV.
7) Arc surface design, apply to connection with the same (different) diamater, wide connection scope (0.75mm2 – 400mm2)
| Type | Equivalent type | Main line section area (mm2) | Branch Line section area (mm2) | nominal current(A) | Outline size | weight (g) | piercing depth (mm) |
| KN2-95 | JJC-3 | 16-95 | 4-35(50) | 157 | 46*52*87 | 160 | 1.5-2 |
| KN2-150 | JJC-4 | 50-150 | 6-35(50) | 157 | 45*52*87 | 162 | 1.5-2.5 |
