Main characteristics:

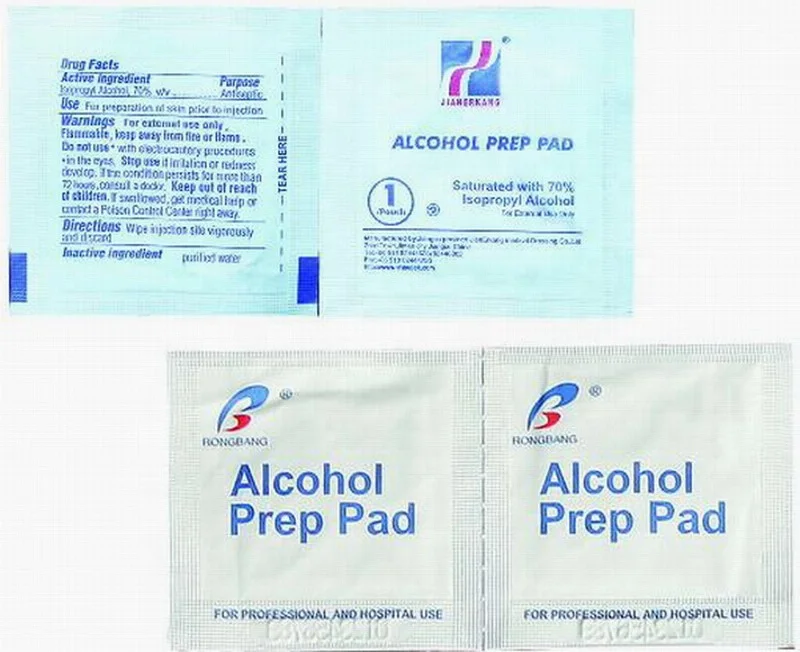

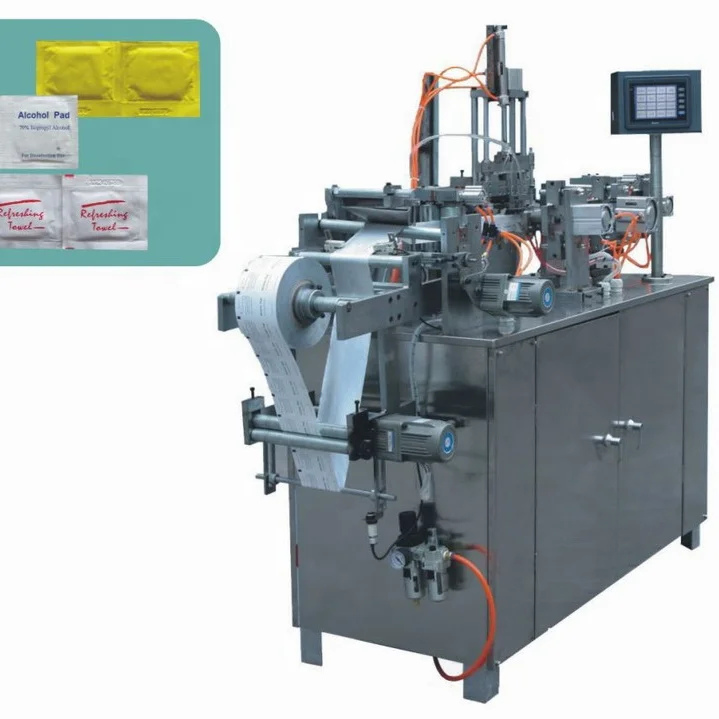

This machine uses newest technology for making alcohol prep pad, swabs, BZK antiseptic pad, and iodine pad, etc. It is fully automatic model with high production capacity & user friendly. One time makes 2 rows at each two bags, total 4 bags (two units together by perforated line for separating). Surface of the machine is built by 304# stainless steel, it satisfies American & Europe CE standard. Machine is developed with our own patent PLC Human-machine interface communication program, HMI LCD touch screen for user friendly. Machine is equipped with dual operation system for control of touch screen and bottom press operation. Machine adopts the premium pump for alcohol liquid pumping & spraying at very precise & accurate quantity at the exact same amount for each unit. As option, machine can add on date or lot printing device for maximum three rows of figures, like production date, production lot, and expired date, etc.

Production process:

Raw material feeding →nonwoven vertical folding→ length cutting → liquid spraying → bag forming →bag sealing & cutting → product output.

Main technical parameters:

Single bag size	L: 50mm, W: 50mm
Tissue unfolded size	L: 60mm, W: 30mm or 60mm
Tissue folded size	L: 30mm, W: 30mm
Folding method	V fold(2-layer) or 1/4 fold(4-layer)
Liquid quantity for the tissue	Adjustable in touch screen
Producing speed	320-400 pcs/min(4 lines)
Packing materials	73-110g/m2 paper, PE, OPP, PET, aluminium materials
Packing materials specs	Φ≤350mm; Width: 400mm; Inner dia.:76.2mm
Tissue raw material specs	Φ≤600mm; Width: 60mm; Inner dia: 76.2mm
Power supply	220V/50HZ, 1 Phase, 4.5KW
Machine size	3000*1200*1500MM (L*W*H)
Machine weight	500kg

Main electronic parts list:

Name	Brand & Model
Colorful touchscreen	DOP-B07SS411
PLC	Delta(DVP48EH00T3)
Servo motor driver	Delta(B2 750w ASD-B2-0721-B)
Detecting Sensor	OMRON
Contactor, Relay, Switch button	Schneider
