OBT-6154 усилитель мощности Профессиональный моноблок интегрированный
- Категория: Receivers & Amplifiers >>>
- Поставщик: Shenzhen,OBTPA,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 15606.81 $* | 16386.38 $* |
| Aug-17-2025 | 15475.23 $* | 16249.88 $* |
| Jul-17-2025 | 12983.90 $* | 13632.3 $* |
| Jun-17-2025 | 15212.93 $* | 15973.85 $* |
| May-17-2025 | 13245.82 $* | 13907.77 $* |
| Apr-17-2025 | 14950.78 $* | 15698.22 $* |
| Mar-17-2025 | 14819.75 $* | 15560.10 $* |
| Feb-17-2025 | 14688.30 $* | 15422.83 $* |
| Jan-17-2025 | 14557.13 $* | 15285.83 $* |
Характеристики
Products Description
Product Information Form
MODEL NUMBER | OBT-6154 | OBT-6254 | OBT-6354 | OBT-6454 | OBT-6554 | OBT-6654 | |||||
NOMINAL POWER | 150W | 250W | 350W | 450W | 550W | 650W | |||||
OUTPUT IMPEDANCE | 70 v, 100 v & 4-16 Ω | ||||||||||
TONE | Bass:+10dBat100Hz | ||||||||||
Treble:+10dBat10KHz | |||||||||||
FREQUENCY RESPONSE | 50Hz-16KHz(+1dB, -3dB) | ||||||||||
SILENT FUNCTION | 0-30dB adjustment | ||||||||||
COOLING | Built-in fan, temperature rise 45° automatic start, front and back wind flow, cooling amplifier module | ||||||||||
MAXIMUM DISSIPATED POWER | 150W | 260W | 450W | 700W | 950W | 1200W | |||||
WEIGHT | 11.48Kg | 11.78Kg | 13.3Kg | 16.7Kg | 17.8Kg | 19.45Kg | |||||
Product Features

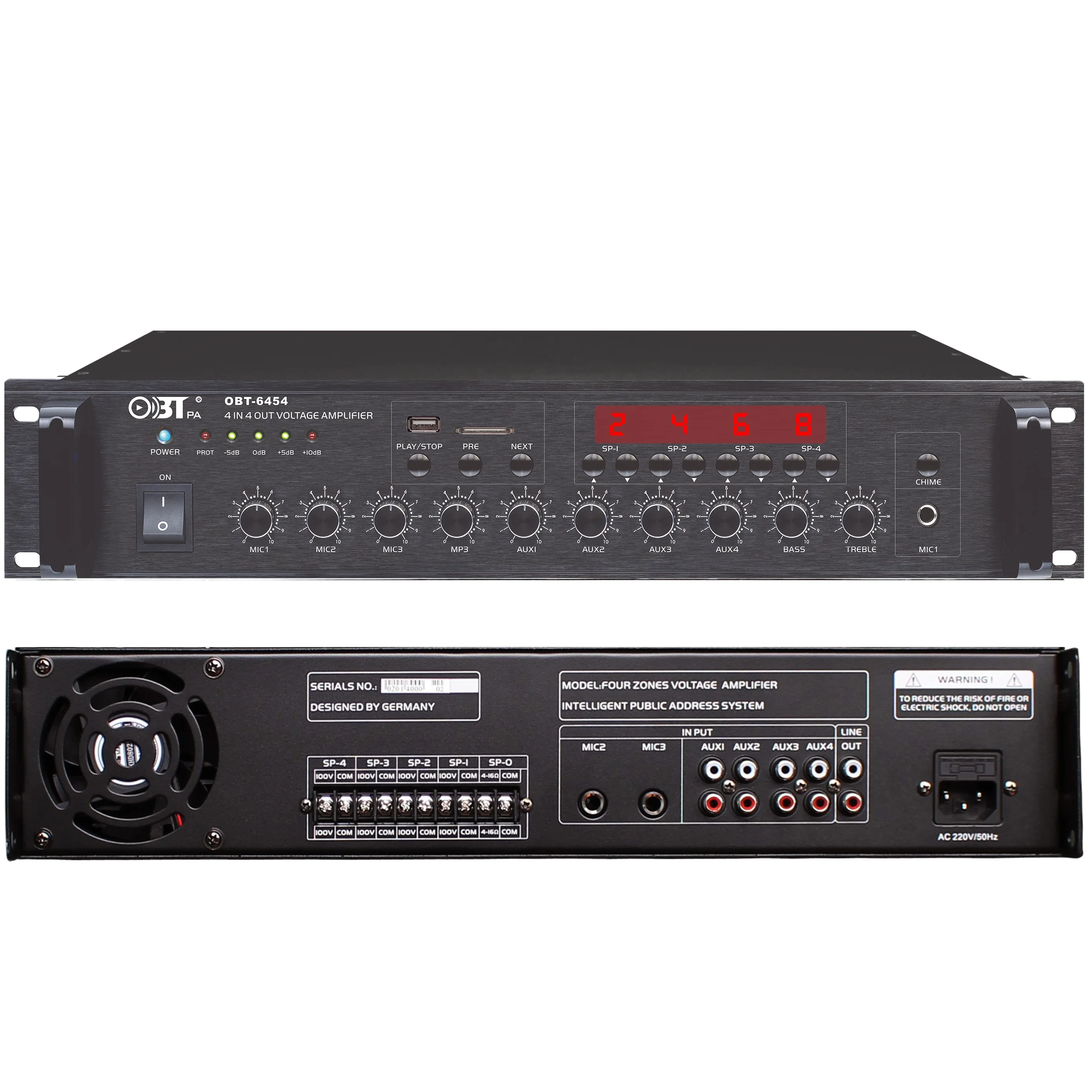

1.2U standard 19-inch frame structure, aluminum brushed panel, advanced titanium polishing process;
2.7 signal input interfaces, including 3 microphones, 4 AUX signals, 1 auxiliary sound output;
3.Built-in MP3 player module, support USB access, you can choose to play/pause, the previous, the next MP3 track;
4.Microphone 1 has the highest priority function, automatic silent background music, play microphone 1 paging signal;
5.Microphone 1-3 way, AUX1-4 way can adjust the volume, treble and bass; One-click start play microphone paging prelude sound;
6.Four partition output, each channel volume independent adjustment; Short-circuit, overheat, overload automatic detection protection function, indicator alarm, buzzer alarm;
7.Two machines can realize the independent adjustment of the volume of each channel in eight zones, and three machines can realize the independent adjustment of the volume of each channel in twelve zones, and so on;
8.Excellent CD sound quality;
1.2U standard 19-inch frame structure, aluminum brushed panel, advanced titanium polishing process;
2.7 signal input interfaces, including 3 microphones, 4 AUX signals, 1 auxiliary sound output;
3.Built-in MP3 player module, support USB access, you can choose to play/pause, the previous, the next MP3 track;
4.Microphone 1 has the highest priority function, automatic silent background music, play microphone 1 paging signal;
5.Microphone 1-3 way, AUX1-4 way can adjust the volume, treble and bass; One-click start play microphone paging prelude sound;
6.Four partition output, each channel volume independent adjustment; Short-circuit, overheat, overload automatic detection protection function, indicator alarm, buzzer alarm;
7.Two machines can realize the independent adjustment of the volume of each channel in eight zones, and three machines can realize the independent adjustment of the volume of each channel in twelve zones, and so on;
8.Excellent CD sound quality;
9.Output 100V, 70V, 4-16Ω;
10.Power output: 150W, 250W, 350W, 450W, 550W, 650W.
10.Power output: 150W, 250W, 350W, 450W, 550W, 650W.
