Сверхмощный склад хранения оцинкованный стальной проволочной сеточной настилкой для паллетными
- Категория: Warehousing >>>
- Поставщик: Qingdao,Yishitong,Logistics,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 10.39 $* | 11.94 $* |
| Aug-17-2025 | 9.28 $* | 9.89 $* |
| Jul-17-2025 | 8.96 $* | 8.11 $* |
| Jun-17-2025 | 9.33 $* | 9.4 $* |
| May-17-2025 | 8.12 $* | 8.95 $* |
| Apr-17-2025 | 9.98 $* | 9.91 $* |
| Mar-17-2025 | 9.66 $* | 9.84 $* |
| Feb-17-2025 | 9.63 $* | 9.79 $* |
| Jan-17-2025 | 9.22 $* | 9.32 $* |
Характеристики
Product Description

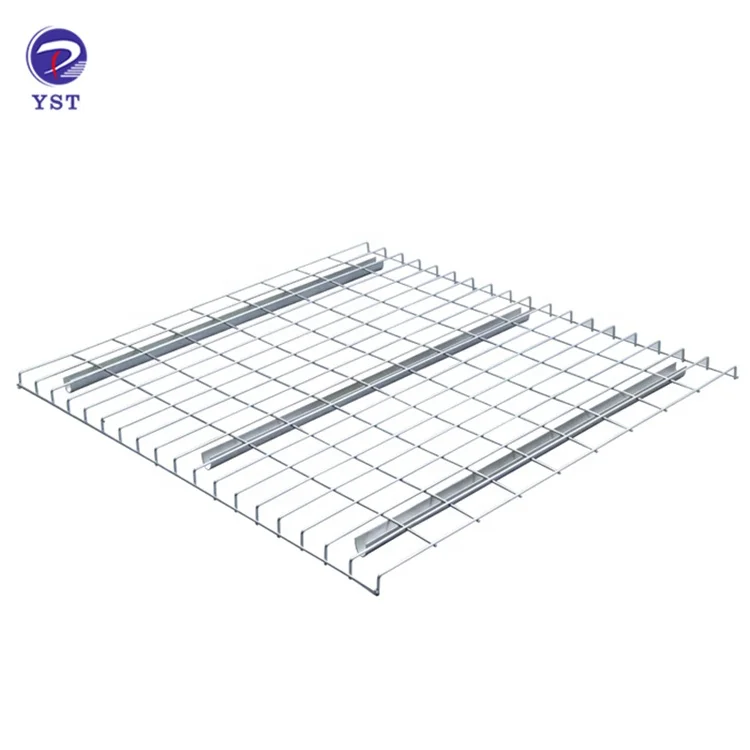

Heavy duty warehouse zinc plated galvanized steel wire mesh decking for pallet racking system

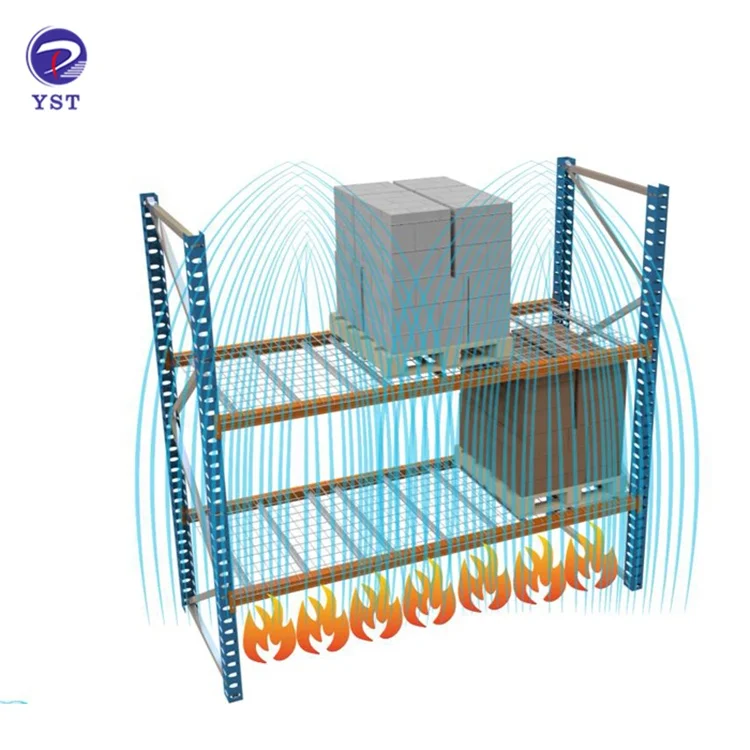

It is designed for safety to meet fire code requirements and allows for dust and dirt to collect below your racking instead of on the shelves.
Specification
Euro Sizes
A. Loading capacity 300kg | B. Loading capacity 800kg | C. Loading capacity 1000kg | ||
Mesh 50×150 mm | Mesh 50×100 mm | Mesh 50×100 mm | ||
Dim (D×W) (mm) | Dim (D×W) (mm) | Dim (D×W) (mm) | ||
600×880 | 1000×880 | 1050×1090 | 1000×1340 | |
1000×880 | 1050×880 | 800×880 | 1050×1340 | |
1050×880 | 1100×880 | 1200×880 | 800×1340 | |
1100×880 | 1000×1090 | 1200×1090 | 1200×1340 | |
American Sizes
Standard U-channel | Pallet Deck | ||
Dim (D×W) (mm) | Dim (D×W) (mm) | ||
24"×46" | 42"×46" | 24"×46" | |
30"×46" | 42"×52" | 36"×46" | |
36"×34" | 42"×58" | 36"×52" | |
36"×46" | 48"×34" | 42"×46" | |
36"×52" | 48"×46" | 42"×52" | |
36"×58" | 48"×52" | 44"×46" | |
42"×34" | 48"×58" | 48"×46" | |
Details

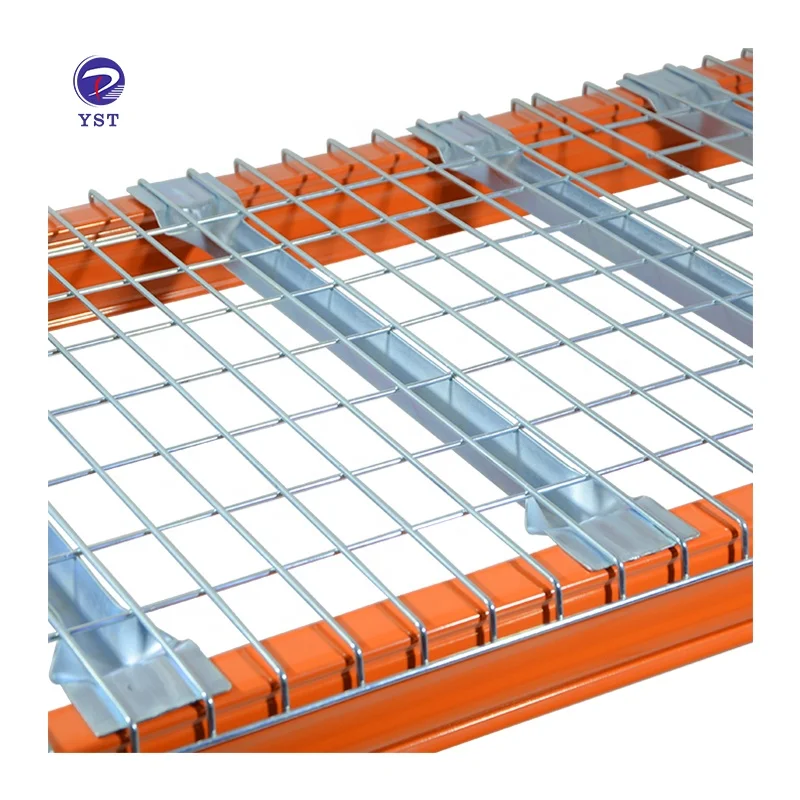

1. U-channel -- Waterfall design with standard U-channel to fit common step beams
2. Inverted U-channel -- Designed to prevent the collection of dust and debris inside the channel
3. Flared channel -- Waterfall design with standard flared channel for the box or structural beams
2. Inverted U-channel -- Designed to prevent the collection of dust and debris inside the channel
3. Flared channel -- Waterfall design with standard flared channel for the box or structural beams
Custom Design
We support customization, OEM&ODM. Tell me your requirements and we will make products that meet your request
Products Packaging

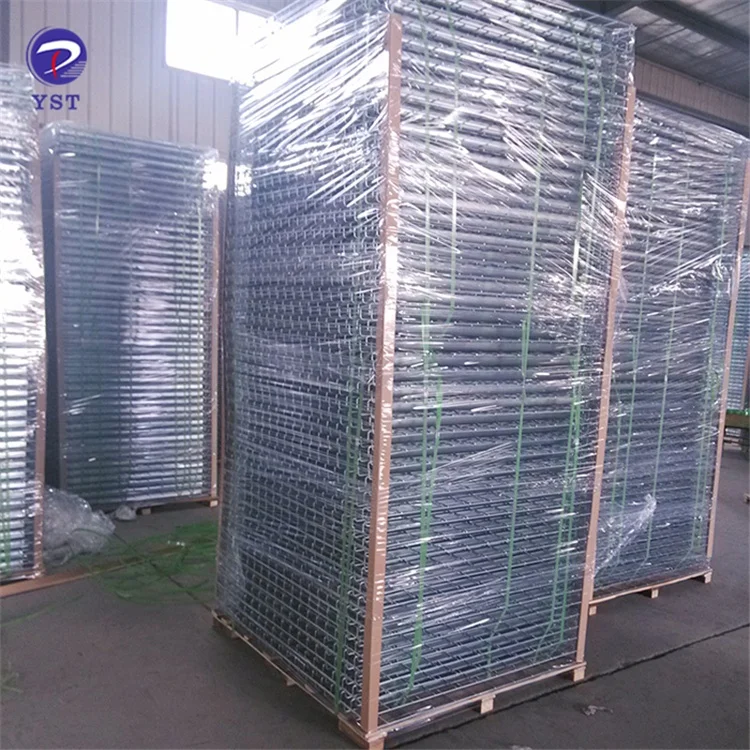

Packing and shipping
1. Fully Protection - edges are bundled-up by paper shells
2. Prevent scattering in shipping - plastic/ metal banding + Stretch film wrapped.
3. Easy loading & unloading - wooden steel pallet on the bottom
1. Fully Protection - edges are bundled-up by paper shells
2. Prevent scattering in shipping - plastic/ metal banding + Stretch film wrapped.
3. Easy loading & unloading - wooden steel pallet on the bottom
Client Testimonial
Company Profile
Qingdao Yishitong Logistics Equipment Co., Ltd. was established in 2013, mainly engaged in the production, development, and manufacturing of logistics turnover equipment, with more than ten years of production experience. The company has a production area of 5,000 square meters and more than 60 sets of various equipment.
FAQ
Q: About the surface, can be finished in powder coated?
A: Okay, in general, can be finished zinc/hot-dip zinc/powder coated.
Q: How much is the life of the wire mesh decking?
A: Up to 3 or 5 years against proper handling
Q: Can this product be customized to our request?
A: Yes, all products can be customized. Welcome OEM, ODM.
Q: What is the raw material of your products?
A: The raw material is Mild Steel Q235.
Q: May I know the status of my order?
A: Yes. We will send you information and photos at the different production stages of your order.
Q: Are sample orders available?
A: Yes, sure!
Q: What is the loading capacity?
A: In general, we have light duty(100~300kg) model, medium-duty(400~800kg) model, and heavy-duty (above 1000kg) model available for your choice.
Q: I don't have a drawing or picture available for the custom products, could you design it for me?
A: Yes, we can make the best suitable design for you but do need to know the details - such as
a) dimension b) loading capacity c)stackability d)operation environment e)what kind of stuff will be loaded in etc
Q: How are the goods being packed?
A: Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with a standard forklift truck or pallet jack.
A: Okay, in general, can be finished zinc/hot-dip zinc/powder coated.
Q: How much is the life of the wire mesh decking?
A: Up to 3 or 5 years against proper handling
Q: Can this product be customized to our request?
A: Yes, all products can be customized. Welcome OEM, ODM.
Q: What is the raw material of your products?
A: The raw material is Mild Steel Q235.
Q: May I know the status of my order?
A: Yes. We will send you information and photos at the different production stages of your order.
Q: Are sample orders available?
A: Yes, sure!
Q: What is the loading capacity?
A: In general, we have light duty(100~300kg) model, medium-duty(400~800kg) model, and heavy-duty (above 1000kg) model available for your choice.
Q: I don't have a drawing or picture available for the custom products, could you design it for me?
A: Yes, we can make the best suitable design for you but do need to know the details - such as
a) dimension b) loading capacity c)stackability d)operation environment e)what kind of stuff will be loaded in etc
Q: How are the goods being packed?
A: Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with a standard forklift truck or pallet jack.
