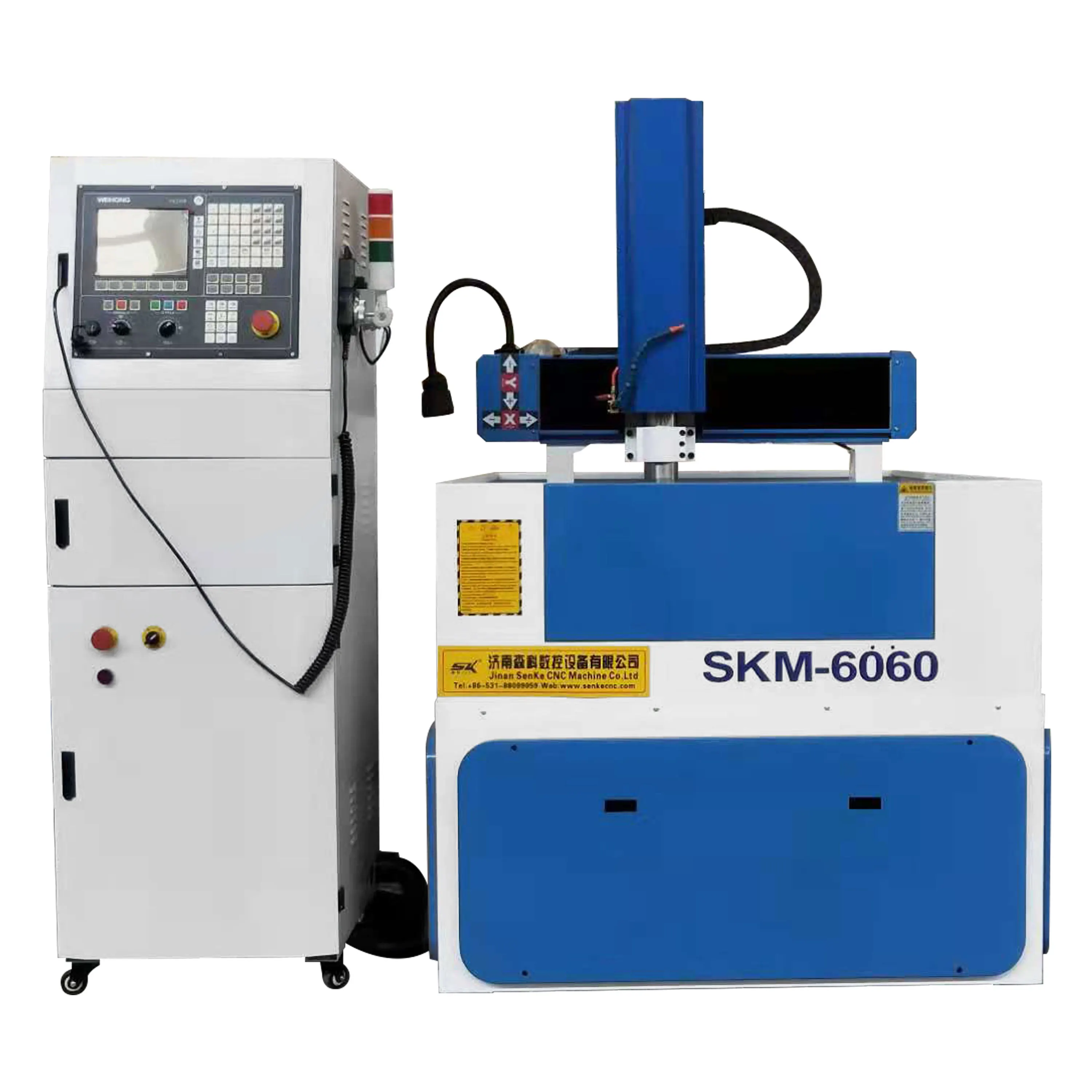

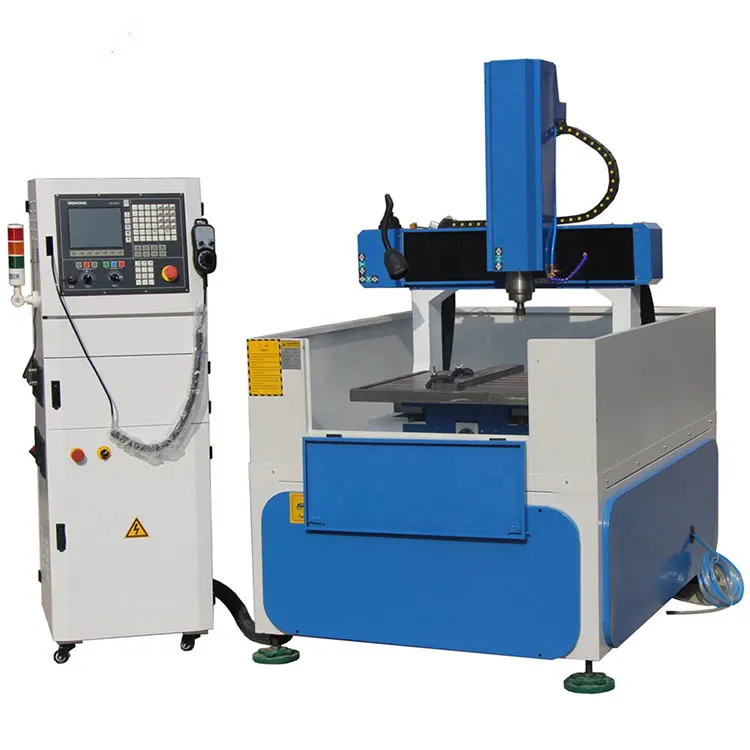

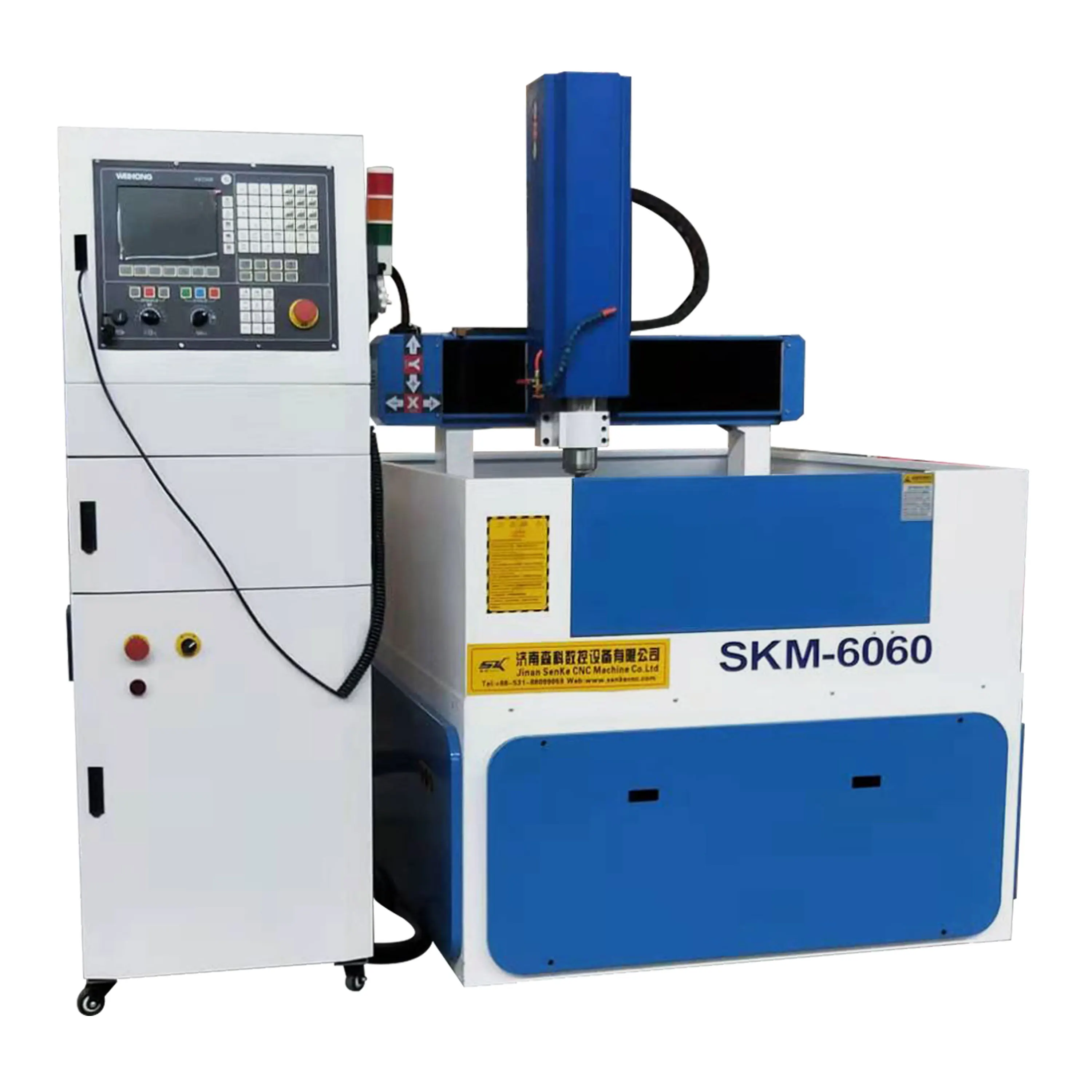

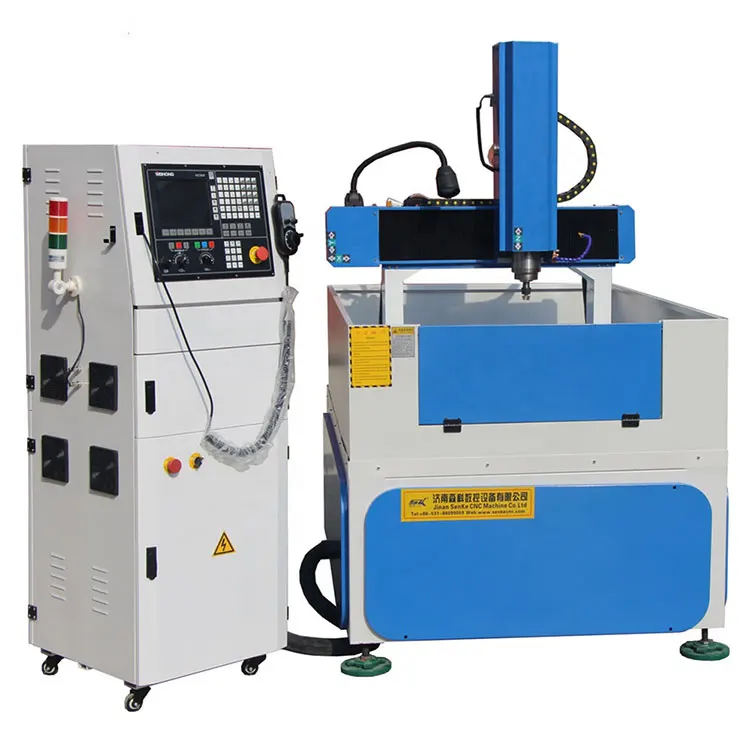

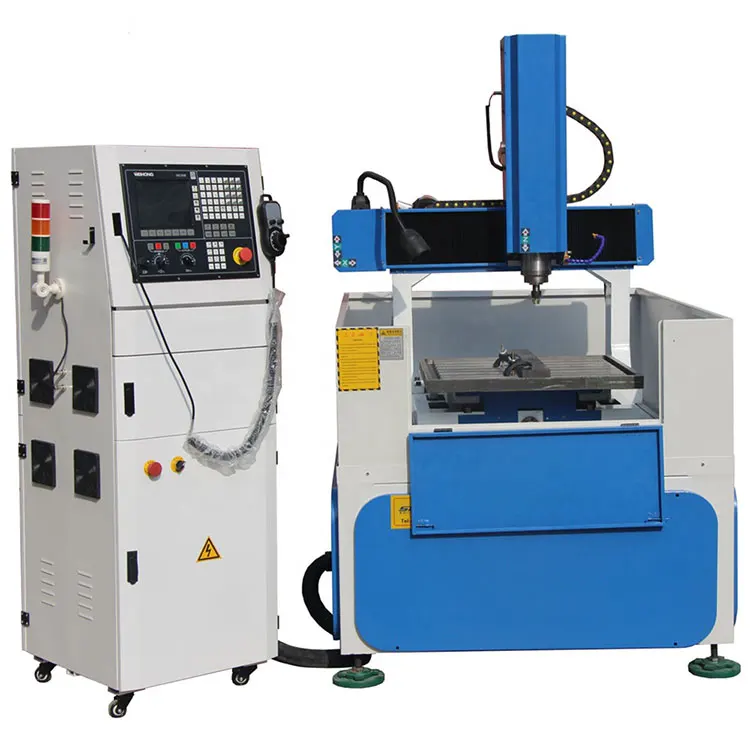

CNC Router Small Engraving Machine for Metals

Product Introduction

1. Suitable for drilling, milling grooves, round holes, special-shaped holes, plane engraving, etc. of aluminum alloy profiles

3. Using electric spindle, high precision, good safety and high reliability

4. X-axis adopts high-precision helical gear and helical rack, and Y-axis and Z-axis adopt high-precision ball screw transmission

Automatic conversion of processing codes through programming software, simple operation, high efficiency, and low labor intensity.

5. Iron grooved and moving table, ideal for machining metal or wooden molds

6. Axes X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity

7. TBI ball screw transmission improves positioning accuracy and fast speed

8. Selection of high speed 2.2kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.

9. With the Nc studio/DSP/MACH3 operating system, it has the break point memory function, which allows you to continue working in the event of a power failure or next day's work remnants.



Specifications

Model	SKM-6060	SKM-6090
Working Area	600*600mm	600*900mm
Table Surface	Cast iron T-slot table with water tank
Frame	Strong Cast Iron
X Y Structure	Ball Screw Drive, HIWIN Rail Linear Bearings
Z Structure	Taiwan Original TBI Ball Screw
Spindle Power	2.2KW Professional Metal Used Spindle(3.2KW 4.5KW Optional)
Spindle Speed	0-24000RPM
Working voltage	380V/415V 3 Phase 50/60Hz(Optional:220V Single/3 Phase 50/60Hz or 110V Single Phase 50/60Hz )
Command Language	G Code
Software Compatibility	Artcam (Type 3/UcancameV9 Software)
Computer Interface	USB
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
Machine size	1.08*1.14*2.0M		1.08*1.8*2.0M
After packed size	1.18*1.24*2.16M		1.08*1.9*2.0M
N.W	700KGS		760KGS
G.W	760KGS		840KGS

Application:

Various materials can be applied by the machine, such as PVC, Acrylic, wood, PCB, and all metal like steel, aluminum and copper. Besides, all the machines are equipped with DSP handle and USB connection, which will bring great convenience by reading USB memory directly (Nc-studio and Mach 3 are also good choices).



With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, the machine is widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc.



Sign making - All types of 2D and 3D signs in woods, metals and plastics

Metal Fabrication - Non-ferrous part manufacturing

Plastic Fabrication - Engineering plastics, retail and point of sale

Solid Surface - Process modern and traditional materials

General Woodworking - Furniture, shopfitting, scenery production and more

Graphics and Print Finishing - Cut-to-print using multiple tools for all materials

Scenery and Sets - Fast turnaround and high quality processing.



Die Industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.



FAQ

1, Q: How can I get the machine ?

A: As a manufacturer we ware been verified by TUV, https://senkecnc.en.alibaba.com/company_profile.html?spm=a2700.shop_index.88.31  confirmed the model, we will issue the proforma invoice→the payment the machine started→machine ready the tested photo and video supplied→balance made, book boat and shipped



2, Q: After received the machine, how can i use it ?

A: the machine’s software was been designed and tested by our engineer, easy operate, come with the machine the teaching manual, video supplied , at the same time, the online support available such as wechat/whatsapp/remote teach etc



3, Q: How can i know, the machine can finished my work ?

A: the machine with various configurations which suitable for different jobs, show /description to us the result you wanted, we help to make solution, if needed, the sample supplied.



4, Q: what after-sale services you supplied?

A: 1. whole machine 2 years warranty, whole life free services

2. 7*24Hours available

3. teaching manual, video supplied , at the same time, the online support available such as wechat/whatsapp/remote teach etc.

4. Door to door available

      Consumable parts net cost supplied.
