Беспроводной цифровой вакуумный манометр с подсветкой измеритель
- Категория: Pressure Measuring Instruments >>>
- Поставщик: Wenling,Yangyi,Mechanical,And,Electrical,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.26 $* | 0.63 $* |
| Aug-18-2025 | 0.90 $* | 0.4 $* |
| Jul-18-2025 | 0.11 $* | 0.81 $* |
| Jun-18-2025 | 0.83 $* | 0.27 $* |
| May-18-2025 | 0.20 $* | 0.2 $* |
| Apr-18-2025 | 0.76 $* | 0.73 $* |
| Mar-18-2025 | 0.43 $* | 0.80 $* |
| Feb-18-2025 | 0.67 $* | 0.21 $* |
| Jan-18-2025 | 0.99 $* | 0.65 $* |
Характеристики
Contact me Now ↓↓↓
Description
About this item
* UPGRADED ELITECH TOOLS APP(IOS and Android): An intergraded app, that allows users to manage all Elitech tools such as vacuum pump, digital manifold, vacuum gauge, pressure gauge, refrigerant charging scale on one app, more efficient and more intelligent.
* WIDE MEASUREMENT RANGE & HIGH ACCURACY: Used to test system leak and discern vacuum pump quality of the evacuation in an HVAC and refrigeration system; accurate measurements from 19,000 Microns (atmosphere) to 0 Micron. Accuracy: ±10% or ±10 Micron
* MULTIFUNCTIONAL DESIGN: Settable high/low pressure alarms, notifications will be sent when readings go beyond the predetermined value. The data can be recorded and exported in Excel and PDF format.
* EIGHT MEASUREMENT UNITS: Easy conversion between 8 measurement units: inHg, Torr, psi, mbar, mTorr, Pa, micron, Kpa.
* HIGHER PROTECTION LEVEL(IP65 Rated): ensure a deep vacuum throughout the entire system and prevent the mist when the refrigerant is caused by refrigerant bottle blasting. 24/7 US Technician Support via Email and Phone.
* WIDE MEASUREMENT RANGE & HIGH ACCURACY: Used to test system leak and discern vacuum pump quality of the evacuation in an HVAC and refrigeration system; accurate measurements from 19,000 Microns (atmosphere) to 0 Micron. Accuracy: ±10% or ±10 Micron
* MULTIFUNCTIONAL DESIGN: Settable high/low pressure alarms, notifications will be sent when readings go beyond the predetermined value. The data can be recorded and exported in Excel and PDF format.
* EIGHT MEASUREMENT UNITS: Easy conversion between 8 measurement units: inHg, Torr, psi, mbar, mTorr, Pa, micron, Kpa.
* HIGHER PROTECTION LEVEL(IP65 Rated): ensure a deep vacuum throughout the entire system and prevent the mist when the refrigerant is caused by refrigerant bottle blasting. 24/7 US Technician Support via Email and Phone.
Detailed Picture
VGW-760 is a wireless digital vacuum gauge for obtaining accurate vacuum measurements during filling refrigerants. It features a professional vacuum sensor to precisely test vacuum. The evacuation of an HVAC and refrigeration system is to evacuate the air and moisture in the system, which, if mixed with refrigerants, may produce an acidic chemical reaction, causing damages to the system in long term. Generally, a system vacuum should be below 700 micron so that the moisture in the system can be effectively reduced.
The best vacuum is 300 micron. Common refrigerants cannot meet this requirement. VGW-760 is used to test system leak and discern vacuum pump quality.
The best vacuum is 300 micron. Common refrigerants cannot meet this requirement. VGW-760 is used to test system leak and discern vacuum pump quality.
*The larger a system is, the more stable the reading will be. If there's a leak in the system, the reading will increase immediately because of high resolution.
Specification
VGW-760
*The display will keep reading "_ _ _ _ _ _ " until a vacuum greater than 19000 microns is achieved.
Measuring Range: 0-19000 micron
Operating Temperature: 0℉~140℉(-178°C~60°C)
Accuracy: ±10% or ±10 Micron
Resolution: 0-400 1 Micron
400-3000 10 Micron
3000-10000 100 Micron
10000-19000 250 Micron
Auto-Off Time: 15 min
Measuring Range: 0-19000 micron
Operating Temperature: 0℉~140℉(-178°C~60°C)
Accuracy: ±10% or ±10 Micron
Resolution: 0-400 1 Micron
400-3000 10 Micron
3000-10000 100 Micron
10000-19000 250 Micron
Auto-Off Time: 15 min

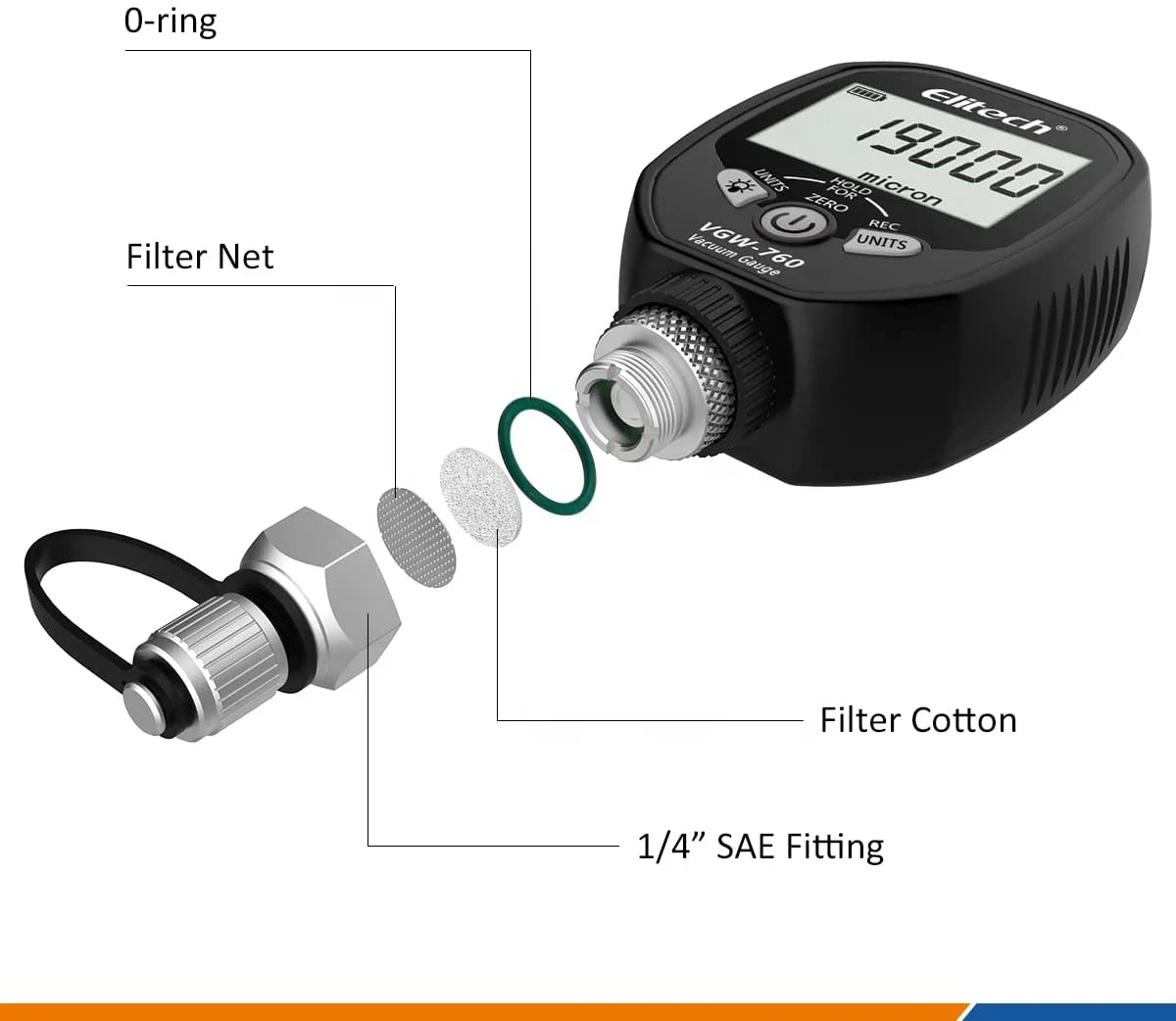

* Fitting: 1/4'' Male Flare
* Power Supply: 3 AA batteries
* Battery Life: 180h
* Offline Records: 9943 readings
* Max Overpressure: 27.5 bar
* Wireless Transmission distance: 98.5 feet

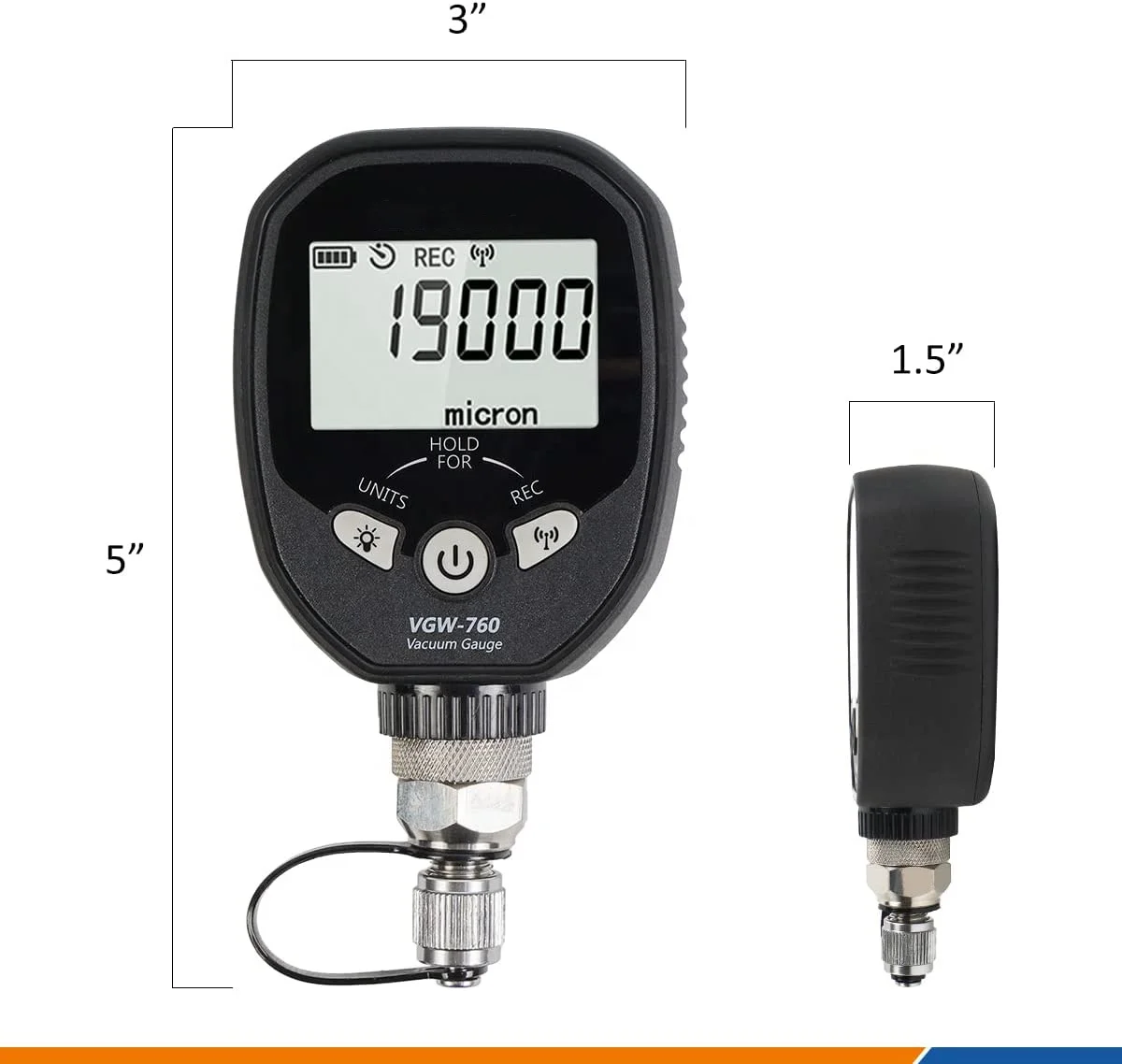

* Product Size: 5''*3''*1.5''
* Power Supply: 3 AA batteries
* Battery Life: 180h
* Offline Records: 9943 readings
* Max Overpressure: 27.5 bar
* Wireless Transmission distance: 98.5 feet
* Product Size: 5''*3''*1.5''

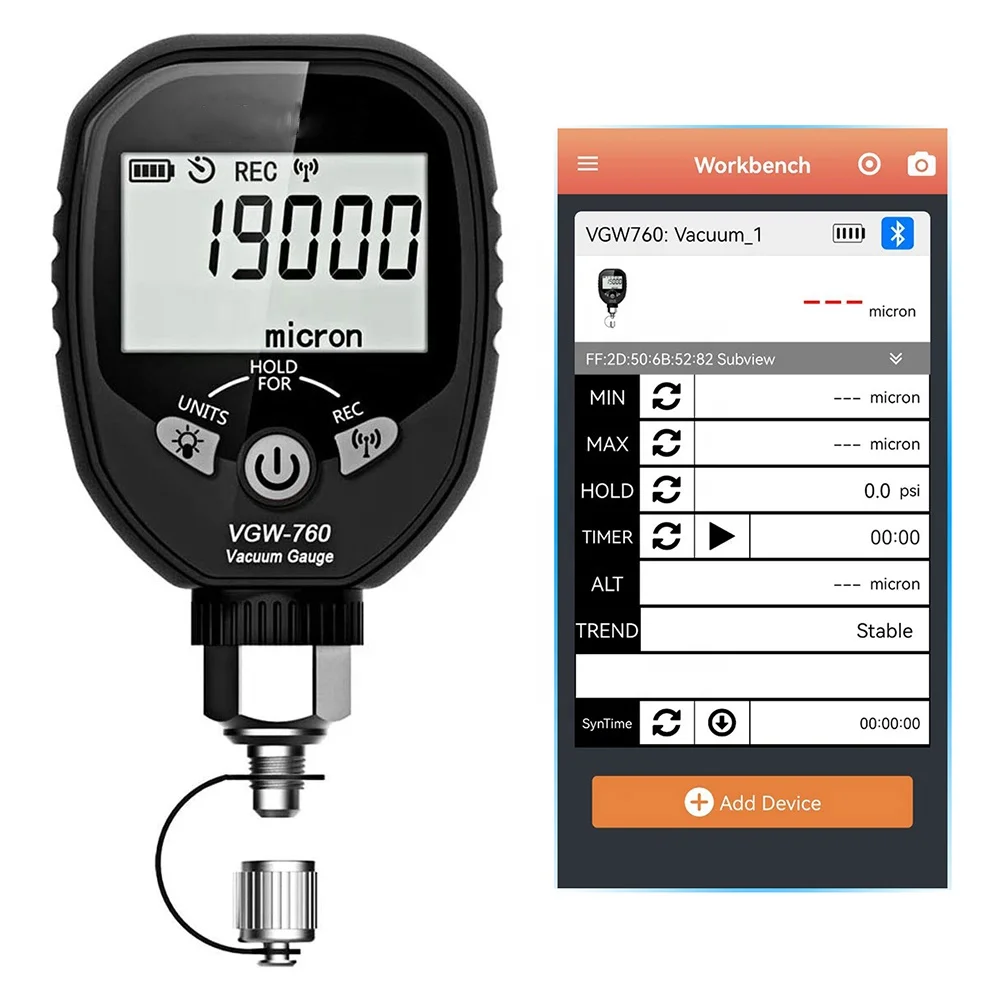

Free App and Wireless Control
* Elitech Scales offers free ios or android App.
* Wireless communication between the gauge and App control within a 98.5-foot (3m) range.
* Save records while working offline: 9,433 points
* With Elitech Gauge App, you can view or operate the pressure value directly on your mobile device or monitor the pressure data
from a distance. Also, the data report or graph can be exported for further analysis.
* Wireless communication between the gauge and App control within a 98.5-foot (3m) range.
* Save records while working offline: 9,433 points
* With Elitech Gauge App, you can view or operate the pressure value directly on your mobile device or monitor the pressure data
from a distance. Also, the data report or graph can be exported for further analysis.

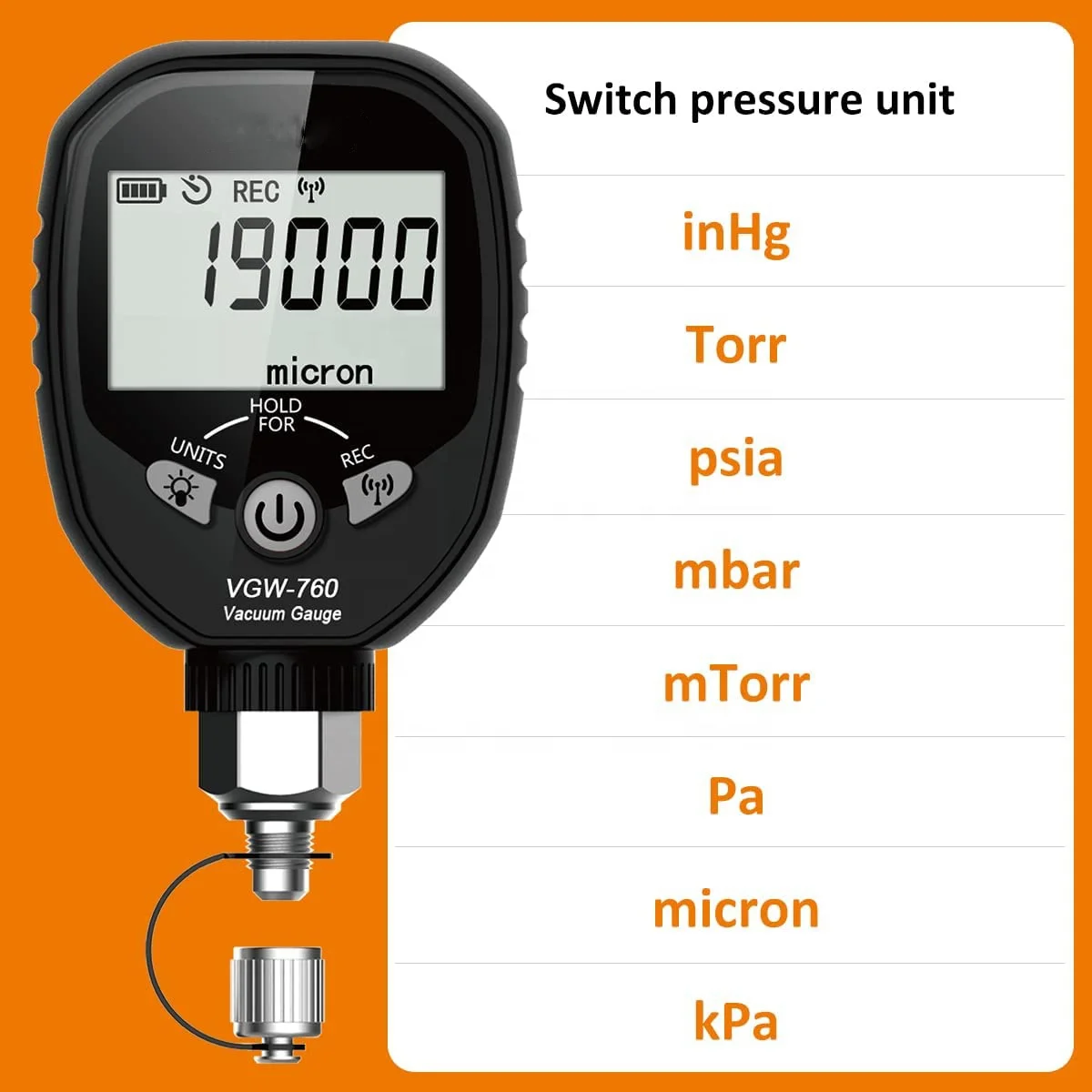

8 Units Conversion
It displays the measurements in 8 different metrics –inHg, Torr, psia, mbar, mTorr, Pa, micron, kPa, thus eliminating the need to use the calculator to convert the units for recording purposes.
Notice:
1. Using the gauge in a specified environment to avoid error or damage of the sensor is advised.
2. Using a chemical solvent or corrosive liquid to clean the gauge is not allowed.
3. Disassemble the gauge is not allowed.
4. Remove the batteries if the gauge is not to be used for a long time in case the leakage corrodes the gauge.
Notice:
1. Using the gauge in a specified environment to avoid error or damage of the sensor is advised.
2. Using a chemical solvent or corrosive liquid to clean the gauge is not allowed.
3. Disassemble the gauge is not allowed.
4. Remove the batteries if the gauge is not to be used for a long time in case the leakage corrodes the gauge.
How to use
Packing and Shipping
For Packing:
Each machine is under carefully packing.
We can pack the goods into quality carton box, pallets or wooden box with shipping mark.
For Shipping:
International Express Shipping
DHL, UPS, FedEx and TNT are widely used in our shipping, it is door-to-door delivery service, transit time is as followed picture.
Air Cargo
Cost-effective for you to ship your goods over at least 100kgs. The transit time is around 3~10 business days. The shipping cost is lower than international express, but you have to pick up the goods nearby your airport and manage the customs clearance all by yourself. Import duties and taxes may be imposed, but unfortunately we have no idea how much they will cost.
Cost-effective for you to ship your goods over at least 100kgs. The transit time is around 3~10 business days. The shipping cost is lower than international express, but you have to pick up the goods nearby your airport and manage the customs clearance all by yourself. Import duties and taxes may be imposed, but unfortunately we have no idea how much they will cost.
Sea Cargo
Ocean shipping is the most cost-effective way to ship your bulky and un-urgent orders. The shipping time varies from
15~25 business days depending on the season and destination you ship to.
15~25 business days depending on the season and destination you ship to.
Company Profile
ETL Certification
CE
ISO9001
