Характеристики



Product Introduction

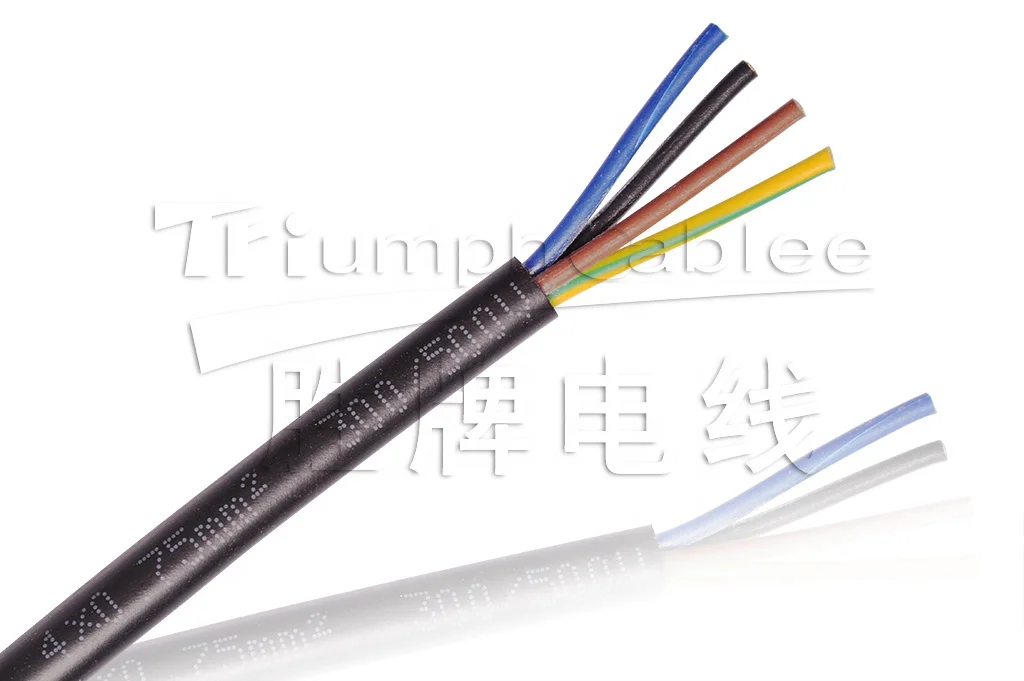

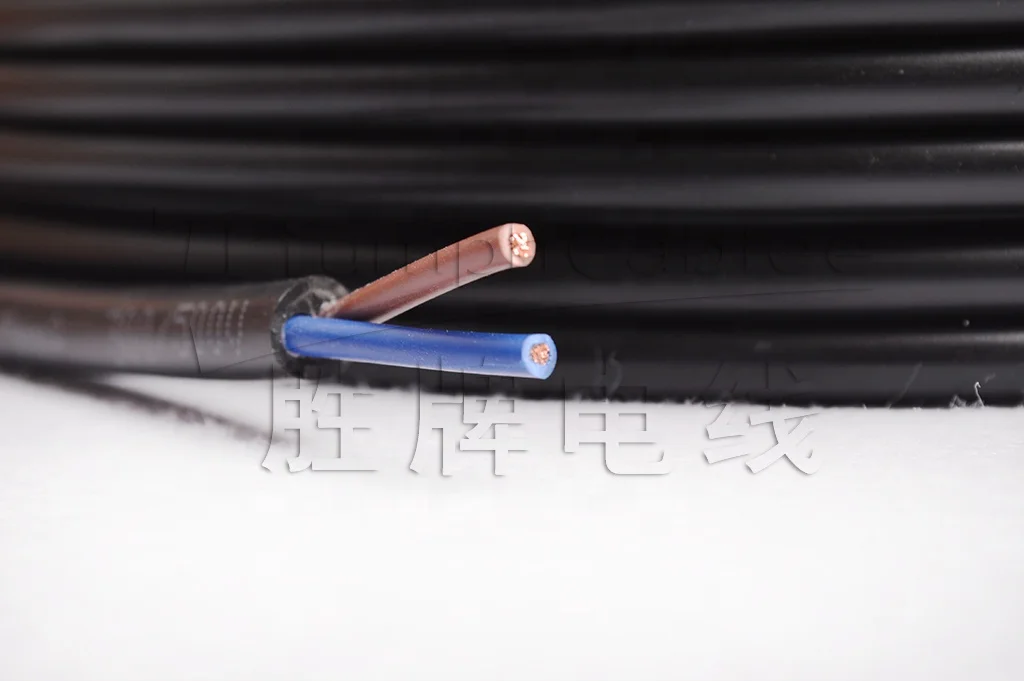

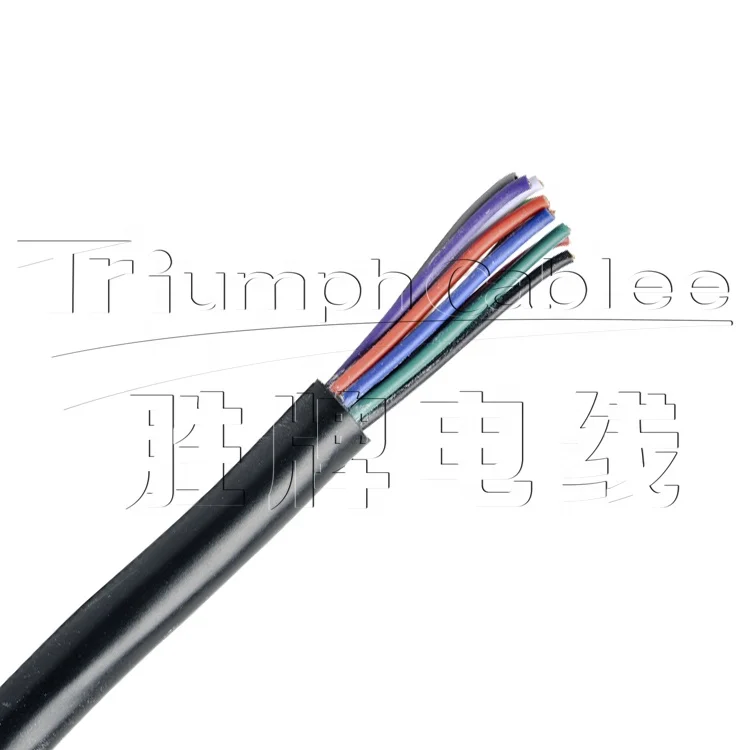

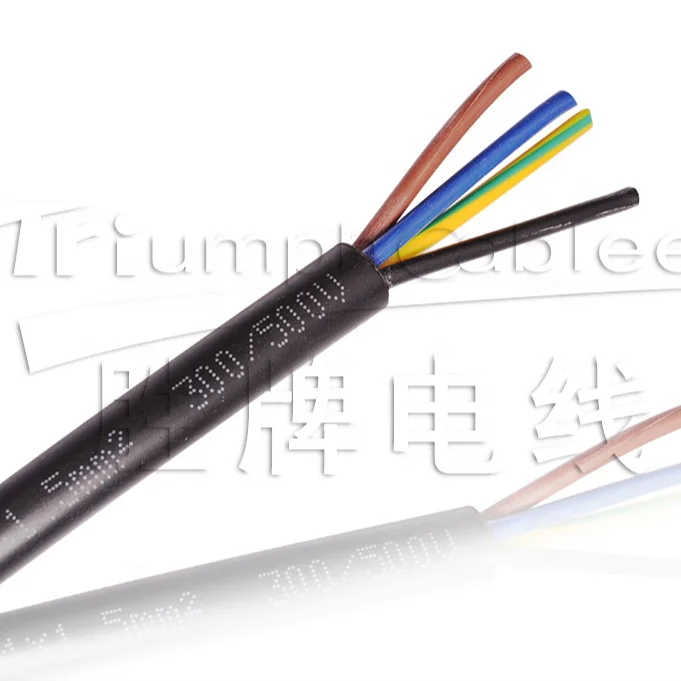

In stock LIYY style PVC insulation PVC sheath flexible no braided cable





Name
LIYY style PVC insulation PVC sheath flexible no braided cable
Type
Power cable
Conductor
Stranded copper
Insulation
PVC
Jacket
PVC
Color
Standard or by Customer's requirement
Rated Temperature
-30C ~ 80C
Rate Voltage
250V
Test
GB/T5023.3-2008
Standard
CCC 227 IEC53
Certificate
ISO, CCC,VDE
Application
Internal wiring of power supply cord
Packing
Roll(coil),spool or by customer's requirement
Lead time
3~5 working days













Cables designated as LiYY are unscreened flame-retardant multicore PVC cables for indoor signal and data transmission in indoor industrial applications such as computer systems, measuring equipment and process control devices in offices, laboratories and production lines under low mechanical and tensile stress. This range is particularly well suited to applications requiring a cable with a small overall diameter.

LiYY cables with a cross-section of up to 0.14mm2 have a voltage rating of 350V. Larger cross-sections have a voltage rating of 500V. They have an operating range from -40oC to 80oC in fixed installations and -5oC to 50oC when flexed.

LiYY cables are also available up to 36 cores as standard. For more information and larger core sizes, please refer to the technical specification or speak to our sales team.

Our LiYY cables are manufactured to VDE 0812 standards and are flame retardant to VDE 0472 and IEC 60332-1-2.

The LiYY Cable is available with twisted pairs configuration. Twisted pairs (TP) are used to cancel out any electromagnetic interference from external sources or crosstalk from neighbouring pairs.

Alternatively, Cables supplies a comprehensive range of LiYCY, with an overall tinned copper braid screen which offers protection against mechanical stress as well as external electromagnetic interference. For all types of European automation cable there are low smoke zero halogen variations including LiHH and LiHCH.

LIYY CABLE SELECTION
The LiYY cables form part of TRIUMPH Cables' comprehensive range of control cables, signalling, and data transmission cables. For advice on cable selection, LiYY core colour and sizes, please see the LiYY datasheet or contact our technical team to discuss the requirements of your specific application.


Certificate of TRIUMPH CABLE

1)UL Certificate:
E249743: 1007;1015;1028;1095;1283;1533;1571;1617;1061;1185;1347;1569;1581;1672. 2096;2547;2725;2835;2919;2992;20288;2097;2549;2726;2851;2935;2993;2464;
2562;2733;2854;2990;2994;2468;2571;2833;2877;2991;20276;
E347603: 1330;1331;1332;1333;1430;10107;3122;3135;3239;3271;3385;3132;3173;3266;3321;3386;2501;2570;2587;20233;20379;20866;20963;21913;2517;2586;2651;20231;20549;20940;21885
E249745: SPT-1;SPT-2;SPT-3.

2)VDE certificate file No. 40042278
H03VV-F 2...3X0.5 ... 0.75mm2
H03VVH2-F 2...3X0.5 ... 0.75mm2
H05VVH2-F 2...3X0.5 ... 1.0mm2

3)CCC certificate file No. 201901014149494,201901014149497,

4)ISO 9001:2015
SGS PVC wire test report No.:CANEC1807823801.
SGS FEP wire test report No.: CANEC1807823805.
SGS Silicone wire test report No.: CANEC1807823809.
SGS PE wire test report No.: CANEC1807823807.

5)CE certificate:
MODEL(S): ROBOT CABLE,TRVV TRVVP TRVVPS TRVVY,FLEX DRAG CABLE UL 2464,
20276,2587,20234,20549.2097,2501,2096,2547,2725,2835,2993,2919,2992,20288,
2549,2726,2851,2935,2464,2562,2733,2854,2990,2994,2468,2571,2833,2877,2991,
20276,219 3,21885,20379,2587,2570,2517,2651,1007,1015,1028,1061,1095,
1185,1283,1347,1430,1533,1571,1569,1581,1617,1672,10107,SPT-1,SPT-2,SPT-3;
60227 IEC 52(RW); 60227 IEC 53(RVV),RVB,AWR,RWP,60227 IEC 02(RV),
60227 IEC 06(RV),RW,RVS,60227 IEC 08(RV-90),AVR,AVR-90,H03W-F,
H05W-F,H03WH2-F,H05WH2-F




Product Processing




Product Packing




Main Products


100% hot sale Super soft silicone wire

From 4 gauge to 30 gauge in stock; Moq is one roll (100m,200m,300m packing); very small copper dia is 0.08 per strand; more color by choose.

Silicone fiberglass wire & cable

From 0.3mm to 100mm size ;Moq is one roll;high temperature 200C resistant;fiberglass abrasion resistant; more color by choose;

Silicone power cable

From 0.3mm to 10.0mm size; Moq is one roll; high tempearture 200C resistant;more color by choose or by requirment.



High speed singal transpant shield electric cable

There are 3 cores to 30 cores, Moq is one roll(100m/roll); bent resistant 8 million;Oil resistant.

Building copper wire and cable

There are BVR,BV,RV... for building.

More size more color low Moq in stock fast lead time .

PVC or silicone Flat cable for

from 10awg to 30awg size ; there are 2cores ... 50cores; the color by requirment .



Halogen free electric calbe &wire

There are different voltage 300v ,600v in stock. For example UL3266,UL3385,UL3386,UL3173...

SPT power cable

The cable pass UL certificate, Stand UL subject 62; the conducto is from 12awg to 20awg .

FEP wire and cable

There are voltage 300v,600v wire in stock. FEP material . UL certificate . For example UL1330,UL1332...



Why Choose Us


About us

1, the company professional to produce electric wire and cable.

Electric wire in stock

2, there are 500mm2 whare house , there are thousands styles wires in stock.Low Moq, short lead time.

Quality assurance

3, There are Voltage test machine, Elongation testing machine,Electronic hydrometer. stable product quality , supply, the good faith managemen.



Our Company


Triumph Cable, located in Dongguan, is a professional electric wire and cable maker specialized in the production of diverse range of cables.
As a professional electric wire and cable maker,triumph cable has over ten years of production experience.We also have got the quality control system including UL certificate,  and a laboratory which test each kind of physical performance to guarantee the quality of our products. Main products include:Hook-up Wire, Computer Cable, Power Supply Cord, Halogen-free Wire, FEP Wire, Spiral Shield Cable, Ribbon-type Cable, Light Decoration Wire ,Flexible Cable,Irradiation Wire.Triumph Cable provides wires and cables that are utilized in diverse fields, from electrical equipment,communication facilities to automotive electronics and electrical appliance ,with operating temperature ranging from -100°C to 250°C. At present, we have constructed to a great sales-network in domestic and overseas markets. With great sincerity and kind cooperation spirit ,we truly welcome more and more overseas companies establish business relationship with us. Surely we can provide products with great quality and more favorable price.
