Привод демпфера Winvall 0 ~ 10 в моторизованный модулирующий управляющий привод электрический


Поделиться:


Цена:53,41 $ - 60,87 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-20-2025 67.48 $* 68.66 $*
Jul-20-2025 55.66 $* 56.31 $*
Jun-20-2025 66.94 $* 67.96 $*
May-20-2025 66.9 $* 67.8 $*
Apr-20-2025 52.57 $* 53.82 $*
Mar-20-2025 65.99 $* 66.31 $*
Feb-20-2025 64.75 $* 65.80 $*
Jan-20-2025 64.33 $* 65.12 $*

Характеристики




Product Description

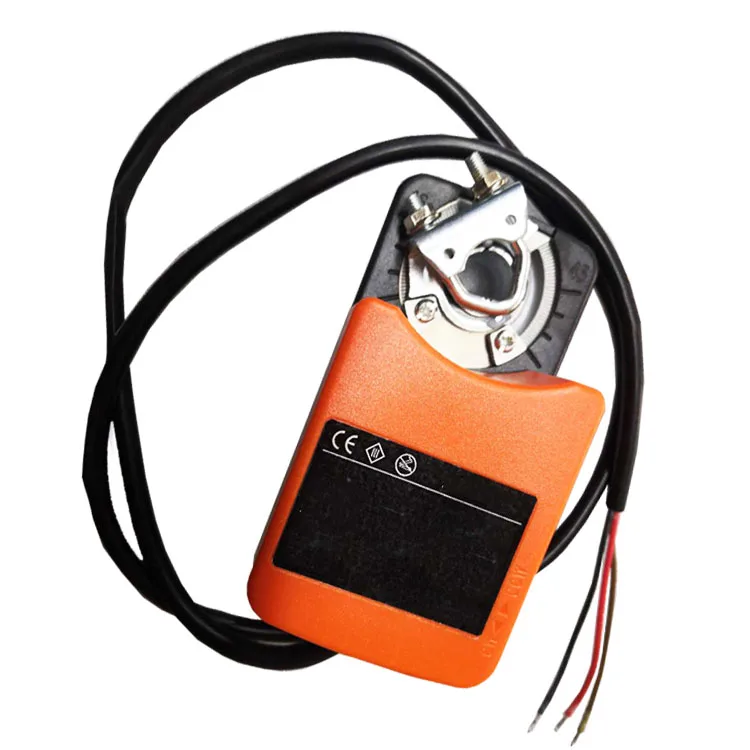

 Winner Air Damper Actuator

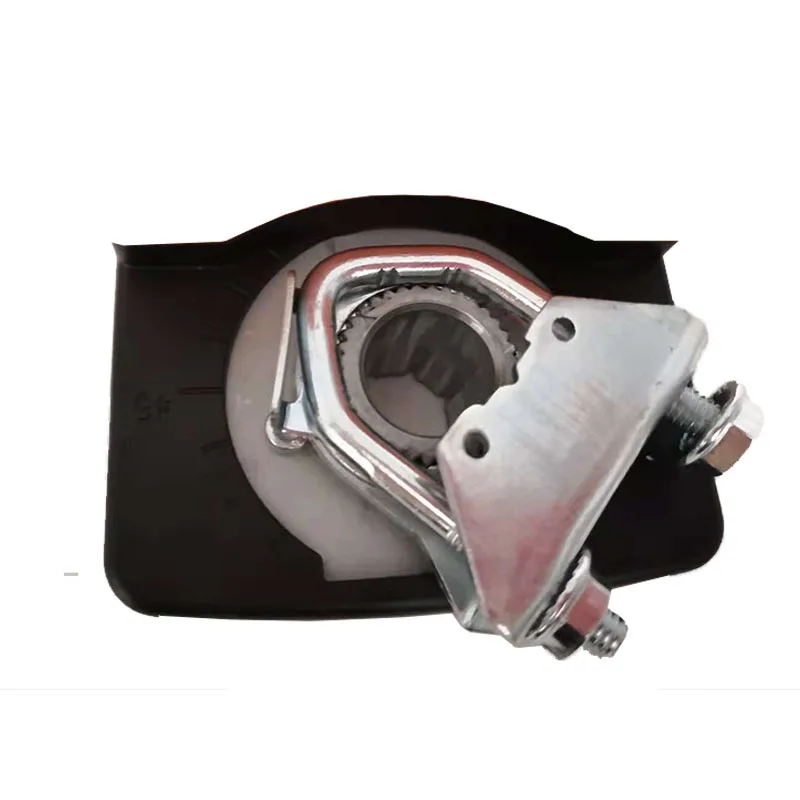

 The actuator is suitable for cicular spindle with 10~18mm, or square spindle size 6~12mm, length >40mm, and the rotation direction can be reversed by pushing the CCW/CW switch side of the case. To change the input/output signal valve, open the case, and find the JP plug on the PCB. The control signal valve can be changed by connecting the plug. Torque could be 4, 6, 10N.m

















wire connection.jpg











































































Model Code


AK200-D04AK24-A/D04
TypeAK200-D..AK24-A/D
Power SupplyAC230VAC/DC24V
Run time30~150s30~120s
Operating Power12VA, 3W5VA, 3W
Standstill power12VA, 3W5VA, 3W
Output angle90 degree (95 degree max)
ON/OFF Control Signal2 wires control
Modulating Control signal 1DC0 (2)...10V (100k ohm)
Modulating Control Signal 2DC0 (4)...20mA (500 ohm)
Modulating Feedback signal DC0 (2)...10V
Protection classIP54
Ambient Conditions-10..+50 Celsius Degree, 0~90% RH
Noise Max40dB (A)
Weight600...900g




2


-1


-3--_23
