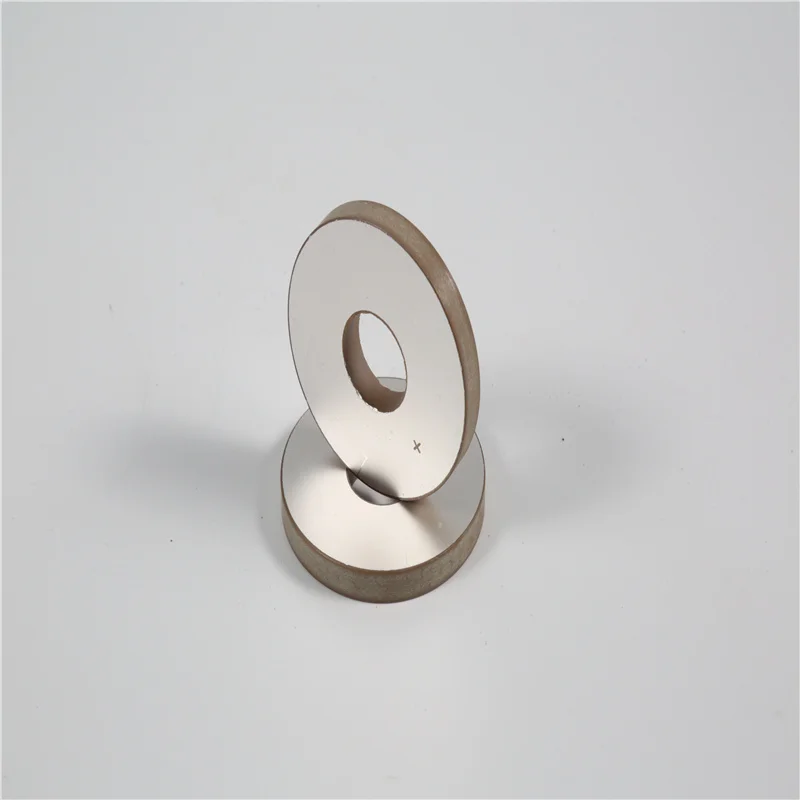

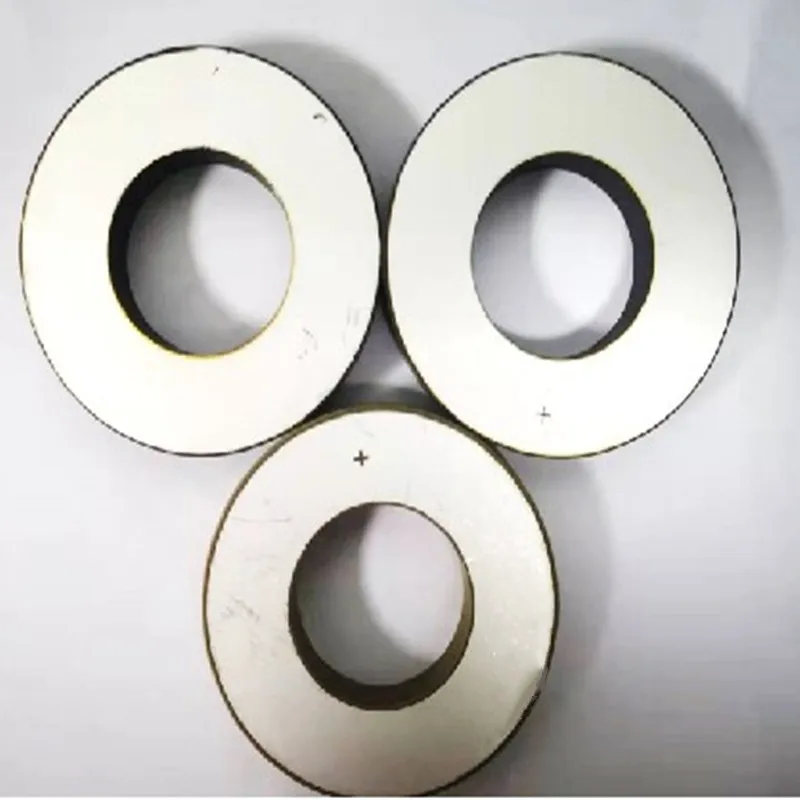

Пьезоэлектрический керамический ультразвуковой преобразователь


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.65 $* 0.80 $*
Aug-15-2025 0.65 $* 0.75 $*
Jul-15-2025 0.94 $* 0.96 $*
Jun-15-2025 0.17 $* 0.55 $*
May-15-2025 0.20 $* 0.67 $*
Apr-15-2025 0.30 $* 0.5 $*
Mar-15-2025 0.29 $* 0.10 $*
Feb-15-2025 0.30 $* 0.55 $*
Jan-15-2025 0.29 $* 0.84 $*

Характеристики









NO.
Dimensions
Capacitance CT(pF)
Resonant frequency
Fs(kHz)
Coupling coefficient
Kp(%)
Q factor
Qm

1
P4Φ25×Φ10×5
1000
60.9
60
1000
2
P4Φ30×Φ15×5
1285
47
60
1000
3
P4-Φ35×Φ15×5
1905
42.6
60
1000
4
P4-Φ38×Φ12.7×6
2035
42
60
1000
5
P4-Φ38×Φ15×5
2320
40.2
60
1000
6
P4-Φ38×Φ15×6.5
1785
40.2
60
1000
7
P4-Φ40×Φ15×5
2620
38.7
60
1000
8
P4-Φ50×Φ17×6.5
3240
31.8
60
1000
9
P4-Φ50×Φ17×7.5
2805
31.8
60
1000
10
P4-Φ50×Φ20×6
3330
30.5
60
1000
11
P4-Φ50×Φ20×7
2855
30.5
60
1000
12
P4-Φ50×Φ23×6.5
2890
29.2
60
1000
13
P4-Φ50×Φ23×7.5
2505
29.2
60
1000
14
P4-Φ60×Φ30×10
2570
22.7
60
1000


NO.
Dimensions
Capacitance
CT(pF)
Resonant frequency
Fs(kHz)
Coupling coefficient
Kp(%)
Q factor
Qm
1
P-82Φ20×Φ10×5
425
77.3
53
800
2
P-82-Φ25×Φ10×5
750
66.3
53
800
3
P-82-Φ25×Φ12×5
690
62.7
53
800
4
P-82-Φ30×Φ10×5
1140
58
53
800
5
P-82-Φ30×Φ12×5
1075
55
53
800
6
P-82-Φ32×Φ12×5
1255
52.7
53
800
7
P-82-Φ35×Φ15×5
1425
46.4
53
800
8
P-82-Φ38×Φ15×5
1735
43.8
53
800
9
P-82-Φ40×Φ12×5
2075
44.6
53
800
10
P-82-Φ50×Φ17×5
3150
34.6
53
800
11
P-82-Φ50×Φ17×6.5
2425
34.6
53
800
12
P-82-Φ50×Φ17×7.5
2100
34.6
53
800
13
P-82-Φ50×Φ20×6
2495
33.1
53
800
14
P-82-Φ50×Φ20×7
2135
33.1
53
800
15
P-82-Φ50×Φ23×6
2340
31.8
53
800
16
P-82-Φ50×Φ23×6.5
2170
31.8
53
800
17
P-82-Φ50×Φ23×7
2005
31.8
53
800
18
P-82-Φ60×Φ30×10
1925
25.8
53
800
19
P-82-Φ69×Φ33×11
2380
22.7
53
800
20
P-82-Φ70×Φ30×10
2850
22.7
53
800




Wuxi Marcia Founded in 2012 is focusing on mechanical equipment, customized mold services, with more than 10 years of overseas export business experience, and has our own CNC machining center.
The main products are plastic welding equipment, such as hot melt welding equipment, high frequency welding equipment, ultrasonic welding equipment; customization services including welding mold tooling customization, bottle mold customization, mold core mold cavity thread and other molding parts customization, as well as related plastic products supply.
Through more than 10 years of development and accumulation, the products are exported to more than 20 countries, such as the United States, Canada, Mexico, Peru, Chile, Indonesia, Thailand, Malaysia, Uzbekistan and so on.
Adhere to the "integrity first, heart service" principle, is committed to become your trustworthy partner in China, we warmly hope to work together to create a better future!













Question: How can I make the correct welding mold for replacement work against the existing welding machine?:
A.Concerning the welding horn, please make sure the ultrasonic frequency first ,20khz or 15khz.
Then measure the welding zone dimension ,namely length by width. Last one is to measure the installation screw size .
B ,refer to the welding roller , it is better to supply the relation drawing , if it is impossible .
Please show us your final product welding shape , and please measure the shaft end dimension which is necessary .

Question: How about the procedure after getting your order :
A. around 5 business days for us  to make the machine against your order.
B. related testing video , machine pictures are sent to you before packing
C. packing procedure pictures for you
D. Arrange the shipping for you, and keep you informed the tracking number
E .Our technical support service  member will be engaged  for the coming set up job and guide you to run the machine smoothly . Technical support from us not only limited by email communication ,as well as the instant messages,  video chatting .
we will create a service group  for your side as whatsapp ,messengers, wechat etc.
F .Periodical following up for machine operation.

Question: how about the preparation work for running an ultrasonic welding machine ?
A, Ultrasonic welding machine comes with 220 Volt.(Please check your power supply, sometimes
B, transformer is needed)
C, An air compressor is needed
D, A hose which will connect the machine and air compressor.
Namely ,Ultrasonic welding machine a hose an air compressor
E,Tips about the hose:
Please make sure the air hose of welding machine first , If the hose of your air compressor different, please just add an adapter to join the two different hoses.
