Характеристики

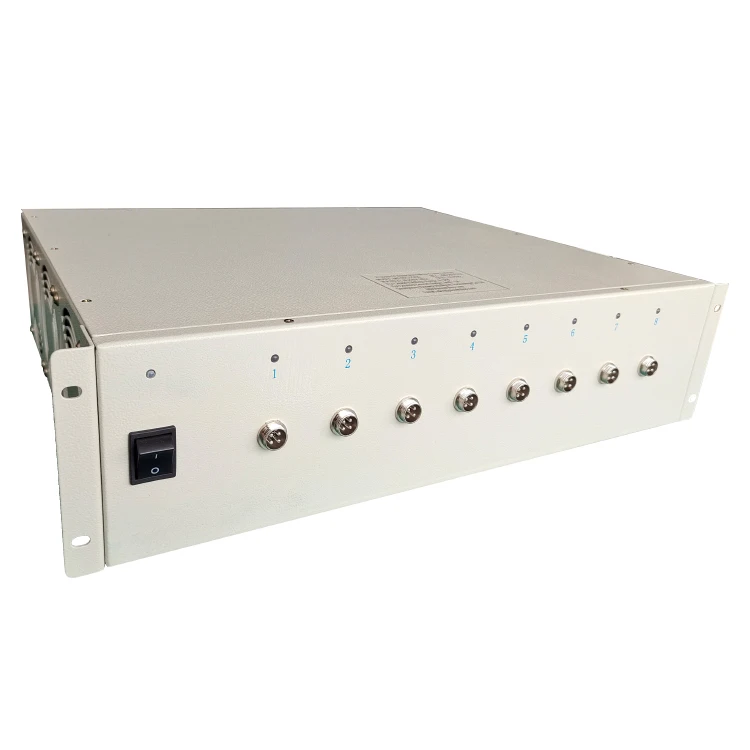

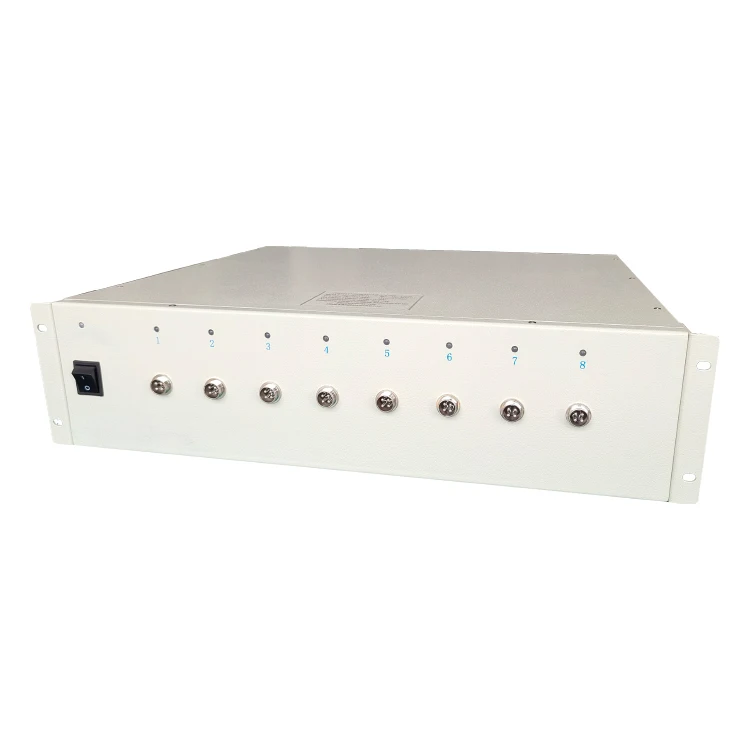

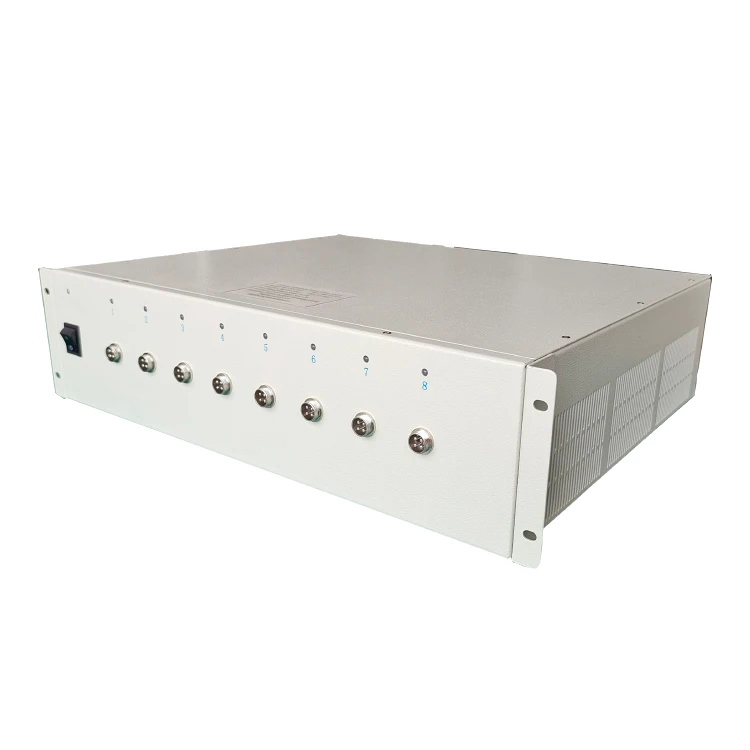

8 Channel Low Power Lithium-Ion Battery Testing System
XW-BTS is an eight-channel battery analyzer to analyze small coin cells and cylindrical batteries from 0.01A to 10A, up to 5V. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software. This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc. Brand new laptop with
MS Window 8, MS Excel 2013 30 days free trial and latest version testing software are installed and calibrated for immediate use (Up to 20 sets of analyzers can be simultaneously controlled by one PC).
MS Window 8, MS Excel 2013 30 days free trial and latest version testing software are installed and calibrated for immediate use (Up to 20 sets of analyzers can be simultaneously controlled by one PC).
Battery Testing System
Model | 5V1mA | 5V5mA | 5V10mA | 5V20mA | 5V50mA | 5V200mA | 5V3A | 5V6A | 5V10A | |||||||||
Work Voltage: AC 110/220V ±10% , 50/60Hz | ||||||||||||||||||
Resolution: AD：16bit；DA：16bit | ||||||||||||||||||
Input Resistance: ≥1MΩ | ||||||||||||||||||
Input Power | 40W | 40W | 40W | 40W | 40W | 40W | 120W | 240W | 400W | |||||||||
Channel Features: Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure | ||||||||||||||||||
Channel Control Mode :Independent Control | ||||||||||||||||||
Voltage | ||||||||||||||||||
Per Channel Voltage Range: Charge：0.025V~5V；Discharge：0.025V~5V | ||||||||||||||||||
Discharge Min Voltage | 10mV | 10mV | 10mV | 10mV | 10mV | 50 mV | 10mV | 10mV | 10mV | |||||||||
Accuracy: ± 0.1% of FS, Stability: ± 0.1% of FS | ||||||||||||||||||
Current | ||||||||||||||||||
Per Channel Current Range | -1~+1mA | -5~+5mA | Charge：0.2~40A；Discharge：0.2~40A | Charge: 0.04~20mA,Discharge: 0.04~20mA | Charge: 0.1~50mADischarge: 0.1~50mA | Charge: 0.4~200mA, Discharge: 0.4~200mA | Charge: 6mA~3A, Discharge: 6mA~3A | Charge: 12mA~6A,Discharge: 12mA~6A | Charge: 20mA~10A Discharge: 20mA~10A | |||||||||
Accuracy: ± 0.1% of FS, Stability: ± 0.1% of FS | ||||||||||||||||||
Power | ||||||||||||||||||
Per Channel Output Power | 5 mW | 25 mW | 50 mW | 100 mW | 250 mW | 1 W | 15 W | 30 W | 50 W | |||||||||
Stability: ± 0.2% of FS | ||||||||||||||||||
Rise Time: 20 ms, Step Time: 1s≤Single Step Time Range≤365*24 h，Time Form Support 00：00：00(h, min, s) | ||||||||||||||||||
Aux Channel | Aux Input: Temperature, Voltage , Temperature：-25℃~110℃ , Temperature Accuracy：±2℃ Temperature Resolution: 0.1℃, Voltage Accuracy: ±0.1% of FS | |||||||||||||||||
More information, please contact us | ||||||||||||||||||
Features
1. ALL the equipment above can be customized accounting on different ranges of current (1mA-1000A) and voltage (5V-120V).
2. Capable of testing the temperature and inner resistance of Li-ion, Li-polymer, Ni-Mn, Ni-ca batteries, and SM bus function of notebook batteries.
3. Auto data saving and intelligent power failure protection.
4. Prevention of battery reverse-connection and protection of over-currency, over-voltage and over-temperature.
5. Hardware dual loop control on non-gap transition between constant current and constant voltage.
6. Capable of remote control with usage of C/S mode.

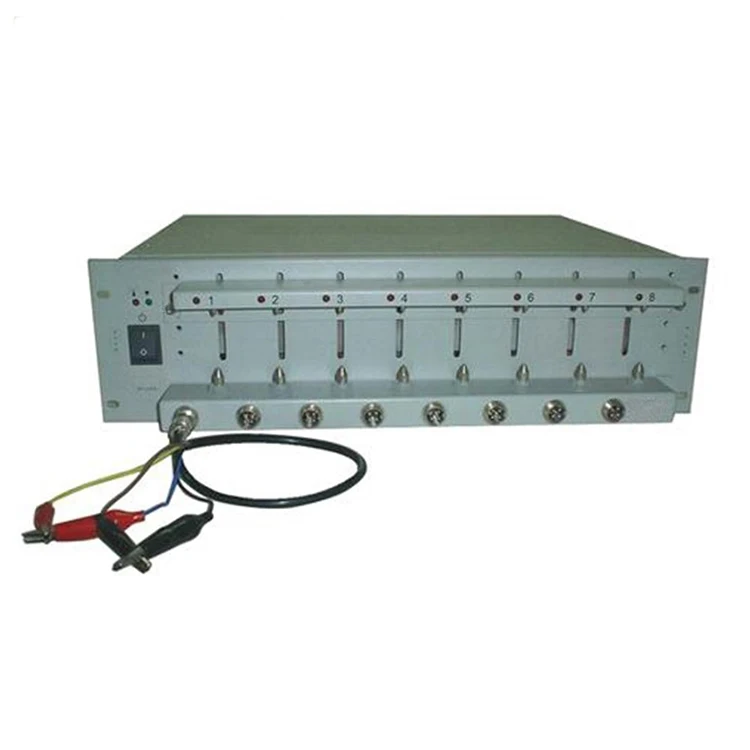

7. All kinds of batteries and cells can be fixed by general-purpose (4-leads) battery clamp, alligator clip, and polymer battery clamp.
8. Voltage and current accuracy correction software offered for free.
2. Capable of testing the temperature and inner resistance of Li-ion, Li-polymer, Ni-Mn, Ni-ca batteries, and SM bus function of notebook batteries.
3. Auto data saving and intelligent power failure protection.
4. Prevention of battery reverse-connection and protection of over-currency, over-voltage and over-temperature.
5. Hardware dual loop control on non-gap transition between constant current and constant voltage.
6. Capable of remote control with usage of C/S mode.
7. All kinds of batteries and cells can be fixed by general-purpose (4-leads) battery clamp, alligator clip, and polymer battery clamp.
8. Voltage and current accuracy correction software offered for free.
