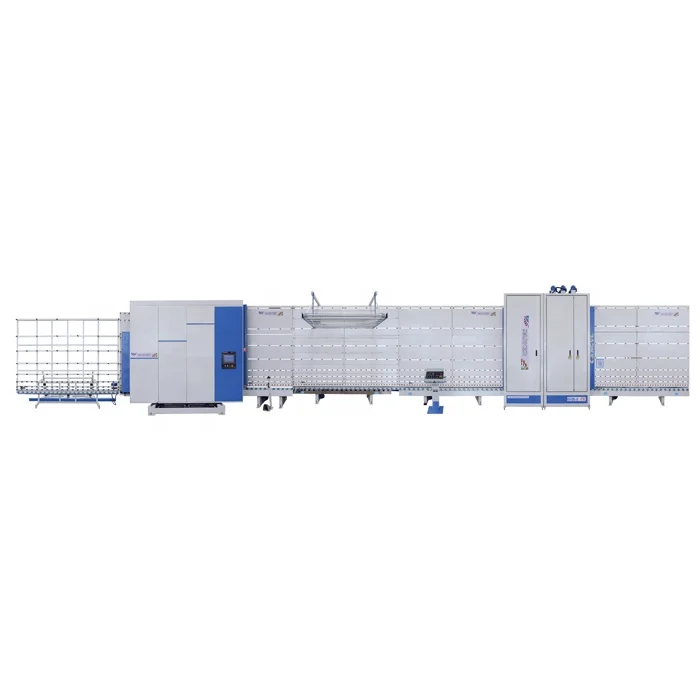

Vertical Automatic Insulating Glass Production Line

Model: IGV25-S
Features:
ØThe electric component, sensor and PLC auto-controlling is imported low power supply;
ØThe appliance is efficient for the operator can input the order continuously;
ØTouching screen is imported originally. It is easy to operate. The process and fault can be showed automatically;
ØIt is controlled by punctuated system which is energy-saving. The inspecting and combining speed up when other non operating parts are intelligent-asleep;
ØIt can produce big and small scale insulating glass(Optional)
ØCleaning Part is consisted of stainless steels. Three pairs of brush can work separately. It can recognize the LOW-E glass automatically. So it can protect the LOW-E glass from scratching.
ØThis machine adopts inverter control transmission motor. So it can easily slow down and accelerate.
ØThis machine has the self- diagnosis function, which is easy for check the error.



Parameter:
1. Voltage:380V 50HZ
2. Power:35KW
3. Air consumption:260L/min
4. Max. process dimension:2500mm x 5000mm
5. Min. process dimension:250mm x 480mm
6. Max. Thickness:40mm
7. Washing Glass Thickness:3-25mm
8. Convey speed:12-40m/min
9. Cleaning Speed:0-8m/min
10. Max. processing speed:40m/min
11. Overall dimension:26000mm x 3000mm x 3600mm
