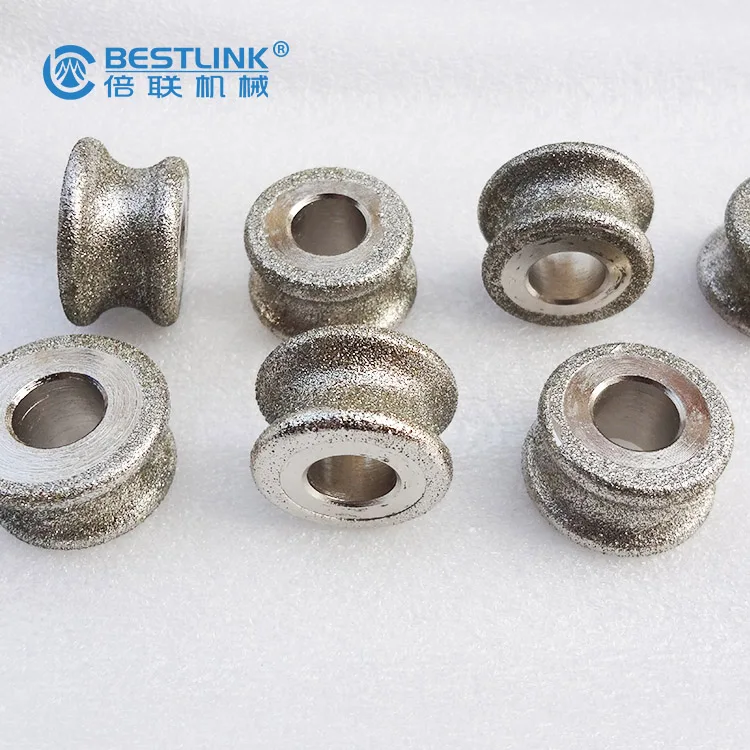

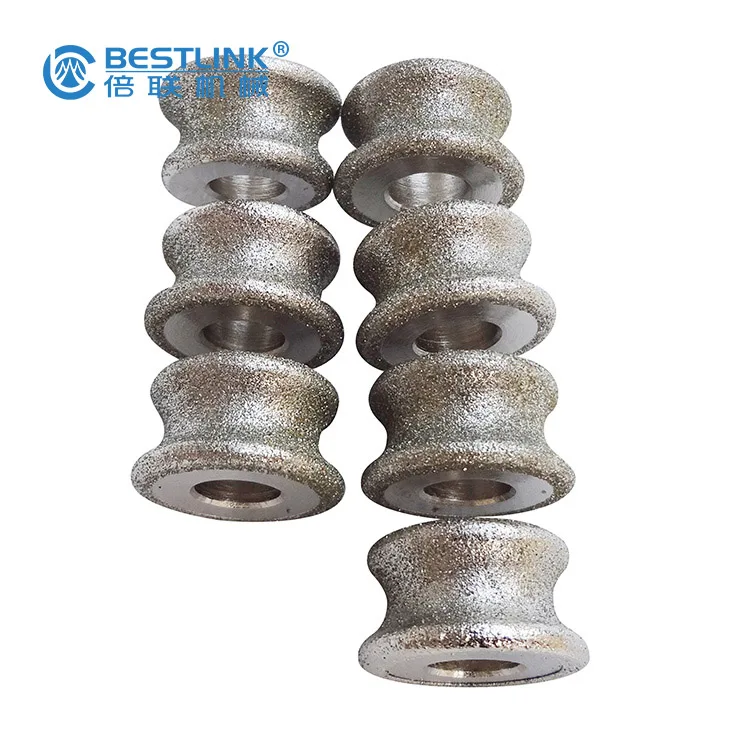

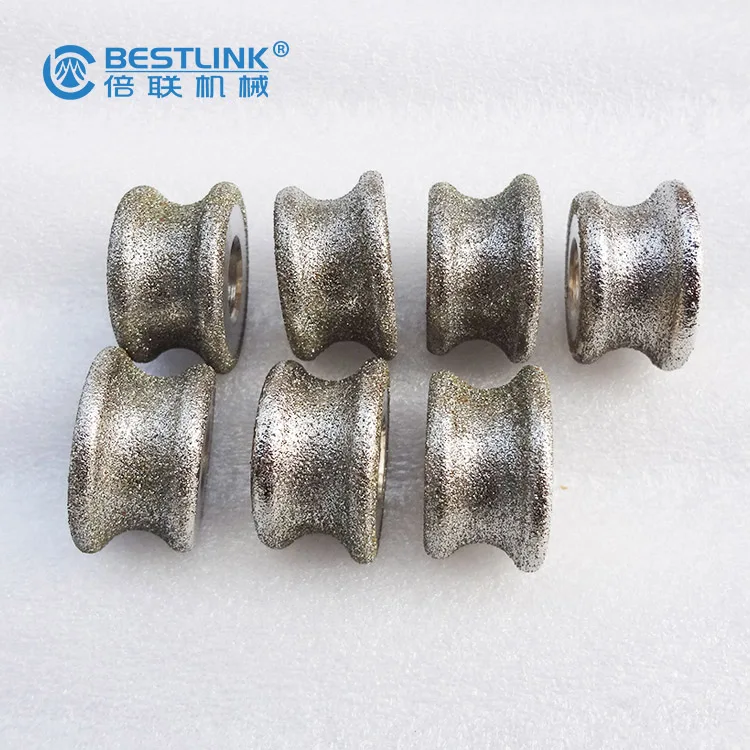

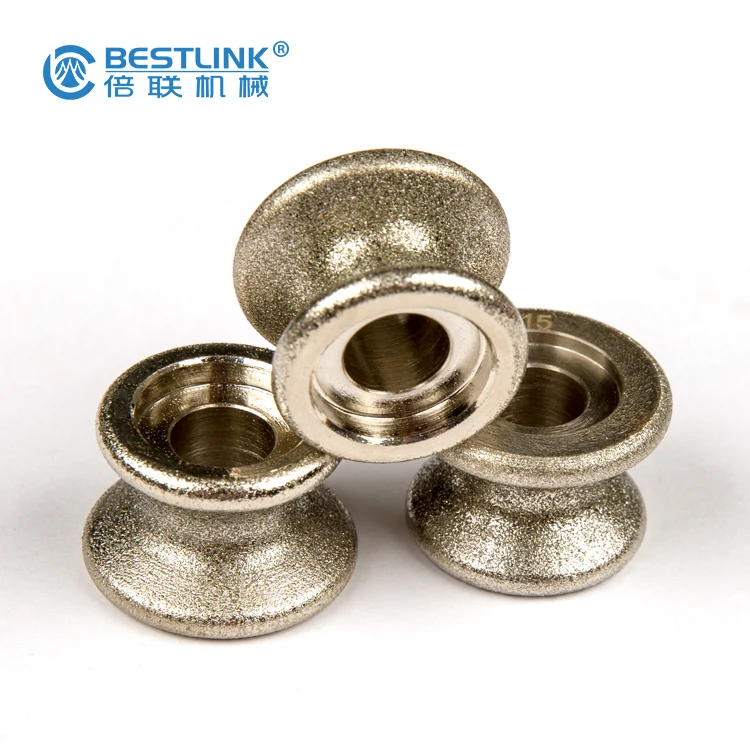

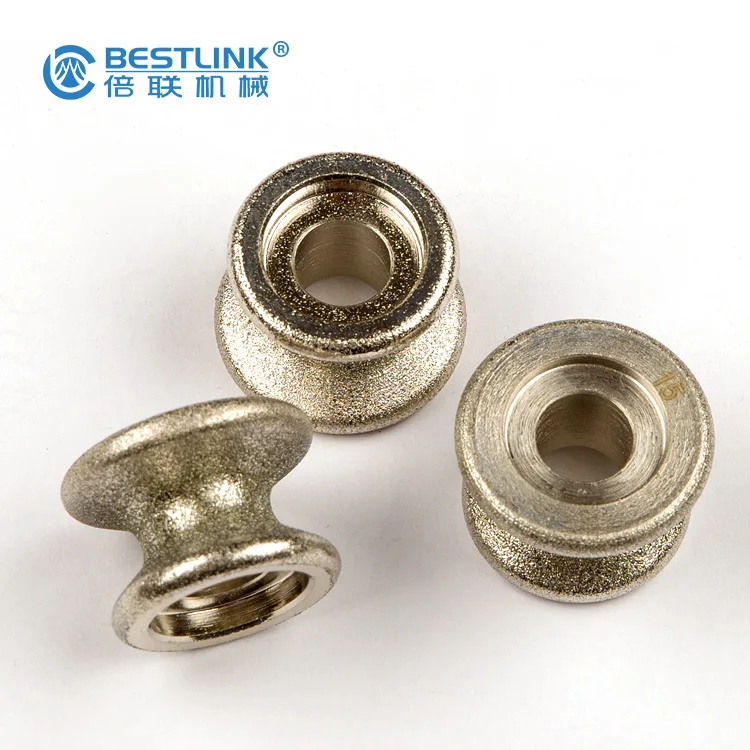

Стандартные алмазно-зернистые колеса 87001339 для измельчения

Цена:25,00 $ - 30,00 $*

Количество:

BESTLINK supplies high quality grinding wheel which fit the Secoroc Grind B grinding machines and the Atlas Copco

A buttonb it should normally be regrounnd when the drilling penetration rate starts to be

reduced or if the button insert is damaged.

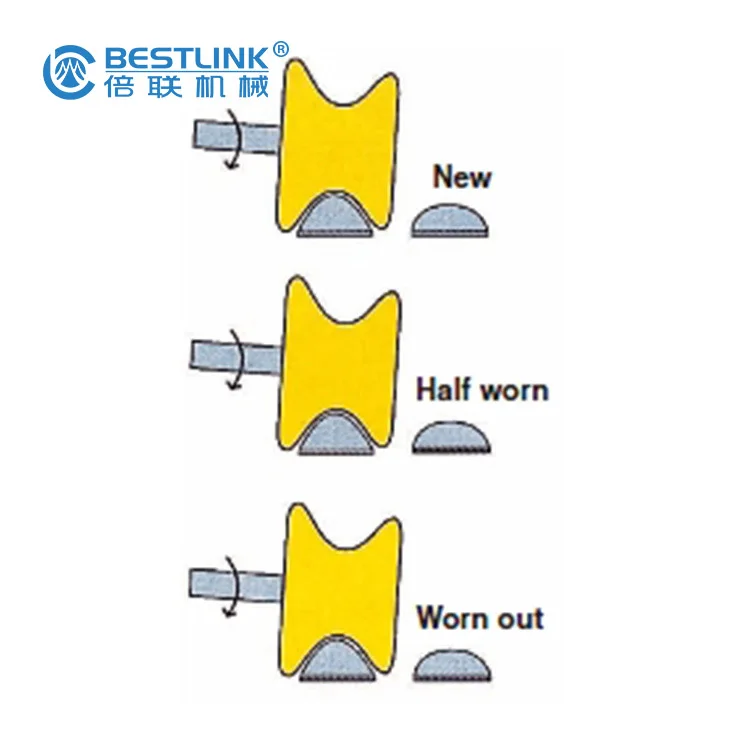

To obtain the best possible penetration rate and bit life, the insert should be reground when

the flat of the insert is worn to a size of maximum of 1/3 of the insert diameter.

Bit type	Grinding machine	Dimension, mm	Part No.
Button bit, spherical	Grind Matic BQ2, Grind Matic Manual B, Grind Matic Matic BQ2-DTH, Grind Matic Manual B-DTH with handgrinder 30.000 rpm	7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 18.0 19.0	9500-1028 9500-1026 9500-1389 9500-1023 9500-3406 9500-1024 9500-1339 9500-1025 9500-1384 9500-1027 9500-3964 9500-3966
	Wheel with large diamond grains	9.0 10.0 11.0 12.0 13.0	9500-3969 9500-3970 9500-3971 9500-3972 9500-3973
Button bit, ballistic	Grind Matic, BQ2, Grind Matic Manual B, Grind Matic Manual B-DTH with handgrinder 30.000 rpm	7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 18.0 19.0	9500-3407 9500-3408 9500-3409 9500-3410 9500-3411 9500-3412 9500-3413 9500-3414 9500-3415 9500-3416 9500-3965 9500-3967
	Wheel with large diamond grains	9.0 10.0 11.0 12.0	9500-3974 9500-3975 9500-3976 9500-3977
Button bit, spherical	Grind Matic Manual B-DTH	10,0 11,0 12,0 13,0 14,0 15,0 16,0 18,0 19,0	9500-2033 9500-2042 9500-2043 9500-2044 9500-2045 9500-2046 9500-2032 9500-2097 9500-2174
